Elevated Coastal Garage Apartment

Plan 68980VR

  • 783

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Stories

  • 2

    Cars

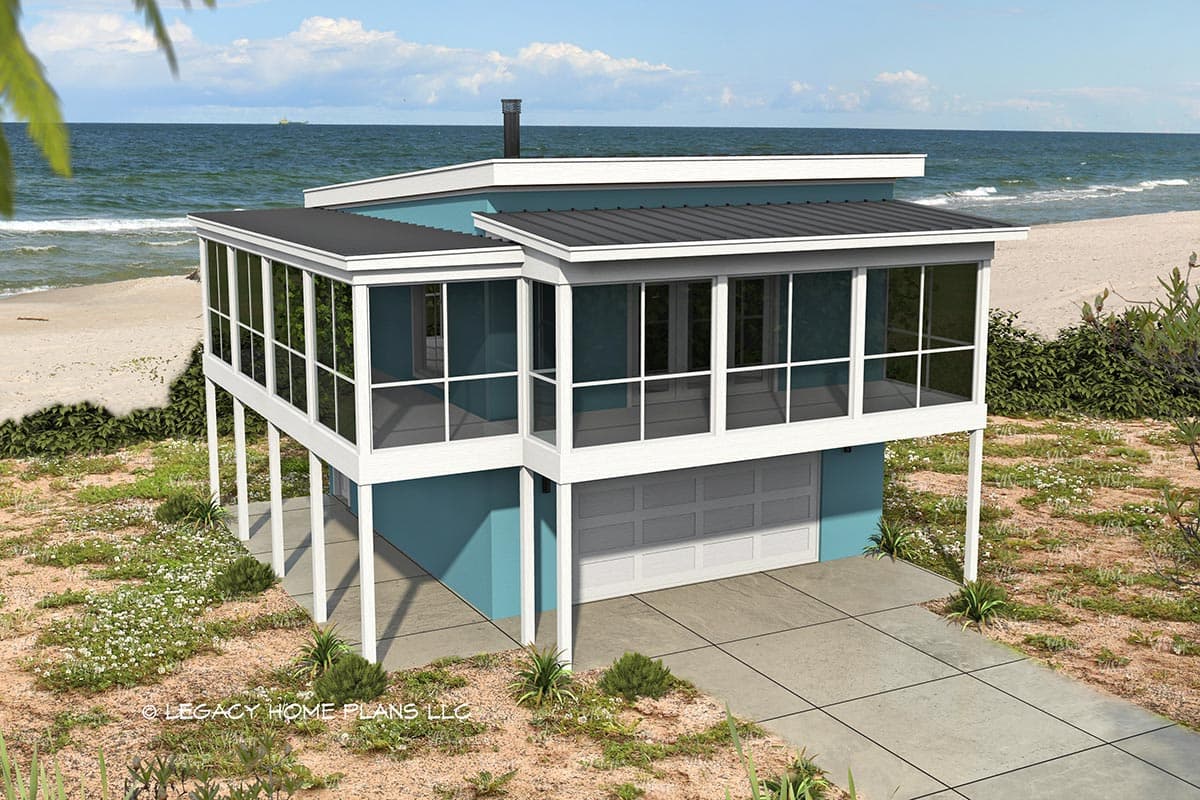

  • This garage apartment is equally at home overlooking the water or in the mountains. The ground level has a single 16' by 8' garage door giving you parking for 2 vehicles.
  • Upstairs, the ceilings slope down from the front to the back with the front open wall to wall with a kitchen and living room.
  • Folding doors open to the screen porch which wraps around the left side.
  • Pocket doors get you access to the bedroom which has laundry in the walk-in closet.
  • Related Plan: Get an alternate version with house plan 68665VR.

This plan set has the following details:

a) Floor Plans: House plan drawings indicating dimensions for construction

b) Roof Plan: Drawings indicating roof slopes and unique conditions

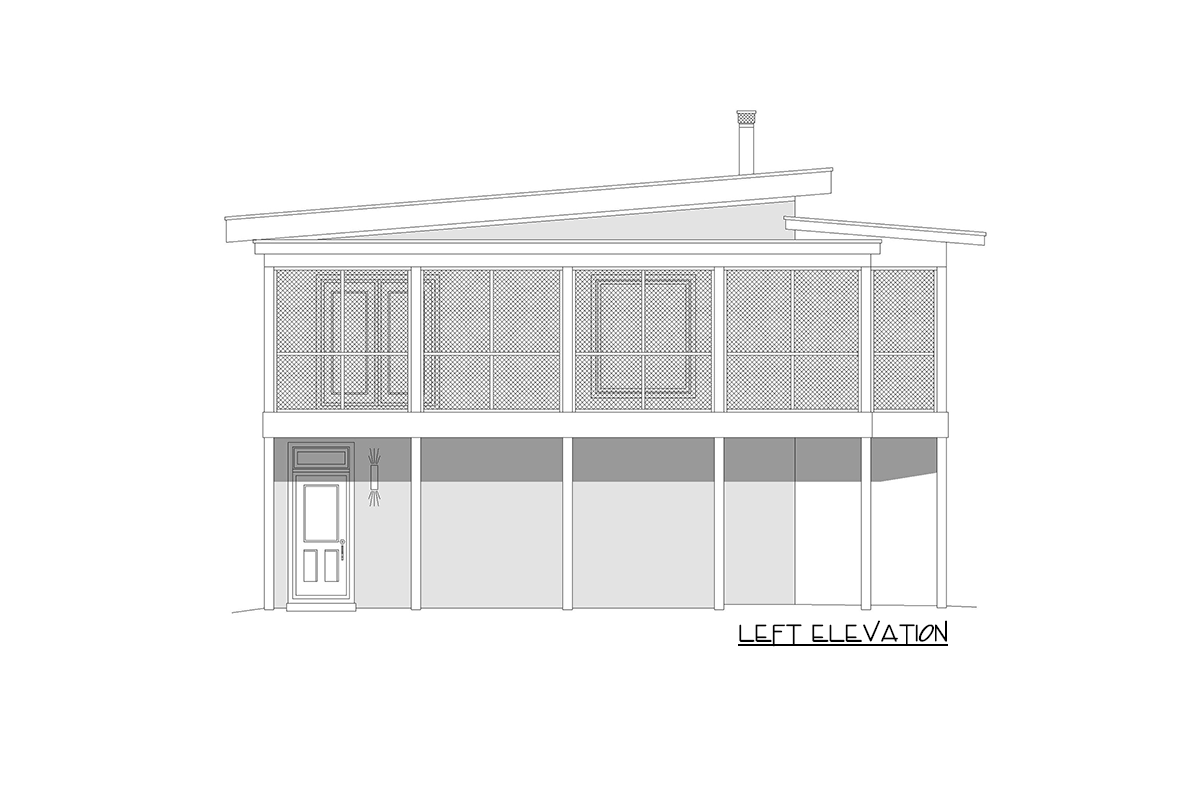

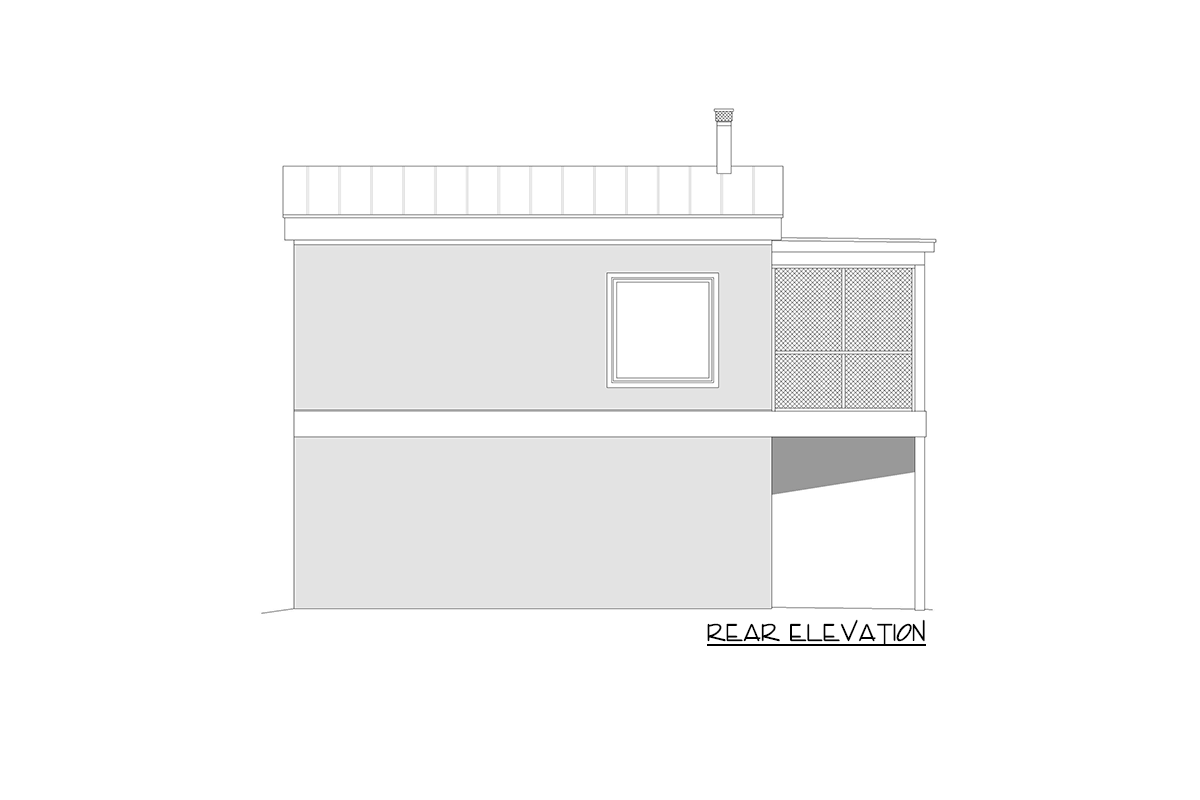

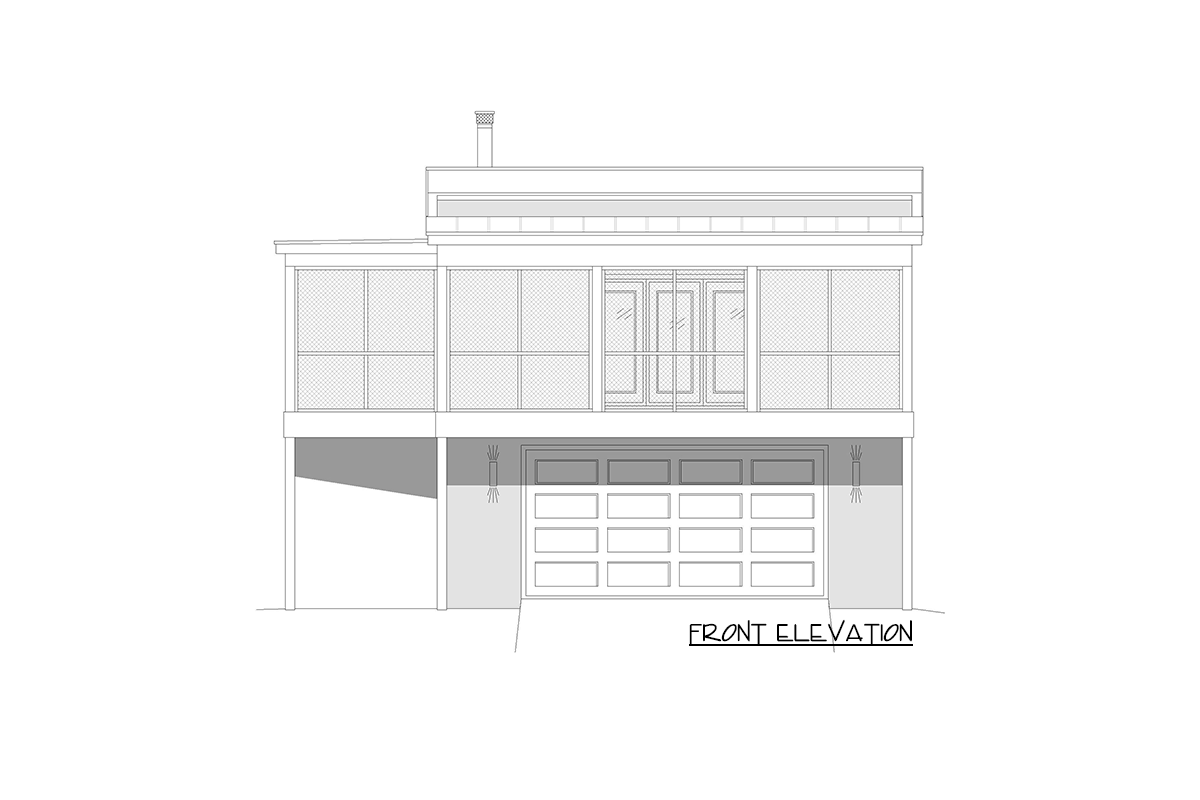

c) Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim

d) Building Sections: Drawings cut through important locations in the structure

e) Construction Details: Drawings showing specific construction of building elements at a large scale

f) Kitchen and bath elevations (excluded on garage plans)

g) Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)

h) Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure

i) A building license: A single-use license for construction at one location only


These items are NOT included:


  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

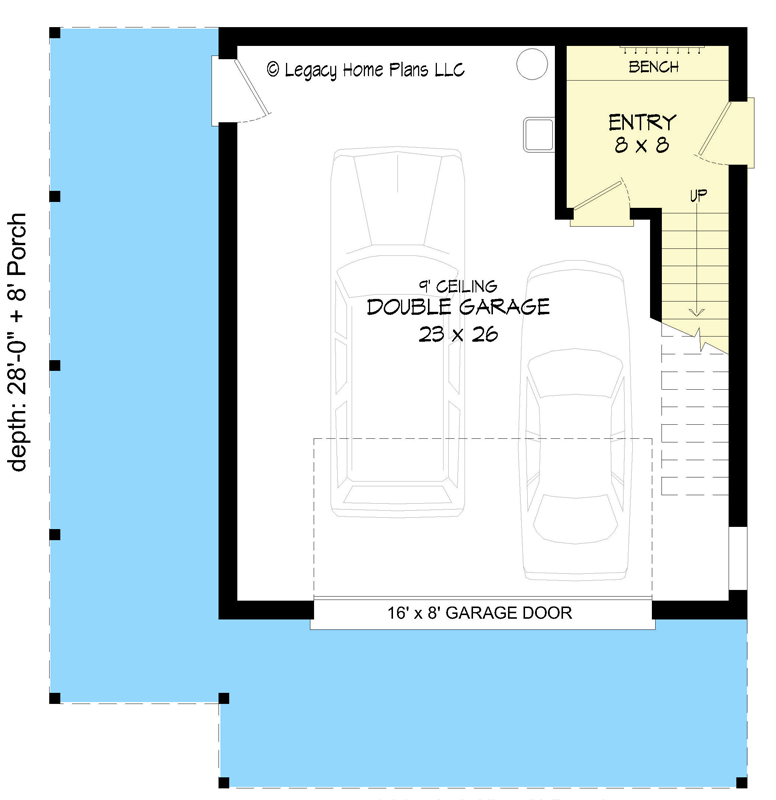

Elevated Coastal Garage Apartment - 68980VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

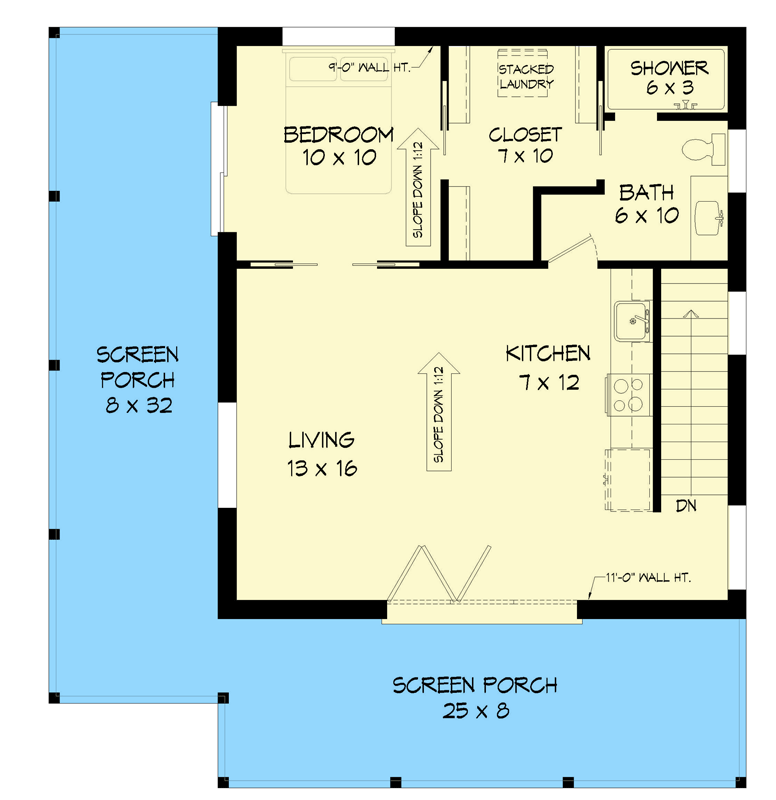

Elevated Coastal Garage Apartment - 68980VR floor plan - 2nd Floor

Elevated Coastal Garage Apartment

  • 783

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 783 sq. ft.
  • 1st Floor: 83 sq. ft.
  • 2nd Floor: 700 sq. ft.

Dimensions

  • Width: 25' 0"
  • Depth: 28' 0"
  • Max ridge height: 22' 8"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 617 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 1 on 12
  • Framing Type: Stick
