Elevated Lakeside Cabin

Plan 59952ND

  • 1,970

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Stories

  • The 8' entry porch is perfect for relaxing in the evenings with friends.
  • Enter this cottage house plan into the dining area and kitchen with island seating for four.
  • Enjoy the great room with vaulted ceiling open to the upstairs and a rock hearth fireplace.
  • To conserve space, two bathrooms have showers only.
  • The master bedroom has access to the rear screened porch. Access to the porch may also be gained from the great room.
  • Upstairs is a loft with a window seat and a fourth bedroom with vaulted ceiling.
  • Related Plan: Get a non-elevated version with house plan 59154ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

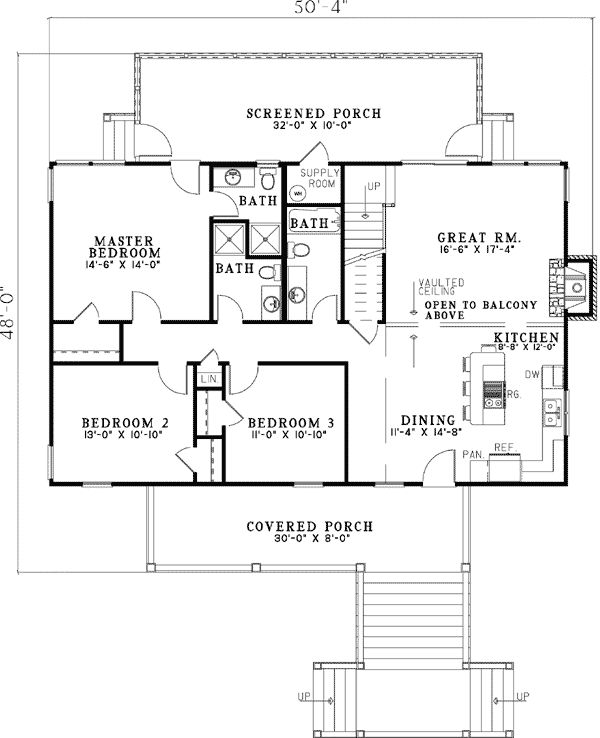

Elevated Lakeside Cabin - 59952ND floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

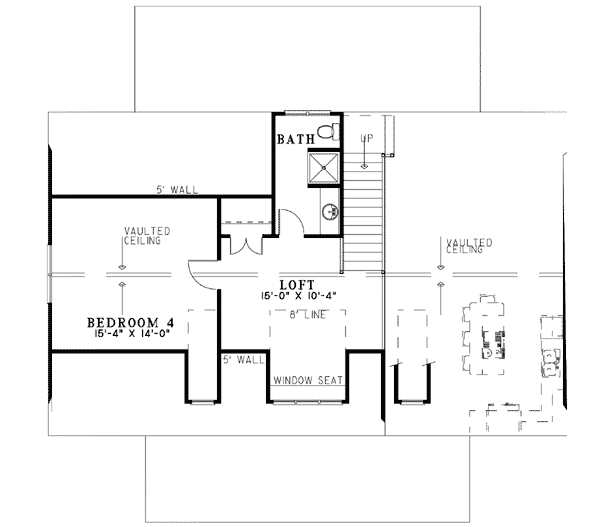

Elevated Lakeside Cabin - 59952ND floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,970 sq. ft.
  • 1st Floor: 1,440 sq. ft.
  • 2nd Floor: 530 sq. ft.
  • Screened Porch: 320 sq. ft.
  • Porch, Front: 240 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 4"
  • Depth: 48' 0"
  • Max ridge height: 21' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4.5 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Elevated Lakeside Cabin

  • 1,970

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $1,000
  • 5 Sets $1,100
  • 5 Sets + PDF $1,350
  • PDF - Unlimited Build $1,700
  • CAD Unlimited + PDF $2,000
  • View all purchase option online

About This Plan

  • The 8' entry porch is perfect for relaxing in the evenings with friends.
  • Enter this cottage house plan into the dining area and kitchen with island seating for four.
  • Enjoy the great room with vaulted ceiling open to the upstairs and a rock hearth fireplace.
  • To conserve space, two bathrooms have showers only.
  • The master bedroom has access to the rear screened porch. Access to the porch may also be gained from the great room.
  • Upstairs is a loft with a window seat and a fourth bedroom with vaulted ceiling.
  • Related Plan: Get a non-elevated version with house plan 59154ND.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,970 sq. ft.
  • 1st Floor: 1,440 sq. ft.
  • 2nd Floor: 530 sq. ft.
  • Screened Porch: 320 sq. ft.
  • Porch, Front: 240 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab, Crawl
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 50' 4"
  • Depth: 48' 0"
  • Max ridge height: 21' 2"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4.5 on 12
  • Framing Type: Stick
