Energy-Saving Courtyard Home Plan

Plan 33039ZR

  • 3,191

    Heated s.f.

  • 4-5

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • With the energy-saving features designed into this house plan, you can experience annual energy savings of 40-50% when compared to a newly constructed-code home.
  • This home plan was designed to offer views of the inviting courtyard, the center of this unique home from all main floor public rooms.
  • Although only 40' wide, the house is loaded with luxury amenities including a private staircase leading from the master suite to the courtyard below, a very private guest suite, 10' ceilings, oversized dining and breakfast areas and light gathering transom windows in the well-appointed kitchen.
  • There is a private rear lanai accessed from both the living room and convenient china-cabinet hall.
  • The upstairs study, convenient to the master bath and bedroom, may be converted to a fifth bedroom and bath.
  • Luxury living goes high-performance.
  • Related Plans: For alternate exteriors, see house plans 33040ZR and 33041ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details

Floor Plan

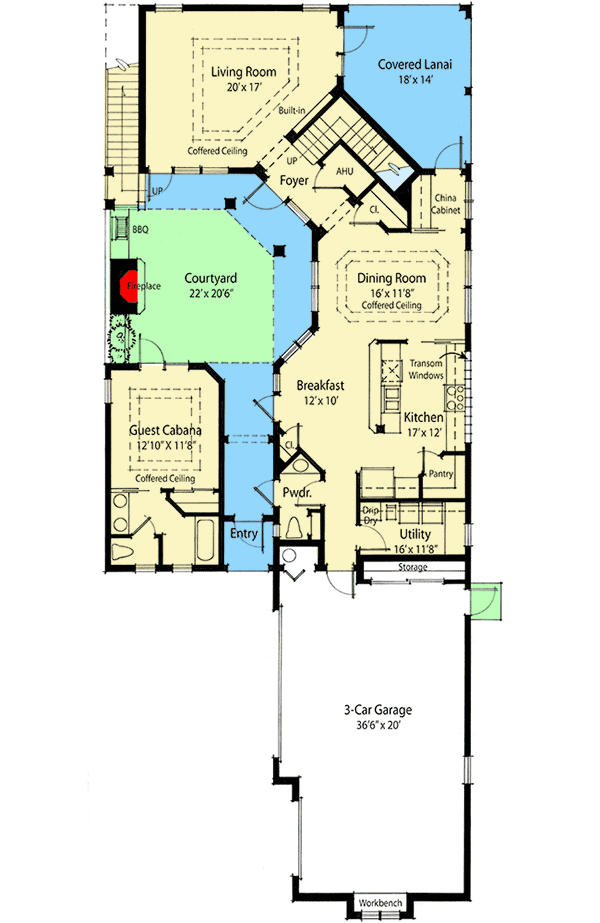

Main Level

Pinit white
Reverse Floor Plan
Energy-Saving Courtyard Home Plan - 33039ZR floor plan - Main Level

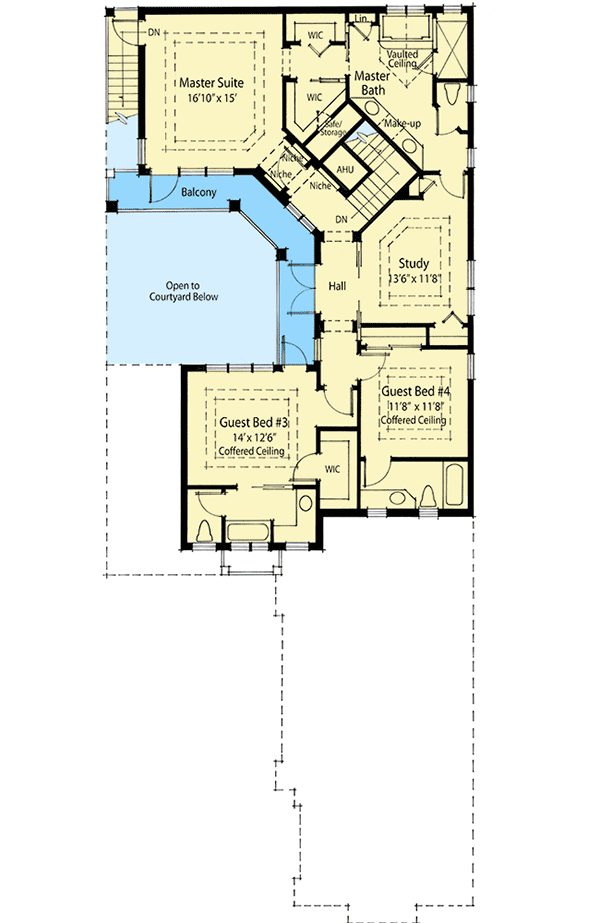

2nd Floor

Pinit white
Reverse Floor Plan
Energy-Saving Courtyard Home Plan - 33039ZR floor plan - 2nd Floor

Optional Second Floor with Fifth Bedroom

Pinit white
Reverse Floor Plan
Energy-Saving Courtyard Home Plan - 33039ZR floor plan - Optional Second Floor with Fifth Bedroom

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,191 sq. ft.
  • 1st Floor: 1,584 sq. ft.
  • 2nd Floor: 1,607 sq. ft.
  • Lanai: 306 sq. ft.
  • Entry: 122 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 8"
  • Depth: 99' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections



Energy-Saving Courtyard Home Plan

  • 3,191

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,995
  • 5 Sets $2,095
  • CAD $2,495
  • View all purchase option online

About This Plan

  • With the energy-saving features designed into this house plan, you can experience annual energy savings of 40-50% when compared to a newly constructed-code home.
  • This home plan was designed to offer views of the inviting courtyard, the center of this unique home from all main floor public rooms.
  • Although only 40' wide, the house is loaded with luxury amenities including a private staircase leading from the master suite to the courtyard below, a very private guest suite, 10' ceilings, oversized dining and breakfast areas and light gathering transom windows in the well-appointed kitchen.
  • There is a private rear lanai accessed from both the living room and convenient china-cabinet hall.
  • The upstairs study, convenient to the master bath and bedroom, may be converted to a fifth bedroom and bath.
  • Luxury living goes high-performance.
  • Related Plans: For alternate exteriors, see house plans 33040ZR and 33041ZR.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Second Floor with Fifth Bedroom

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,191 sq. ft.
  • 1st Floor: 1,584 sq. ft.
  • 2nd Floor: 1,607 sq. ft.
  • Lanai: 306 sq. ft.
  • Entry: 122 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Stem Wall

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 8"
  • Depth: 99' 8"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 800 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style

  • Southern
  • Traditional

Special features

  • 2nd Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available
  • Courtyard
  • Den-Office-Library-Study
  • In-Law Suite
  • Multi Stairs to 2nd Floor
  • PDF

Plan Collections

  • Net Zero Ready

Plan 33039ZR
View this and more for this plan by visiting www.architechtecturaldesigns.com/33039ZR
|
