Plan 33121ZR Energy Saving Ranch Home Plan

2,150 3-4 3 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

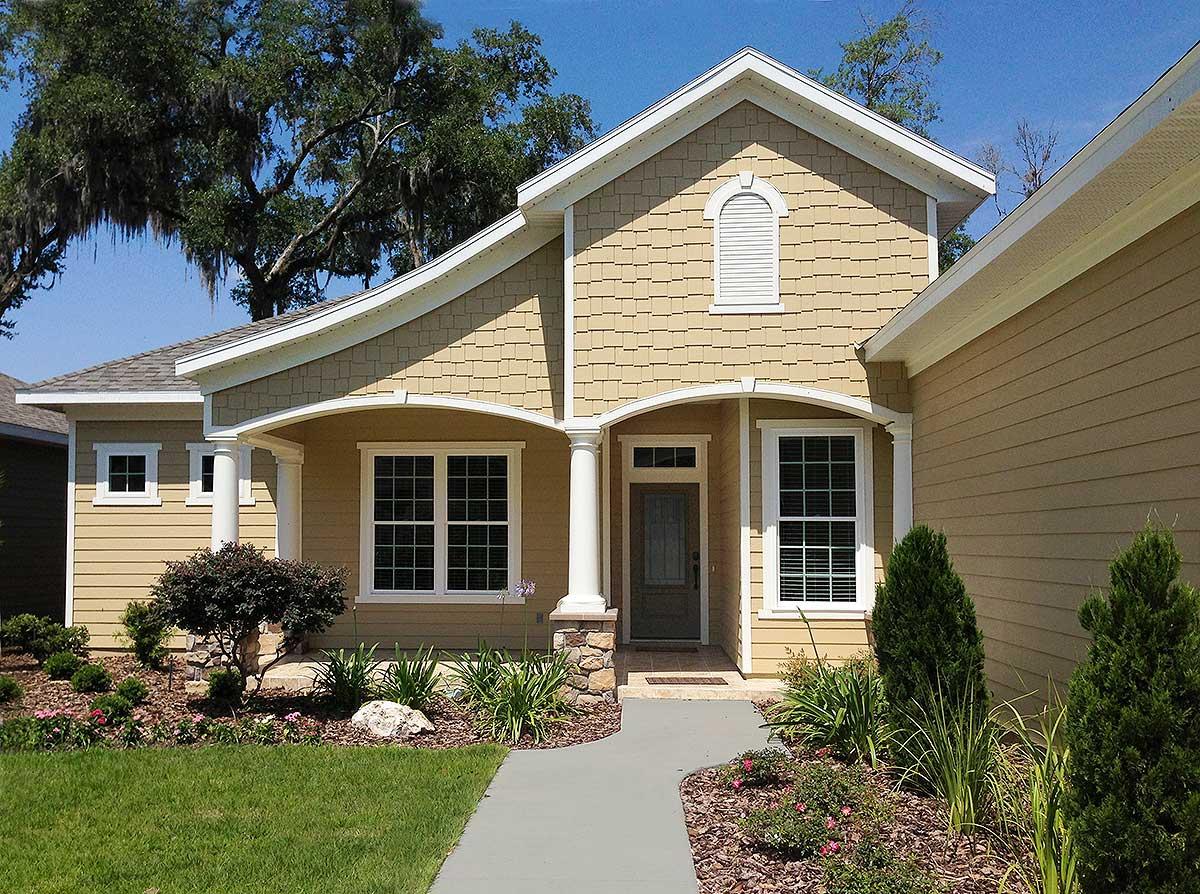

Energy Saving Ranch Home Plan

Plan 33121ZR

  • 2,150

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Our Net Zero energy homes incorporate significant and measureable energy-saving technology into every one of our remarkable Hi-Performance home plans.
  • Amenity rich and right-sized homes are designed to look great in any neighborhood.
  • These super-efficient plans built to our specifications consume 50% less energy than a typical new home, which can reduce the monthly cost of home ownership by up to hundreds of dollars.
  • Energy Smart Home Plans are built with materials readily available at most builder supply stores, with skills sub-contractors already possess.
  • With living space all on one level, this Ranch home plan comes with three bedrooms and a study or use the study as the fourth bedroom.
  • Double doors lead from the great room to the large rear covered lanai.
  • Note the master suite is set off by itself for maximum privacy.
  • Related Plans: Get alternate exteriors with house plans 33120ZR and 33122ZR.

COVER SHEET – / INDEX / SITE PLAN - The Cover sheet contains an index of the sheets that will follow in the ESHP design development set of plans. It will also include a gray scale elevation or rendering depicting the look of the front of the home, and overall roof plan.



WALL SECTIONS -The Wall Section sheet depicts one or more sections of the home’s exterior walls from the foundation to the roof, calling out all materials and construction specifics.

FOUNDATION PLAN - The Foundation Plan sheet shows the home’s foundation layout depicting plumbing, footing, support walls, columns, etc., calling out the necessary notes, dimensions and details.

SECOND FLOOR FRAMING (where appropriate) - The Second Floor Framing sheet shows important locations of beams and load-bearing conditions, as well as the floor truss spacing and direction. The Second Floor Framing Plan is meant as general information for the truss manufacturer.

FLOOR PLANS - The Floor Plan sheet(s), show a detailed layout of the floor plans with dimensions, notes, call outs and keys relating to sheets with sections and details needed by your builder for construction. These plans will include window and door sizes and locations, and will also show the location of bathroom fixtures.

ROOF PLAN & SOFFIT (CHASE LAYOUT) PLAN - The Roof Plan sheet is a general layout of the home’s roof. It is meant as general information for the truss manufacturer and framing contractor. This sheet also contains the location and size of the dropped soffits housing the forced-air chases. (Ducts in Conditioned Space – DICS) Energy Smart Home Plans is the only design company that offers this information for those seeking truly High-Performance Homes.

REFLECTED CEILING PLAN - The reflected ceiling plan shows all ceiling heights, treatments, and details including necessary notes.



EXTERIOR ELEVATIONS - The Exterior Elevation sheet(s) depict elevations for all sides of the home, showing dimensions and material notes and exterior detailing where needed.



CROSS SECTION & INTERIOR ELEVATIONS - The Cross Section sheet depicts a section through the home revealing floor, ceiling and roof heights at a strategic location. The Interior Elevation sheet shows conceptual interior wall elevations for the Kitchen, Bathrooms, Utility Room as well as built-ins, fireplaces and other unique interior features as per design. (Interior elevations may not be available for all stock plans.)



ELECTRICAL PLAN - The Electrical Plan sheet shows suggested wiring and location of fixtures (lighting, ceiling fans, etc.), switches and outlets. This plan does not contain diagrams detailing how all wiring should be run, or how circuits should be engineered. Your electrician should work out these details.


These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

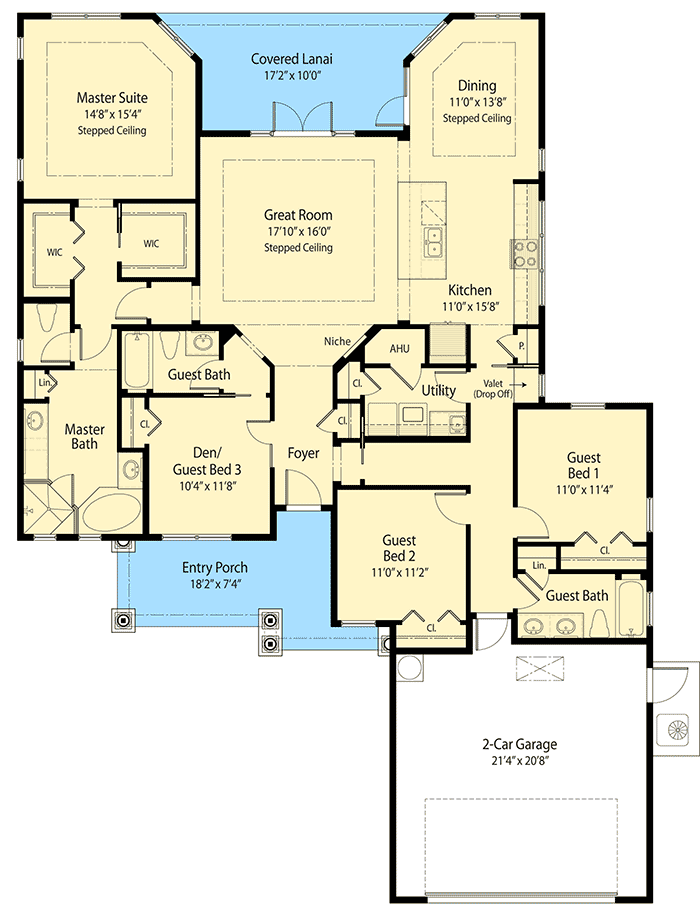

Energy Saving Ranch Home Plan - 33121ZR floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,150 sq. ft.
  • 1st Floor: 2,150 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Slab
  • Optional Foundations: Stem Wall, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 75' 8"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 441 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Energy Saving Ranch Home Plan

  • 2,150

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,275
  • CAD + PDF - Single-Build $1,650
  • View all purchase option online

About This Plan

  • Our Net Zero energy homes incorporate significant and measureable energy-saving technology into every one of our remarkable Hi-Performance home plans.
  • Amenity rich and right-sized homes are designed to look great in any neighborhood.
  • These super-efficient plans built to our specifications consume 50% less energy than a typical new home, which can reduce the monthly cost of home ownership by up to hundreds of dollars.
  • Energy Smart Home Plans are built with materials readily available at most builder supply stores, with skills sub-contractors already possess.
  • With living space all on one level, this Ranch home plan comes with three bedrooms and a study or use the study as the fourth bedroom.
  • Double doors lead from the great room to the large rear covered lanai.
  • Note the master suite is set off by itself for maximum privacy.
  • Related Plans: Get alternate exteriors with house plans 33120ZR and 33122ZR.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,150 sq. ft.
  • 1st Floor: 2,150 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Stem Wall, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 75' 8"
  • Max ridge height: 24' 2"

Garage

  • Type: Attached
  • Area: 441 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Framing Type: Truss
Plan 33121ZR
View this and more for this plan by visiting www.architechtecturaldesigns.com/33121ZR
|
