Plan 60622ND

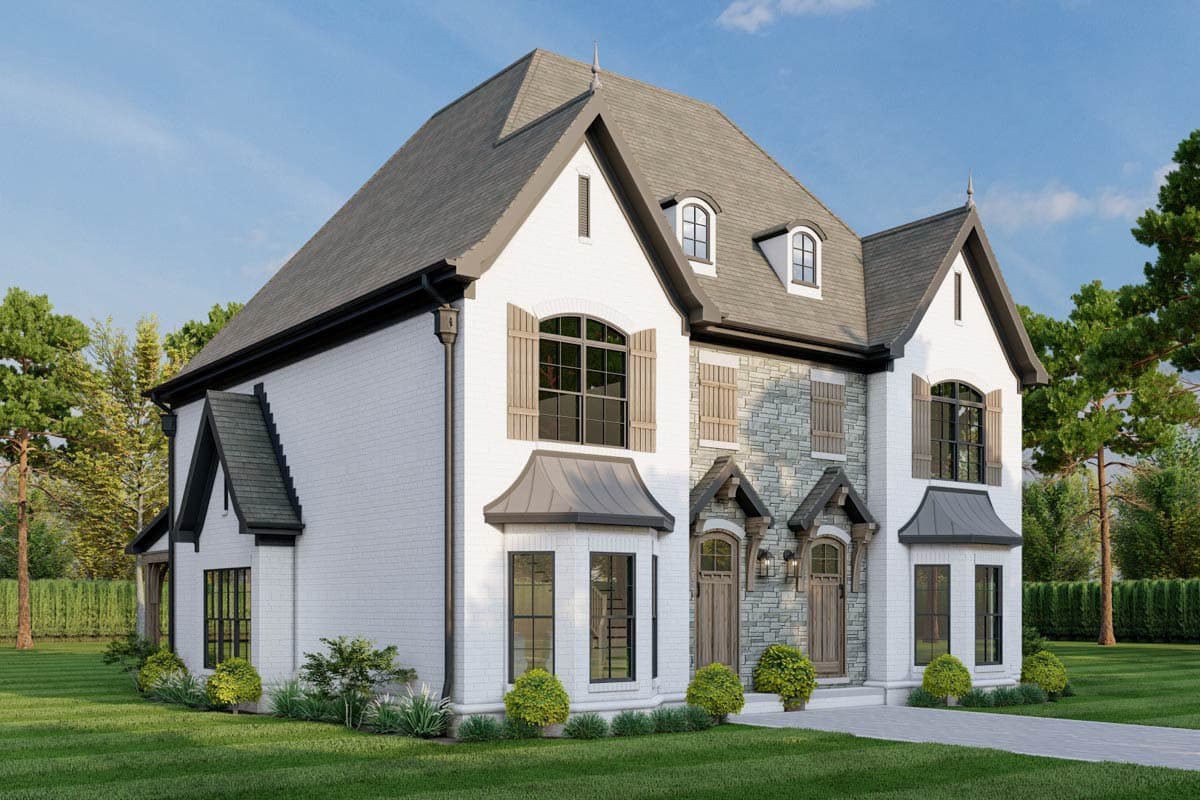

European Duplex with Matching 1764 Sq Ft 2 Bedroom Units

Heated S.F.
3,204
Units
2
Width
Depth

Floor Plan

Plan 60622ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60622ND

M-F 9am-5pm EST |

1-203-761-8500

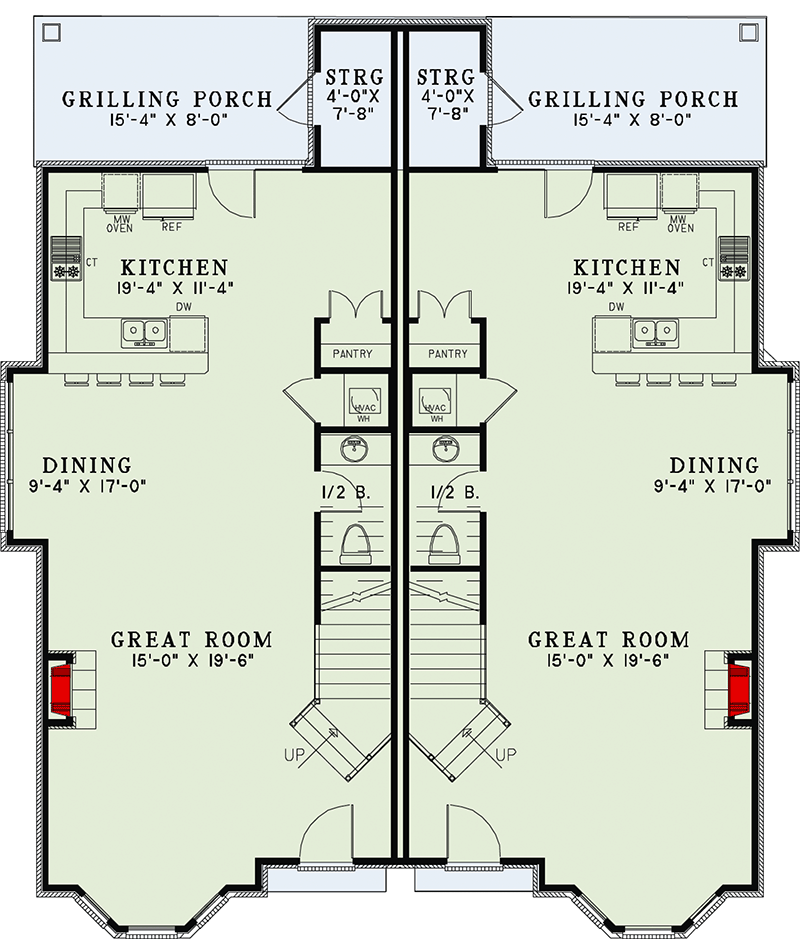

Main Level

Plan 60622ND: European Duplex with Matching 1764 Sq Ft 2 Bedroom Units - Floor Plan - Main Level

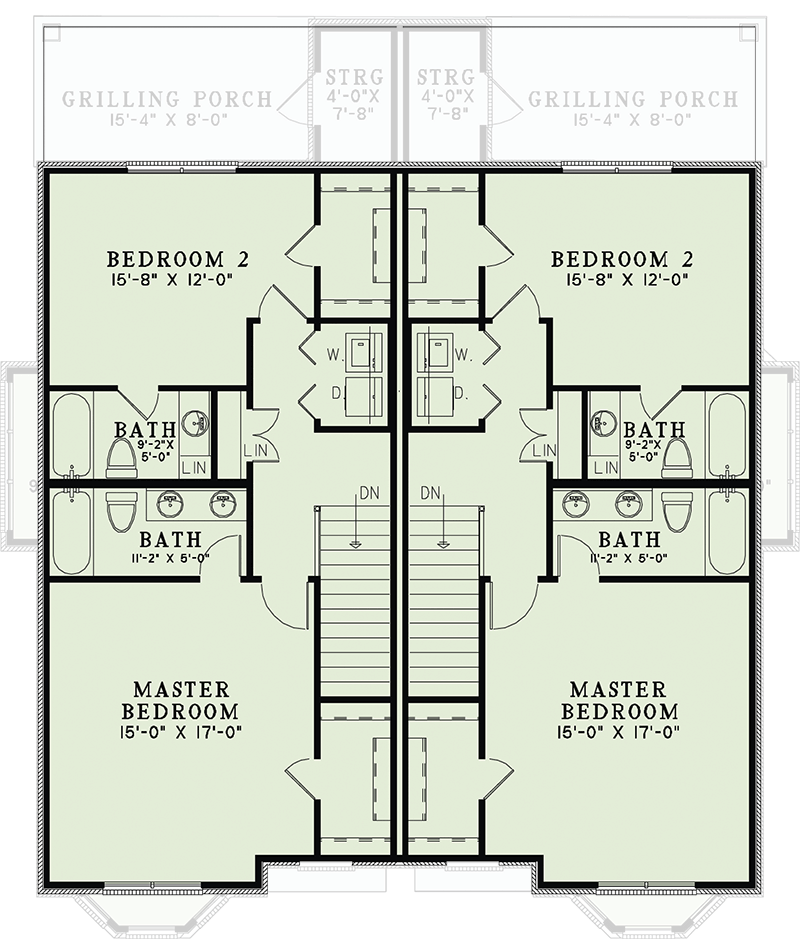

2nd Floor

Plan 60622ND: European Duplex with Matching 1764 Sq Ft 2 Bedroom Units - Floor Plan - 2nd Floor

Plan Details

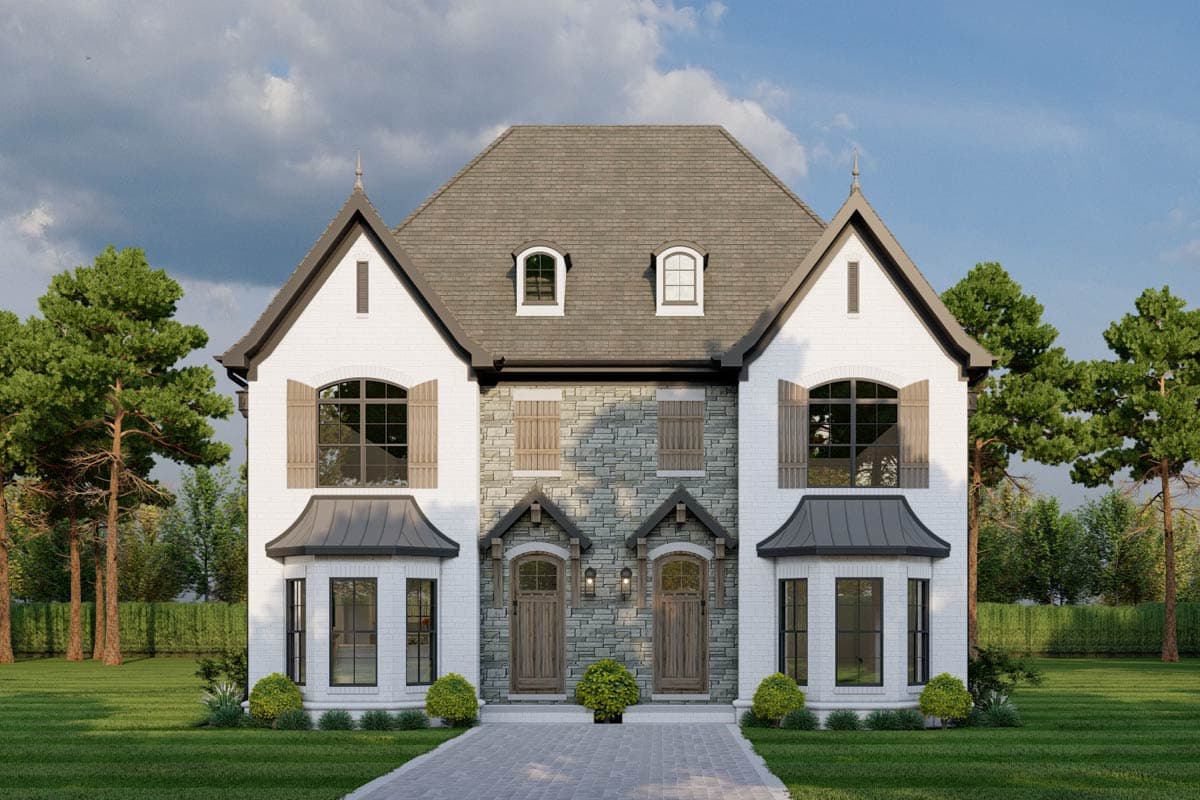

  • Two large units of equal size combine to form this elegant European duplex with 840 square feet on each main floor and 764 square feet on each upper floor.
  • The main floor is all open concept so the views flow right from the great room through the dining room and into the kitchen in back.
  • A peninsula eating bar seats four and gives you a place to chat with whomever is cooking.
  • The angled staircase leads up to the second floor where you have two large bedrooms and two separate bathrooms.
  • A handy laundry closet saves you from climbing stairs.
  • Related Plan: Get a four unit version with house plan 60623ND.
Unit A
Heated Area
1,764Sq. Ft.
840 Sq. Ft. 1st
762 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
22' 2"width
51' 2"depth
38'height
Unit B
Heated Area
1,764Sq. Ft.
840 Sq. Ft. 1st
762 Sq. Ft. 2nd
Beds
2Beds
Baths
2Full Baths
1Half Bath
Dimensions
22' 2"width
51' 2"depth
38'height

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,204 sq. ft.

1st Floor

1,680 sq. ft.

2nd Floor

1,524 sq. ft.

Porch, Combined

162 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 4"

Depth

51' 2"

Max Ridge Height

38' 6"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Stick

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs

Square Footage Breakdown

Total Heated Area

3,204 sq. ft.

1st Floor

1,680 sq. ft.

2nd Floor

1,524 sq. ft.

Porch, Combined

162 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 4"

Depth

51' 2"

Max Ridge Height

38' 6"

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Framing Type

Stick

Special Features

Bedrooms - Clustered

Laundry - Upstairs

Master Suite - Upstairs
