Plan 81648AB European Home Plan with In-Law Suite

3,162 4-6 2.5 - 5.5 1-2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

European Home Plan with In-Law Suite

Plan 81648AB

  • 3,162

    Heated s.f.

  • 4-6

    Beds

  • 2.5 - 5.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • This spacious European home plan offers marvelous open spaces with lots of columns instead of walls to define rooms.
  • Both the great room and kitchen look out over the rear covered deck where there is lots of room to play and relax.
  • A quiet office can easily be used as a third bedroom with its nearby bathroom.
  • The master suite and second bedroom are on the other side of the house - ideal for families with young children.
  • A second floor loft apartment is the perfect in-law setup with its kitchen, big walk-in closet and bedroom sitting area.
  • The loft apartment adds an additional 852 square feet of living space to the total living area.
  • Finish off the lower level and gain two more bedrooms with an additional 2,616 square feet of living space.
  • An over-sized three car garage completes this family-friendly home plan.
  • The roof is a truss design with a 10:12 pitch.

Plans include the following:

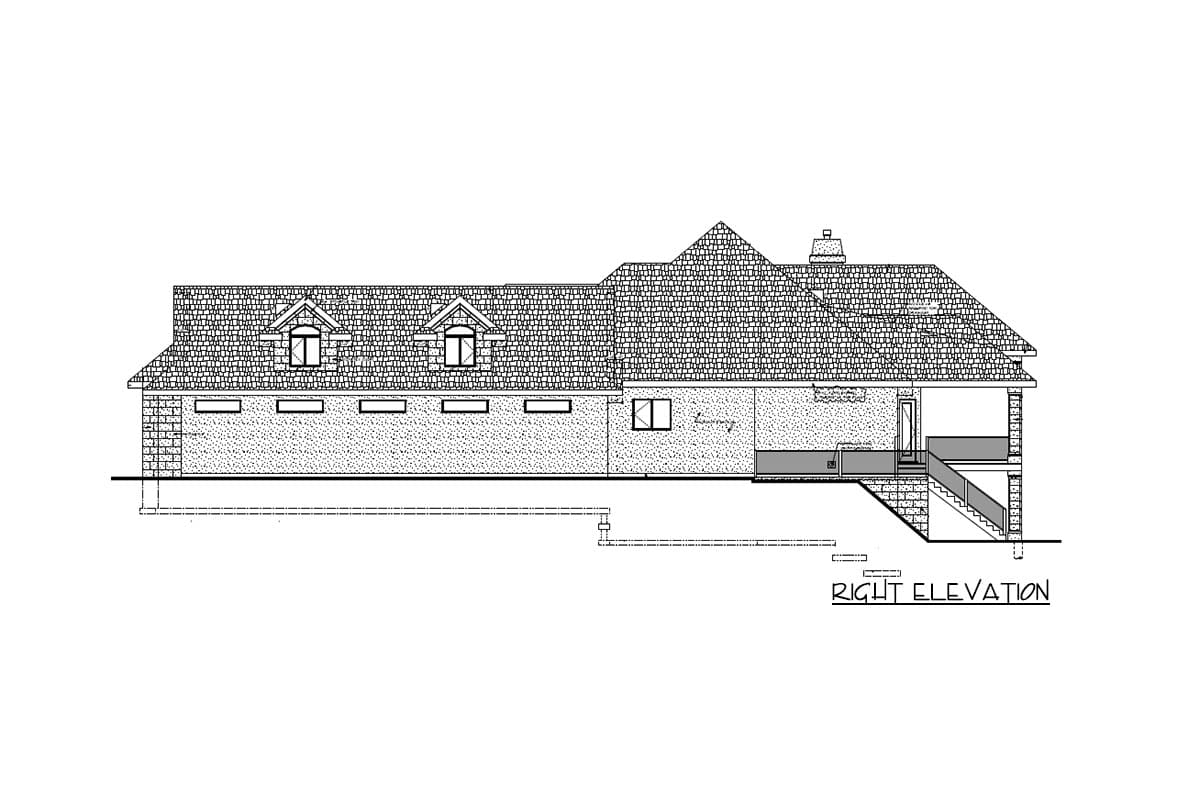

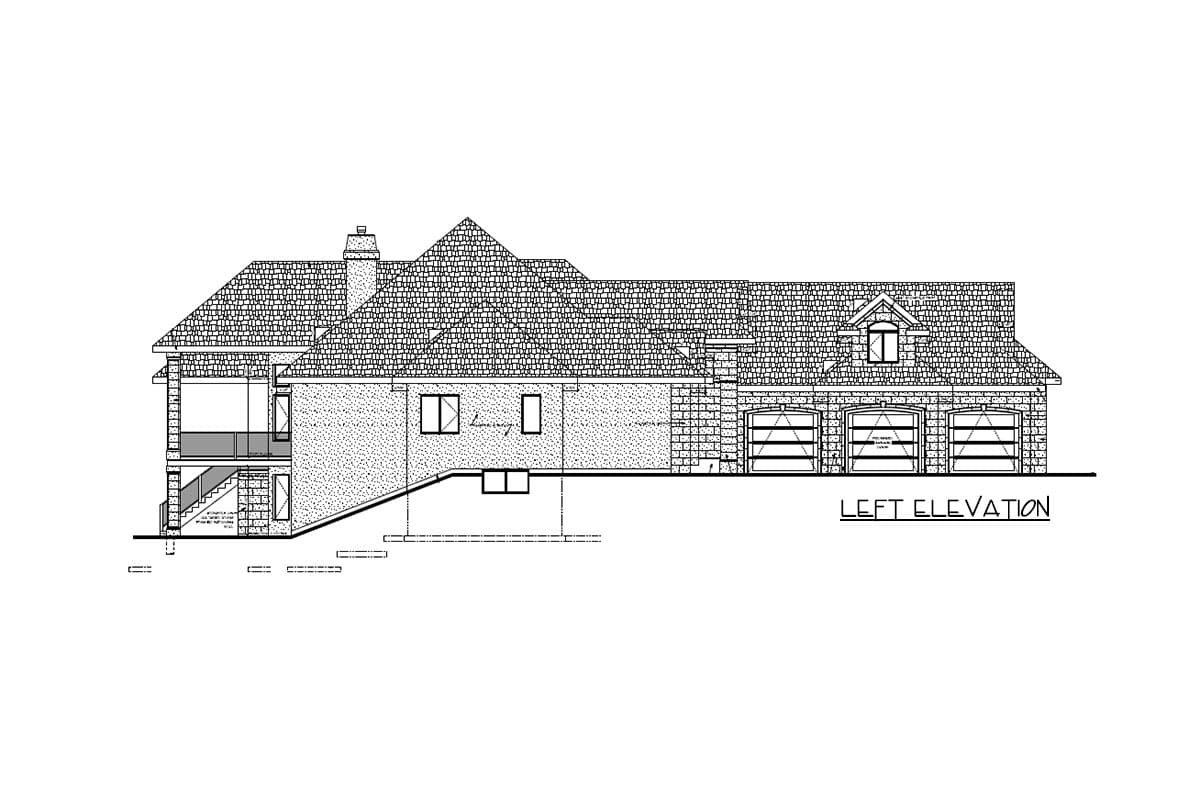

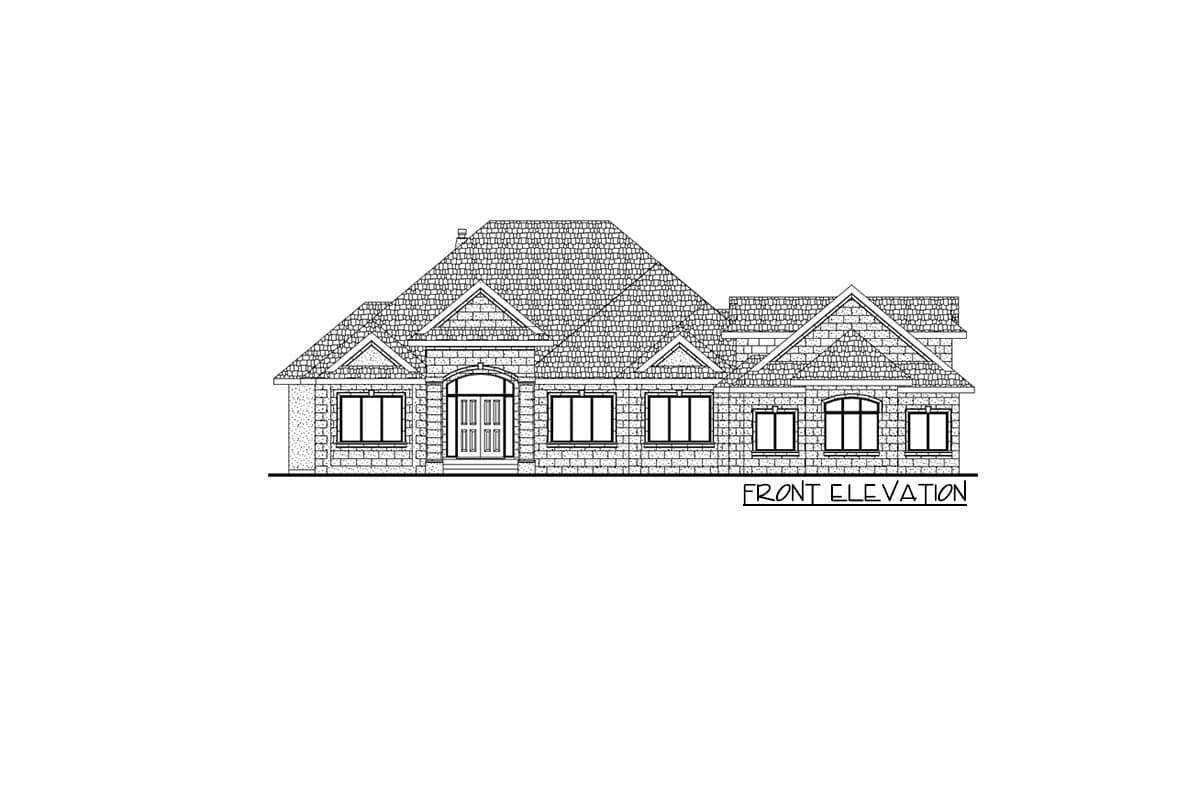

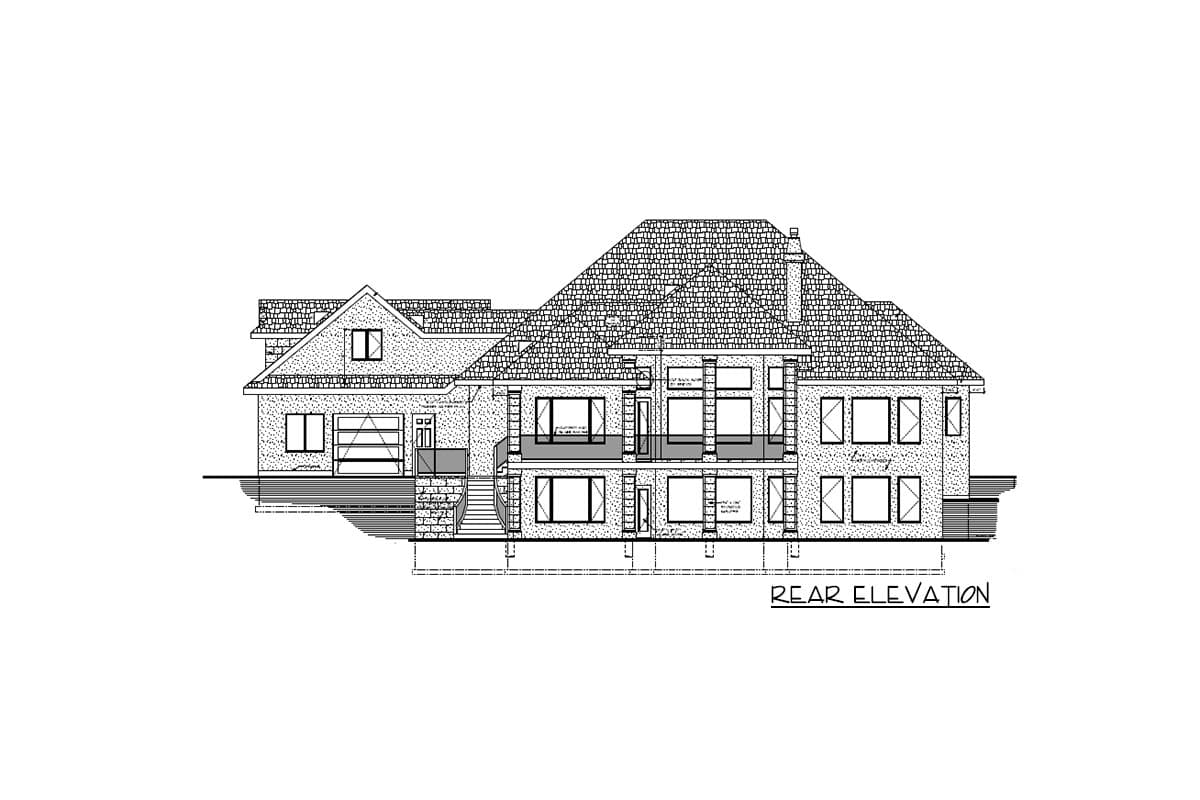

  • 4 elevations (Front, Rear, Left and Right)
  • Floor plans
  • Foundation plan
  • Cross section
  • Roof plan

We also include a list of building specifications, and notes for each page, with any important info the builder may need.


These items are NOT included:
  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

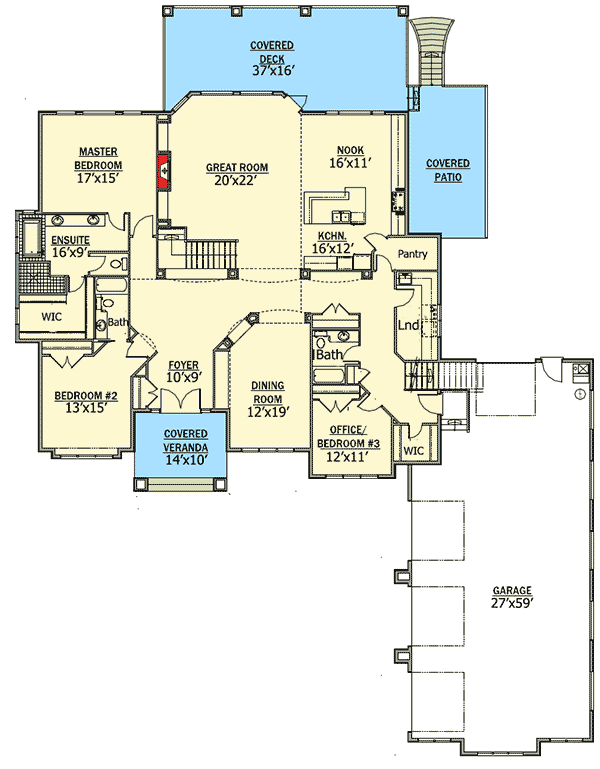

European Home Plan with In-Law Suite - 81648AB floor plan - Main Level

Second Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

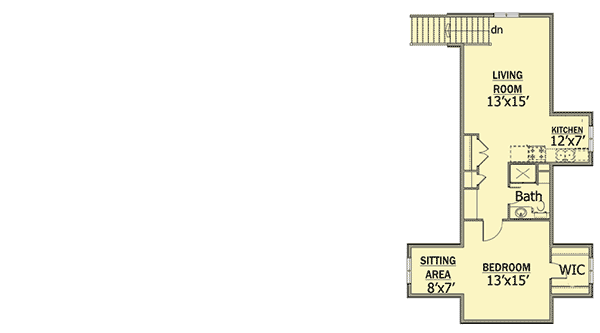

European Home Plan with In-Law Suite - 81648AB floor plan - Second Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
European Home Plan with In-Law Suite - 81648AB floor plan - Lower Level
