European Home with Open Layout

Pageloader

European Home with Open Layout

Plan 65611BS

  • 3,317

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • This striking European home plan was designed with an open floor plan to maximize the views from room to room.
  • Step out to the spacious rear lanai through double doors or through one of two sliding glass doors.
  • The front-facing study has an elegant tray ceiling and a residential elevator makes it easy to get from floor to floor.
  • Two large bedrooms with tray ceilings occupy the upper level along with a loft that goes out to a covered balcony.
  • Bedroom 3 has a large private balcony of its own.
  • NOTE: Contact us if building in Lee or Collier Counties (Florida) for permission to build there before purchasing the plan.
  • Related Plan: Get an alternate exterior with house plan 65619BS.

Plans include the following:

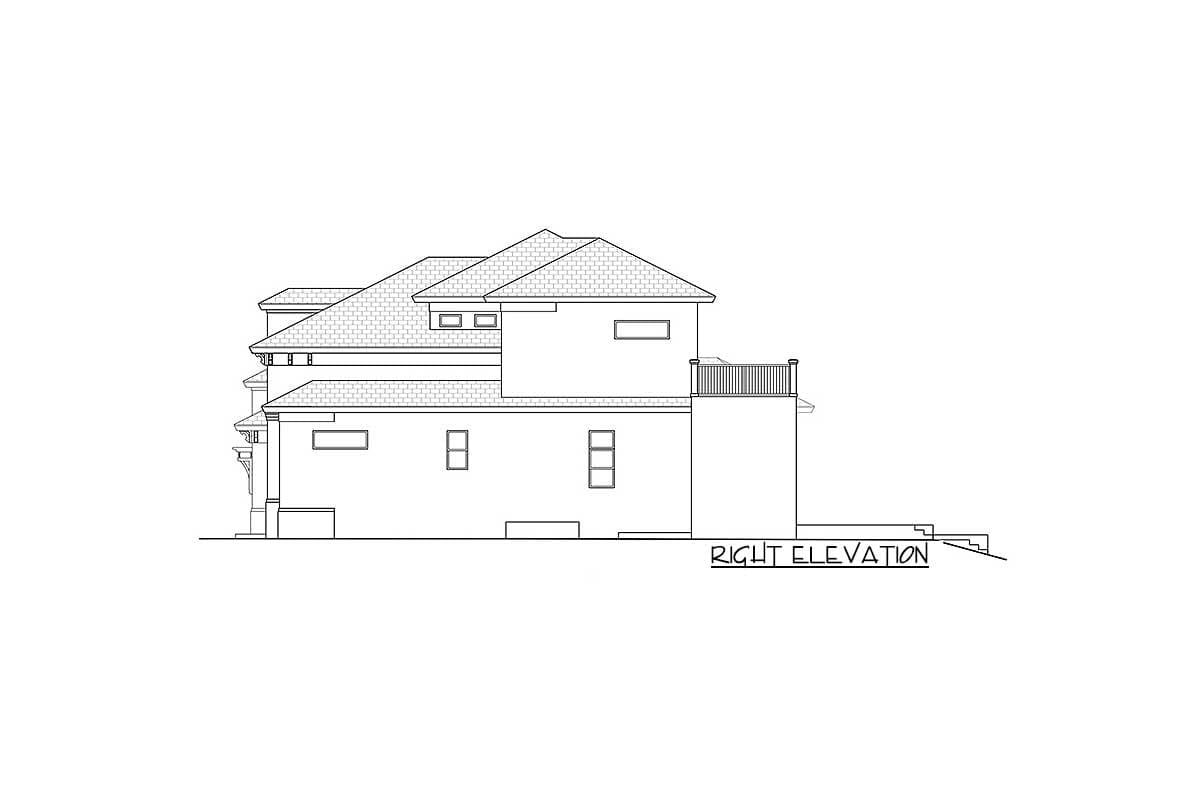

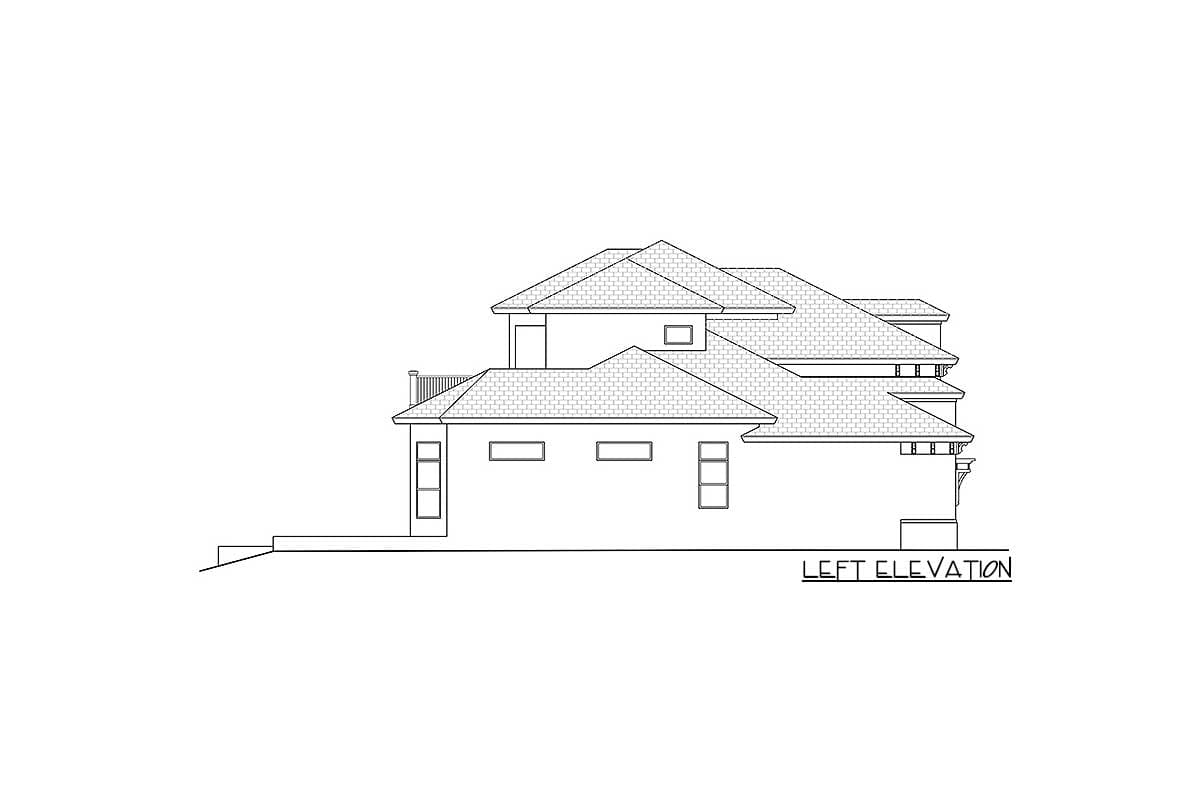

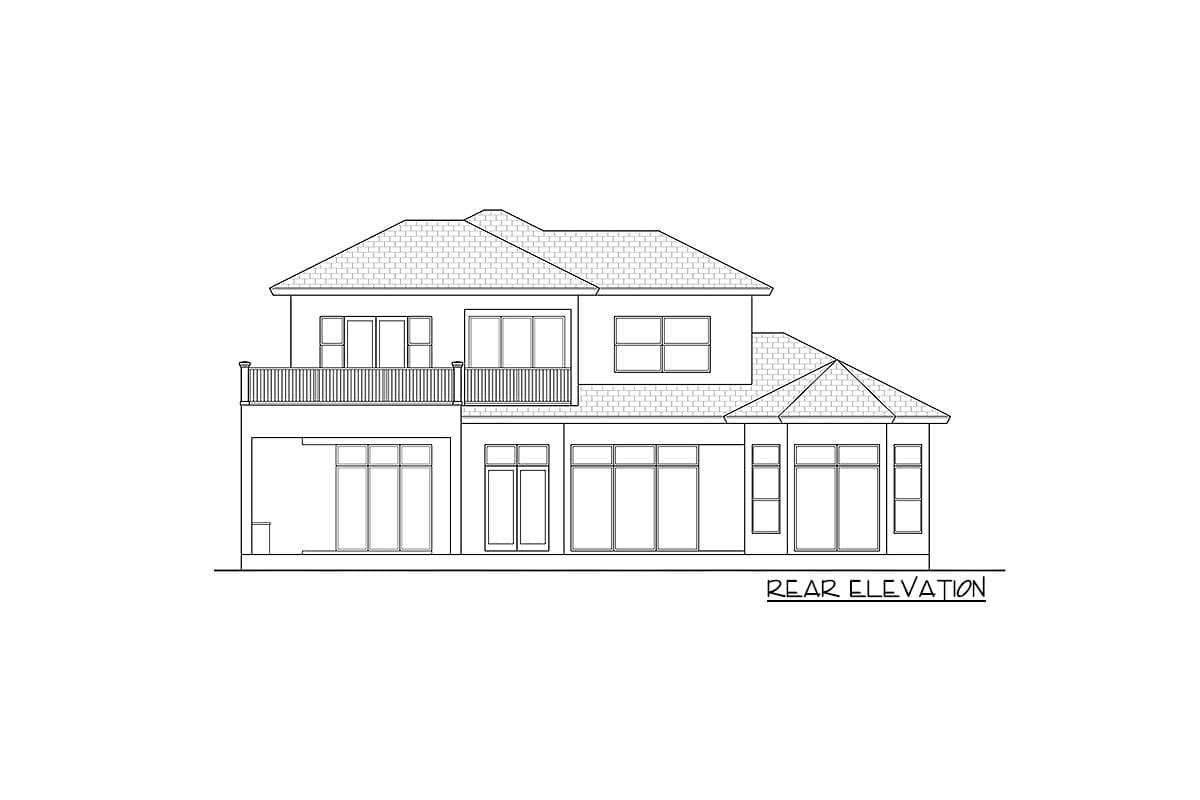

Elevations:

Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes

Electrical Layouts:

  • Building Section Markers
  • All Electrical Outlets, Fixtures and Switching

Foundation or Slab Plan:
Drawn at 1/8″ to 1/4″ = 1’0″ Scale

Roof Design Plan:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections:
Drawn to 1/8″ to 1/4″ = 1’0″ Scale and Includes:

  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections:
Drawn at 1/8″ to 1/2″ = 1’0″ Scale and Includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness
  • Insulation Type and Thickness

Miscellaneous Notes and Details:

  • Miscellaneous General Notes
  • Stairway Details (if applicable)
IMPORTANT NOTE:  Structural drawings, as well as heating and plumbing details, will not be included in your plan sets due to a variety of factors which include local codes, installation methods, personal preference, etc.  Your building professional (contractor/builder/supplier) can, without difficulty, supply these details and specifications on your behalf.

Floor Plan

Plan details



European Home with Open Layout

  • 3,317

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $2,985
  • CAD $2,985
  • CAD - multi-use $4,475
  • PDF - multi-use $4,475
  • View all purchase option online

About This Plan

  • This striking European home plan was designed with an open floor plan to maximize the views from room to room.
  • Step out to the spacious rear lanai through double doors or through one of two sliding glass doors.
  • The front-facing study has an elegant tray ceiling and a residential elevator makes it easy to get from floor to floor.
  • Two large bedrooms with tray ceilings occupy the upper level along with a loft that goes out to a covered balcony.
  • Bedroom 3 has a large private balcony of its own.
  • NOTE: Contact us if building in Lee or Collier Counties (Florida) for permission to build there before purchasing the plan.
  • Related Plan: Get an alternate exterior with house plan 65619BS.

Floor Plans

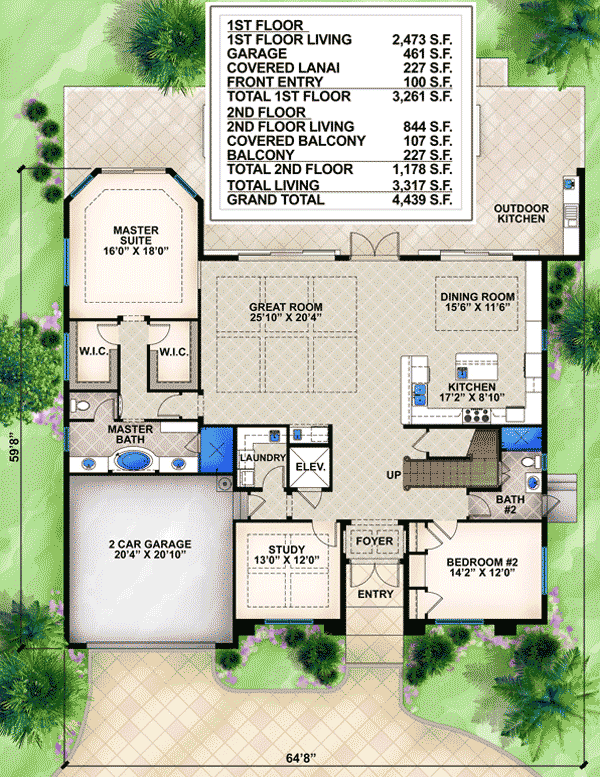

  • Main Level

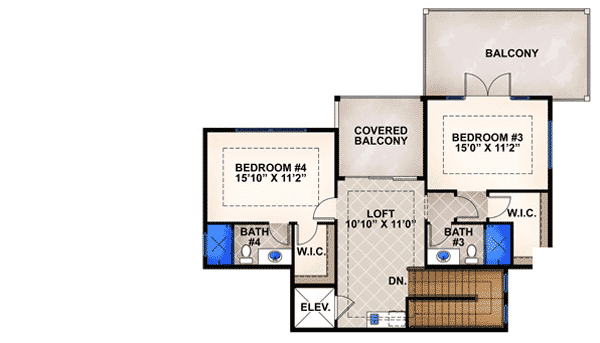

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,317 sq. ft.
  • 1st Floor: 2,473 sq. ft.
  • 2nd Floor: 844 sq. ft.
  • Entry: 100 sq. ft.
  • Balcony / Veranda: 334 sq. ft.
  • Lanai: 227 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block

Dimensions

  • Width: 64' 8"
  • Depth: 59' 8"
  • Max ridge height: 32' 2"

Garage

  • Area: 461 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
