European Mini-Castle

Plan 90113PD

  • 3,052

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • Live in a reasonably-sized castle of your own with this European house plan.
  • The steep hip roof is intricately detailed, adding to the elegance of the facade.
  • An air-lock foyer ushers you into the grand family room that is set in a bay.
  • Nearby, the formal living room merges with the dining room, making it easy to entertain.
  • The study has a separate entrance that is ideal for a home office, or use it as an extra bedroom.
  • On the second floor, the gorgeous master suite has an octagonal shape with lots of windows for beautiful views.
  • The two family bedrooms share a large hall bathroom.

Each plan set includes the following:

  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

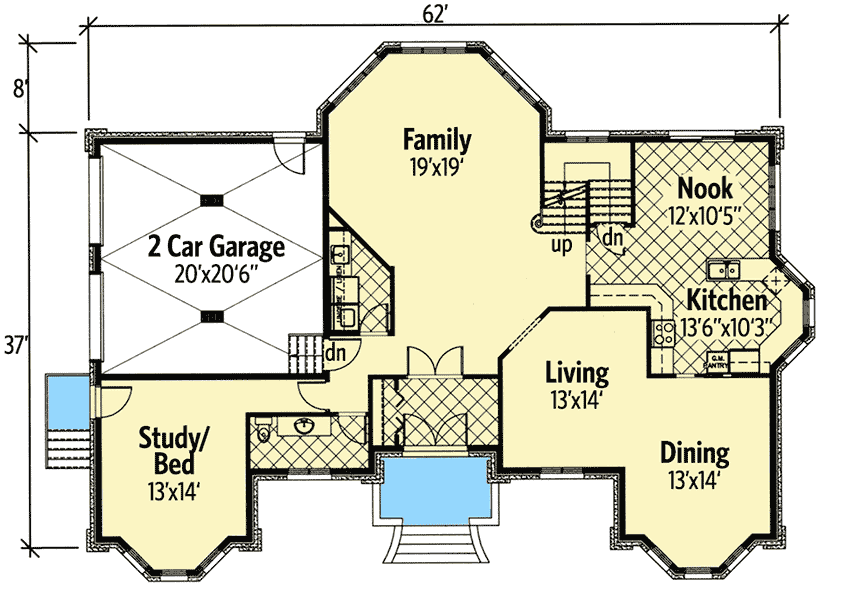

European Mini-Castle - 90113PD floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

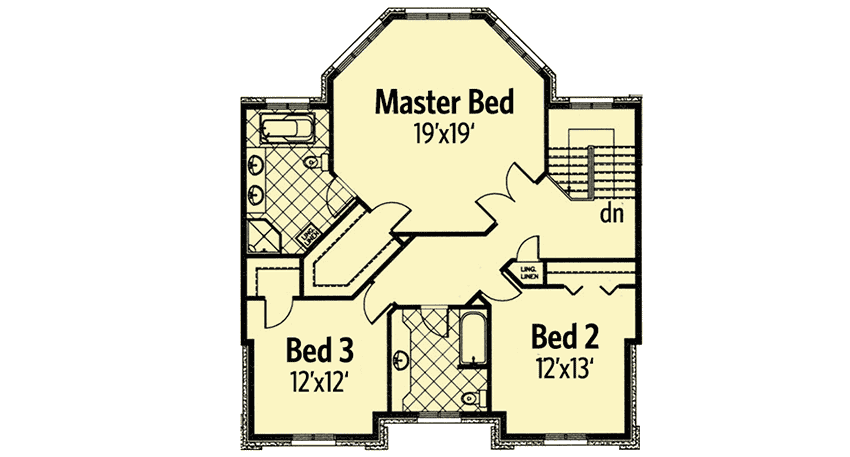

European Mini-Castle - 90113PD floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,052 sq. ft.
  • 1st Floor: 1,830 sq. ft.
  • 2nd Floor: 1,222 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 37' 0"
  • Max ridge height: 48' 6"

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

European Mini-Castle

  • 3,052

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,597
  • 8 Sets $1,795
  • PDF - Single-Build $2,097
  • CAD - Single-Build $3,337
  • View all purchase option online

About This Plan

  • Live in a reasonably-sized castle of your own with this European house plan.
  • The steep hip roof is intricately detailed, adding to the elegance of the facade.
  • An air-lock foyer ushers you into the grand family room that is set in a bay.
  • Nearby, the formal living room merges with the dining room, making it easy to entertain.
  • The study has a separate entrance that is ideal for a home office, or use it as an extra bedroom.
  • On the second floor, the gorgeous master suite has an octagonal shape with lots of windows for beautiful views.
  • The two family bedrooms share a large hall bathroom.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,052 sq. ft.
  • 1st Floor: 1,830 sq. ft.
  • 2nd Floor: 1,222 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 37' 0"
  • Max ridge height: 48' 6"

Garage

  • Type: Attached
  • Area: 410 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Truss
