European or Hill Country Delight

Plan 31134D

  • 2,586

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • With a beautiful facade featuring a covered stone entryway, this split-bedroom design includes a study/home office inside the entry.
  • Varying ceiling heights and special ceiling treatments provide interest. Coffered ceilings top both the formal dining room and the master bedroom, 12 feet and 10 feet respectively. The great room, with an 11-foot ceiling, a kitchen and large breakfast room form one large open space.
  • The outdoor entry to a bath is also used by bedroom two. Bedrooms three and four, each with a walk-in closet, share another full bath.
  • On the other side of the house is the bayed master suite. In the luxurious master bath are walk-in closets for both him and her and two vanities.
  • The side-entry garage suits the home to a corner lot.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.

The plan set includes:
  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

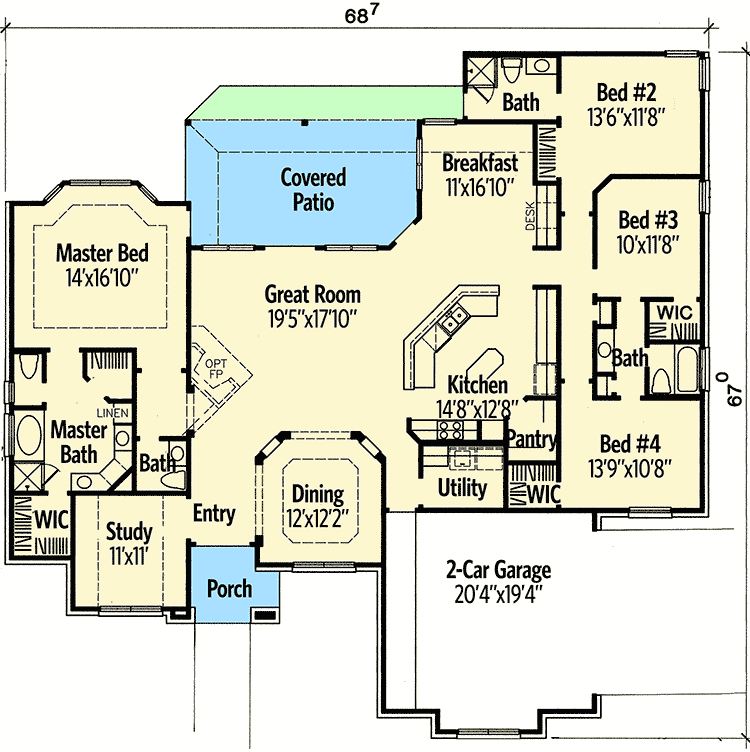

European or Hill Country Delight - 31134D floor plan - Main Level

European or Hill Country Delight

  • 2,586

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,586 sq. ft.
  • 1st Floor: 2,586 sq. ft.

Dimensions

  • Width: 68' 7"
  • Depth: 67' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 459 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

European or Hill Country Delight

  • 2,586

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

European or Hill Country Delight

  • 2,586

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,586 sq. ft.
  • 1st Floor: 2,586 sq. ft.

Dimensions

  • Width: 68' 7"
  • Depth: 67' 0"
  • Max ridge height: 21' 0"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 459 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Basement, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 7 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick

    Main Level
