Plan 444041GDN
European Ranch for Sloped Lot - 3822 Sq Ft
Heated S.F.
3,822
Beds
3-4
Baths
4
Stories
1
Cars
3
Plan Details
  • This European Ranch home is a luxury design on a hillside walkout foundation. Arches and a cupola highlight the exterior, along with a metal accent roof.
  • The kitchen island, with cooktop, faces the great room and the dining room offers a serving bar and a nearby walk-in pantry.
  • The screened porch boasts a 18'11" cathedral ceiling, as well as a fireplace.
  • A sitting room accompanies the elegant master suite, crowned by a tray ceiling, and paired with a 5-fixture bathroom with two closets.
  • The oversized utility room enjoys a laundry sink, built-in cabinetry, and access to the side porch. Downstairs, find two bedrooms, a media/game room, and a workshop.
  • Related Plans: Get alternate versions with house plans 444022GDN and 444196GDN.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

European Ranch for Sloped Lot - 3822 Sq Ft

  • 3,822

    Heated s.f.

  • 3-4

    Beds

  • 4

    Baths

  • 1

    Floors

  • 3

    Car garage

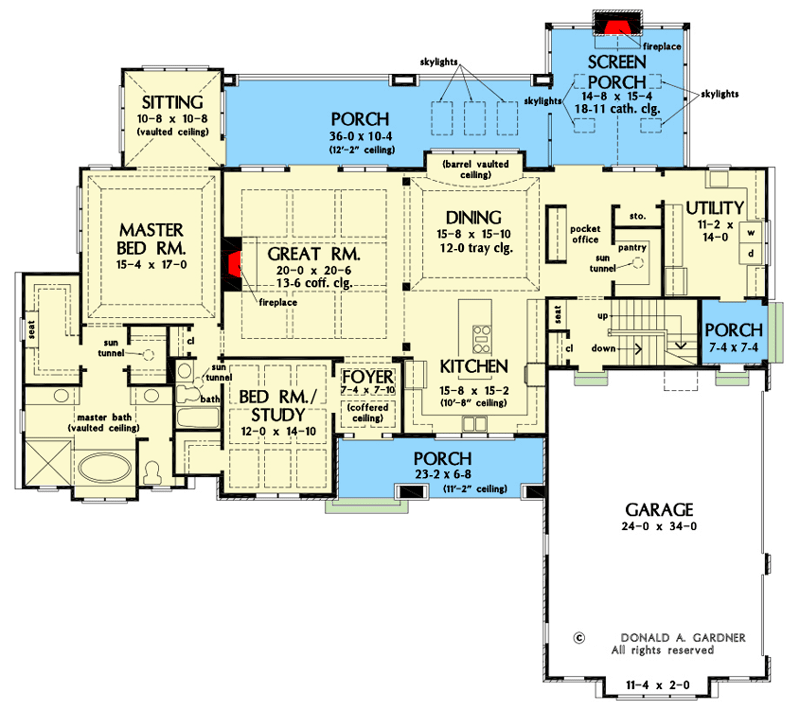

Floor Plan

  • Main Level

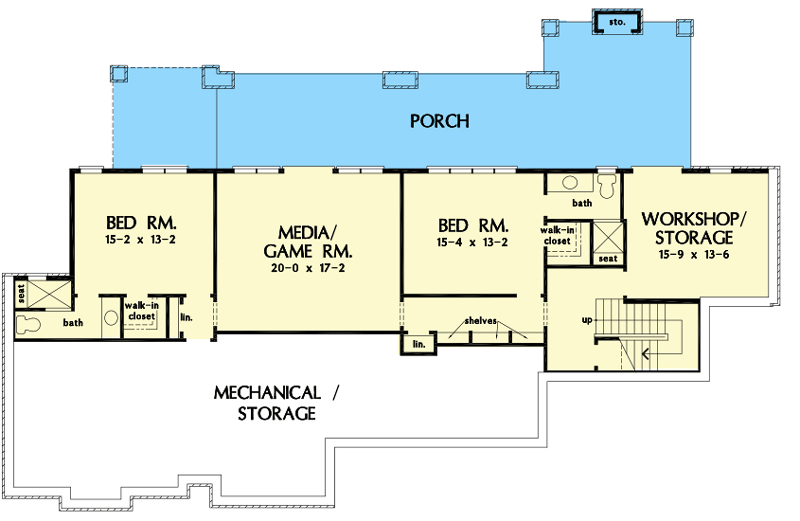

  • Basement

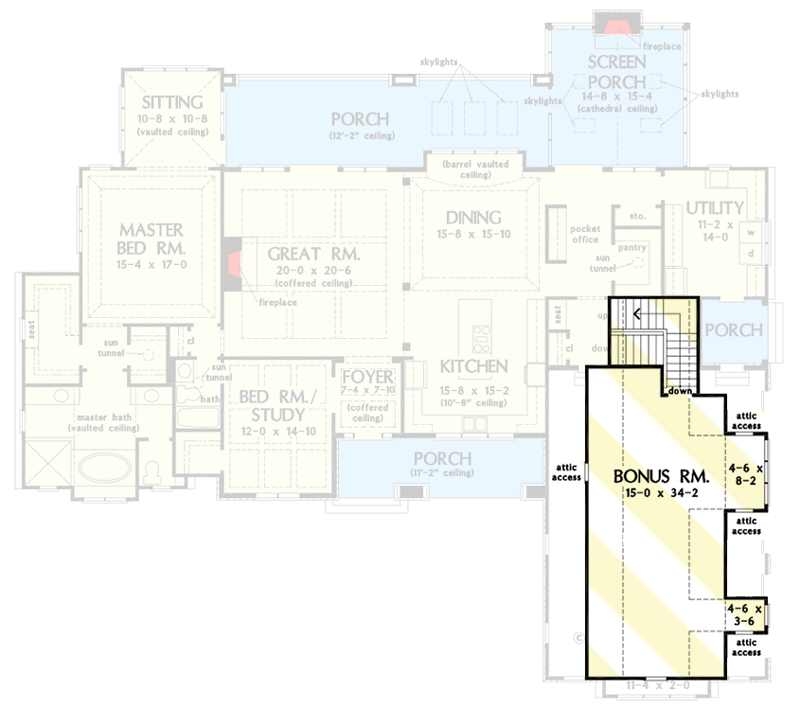

  • Bonus Room

Plan Details

Square Footage Breakdown

  • Total: 3,822 sq. ft.
  • Lower Level: 1,306 sq. ft.
  • 1st Floor: 2,516 sq. ft.

Dimensions

  • Width: 84' 3"
  • Depth: 76' 0"
  • Max ridge height: 32' 11"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 872 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 5" First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
