Plan 360009DK
Everything On One Floor - And Expansion Below
Heated S.F.
2,739
Beds
3-5
Baths
2.5 - 3.5
Stories
1
Cars
2
What's Included
Plan Details

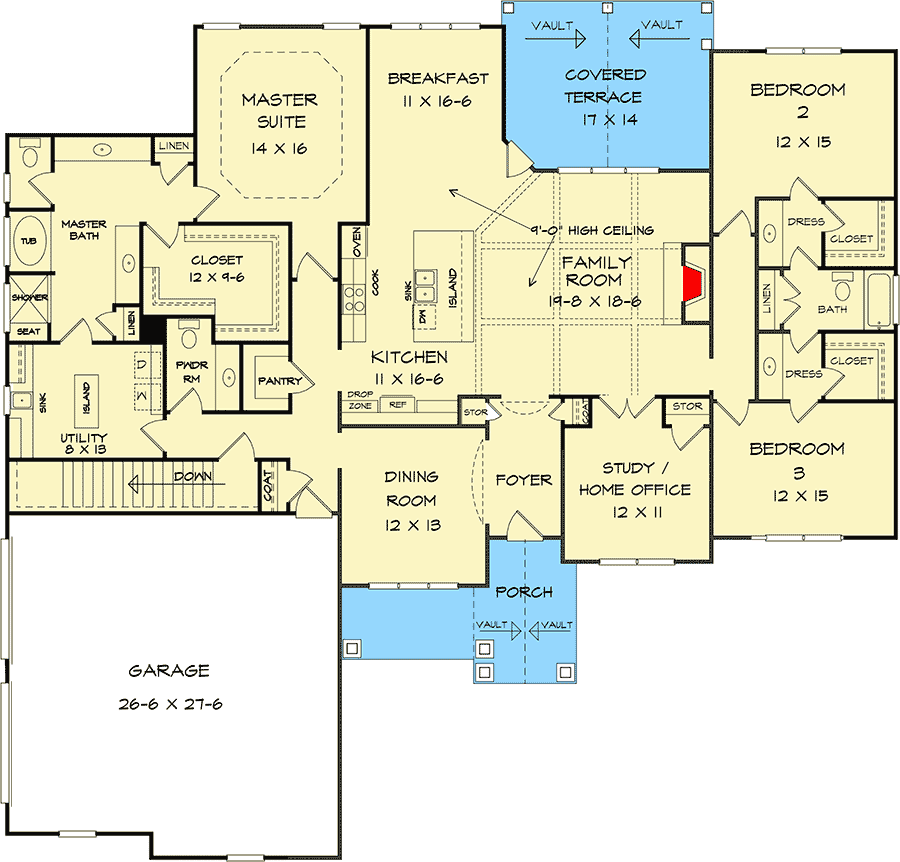

  • Enjoy having all your living spaces on one floor (and expansion to a lower level if you build on a basement), with this 3-bed house plan.
  • An open concept layout has the family room open to the kitchen and informal dining area. The kitchen has an over-sized island with counter seating and there is a walk-in pantry steps away.
  • The master suite has a tray ceiling and a large walk-in closet. Check out the huge laundry/utility room accessible from the master bath for your convenience.
  • Across the home, two beds share a bath and each have walk-in closets.
  • A covered terrace in back has a vaulted ceiling and gives you a great spot to enjoy the views.
What's Included

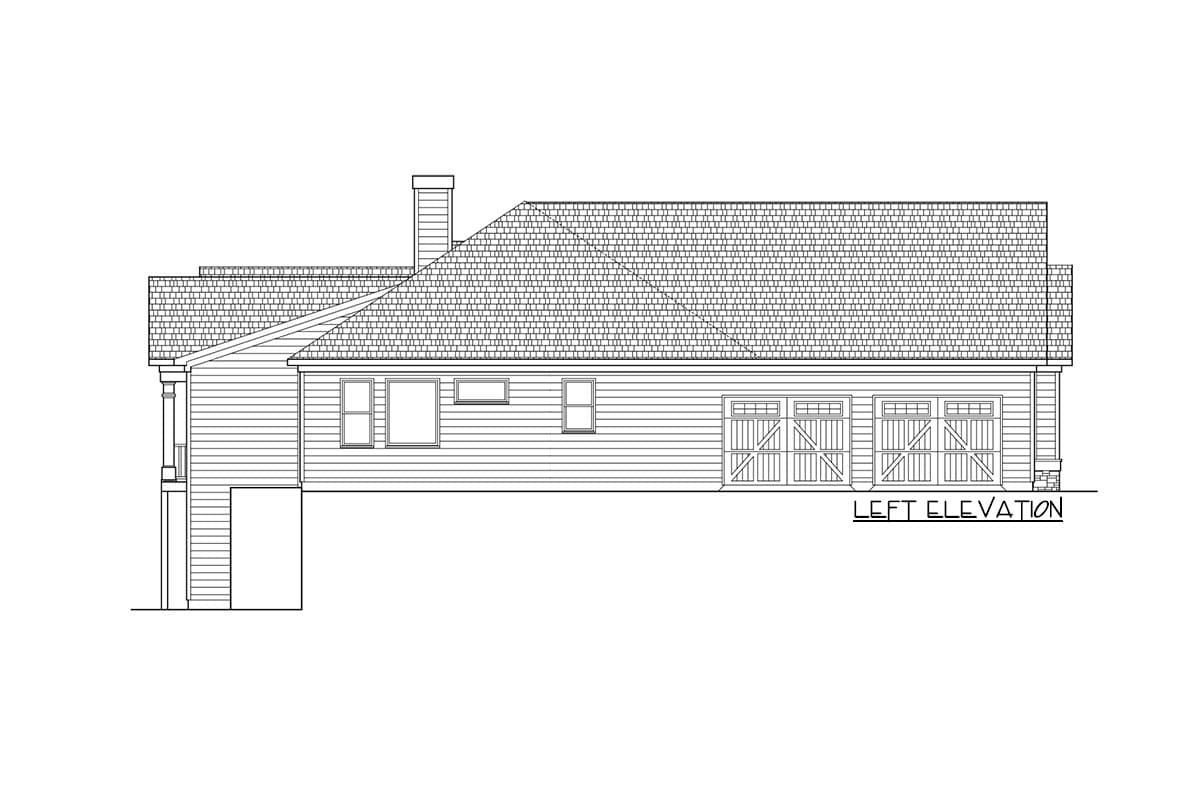

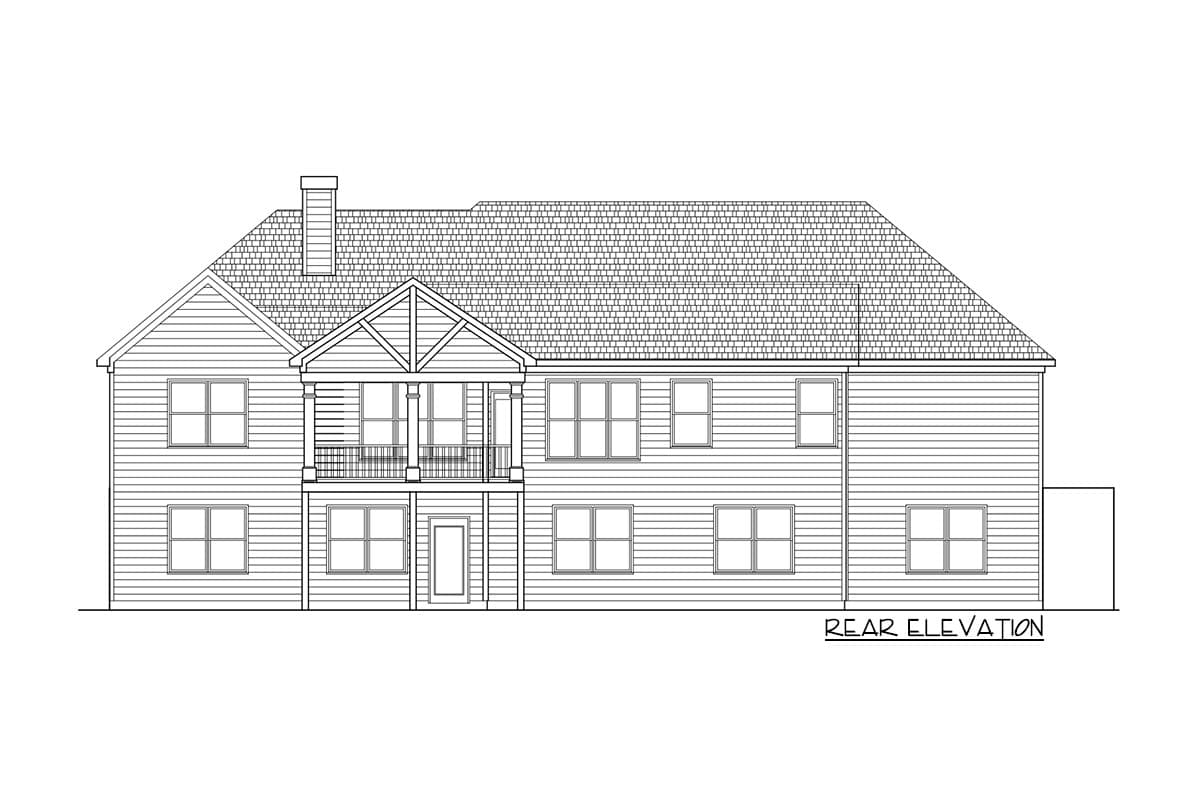

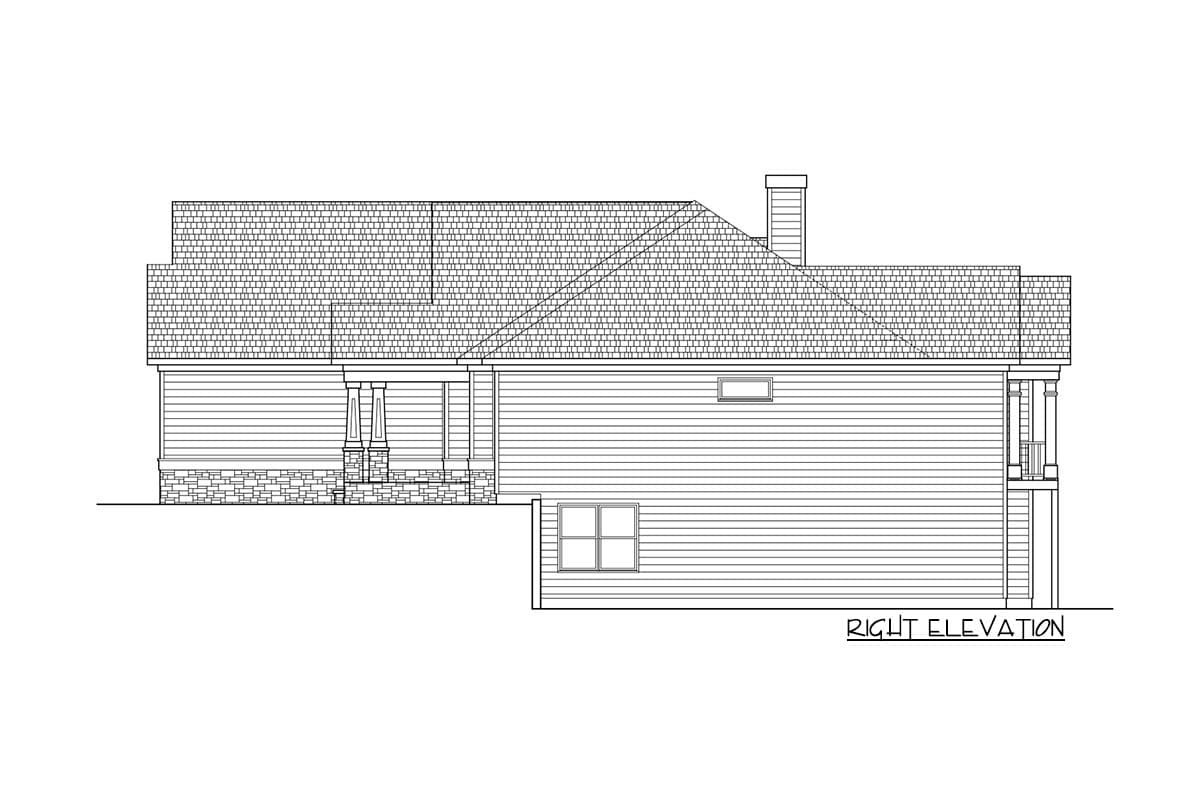

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Everything On One Floor - And Expansion Below

  • 2,739

    Heated s.f.

  • 3-5

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

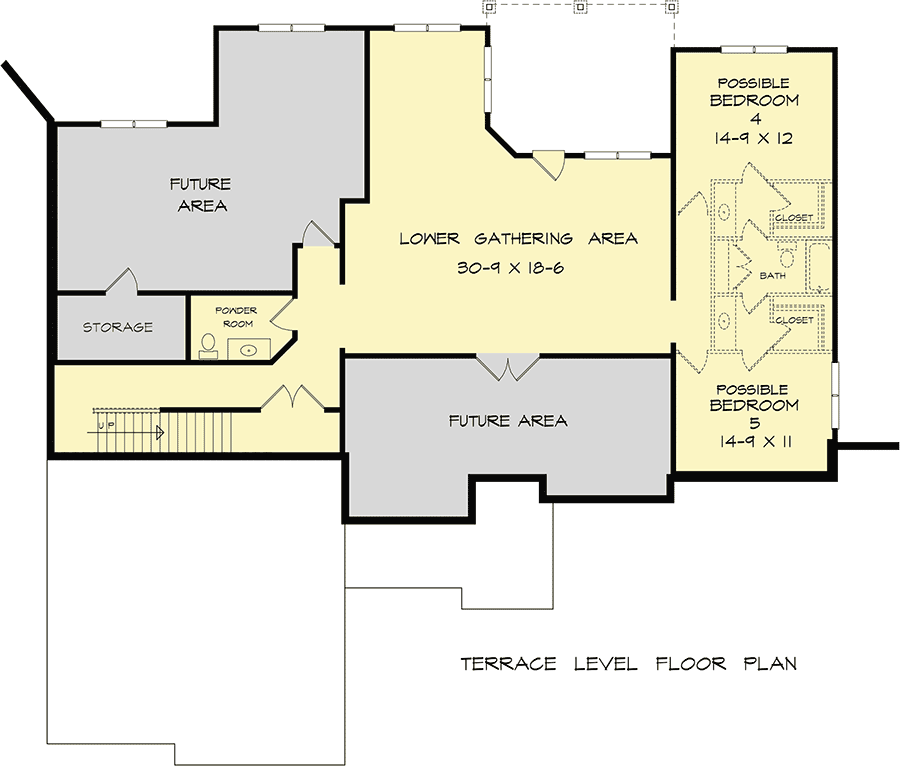

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 2,739 sq. ft.
  • 1st Floor: 2,739 sq. ft.

Dimensions

  • Width: 74' 4"
  • Depth: 71' 7"
  • Max ridge height: 22' 1"

Beds/Baths

  • Bedrooms: 3, 4, or 5
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 720 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
