Plan 5968ND

Excellent Open Floor Plan

2,951 4 3 1 3
Pageloader

Excellent Open Floor Plan

Plan 5968ND

  • 2,951

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

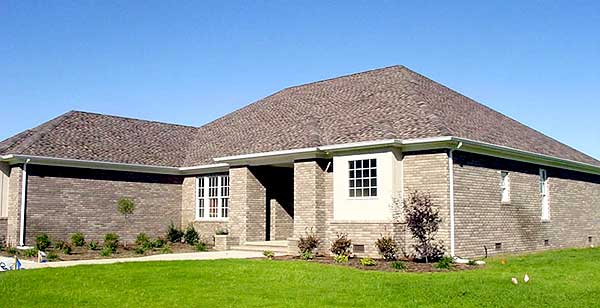

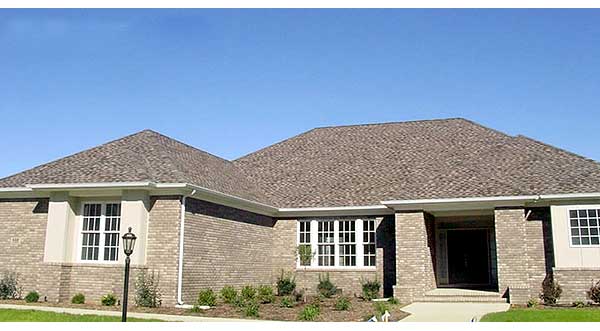

  • Traditional in style, this design effectively separates the master suite from the three family bedrooms and provides both formal and informal living space in its central section.

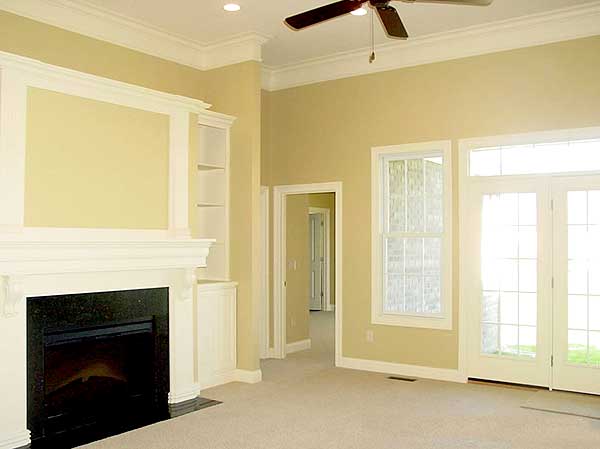

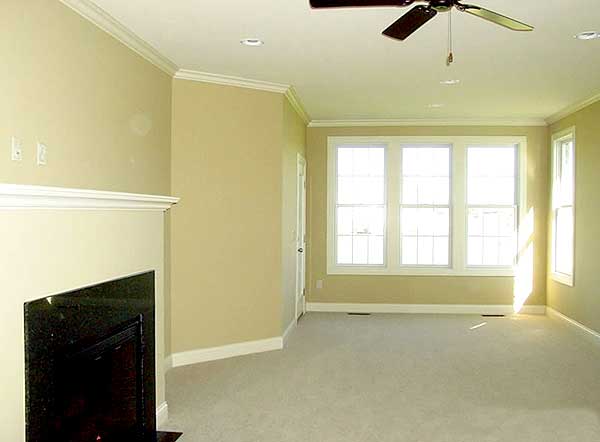

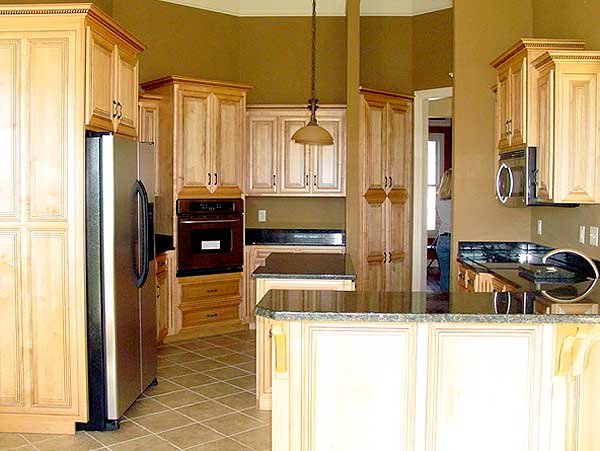

  • The spacious kitchen is well placed to serve not only the formal dining room and the breakfast area, but also the living room and great room. Wood fireplaces grace the master suite and living room, while a gas fireplace is found in the great room.

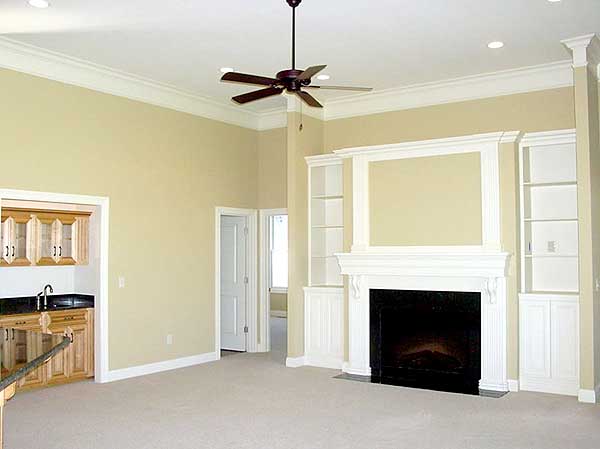

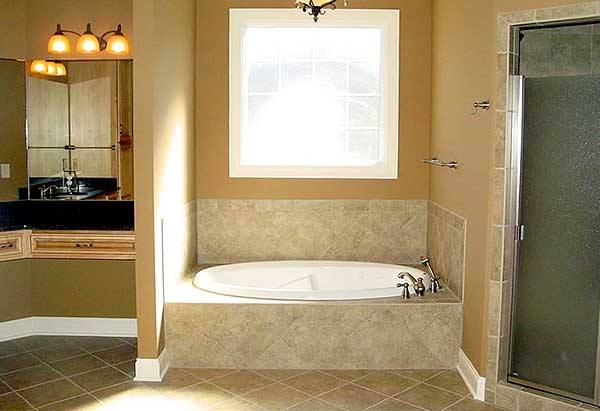

  • Other special features include the wet bar in the great room, the butler's pantry and pantry closet in the kitchen, the sitting room and his and her walk-in closets in the master suite, and the large master bath with all the extras.
  • Ceilings: 9' standard; 12' foyer, living room and great room; 10' boxed dining room.
  • Related Plans: Build with block exterior walls with house plan 59128ND.
  • For other related house plans, see 59178ND, 59265ND and 59626ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

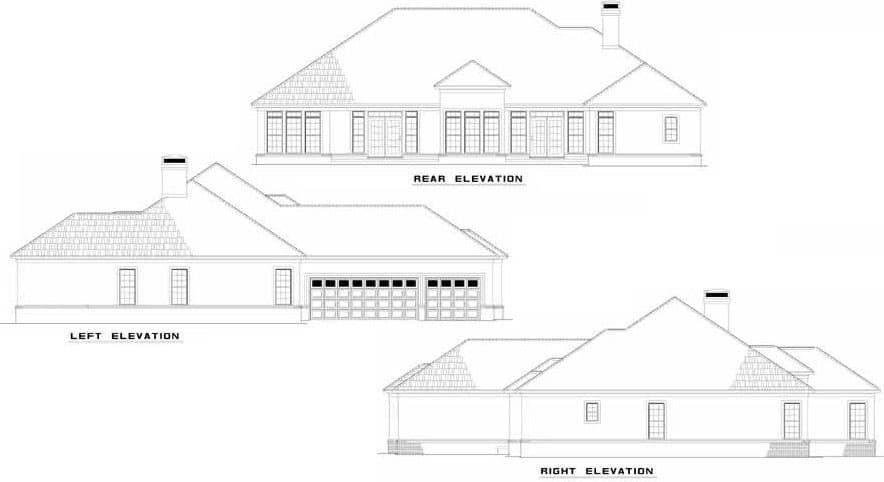

  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details



Excellent Open Floor Plan

  • 2,951

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $700
  • 5 Sets $830
  • 8 Sets $1,020
  • Reproducible Set $1,560
  • PDF - single-use $1,560
  • CAD $2,400
  • View all purchase option online

About This Plan

  • Traditional in style, this design effectively separates the master suite from the three family bedrooms and provides both formal and informal living space in its central section.
  • The spacious kitchen is well placed to serve not only the formal dining room and the breakfast area, but also the living room and great room. Wood fireplaces grace the master suite and living room, while a gas fireplace is found in the great room.
  • Other special features include the wet bar in the great room, the butler's pantry and pantry closet in the kitchen, the sitting room and his and her walk-in closets in the master suite, and the large master bath with all the extras.
  • Ceilings: 9' standard; 12' foyer, living room and great room; 10' boxed dining room.
  • Related Plans: Build with block exterior walls with house plan 59128ND.
  • For other related house plans, see 59178ND, 59265ND and 59626ND.

Floor Plans

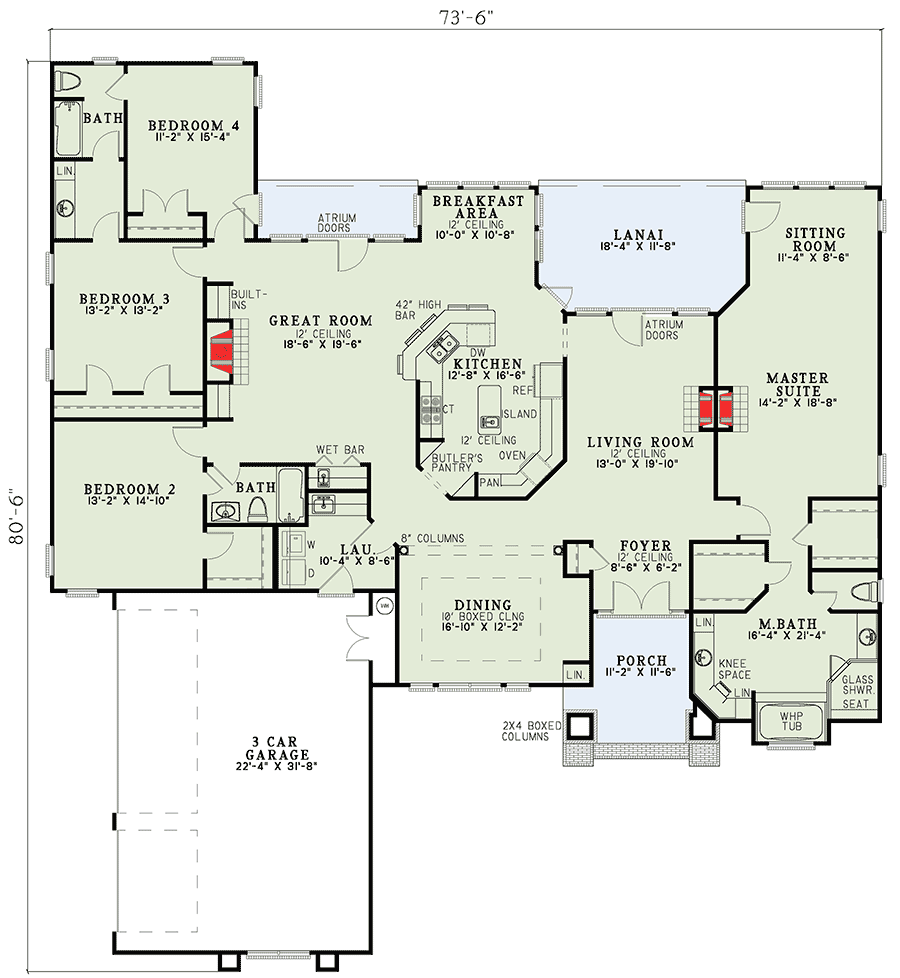

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,951 sq. ft.
  • 1st Floor: 2,951 sq. ft.
  • Porch, Combined: 444 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 73' 6"
  • Depth: 80' 6"
  • Max ridge height: 24' 4"

Garage

  • Type: Attached
  • Area: 707 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Jack & Jill Bath
  • MBR Sitting Area
  • PDF
  • Split Bedrooms
