Plan 59128ND
Sprawling Four Bedroom
Heated S.F.
3,021
Beds
4
Baths
3
Stories
1
Cars
3
What's Included
Plan Details

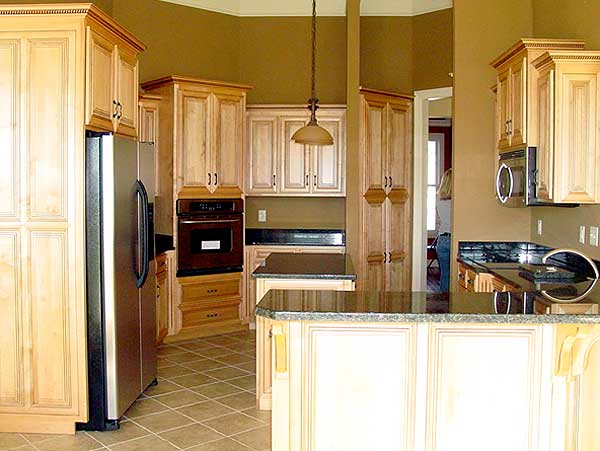

  • This sprawling four-bedroom house plan centers on an ultra-functional kitchen accessing all living areas with ease. A handy eat-at bar and island help make this kitchen any gourmet's dream.

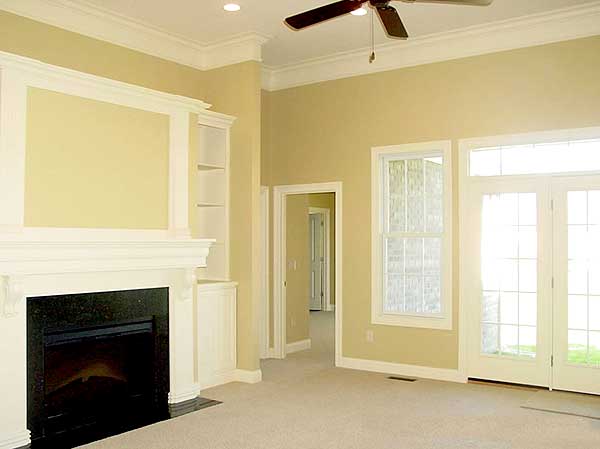

  • Separate living and great rooms each flaunt gas fireplaces and lots of open space.

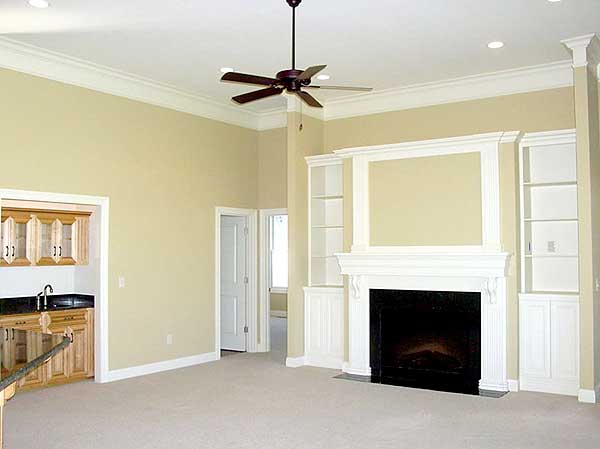

  • Great room has wet bar, optional fireplace, built in shelves and accesses the rear porch.

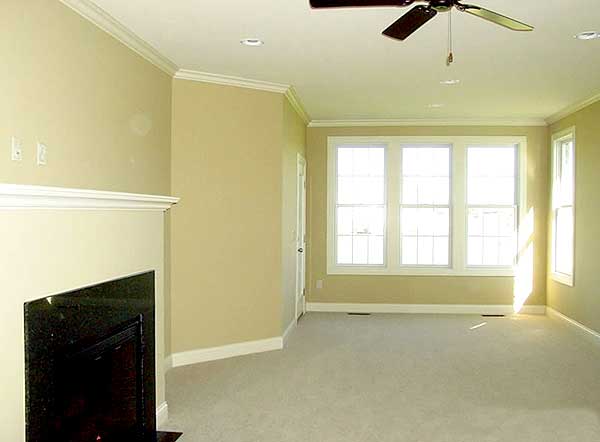

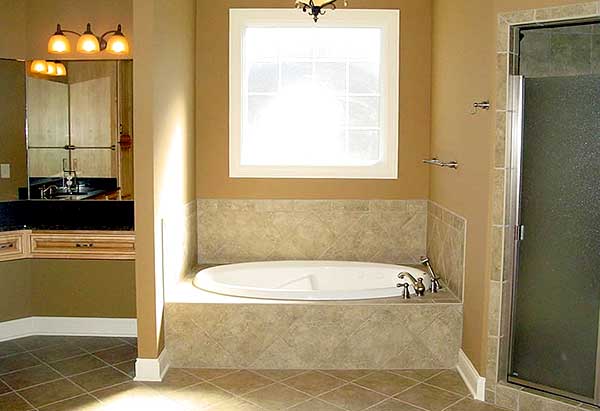

  • The exquisite master suite presents a radiant fireplace, large sitting area, private entrance to the lanai and a massive bath that includes his and her walk-in closets and an oversized whirlpool tub.
  • All three secondary bedrooms feature private bath entrances.
  • Related Plan: Get 2x4 exterior walls with house plan 5968ND (2,951 sq. ft.).
  • Note: Exterior framing is 8" concrete
What's Included
  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sprawling Four Bedroom

  • 3,021

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

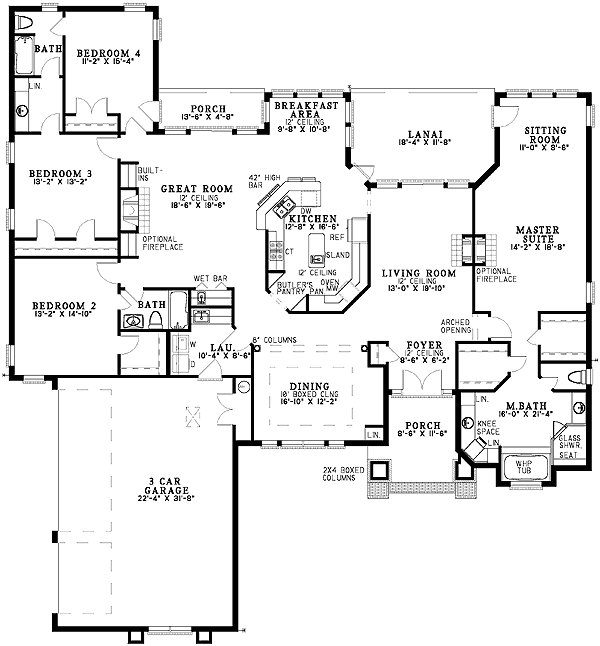

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,021 sq. ft.
  • 1st Floor: 3,021 sq. ft.

Dimensions

  • Width: 74' 2"
  • Depth: 81' 2"
  • Max ridge height: 24' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3

Garage

  • Type: Attached
  • Area: 757 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
