Plan 90277PD

Exciting Contemporary House Plan

Heated S.F.
720
Beds
1 - 4
Baths
1 - 2
Stories
1
Cars
1

Floor Plan

Plan 90277PD

Main Level
Main Level
Optional Lower Level
Optional Lower Level

Plan 90277PD

M-F 9am-5pm EST |

1-203-761-8500

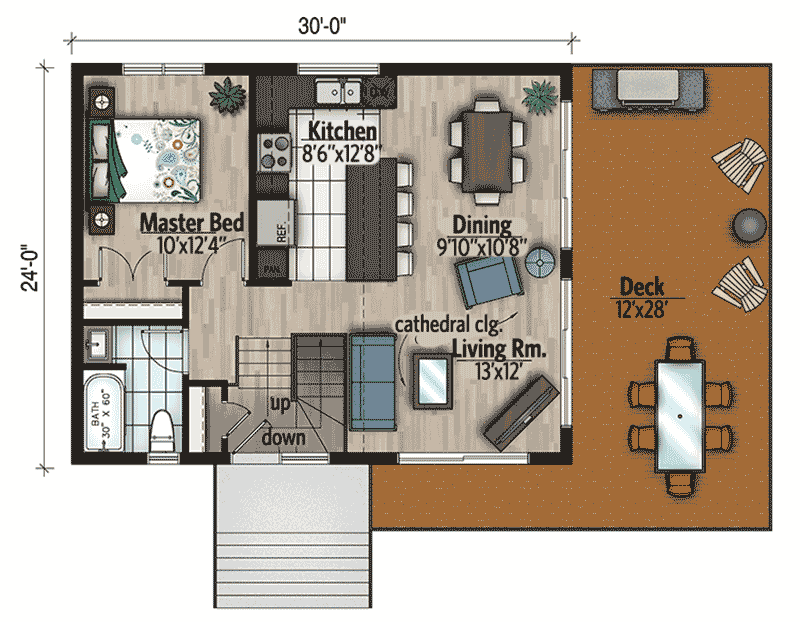

Main Level

Plan 90277PD: Exciting Contemporary House Plan - Floor Plan - Main Level - Contemporary, Modern, Mountain, Vacation

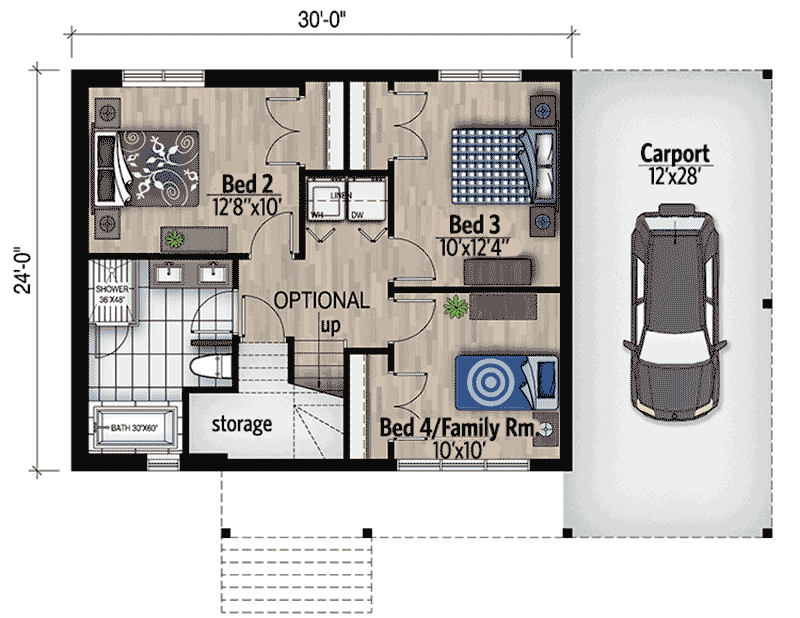

Optional Lower Level

Plan 90277PD: Exciting Contemporary House Plan - Floor Plan - Optional Lower Level - Contemporary, Modern, Mountain, Vacation

Plan Details

  • A slanted shed roof creates cathedral ceilings in the great room of this exciting Contemporary house plan.
  • Sliding glass doors open up to the huge wrap-around deck that has plenty of room for a big grill and entertaining.
  • The open floor plan lets you see all the way from the kitchen to the outside deck.
  • The master suite is on the main floor and you can expand to finish the lower level doubling the square footage of the home.
  • There's room for three more bedrooms downstairs with a big bathroom that has two sinks.

What's Included

Please note this plan is designed to the National Building Code of Canada.
  • Elevations
  • Lower level plan -- including floor above structure, concrete level and thickness, electrical layout
  • Main floor plan w/ structure for the roof above, electrical layout
  • Building section
  • Construction details
  • Suggested lighting plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

720 sq. ft.

1st Floor

720 sq. ft.

Optional Lower Level

720 sq. ft.

Porch, Rear

384 sq. ft.

Entry

37 sq. ft.

Beds/Baths

Bedrooms

1, 2, 3, or 4

Full bathrooms

1 or 2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

30' 0"

Depth

24' 0"

Max Ridge Height

24' 3"

Garage

Type

Carport, Attached

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Room

Ceiling Type

Height

Living Room

Cathedral

0' 0''

Dining Room

Cathedral

0' 0''

Roof Details

Primary Pitch

4 on 12

Secondary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Modern

Mountain

Vacation

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Two Story Great Room

Plan Collections

Canadian House Plans

Lake House Plans
