Exciting Contemporary House Plan with Master Bedroom Wing

Plan 18852CK

  • 3,176

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • This Contemporary house plan comes with great flair from its slanted roof lines to the eye-catching exterior.
  • The open floor plan is evident right from the foyer, with sweeping views that extend back to the huge vaulted great room.
  • You can seat four people at the big kitchen island for casual dining.
  • The whole left side of the first floor is devoted to the master bedroom in a wing of its own.
  • Each family bedroom on the upper floor has a private bathroom and they share a loft.

Plans include the following:

  • foundation
  • framing
  • floor plan
  • roof
  • special sections
  • details page
  • electrical plan
  • door and window schedule
  • elevations with details
  • cross sections as needed

Plan details



Exciting Contemporary House Plan with Master Bedroom Wing

  • 3,176

    Heated s.f.

  • 3

    Beds

  • 4

    Baths

  • 2

    Floors

Buy This Plan
  • PDF - single-use $4,764
  • View all purchase option online

About This Plan

  • This Contemporary house plan comes with great flair from its slanted roof lines to the eye-catching exterior.
  • The open floor plan is evident right from the foyer, with sweeping views that extend back to the huge vaulted great room.
  • You can seat four people at the big kitchen island for casual dining.
  • The whole left side of the first floor is devoted to the master bedroom in a wing of its own.
  • Each family bedroom on the upper floor has a private bathroom and they share a loft.

Floor Plans

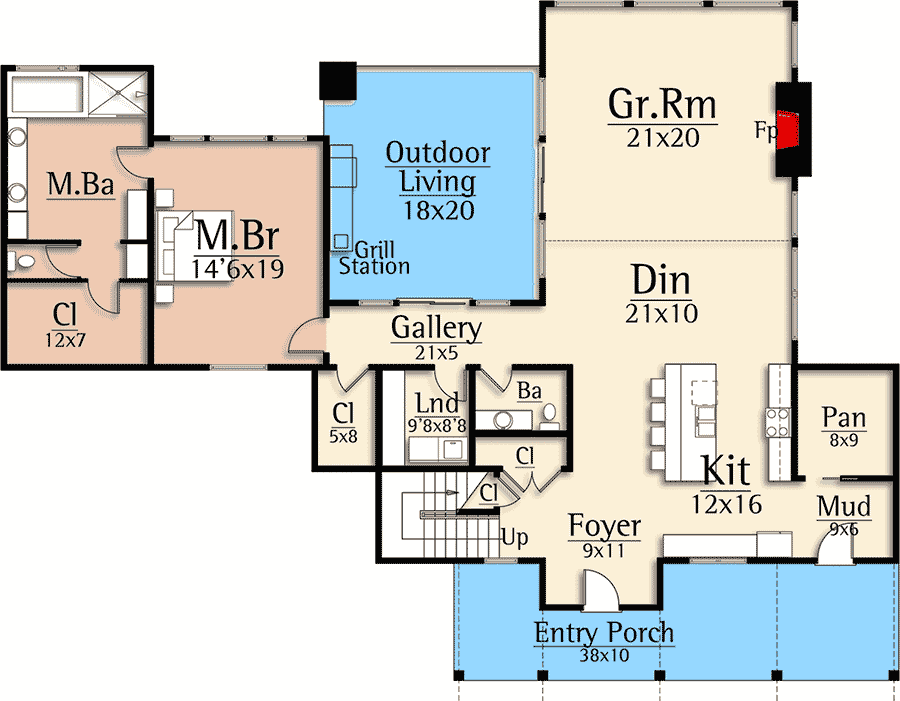

  • Main Level

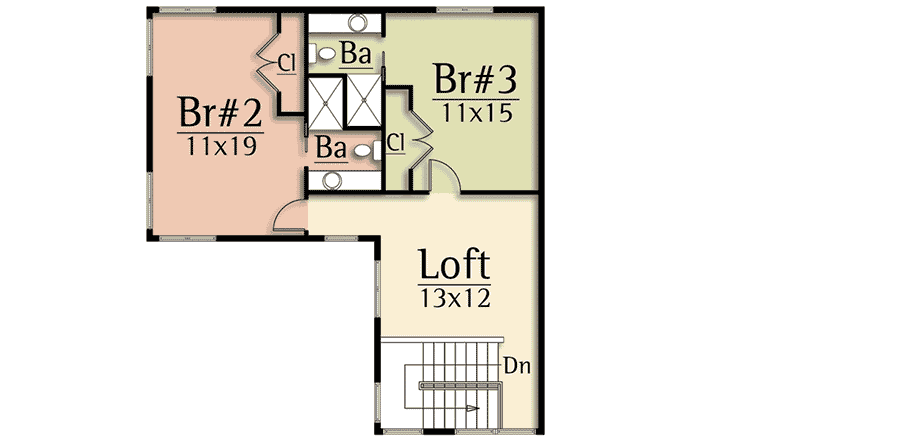

  • 2nd Floor

  • 3rd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,176 sq. ft.
  • 1st Floor: 2,260 sq. ft.
  • 2nd Floor: 916 sq. ft.
  • Porch, Rear: 360 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 77' 0"
  • Depth: 58' 0"

Garage

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Framing Type: Stick
