Plan 510196WDY Exclusive 4-Bed House Plan with Screened Porch and Bonus Second Level

Exclusive 4-Bed House Plan with Screened Porch and Bonus Second Level

Plan 510196WDY

  • 4,575

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • At over 4,500 square feet of living space, this exclusive design features 4 bedrooms, a 3-car garage with dedicated storage, open-concept living, and a generous screened porch with an outdoor kitchen.
  • Three large windows line the rear wall of the living room, which includes a vaulted ceiling and fireplace. An oversized opening allows you to easily move into the kitchen, where you will find a prep island, adjacent butler's / walk-in pantry, and a nearby formal dining room.
  • Discover the private master bedroom tucked behind the garage, and enjoy a spacious 5-fixture ensuite with two walk-in closets; one closet provides a shortcut to the laundry room.
  • Two bedrooms suites share the right side of the design with a home office (or study).
  • A fourth bedroom, or bonus room, resides upstairs, next to a playroom and full bath.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

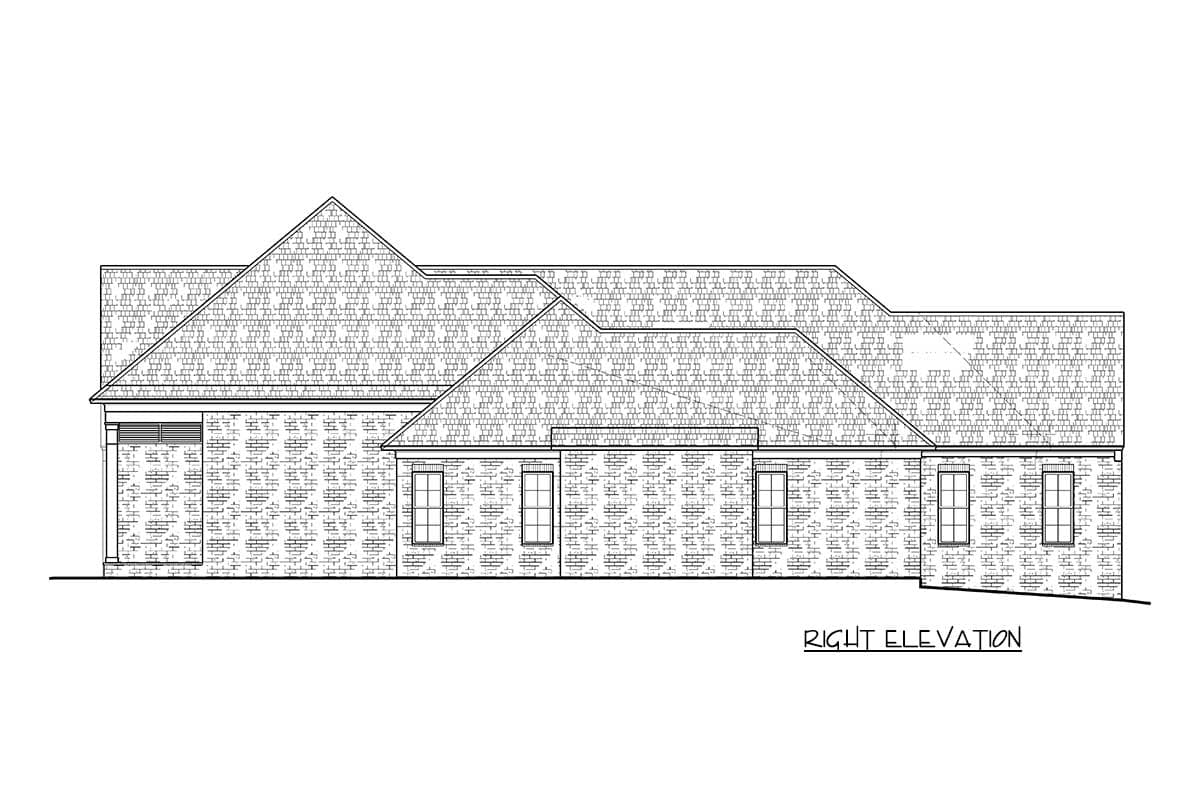

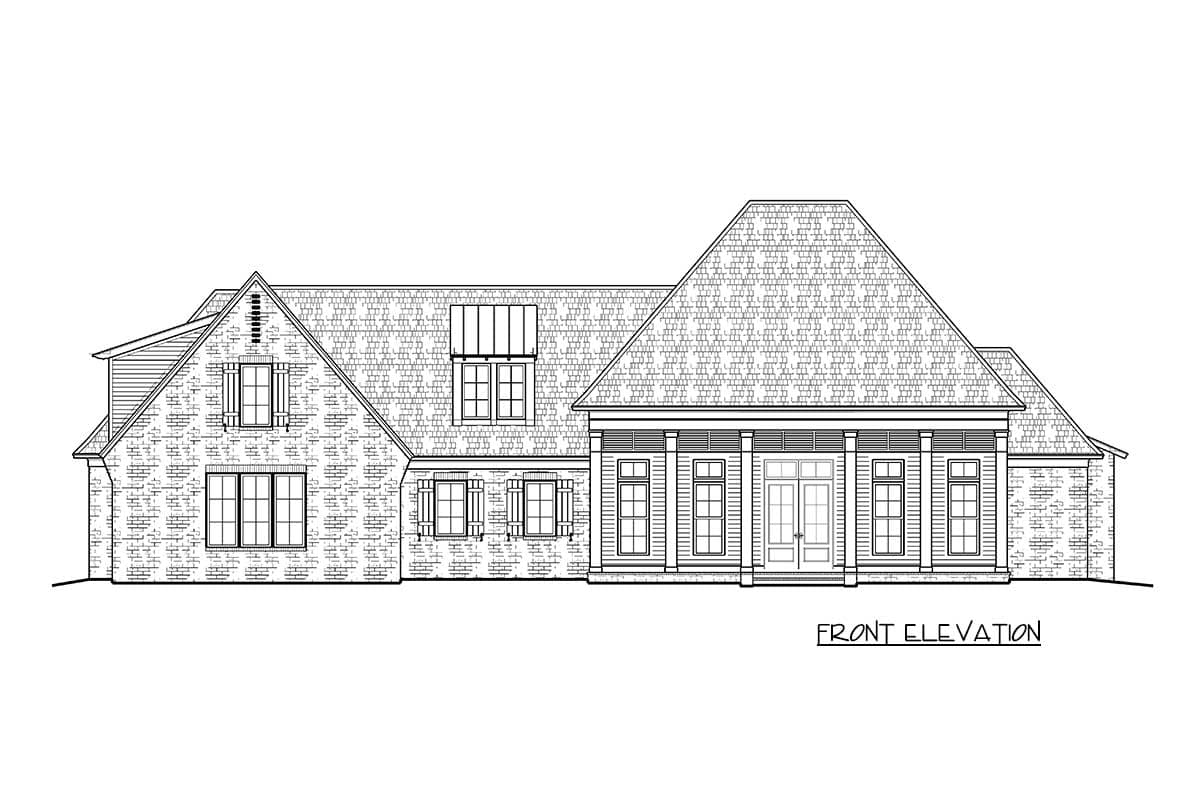

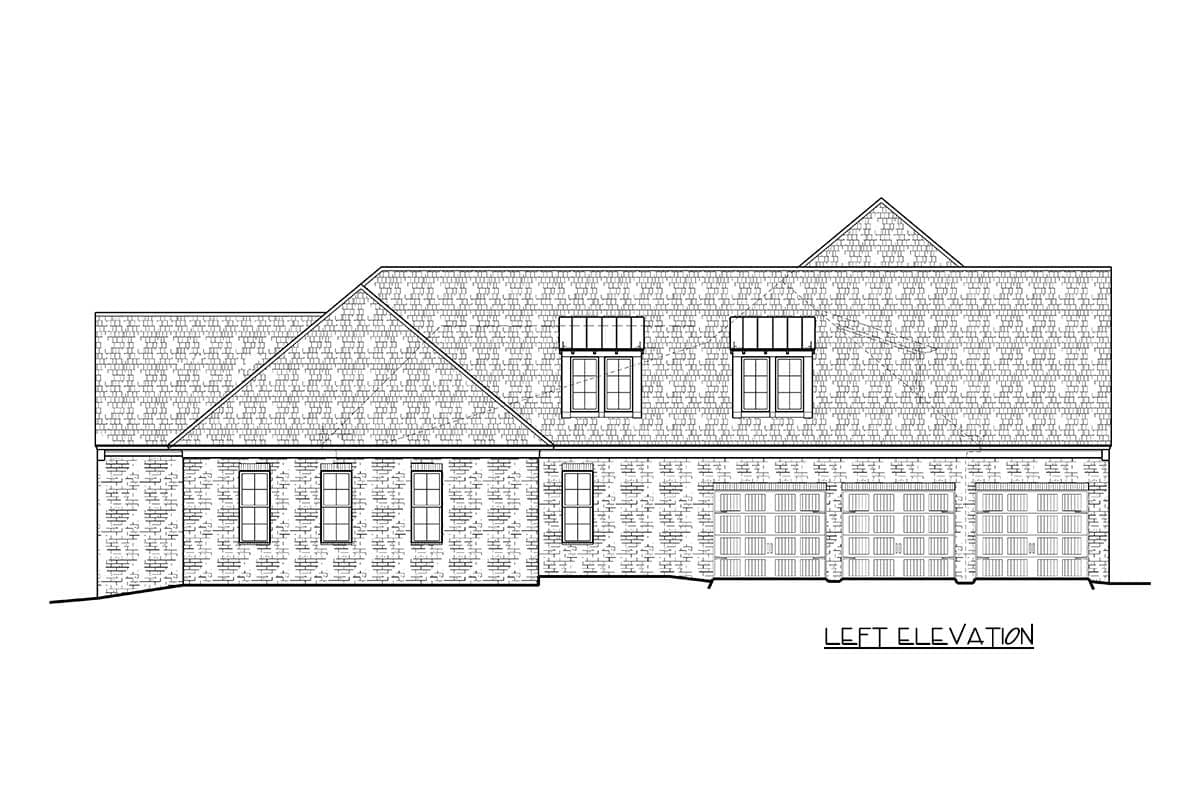

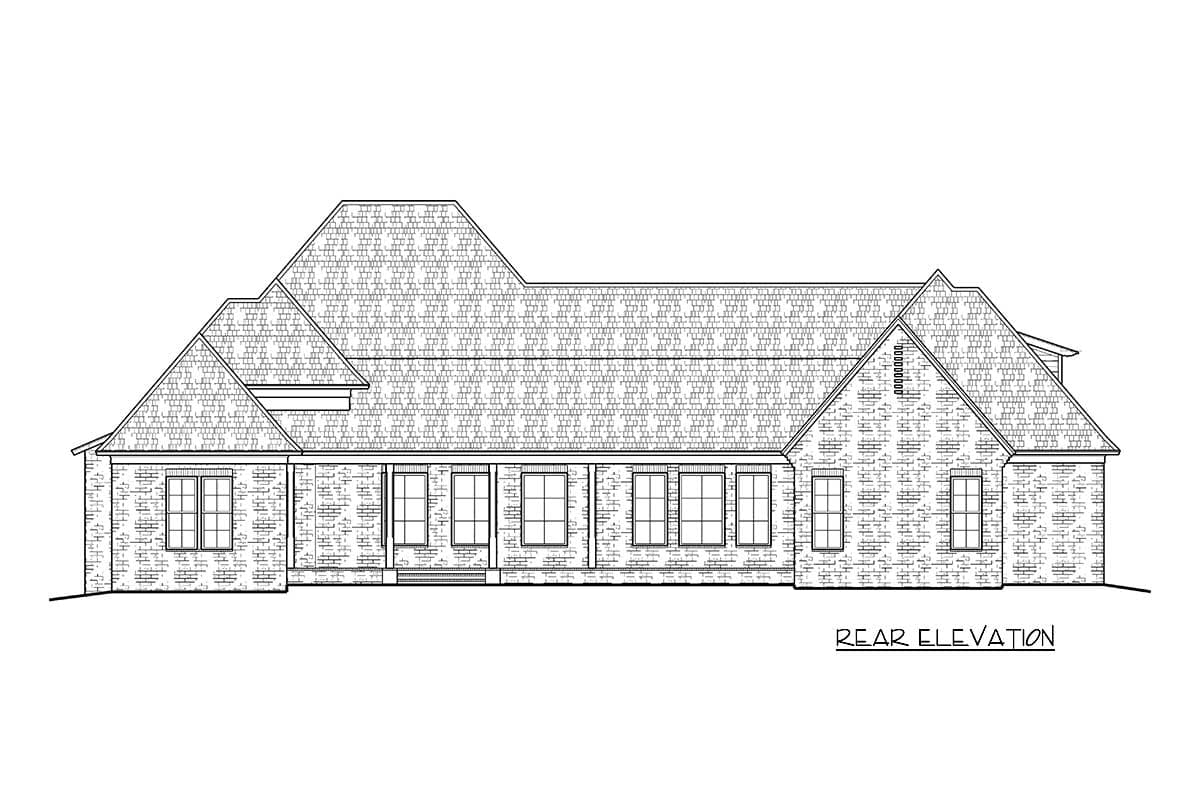

  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

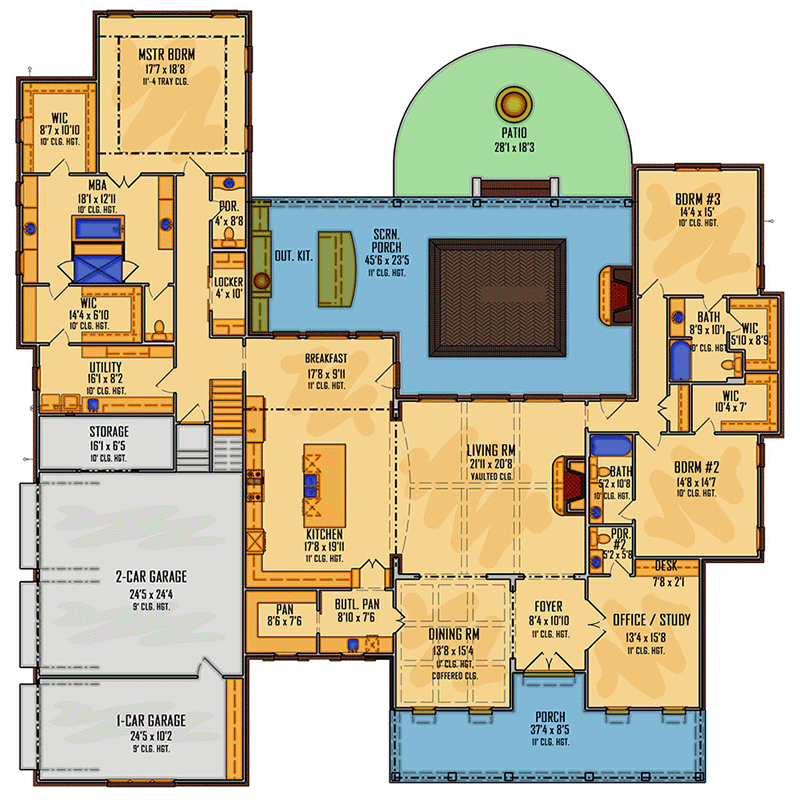

Exclusive 4-Bed House Plan with Screened Porch and Bonus Second Level - 510196WDY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

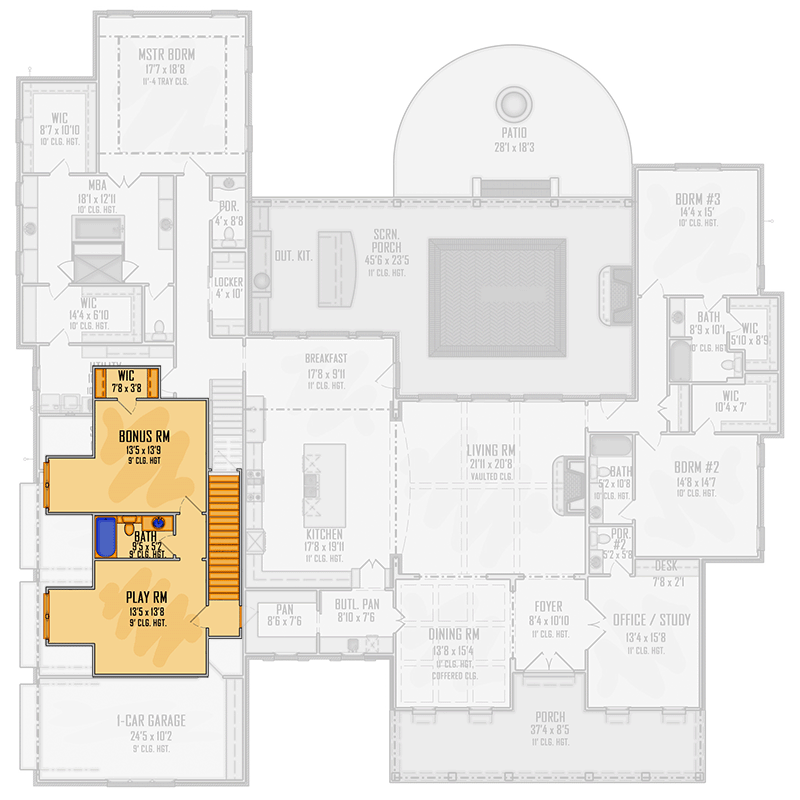

Exclusive 4-Bed House Plan with Screened Porch and Bonus Second Level - 510196WDY floor plan - 2nd Floor

Plan details

Exclusive 4-Bed House Plan with Screened Porch and Bonus Second Level

  • 4,575

    Heated s.f.

  • 4

    Beds

  • 5

    Baths

  • 2

    Floors

Buy This Plan
  • 5 Sets $2,000
  • PDF - Unlimited Build $2,350
  • 5 Sets + PDF $2,600
  • CAD - Unlimited Build $3,431
  • View all purchase option online

About This Plan

  • At over 4,500 square feet of living space, this exclusive design features 4 bedrooms, a 3-car garage with dedicated storage, open-concept living, and a generous screened porch with an outdoor kitchen.
  • Three large windows line the rear wall of the living room, which includes a vaulted ceiling and fireplace. An oversized opening allows you to easily move into the kitchen, where you will find a prep island, adjacent butler's / walk-in pantry, and a nearby formal dining room.
  • Discover the private master bedroom tucked behind the garage, and enjoy a spacious 5-fixture ensuite with two walk-in closets; one closet provides a shortcut to the laundry room.
  • Two bedrooms suites share the right side of the design with a home office (or study).
  • A fourth bedroom, or bonus room, resides upstairs, next to a playroom and full bath.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,575 sq. ft.
  • 1st Floor: 3,869 sq. ft.
  • 2nd Floor: 585 sq. ft.
  • Porch, Combined: 1,175 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 91' 11"
  • Depth: 92' 9"

Garage

  • Type: Attached
  • Area: 1059 sq. ft.
  • Entry Location: Side

Roof

  • Primary Pitch: 14 on 12
  • Framing Type: Stick
