Plan 510191WDY Exclusive 5-Bed European Home Plan with Sunroom

Exclusive 5-Bed European Home Plan with Sunroom

Plan 510191WDY

  • 4,561

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Stone and brick adorn the exterior of this exclusive home plan which cleverly exhibits European features, and includes a sun room, double-sided fireplace, study, and master suite on the main level.
  • The 3-car garage extends from the rear of the home with a dedicated storage room attached. Enter from the garage to find a mudroom next to a pool bath.
  • Enjoy the fireplace from both the living and dining rooms, while the adjoining kitchen features u-shaped cabinets, counters, and appliances that surround an island.
  • The master bedroom is conveniently located on the main level, and paired with a spa-like ensuite with two sinks, two toilet rooms, and a large walk-in closet.
  • A second bedroom resides on the first floor, while the remaining three bedroom suites can be found upstairs, along with a generous media room.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

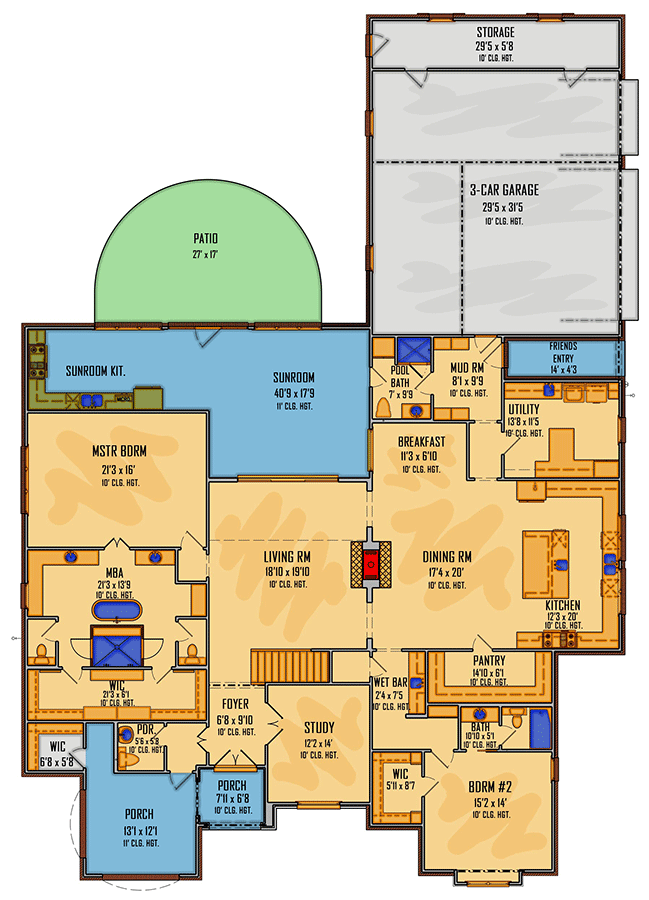

Exclusive 5-Bed European Home Plan with Sunroom - 510191WDY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

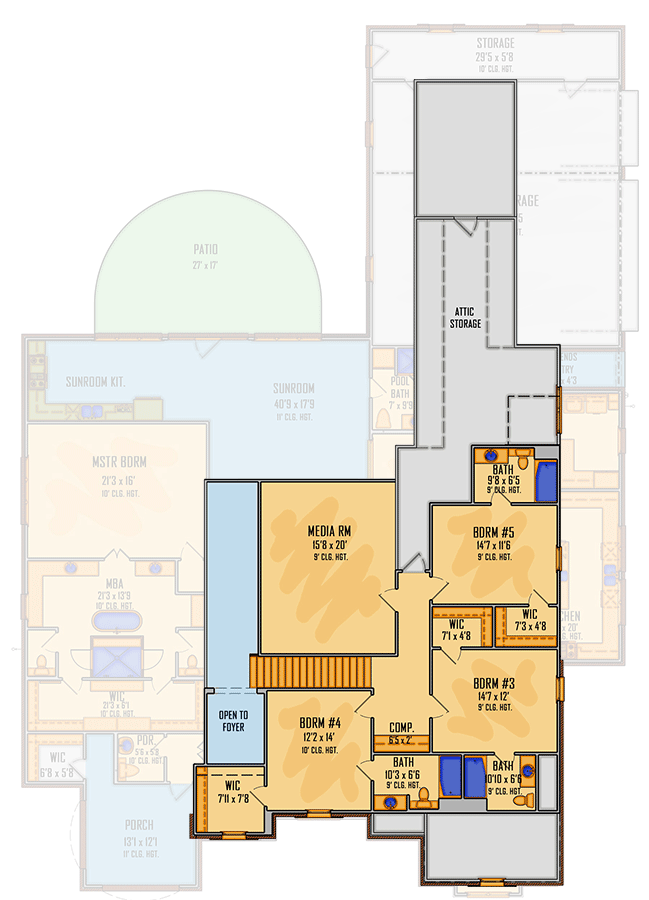

Exclusive 5-Bed European Home Plan with Sunroom - 510191WDY floor plan - 2nd Floor

Plan details

Exclusive 5-Bed European Home Plan with Sunroom

  • 4,561

    Heated s.f.

  • 5

    Beds

  • 6

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $2,000
  • PDF - Unlimited Build $2,350
  • 5 Sets + PDF $2,600
  • CAD - Unlimited Build $3,420
  • View all purchase option online

About This Plan

  • Stone and brick adorn the exterior of this exclusive home plan which cleverly exhibits European features, and includes a sun room, double-sided fireplace, study, and master suite on the main level.
  • The 3-car garage extends from the rear of the home with a dedicated storage room attached. Enter from the garage to find a mudroom next to a pool bath.
  • Enjoy the fireplace from both the living and dining rooms, while the adjoining kitchen features u-shaped cabinets, counters, and appliances that surround an island.
  • The master bedroom is conveniently located on the main level, and paired with a spa-like ensuite with two sinks, two toilet rooms, and a large walk-in closet.
  • A second bedroom resides on the first floor, while the remaining three bedroom suites can be found upstairs, along with a generous media room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,561 sq. ft.
  • 1st Floor: 3,444 sq. ft.
  • 2nd Floor: 1,032 sq. ft.
  • Porch, Combined: 708 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 71' 11"
  • Depth: 104' 1"
  • Max ridge height: 38' 4"

Garage

  • Type: Attached
  • Area: 1136 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
