Exclusive Beach House with Stacked Porches

Plan 461030DNN

  • 2,642

    Heated s.f.

  • 5

    Beds

  • 3.5+

    Baths

  • 2-3

    Stories

  • 3

    Cars

  • This exclusive beach house plan offers an exciting ground level with space for two cars, a golf cart, hot tub, powder bath, and elevator, or stair access, to the main level.
  • Screened and covered porches are located on both the main and top levels to take advantage of the surrounding views.
  • Three bedrooms and an informal den with a fireplace consume the main level.
  • The top floor is where you'll find the shared living spaces that are open to one another. U-shaped cabinetry forms the kitchen and provides an eating bar next to the formal dining area.
  • Two bedrooms complete the main level with the primary bedroom offering french doors to a covered porch.

What is Included in Our Plans?

We work with hundreds of designer and architects who work in a variety of styles.  It is important to note their plan packages may contain different details so we strongly encourage you to contact us for the contents of any plan you may be interested in purchasing.

Below is a listing of sheets typically included in our plans:

Foundation Plan

shows the foundation details.

Floor Plan

shows the placement of interior walls and the dimensions for rooms, doors, windows, stairways, etc. of each level of the house.

Exterior Elevations

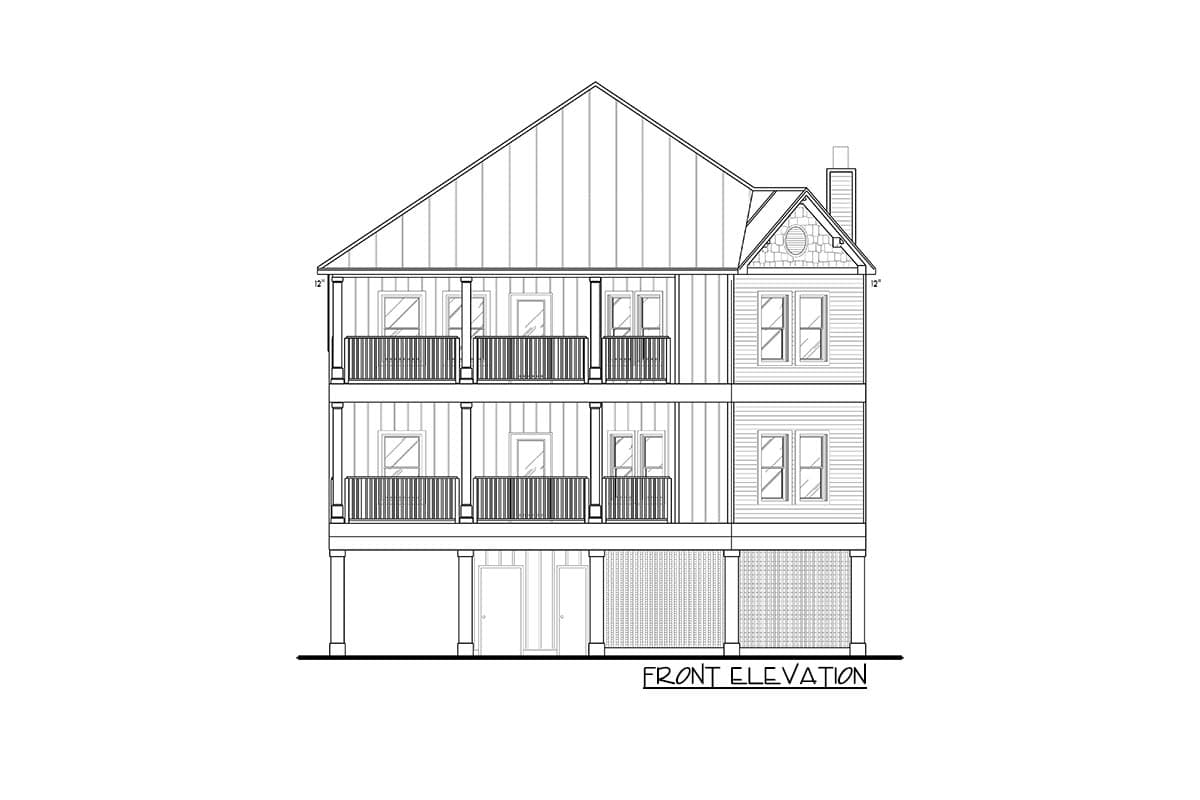

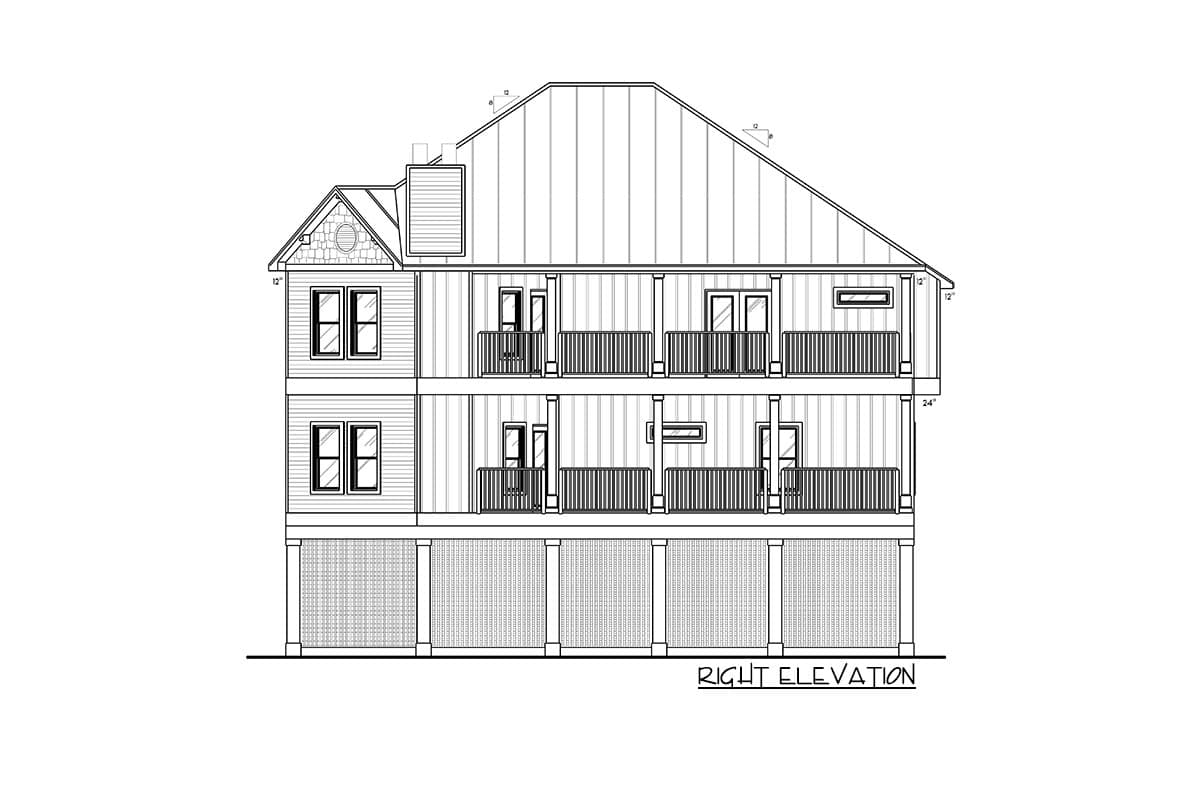

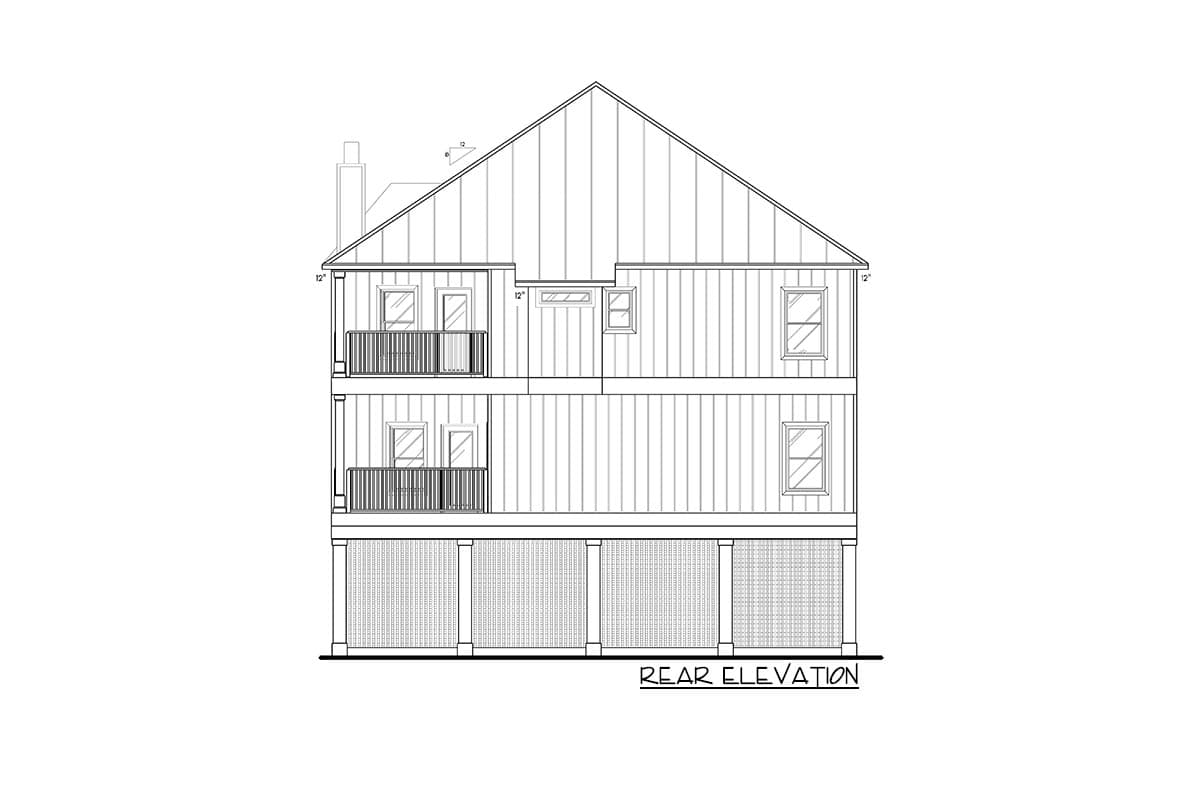

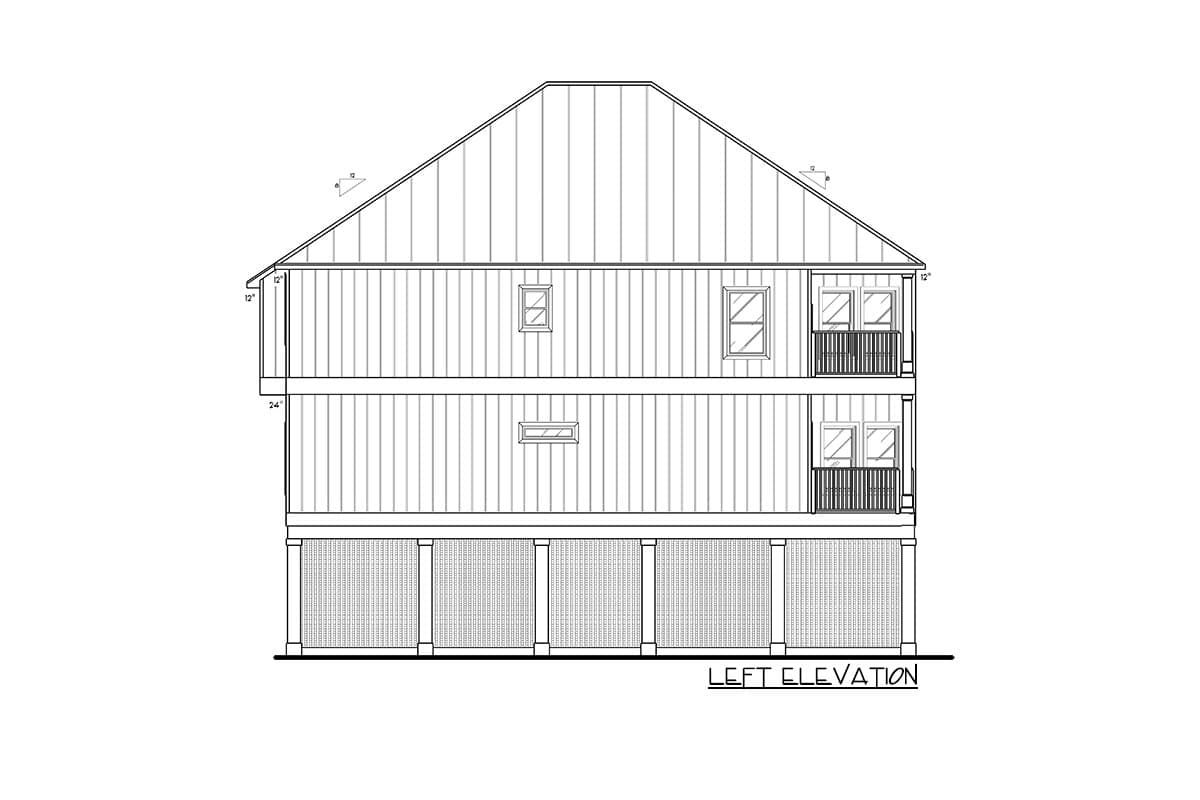

show the front, rear and sides of the house, including exterior materials, details and roof pitches.

Building Cross Section

shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.

Interior Elevations

show the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.

Roof Plan

provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable

Electrical Plan (when available)

shows the suggested locations for fixtures and outlets. Please contact us to see if an electrical plan is included in the plan set.

Notes & Details

provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Framing layouts with beam sizes and locations
  •           Energy calculations
  •           Materials list - MAY be available as a purchasable option under the "Options" tab

Building Code

Because of the wide range of requirements throughout states and municipalities, it is possible that the plans may not have all of the information required by your building department. If this is the case, we recommend hiring a local design professional or engineer who can assist bringing the plans up to your local building code.

Engineering

Some states require that a licensed architect or engineer review and stamp the plans. If this is the case where you will be building, a local professional will be able to assist you.

Important Extras: Sold separately

Readable Reverse Plans

The layout is reversed and all the writing is corrected so you can read the writing. With this option, all of your sets will appear the way you want to build the home. This option is available for an additional charge.

Mirror Reverse Plans

The lettering and dimensions will read backwards, so you will need to order at least one set non-reversed as a reference copy.

Itemized List of Materials (when available)

Includes the quantity, type and size of materials needed to build your home.

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

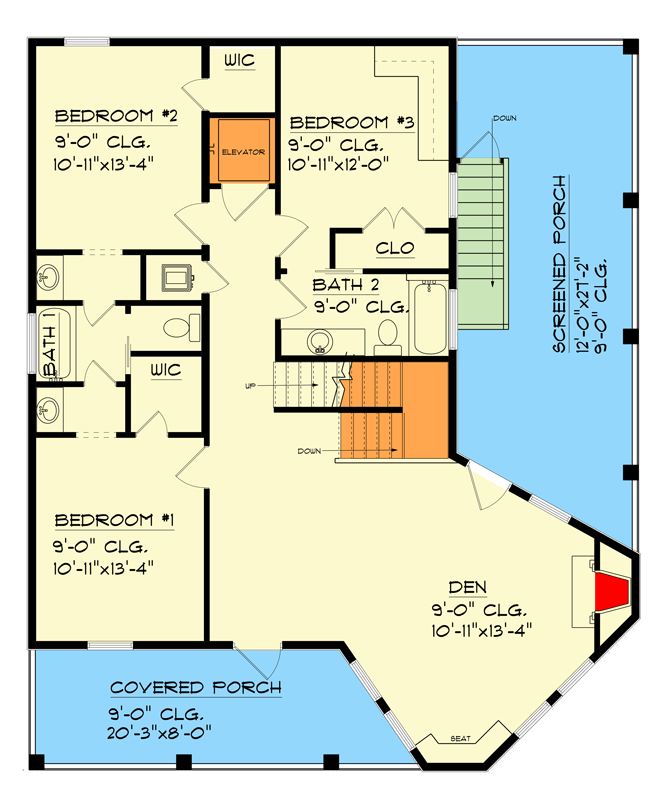

Exclusive Beach House with Stacked Porches - 461030DNN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

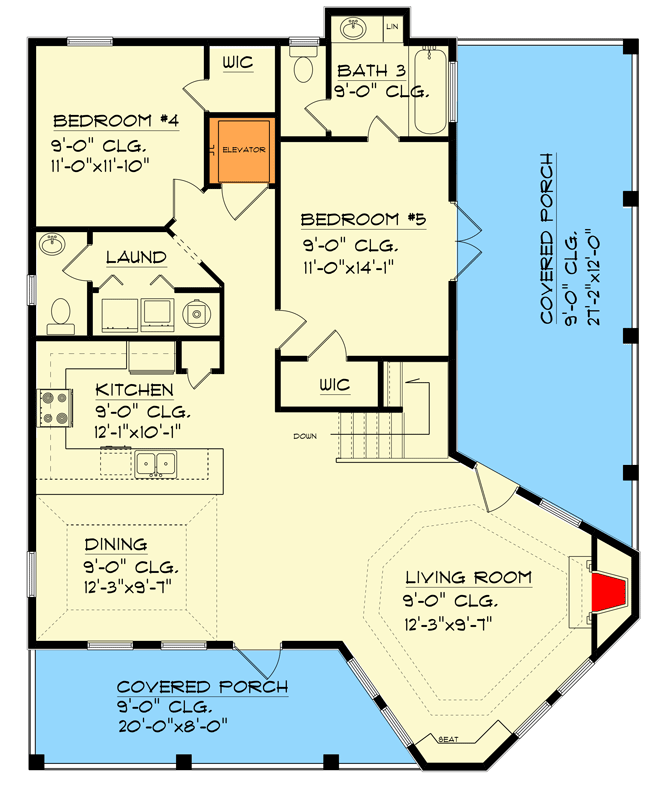

Exclusive Beach House with Stacked Porches - 461030DNN floor plan - 2nd Floor

Ground Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

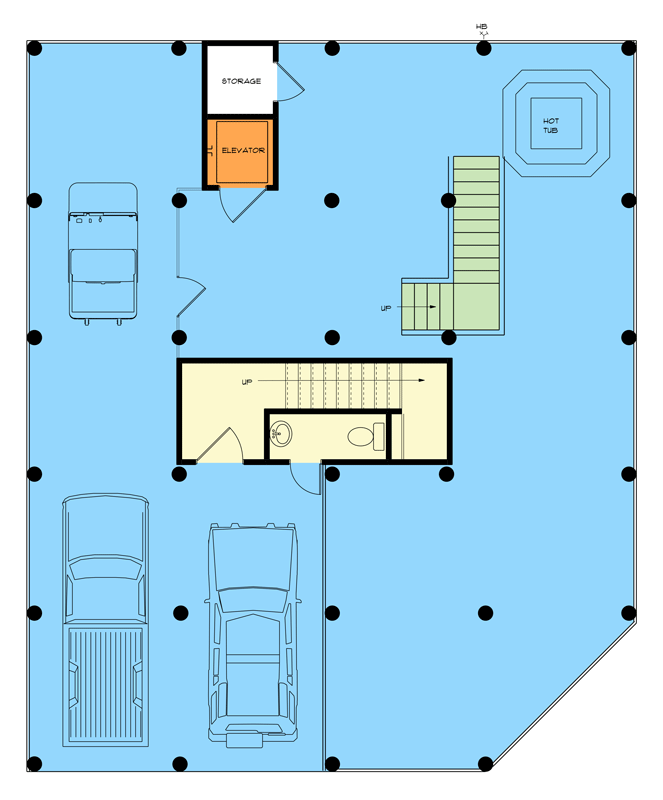

Exclusive Beach House with Stacked Porches - 461030DNN floor plan - Ground Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,642 sq. ft.
  • Lower Level: 1,864 sq. ft.
  • 1st Floor: 1,334 sq. ft.
  • 2nd Floor: 1,308 sq. ft.
  • Storage: 25 sq. ft.
  • Screened Porch: 355 sq. ft.
  • Porch, Combined: 1,066 sq. ft.
  • Porch, Front: 175 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

  • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 43' 4"

Garage

  • Type: Attached, Drive Under
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1" Second Floor / 9' 1"

Roof Details

  • Primary Pitch: 8 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Exclusive Beach House with Stacked Porches

  • 2,642

    Heated s.f.

  • 5

    Beds

  • 3.5+

    Baths

  • 2-3

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,245
  • 5 Sets + PDF $1,495
  • PDF - Unlimited Build $1,945
  • CAD Unlimited + PDF $2,245
  • View all purchase option online

About This Plan

  • This exclusive beach house plan offers an exciting ground level with space for two cars, a golf cart, hot tub, powder bath, and elevator, or stair access, to the main level.
  • Screened and covered porches are located on both the main and top levels to take advantage of the surrounding views.
  • Three bedrooms and an informal den with a fireplace consume the main level.
  • The top floor is where you'll find the shared living spaces that are open to one another. U-shaped cabinetry forms the kitchen and provides an eating bar next to the formal dining area.
  • Two bedrooms complete the main level with the primary bedroom offering french doors to a covered porch.

Floor Plans

  • Main Level

  • 2nd Floor

  • Ground Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,642 sq. ft.
  • Lower Level: 1,864 sq. ft.
  • 1st Floor: 1,334 sq. ft.
  • 2nd Floor: 1,308 sq. ft.
  • Storage: 25 sq. ft.
  • Screened Porch: 355 sq. ft.
  • Porch, Combined: 1,066 sq. ft.
  • Porch, Front: 175 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 2

Foundation Type

    • Standard Foundations: Piling

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 40' 0"
  • Depth: 48' 0"
  • Max ridge height: 43' 4"

Garage

  • Type: Attached, Drive Under
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 1" Second Floor / 9' 1"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
