Exclusive Brick-clad Home Plan with Double-sided Fireplace and Rear Garage
Heated S.F.
4,536
Beds
5
Baths
5.5
Stories
2
Cars
3
What's Included
Plan Details
  • This exclusive, brick-clad home plan offers an intuitive layout with a 3-car garage attached to the rear of the home; a storage room attached to the garage is perfect for lawn supplies.
  • From the foyer, a quiet study and sitting porch is located to the left, while the formal dining room can be found to the right. The living room is topped by a vaulted ceiling and sits in the center of the design with access to the back porch.
  • A double-sided fireplace serves as the only divider between the living room and keeping room / kitchen. The gourmet kitchen checks all of your wishlist items with loads of storage, a prep island, and large walk-in pantry.
  • The main-level master suite considers your future needs and includes a his and hers bathroom with two sinks and toilet rooms, and a sizable walk-in closet.
  • Another bedroom resides on the main level, while bedrooms 4 and 5 share the upstairs with a flexible bonus room.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Brick-clad Home Plan with Double-sided Fireplace and Rear Garage

  • 4,536

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

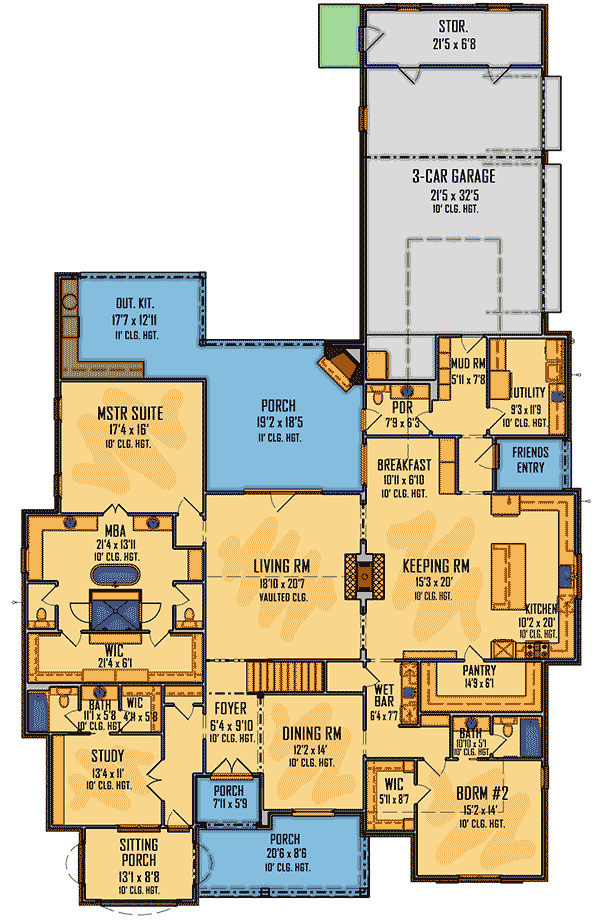

  • Main Level

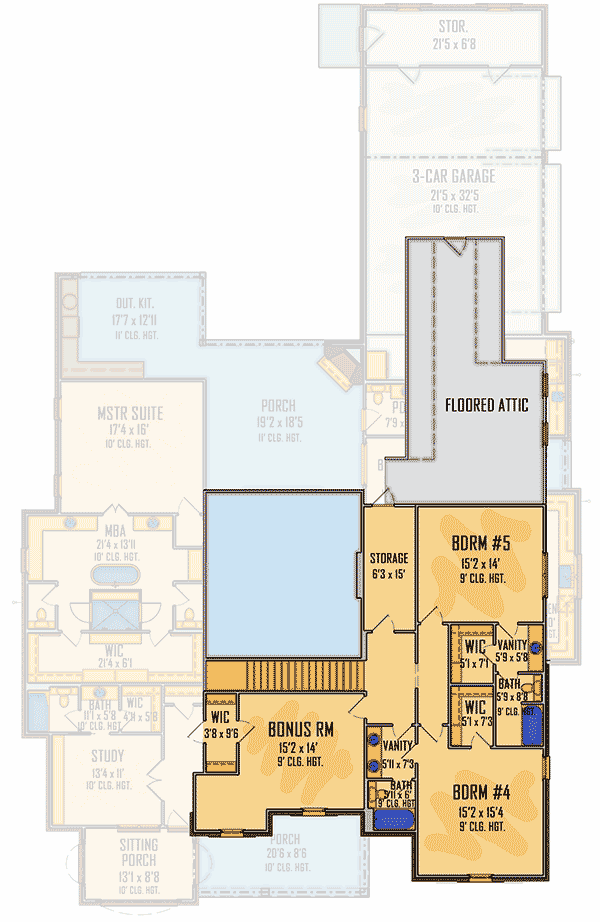

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,536 sq. ft.
  • 1st Floor: 3,254 sq. ft.
  • 2nd Floor: 1,193 sq. ft.

Dimensions

  • Width: 67' 11"
  • Depth: 109' 6"
  • Max ridge height: 37' 4"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 923 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
