Plan 93163EL Exclusive Contemporary Tudor with 3rd Floor Game Room

2,361 4 3.5 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Contemporary Tudor with 3rd Floor Game Room

Plan 93163EL

  • 2,361

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • Dramatic swooping roof lines and an arched entryway catch the attention of those passing by this Contemporary Tudor home plan that is exclusive to Architectural Designs.
  • French doors near the foyer open to a home office, across from a guest suite with a built-in bench tucked beneath the window.
  • The open layout combines the great room, island kitchen, and dining area, and a 9' by 11'6" covered porch is ideal for grilling or dining outdoors.
  • Three bedrooms and the laundry room reside upstairs, with the largest bedroom reserved for the homeowner.
  • Continue up to the 3rd floor to find a 519 square foot bonus room with a closet and half bath to round out the design.
  • DELIVERY NOTE: Please allow 5 to 7 business days for delivery.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Plan
  • Second Floor Plan (if applicable)
  • Roof Framing Plan
  • Front & Rear Elevation
  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

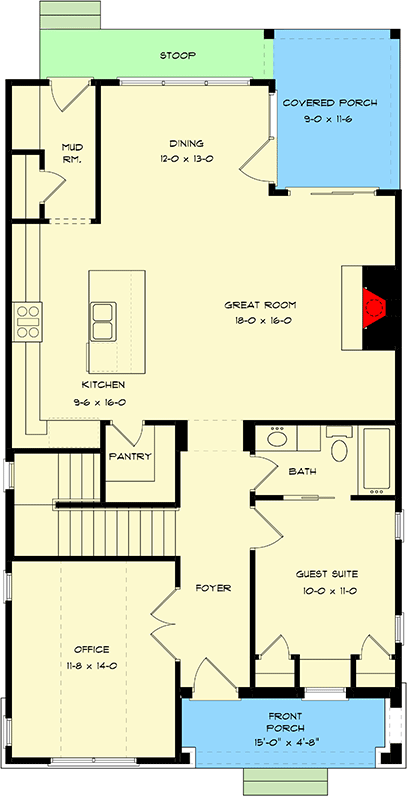

Exclusive Contemporary Tudor with 3rd Floor Game Room - 93163EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

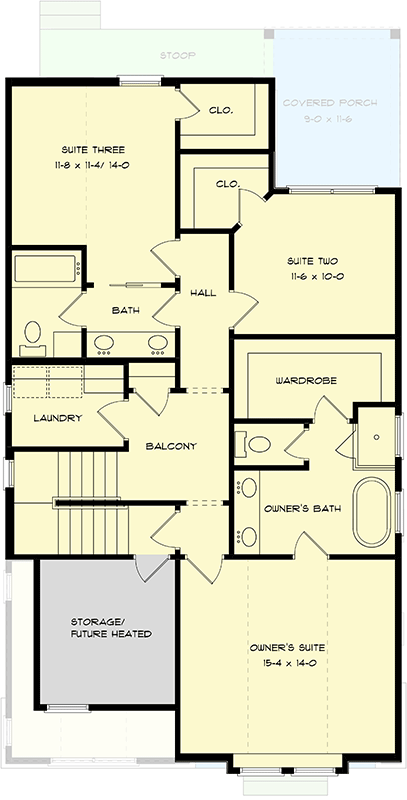

Exclusive Contemporary Tudor with 3rd Floor Game Room - 93163EL floor plan - 2nd Floor

3rd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

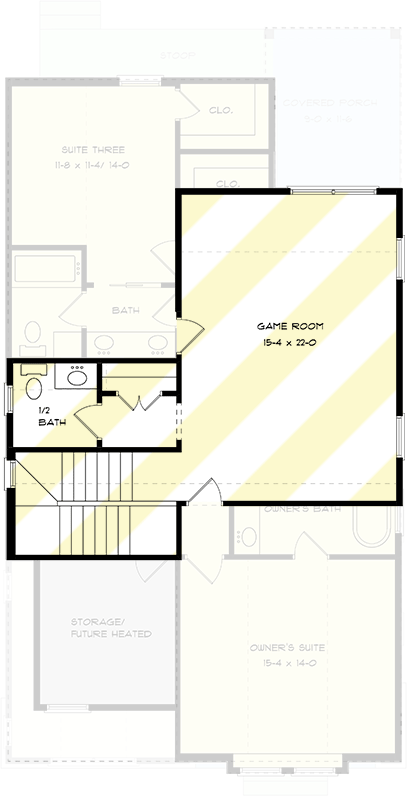

Exclusive Contemporary Tudor with 3rd Floor Game Room - 93163EL floor plan - 3rd Floor
