Plan 24116BG Exclusive Contemporary Vacation Home Plan with a Golf Cart Area in Garage

4,968 4 4.5 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive Contemporary Vacation Home Plan with a Golf Cart Area in Garage

Plan 24116BG

  • 4,968

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

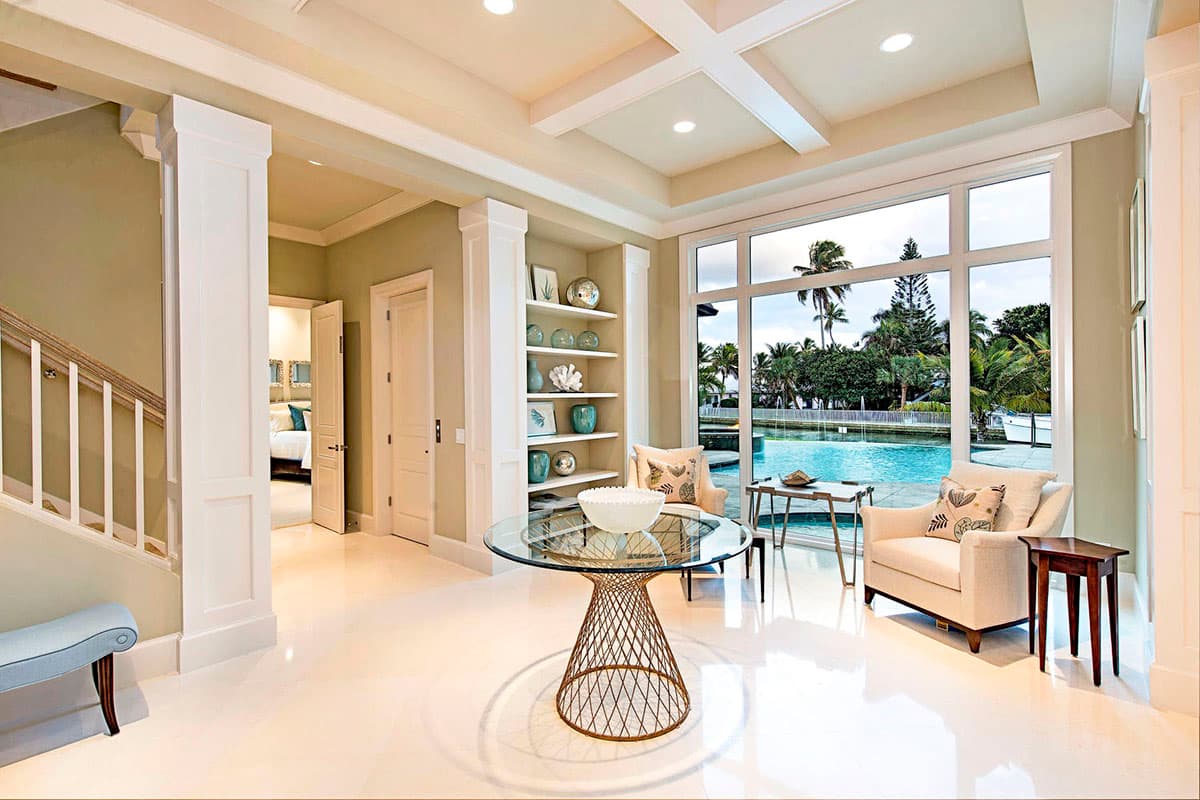

  • This exclusive, contemporary vacation home plan boasts luxurious elements around every corner. Once inside, a grand foyer separates the master suite wing from the shared living spaces.

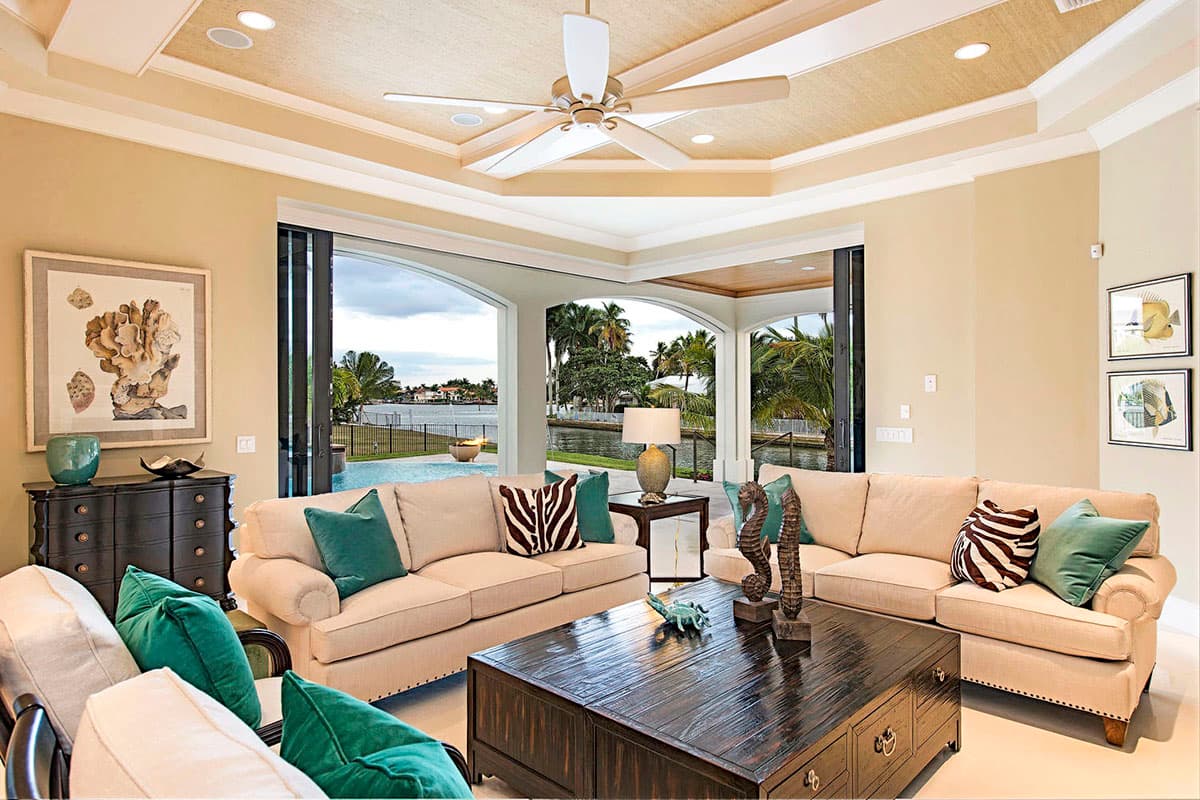

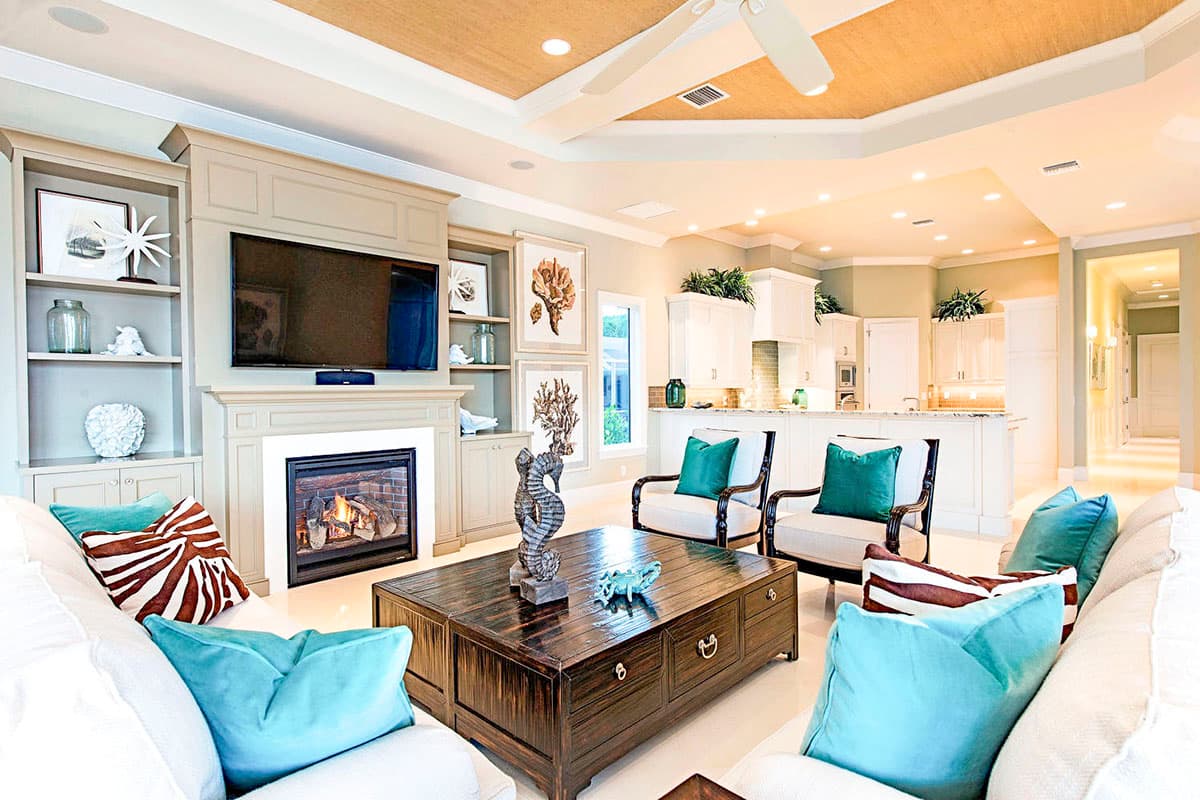

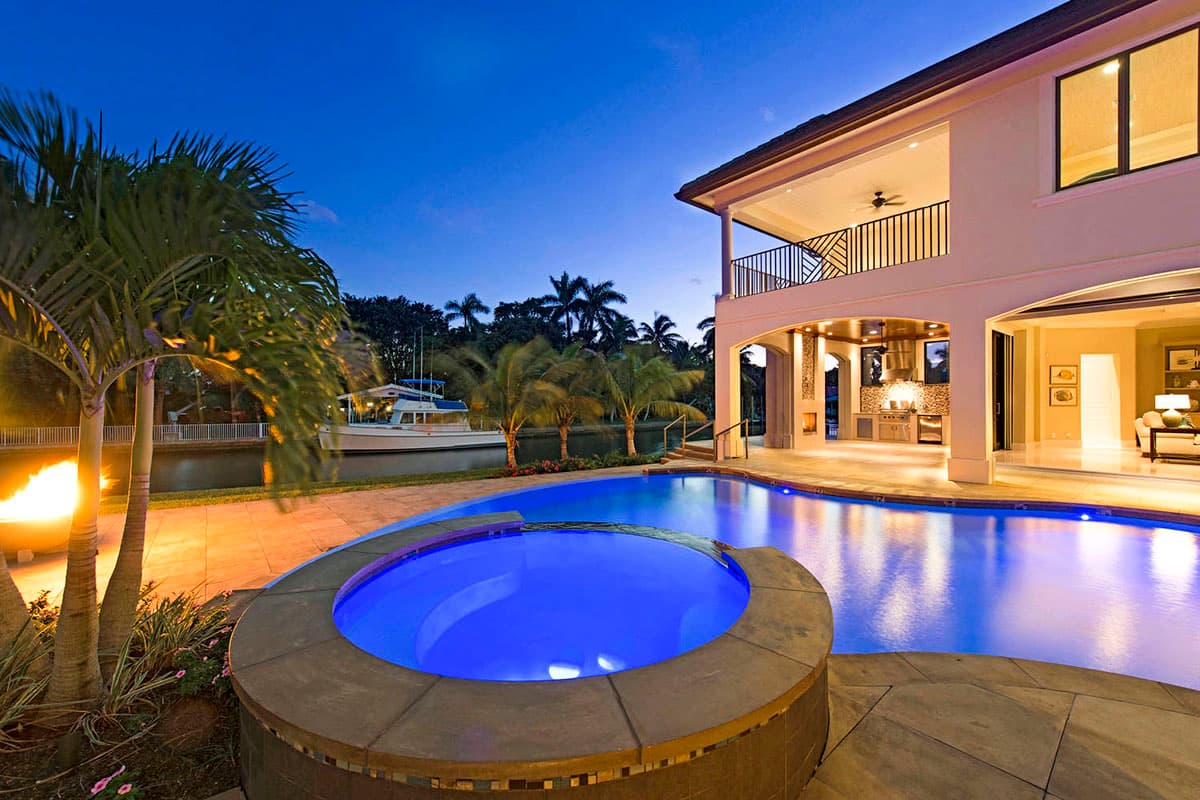

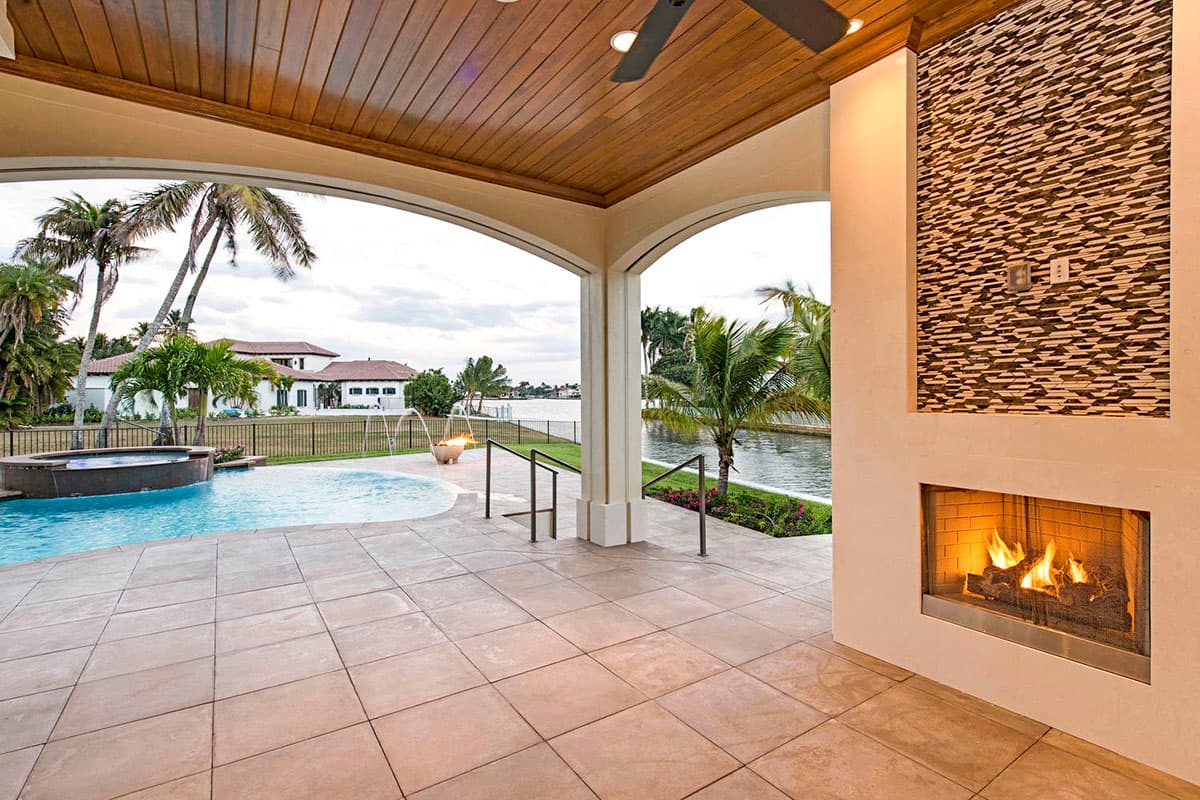

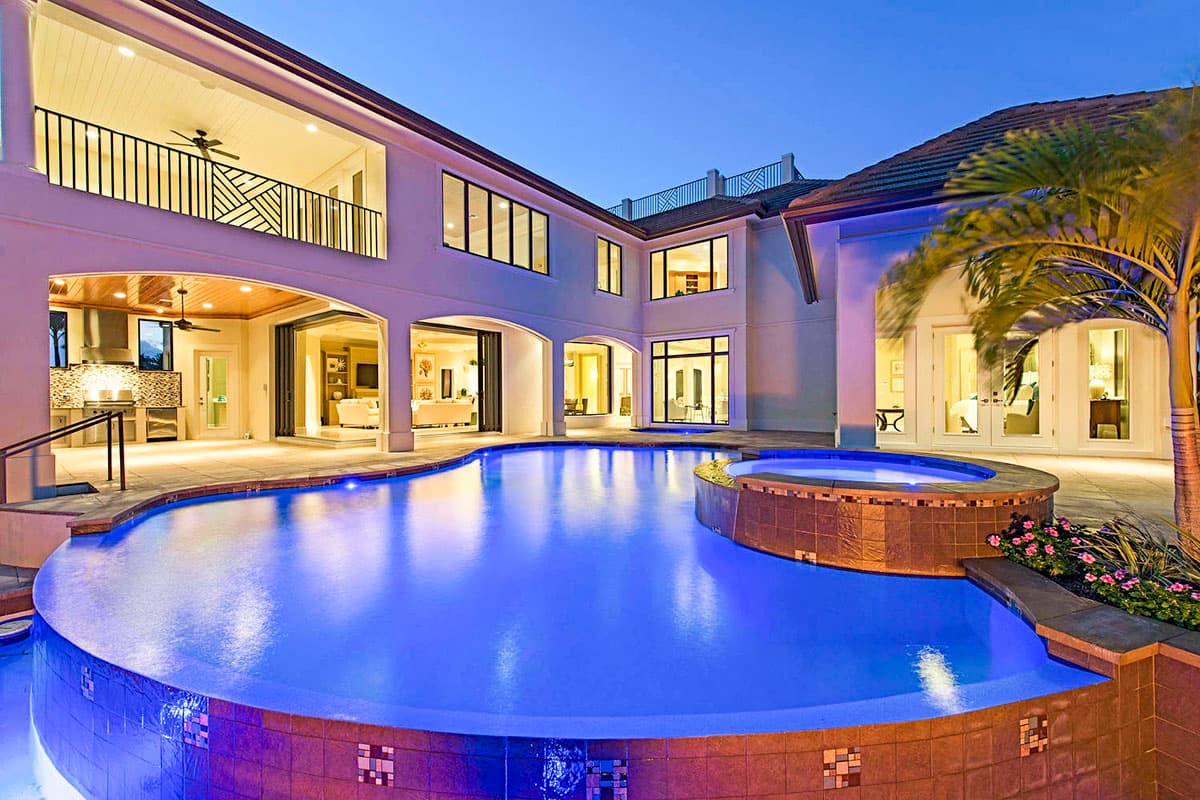

  • The spacious grand room rests towards the back of the home, and features a retractable wall, which extends the living space to the back lanai.

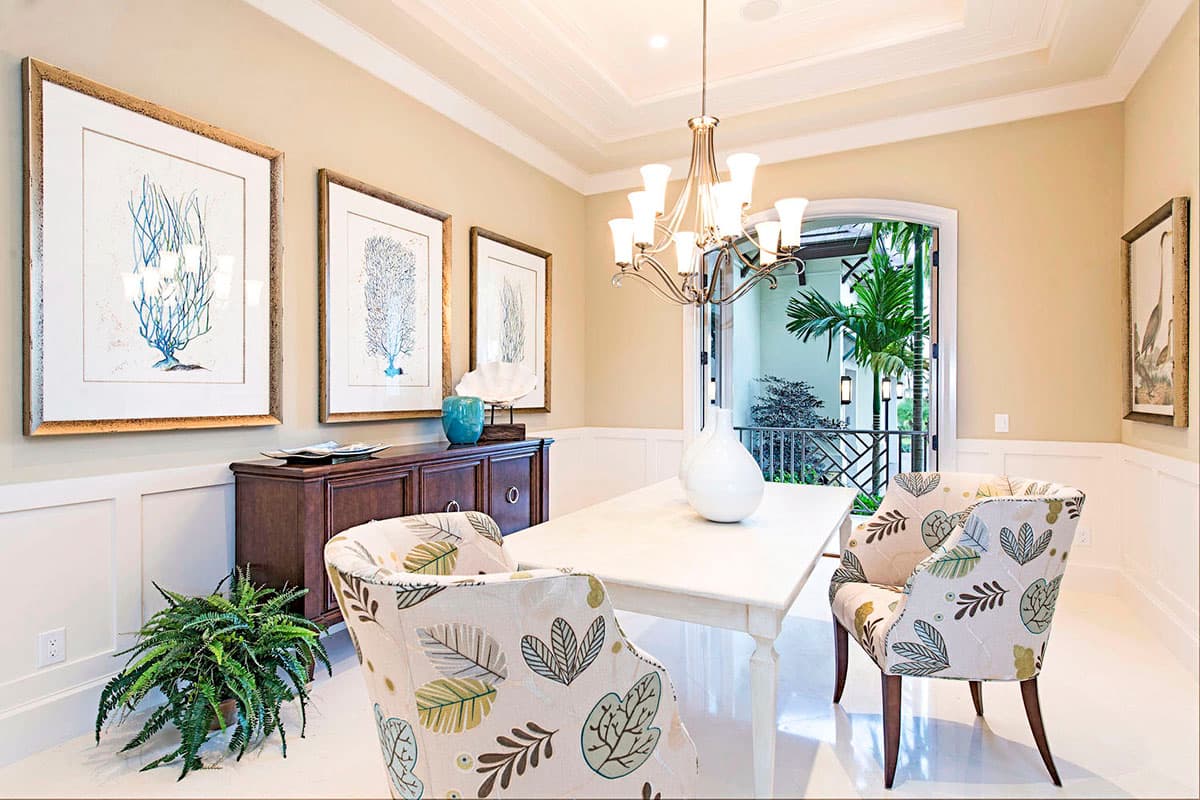

  • A circular dinette and corresponding step ceiling is located across from the kitchen, while a formal dining room grants access to the front porch through french doors.

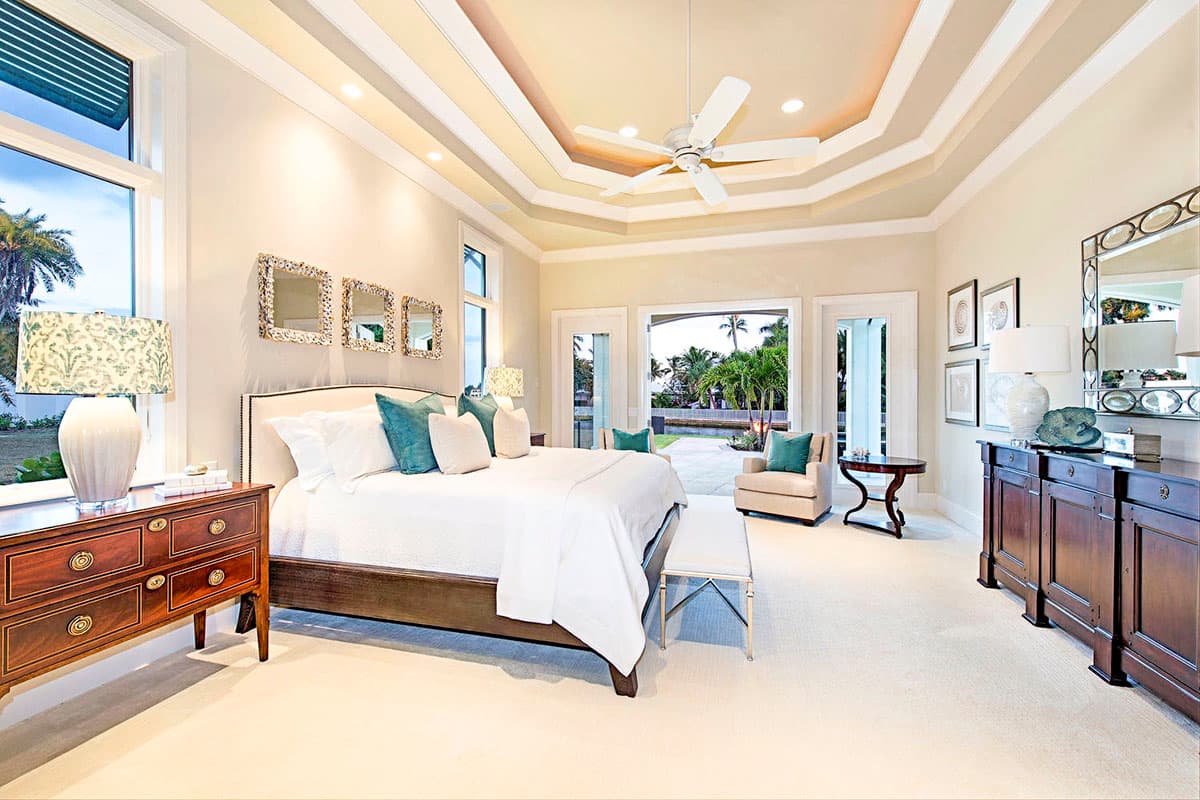

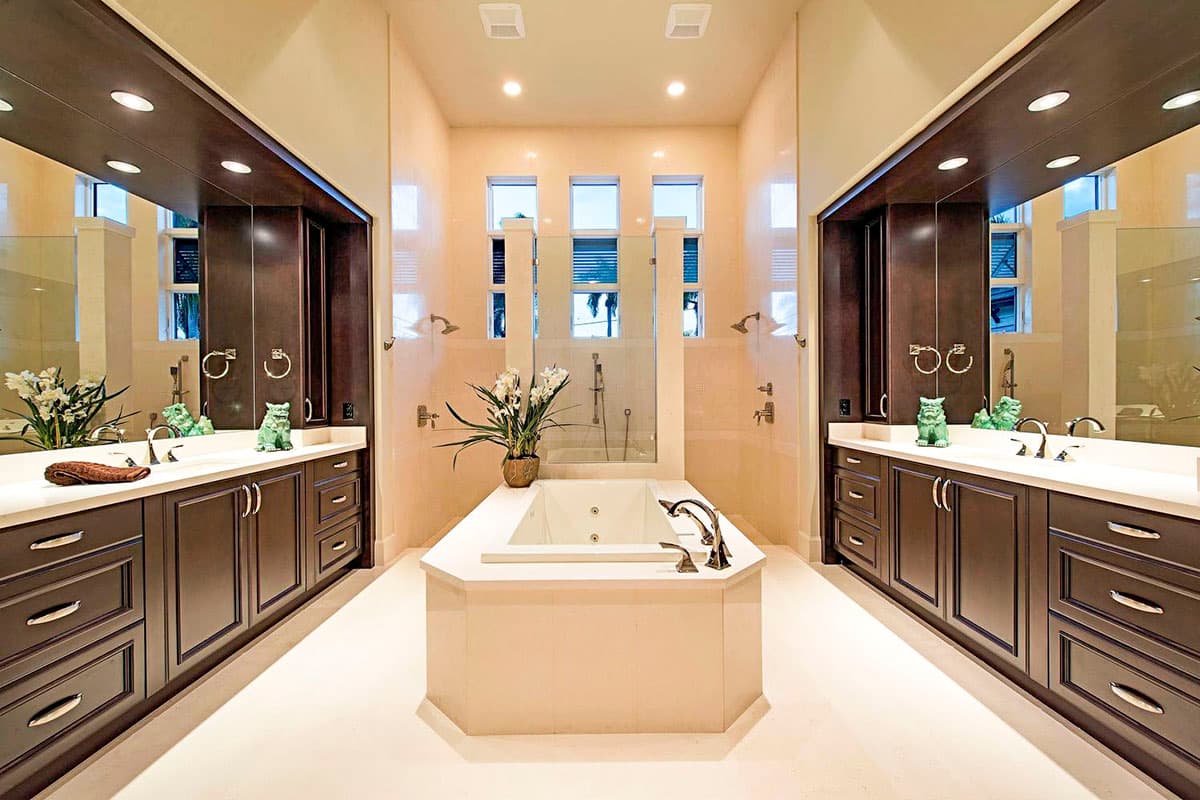

  • The angled master suite offers the homeowner the utmost privacy, and features its own lanai, two walk-in closets, and a spa-like en suite with an oversized shower and dual commode rooms.
  • Take the elevator, or stairs, to the second level to discover the guest suite, study, and leisure room each include their own covered balcony. A second guest suite on this level includes a full bath.
  • NOTE: This plan is not available for purchase in Collier Country, Florida

Plans include the following:

  • Cover page showing front elevation, contents and notes
  • Fully dimensioned floor plans including ceiling heights
  • Roof plan
  • All four exterior elevations
  • Typical cross section
  • Suggested electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

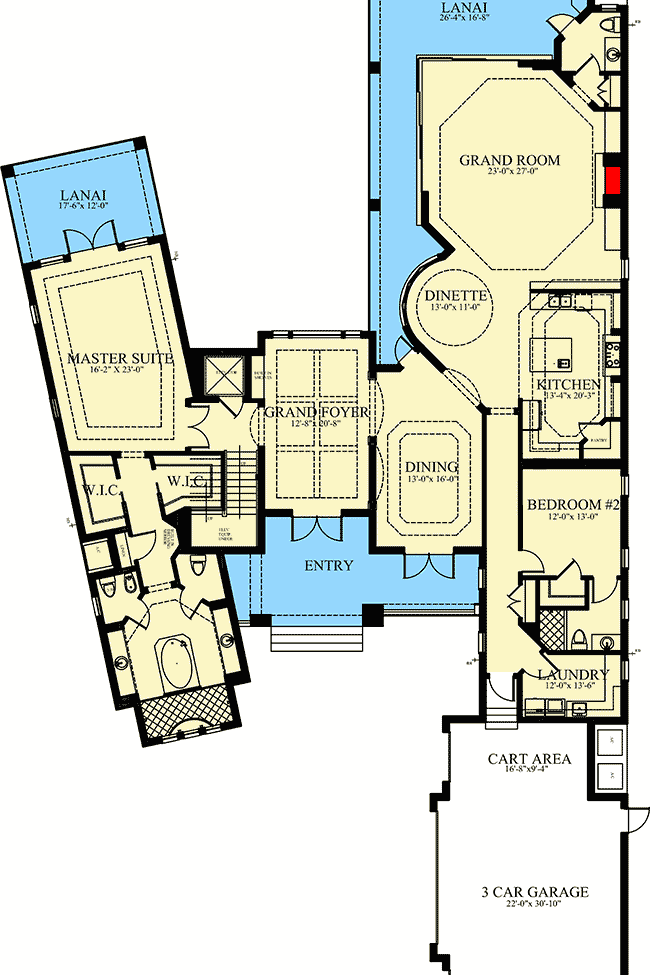

Exclusive Contemporary Vacation Home Plan with a Golf Cart Area in Garage - 24116BG floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

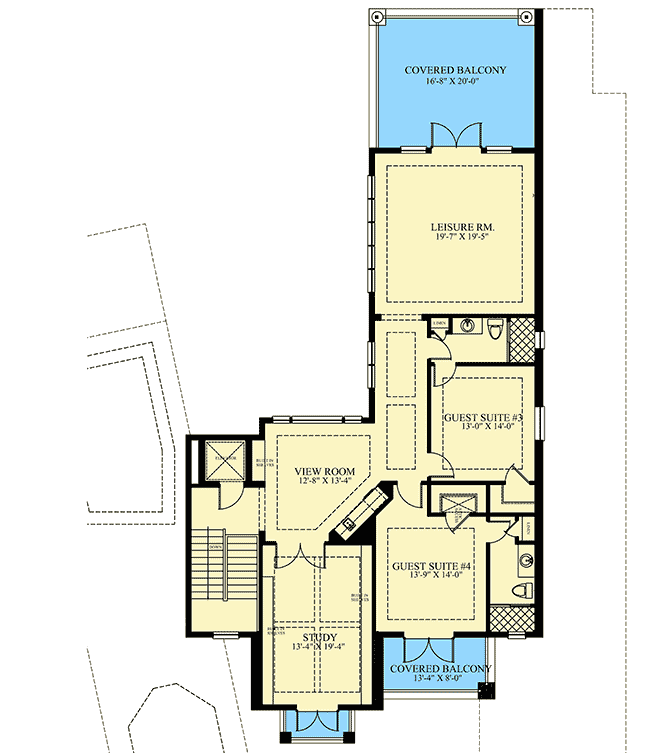

Exclusive Contemporary Vacation Home Plan with a Golf Cart Area in Garage - 24116BG floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 4,968 sq. ft.
  • 1st Floor: 3,375 sq. ft.
  • 2nd Floor: 1,593 sq. ft.
  • Lanai: 854 sq. ft.
  • Porch, Front: 262 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 75' 2"
  • Depth: 137' 1"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 920 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive Contemporary Vacation Home Plan with a Golf Cart Area in Garage

  • 4,968

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $4,250
  • CAD - Single-Build $4,500
  • View all purchase option online

About This Plan

  • This exclusive, contemporary vacation home plan boasts luxurious elements around every corner. Once inside, a grand foyer separates the master suite wing from the shared living spaces.
  • The spacious grand room rests towards the back of the home, and features a retractable wall, which extends the living space to the back lanai.
  • A circular dinette and corresponding step ceiling is located across from the kitchen, while a formal dining room grants access to the front porch through french doors.
  • The angled master suite offers the homeowner the utmost privacy, and features its own lanai, two walk-in closets, and a spa-like en suite with an oversized shower and dual commode rooms.
  • Take the elevator, or stairs, to the second level to discover the guest suite, study, and leisure room each include their own covered balcony. A second guest suite on this level includes a full bath.
  • NOTE: This plan is not available for purchase in Collier Country, Florida

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,968 sq. ft.
  • 1st Floor: 3,375 sq. ft.
  • 2nd Floor: 1,593 sq. ft.
  • Lanai: 854 sq. ft.
  • Porch, Front: 262 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): Block / CMU (main floor)

Dimensions

  • Width: 75' 2"
  • Depth: 137' 1"
  • Max ridge height: 34' 3"

Garage

  • Type: Attached
  • Area: 920 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
