Plan 500042VV

Exclusive

Exclusive Craftsman with First Floor Guest Suite and Optional Fifth Bedroom - 3279 Sq Ft

Heated S.F.
3,279
Beds
4 - 5
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 500042VV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 500042VV

M-F 9am-5pm EST |

1-203-761-8500

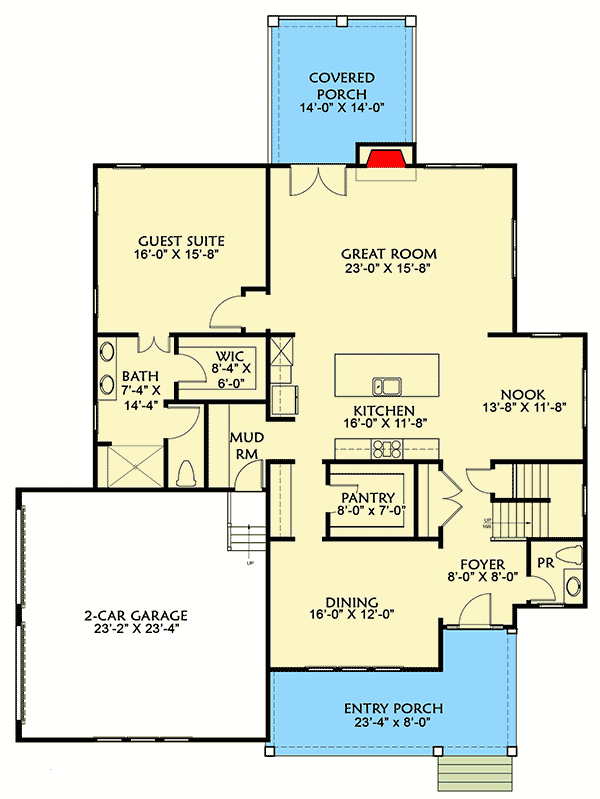

Main Level

Plan 500042VV: Exclusive Craftsman with First Floor Guest Suite and Optional Fifth Bedroom - 3279 Sq Ft - Floor Plan - Main Level - Craftsman, Farmhouse, Northwest

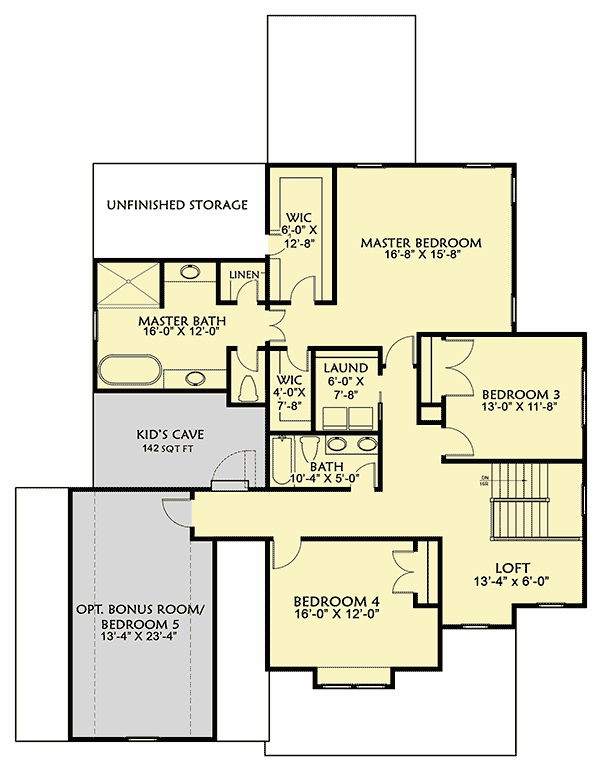

2nd Floor

Plan 500042VV: Exclusive Craftsman with First Floor Guest Suite and Optional Fifth Bedroom - 3279 Sq Ft - Floor Plan - 2nd Floor - Craftsman, Farmhouse, Northwest

Plan Details

  • This attractive and exclusive Craftsman house plan comes with everything most families want, plus a few extras.

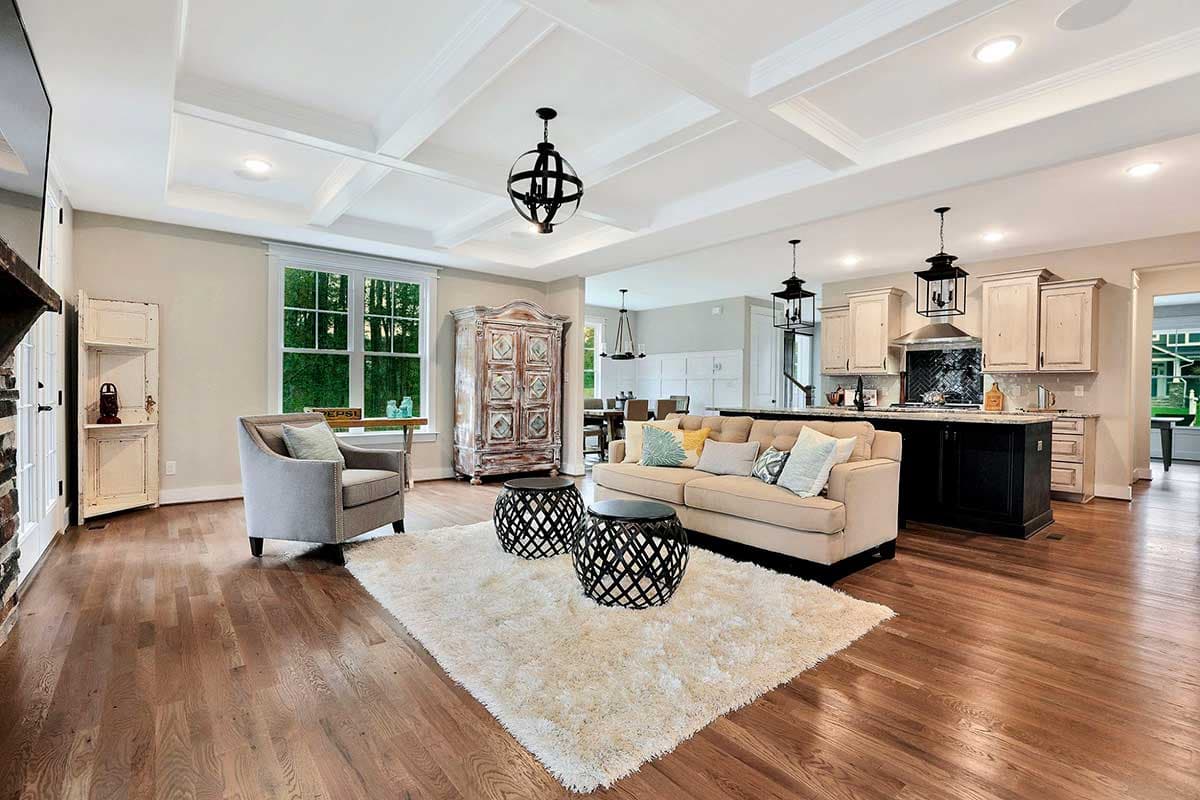

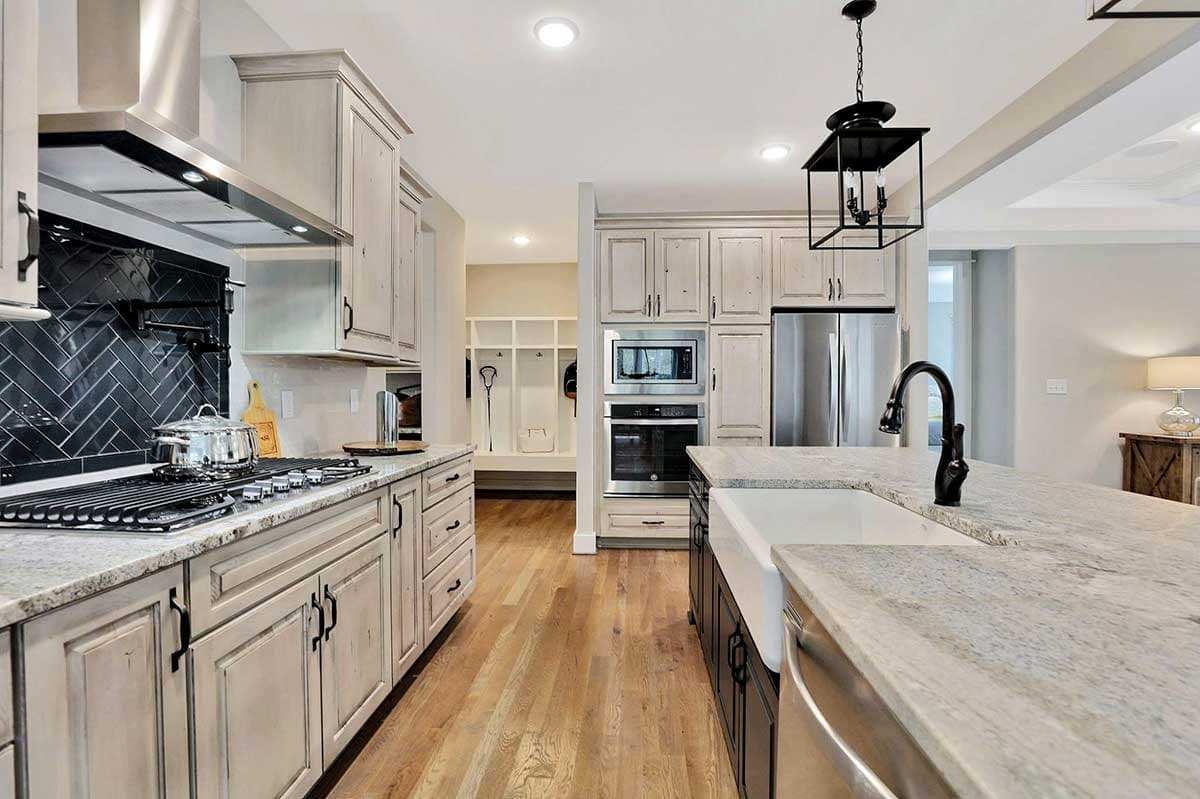

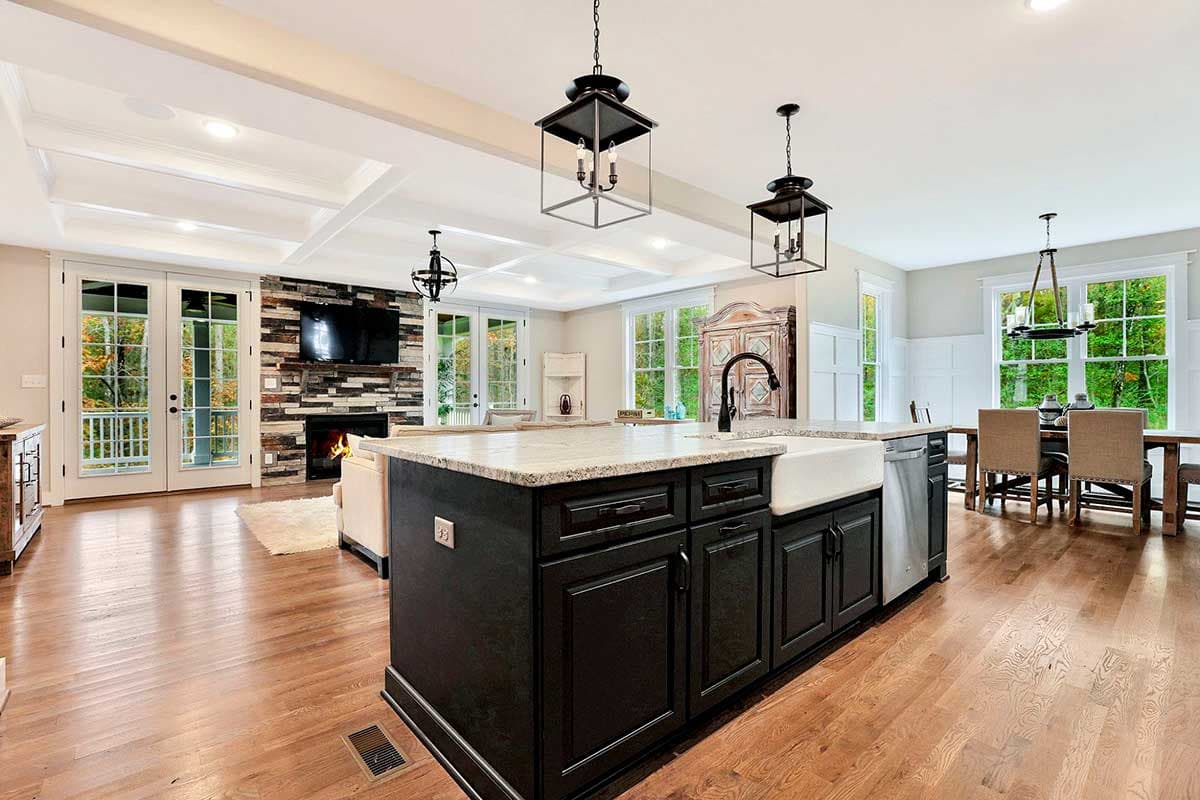

  • The big, open floor plan gives you marvelous sight lines from the kitchen sink to the family room fireplace and the breakfast nook.
  • A walk-in pantry is on everyone's list and this one has plenty of space inside.
  • The first floor quest suite is large enough to serve as in-law accommodations.
  • On the second floor, a cozy reading loft sits near the top of the stairs and the handy second floor laundry room is a delightful addition.
  • Create a secret kid's cave by finishing the additional 142 square foot space tucked off the hall.
  • And bonus space over the two car garage can be a fifth bedroom or the media room of your dreams.

What's Included

  • Cover sheet with notes
  • Foundation
  • Floor plans
  • Elevations
  • Sections
  • Framing plans
  • Electrical plans

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,279 sq. ft.

1st Floor

1,799 sq. ft.

2nd Floor

1,480 sq. ft.

Bonus

358 sq. ft.

Porch, Rear

184 sq. ft.

Entry

216 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

54' 0"

Depth

70' 0"

Max Ridge Height

31' 7"

Garage

Type

Attached

Area

565 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

Craftsman

Farmhouse

Northwest

Special Features

Breakfast Nook

Butler Walk-in Pantry

Formal Dining

In-Law Suite

Laundry - Upstairs

Loft

Master Suite - Upstairs

Media Room

Mudroom

Optionally Finished Bonus Room

Playroom

Plan Collections

Exclusive

Photo Gallery
