Plan 510139WDY Exclusive French Country House Plan with Split Bedrooms

Exclusive French Country House Plan with Split Bedrooms

Plan 510139WDY

  • 4,197

    Heated s.f.

  • 4

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

  • A cross-gable roof sits atop this French Country house plan, exclusive to Architectural Designs, and clad in brick and vertical siding. Flared eaves add to the immense exterior character.
  • Three fireplaces throughout the home provide a cozy and warm ambiance. The open kitchen features a large island with a nearby bar to help when entertaining family and friends.
  • The master suite occupies the left side of the home, and boasts a spa-like bath with a freestanding tub in front of the oversized shower, along with two closets.
  • Bedrooms 2 and 3 each include a full bath and walk-in closet, while the fourth bedroom can be found above the garage, as well as a generously-sized media room.
  • The car enthusiast will delight in the 4-stall garage, which opens to a mudroom with built-in cubbies, next to a huge laundry room.

This house plan set consists of the following elements:


  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

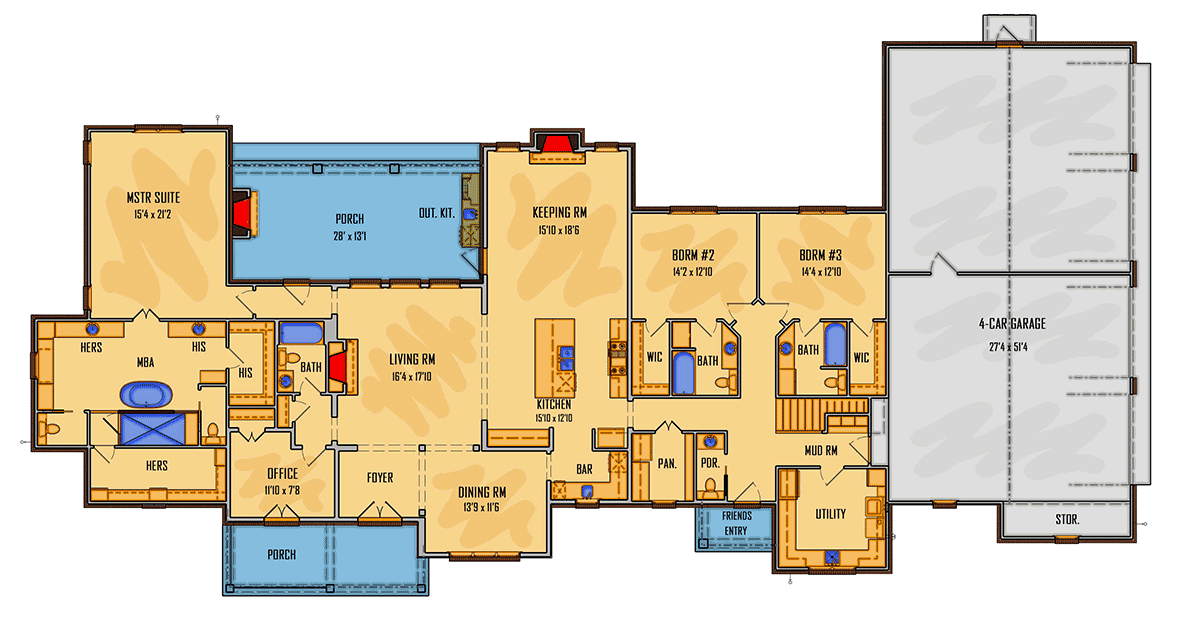

Exclusive French Country House Plan with Split Bedrooms - 510139WDY floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

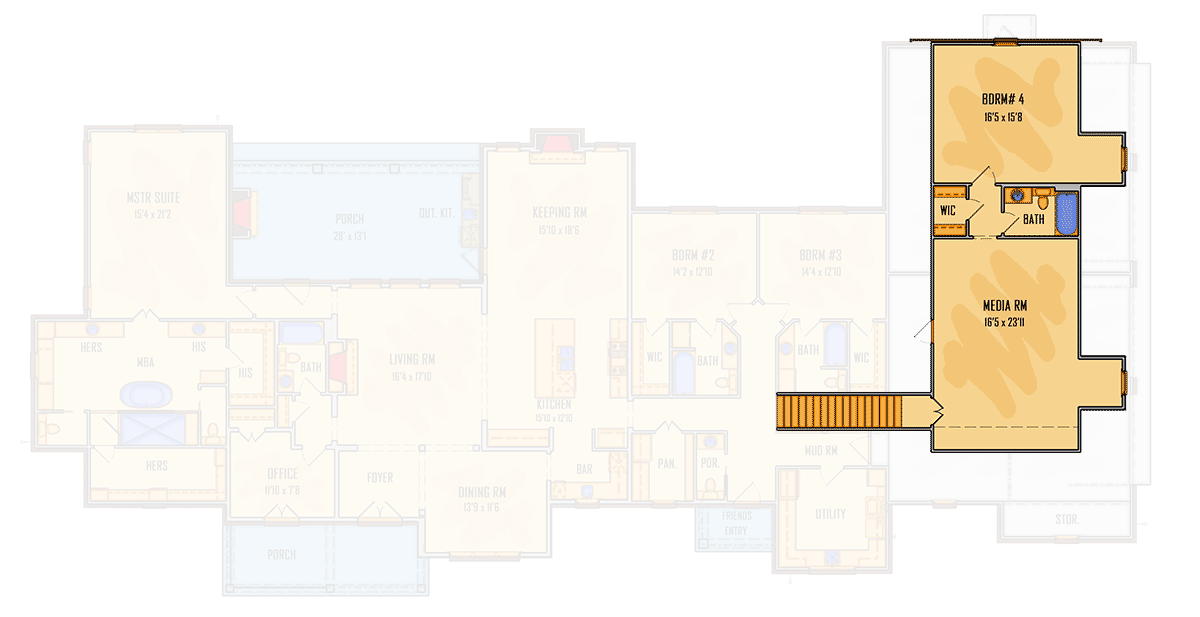

Exclusive French Country House Plan with Split Bedrooms - 510139WDY floor plan - 2nd Floor

Plan details

Exclusive French Country House Plan with Split Bedrooms

  • 4,197

    Heated s.f.

  • 4

    Beds

  • 6

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • 5 Sets $900
  • PDF - Unlimited Build $1,300
  • 5 Sets + PDF $1,550
  • CAD + PDF - Unlimited Build $2,455
  • View all purchase option online

About This Plan

  • A cross-gable roof sits atop this French Country house plan, exclusive to Architectural Designs, and clad in brick and vertical siding. Flared eaves add to the immense exterior character.
  • Three fireplaces throughout the home provide a cozy and warm ambiance. The open kitchen features a large island with a nearby bar to help when entertaining family and friends.
  • The master suite occupies the left side of the home, and boasts a spa-like bath with a freestanding tub in front of the oversized shower, along with two closets.
  • Bedrooms 2 and 3 each include a full bath and walk-in closet, while the fourth bedroom can be found above the garage, as well as a generously-sized media room.
  • The car enthusiast will delight in the 4-stall garage, which opens to a mudroom with built-in cubbies, next to a huge laundry room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,197 sq. ft.
  • 1st Floor: 3,347 sq. ft.
  • 2nd Floor: 850 sq. ft.
  • Porch, Combined: 607 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 125' 4"
  • Depth: 62' 10"

Garage

  • Type: Attached
  • Area: 1524 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 16 on 12
  • Framing Type: Stick
