Plan 910073WHD

Exclusive

Exclusive Modern Farmhouse Plan with Optional Walk-out Basement

Heated S.F.
4,039
Beds
5
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 910073WHD

Main Level
Main Level
2nd Floor
2nd Floor
Optional Lower Level
Optional Lower Level

Plan 910073WHD

M-F 9am-5pm EST |

1-203-761-8500

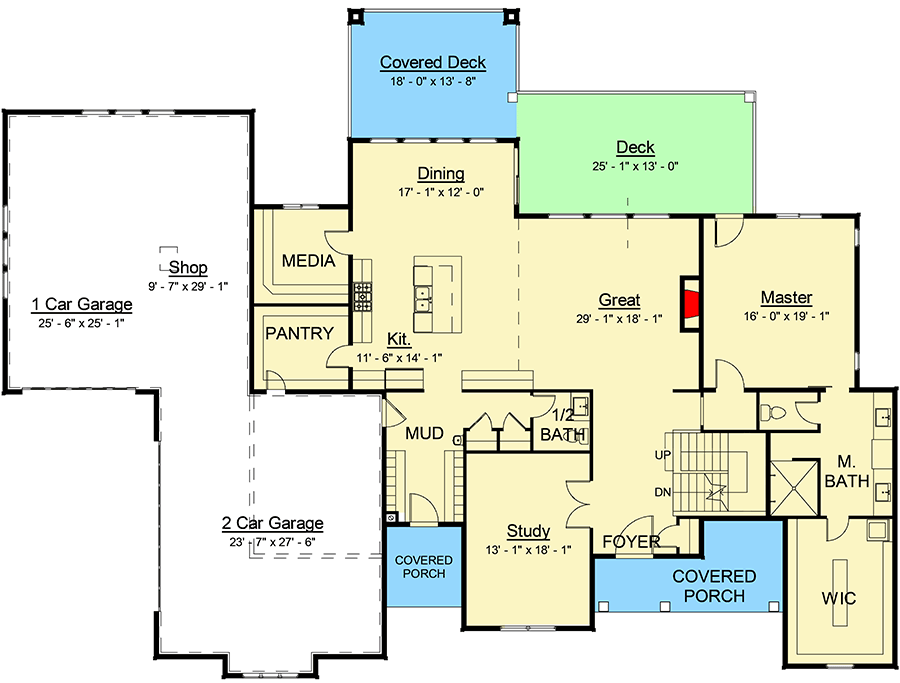

Main Level

Plan 910073WHD: Exclusive Modern Farmhouse Plan with Optional Walk-out Basement - Floor Plan - Main Level - Country, Craftsman, Modern Farmhouse, New American

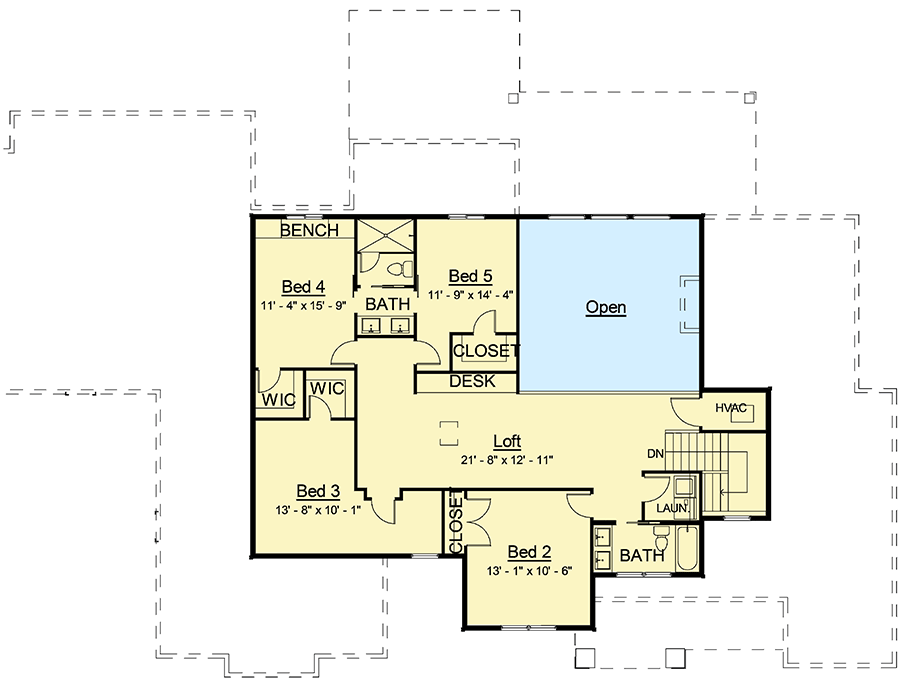

2nd Floor

Plan 910073WHD: Exclusive Modern Farmhouse Plan with Optional Walk-out Basement - Floor Plan - 2nd Floor - Country, Craftsman, Modern Farmhouse, New American

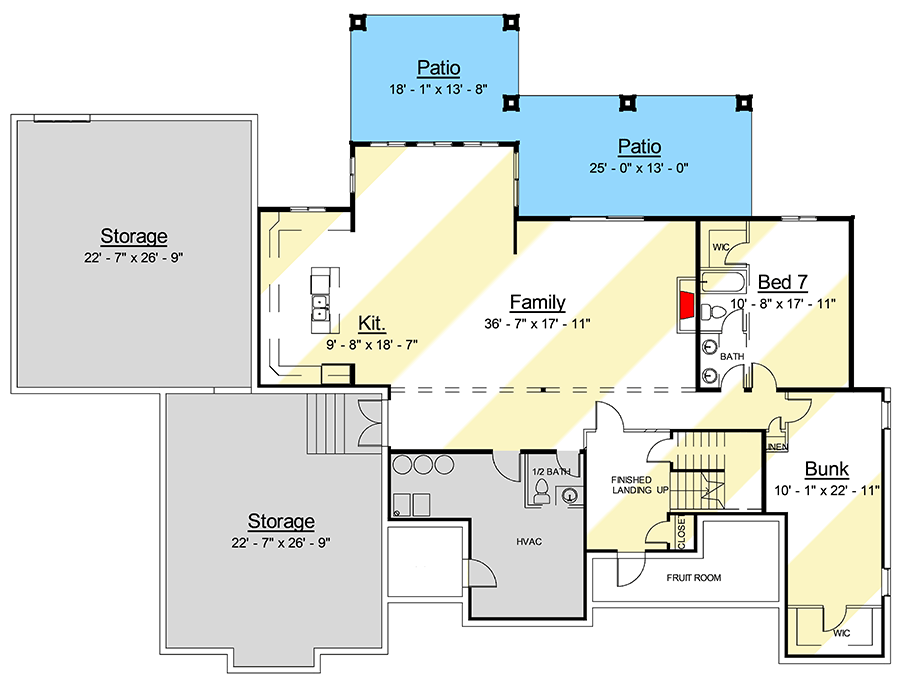

Optional Lower Level

Plan 910073WHD: Exclusive Modern Farmhouse Plan with Optional Walk-out Basement - Floor Plan - Optional Lower Level - Country, Craftsman, Modern Farmhouse, New American

Plan Details

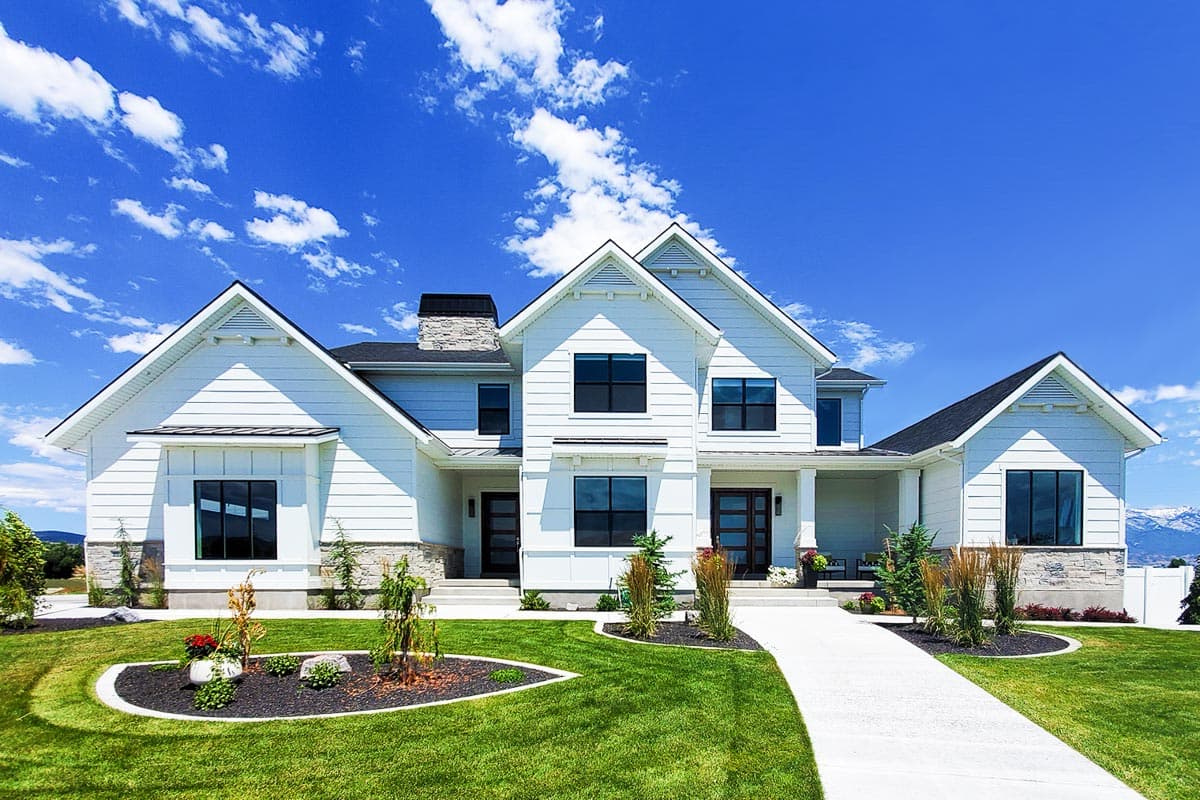

  • This modern farmhouse plan, exclusive to Architectural Designs, presents a crisp and modern exterior, complete with a stone trim. Both a formal and friend's entrance welcome visitors from the front elevation.
  • An open living space combines the light and airy great room, kitchen, and dining area, with sliding doors that extend onto a partially-covered deck.
  • Behind the kitchen, discover a large pantry, and a media room, which provides a shared space for electronics. Retreat to the study off the foyer for peace and quiet.
  • The main-level, master bedroom considers your future needs, and a barn door gives access to the deluxe master bath with a walk-in shower and roomy closet with a dresser island.
  • Upstairs, 4 bedrooms surround a loft with a built-in desk that serves as a homework station. Two of the bedrooms share a Jack-and-Jill bath.
  • The fun continues on the lower level, which includes a generous family room with a kitchen, large covered patio, and ample storage space. A downstairs bedroom and bunk room neighbor a 4-fixture bath.

What's Included

  • General notes
  • Detailed floor plans
  • Elevations
  • Roof plan
  • Cross section
  • Electrical plan
  • Window and door schedules
  • Architectural details
  • Structural notes
  • Foundation plan
  • Floor framing
  • Roof framing

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,039 sq. ft.

1st Floor

2,512 sq. ft.

2nd Floor

1,527 sq. ft.

Optional Lower Level

2,409 sq. ft.

Bonus

1,358 sq. ft.

Porch, Combined

213 sq. ft.

Deck

570 sq. ft.

Lanai

570 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

95' 0"

Depth

71' 0"

Max Ridge Height

33' 7"

Garage

Type

Attached

Area

1485 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

9'

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

6 on 12

Framing Type

Stick And Truss

Architectural Style

Country

Craftsman

Modern Farmhouse

New American

Special Features

Bunk Room

Butler Walk-in Pantry

Jack & Jill Bath

Laundry Access from Master Suite

Laundry - Main Level

Laundry - Upstairs

Library/Study

Loft

Master Suite - 1st Floor

Media Room

Mudroom

Two Story Great Room

Plan Collections

Exclusive

Photo Gallery

Sloping Lot
