Exclusive Modern House Plan with Split Bedroom Layout

Plan 85132MS

  • 1,730

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Stone and glass adorn the exterior of this modern home plan.
  • The bedrooms are split maximizing your privacy. The master bedroom is larger and has access to the covered lanai in back.
  • The center of the home has an open floor plan with sweeping views to the back.
  • A 2-sided fireplace is on the center of the back wall and is shared with the covered lanai.
  • A 2-car side-load garage has space for a shop or storage.
  • Related Plans: Get less space with house plans 85021MS (1,439 sq. ft.).

Each plan set is drawn to 1/4" scale and includes the following:

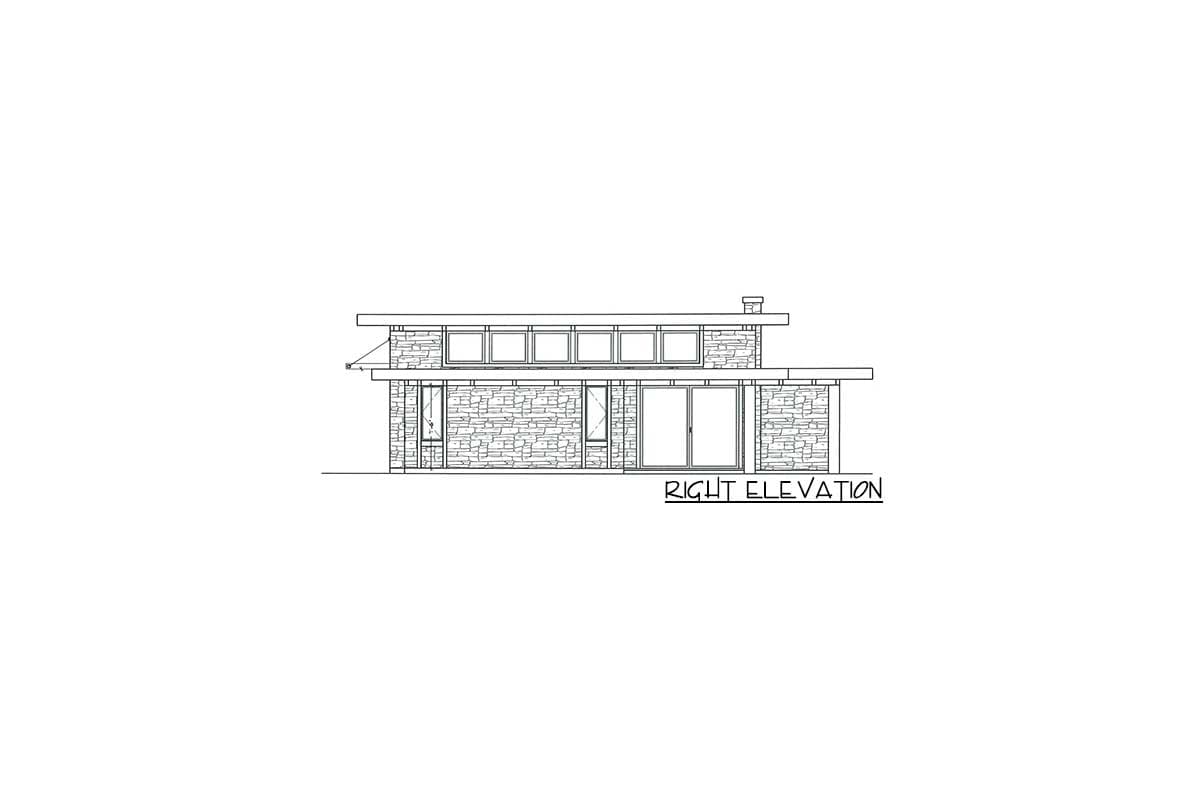

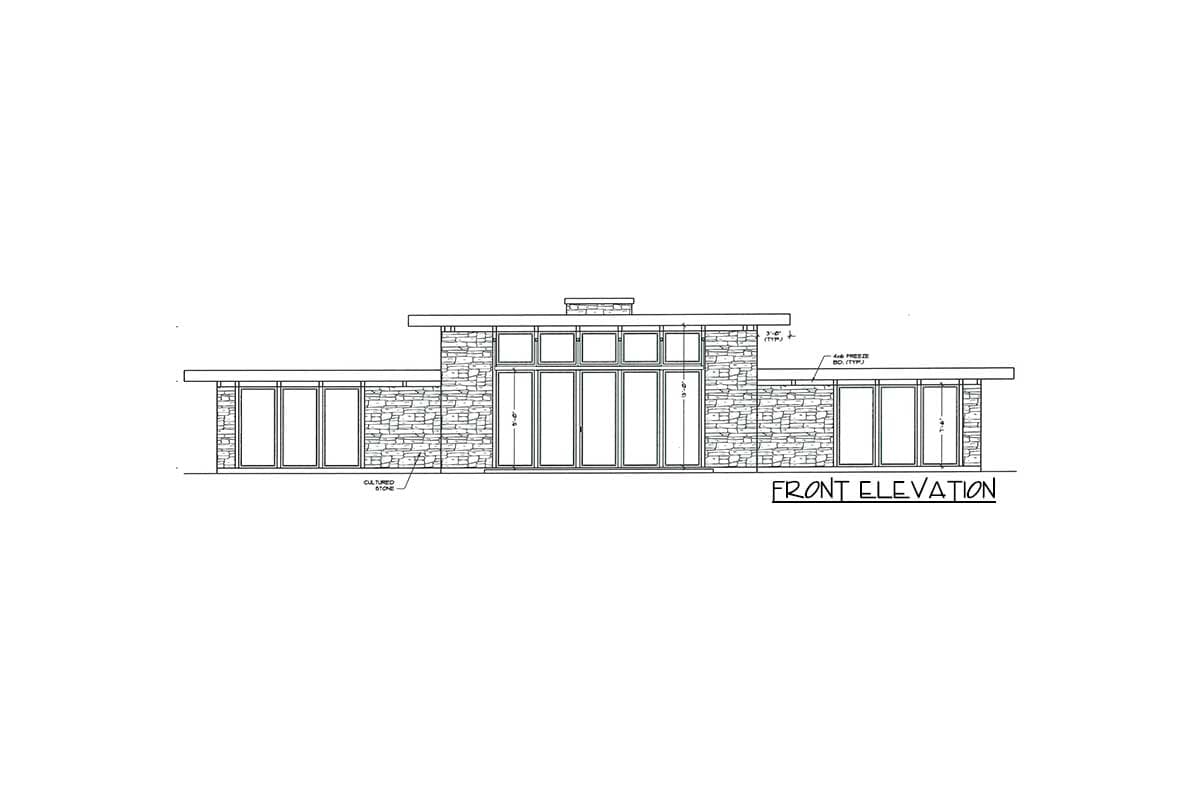

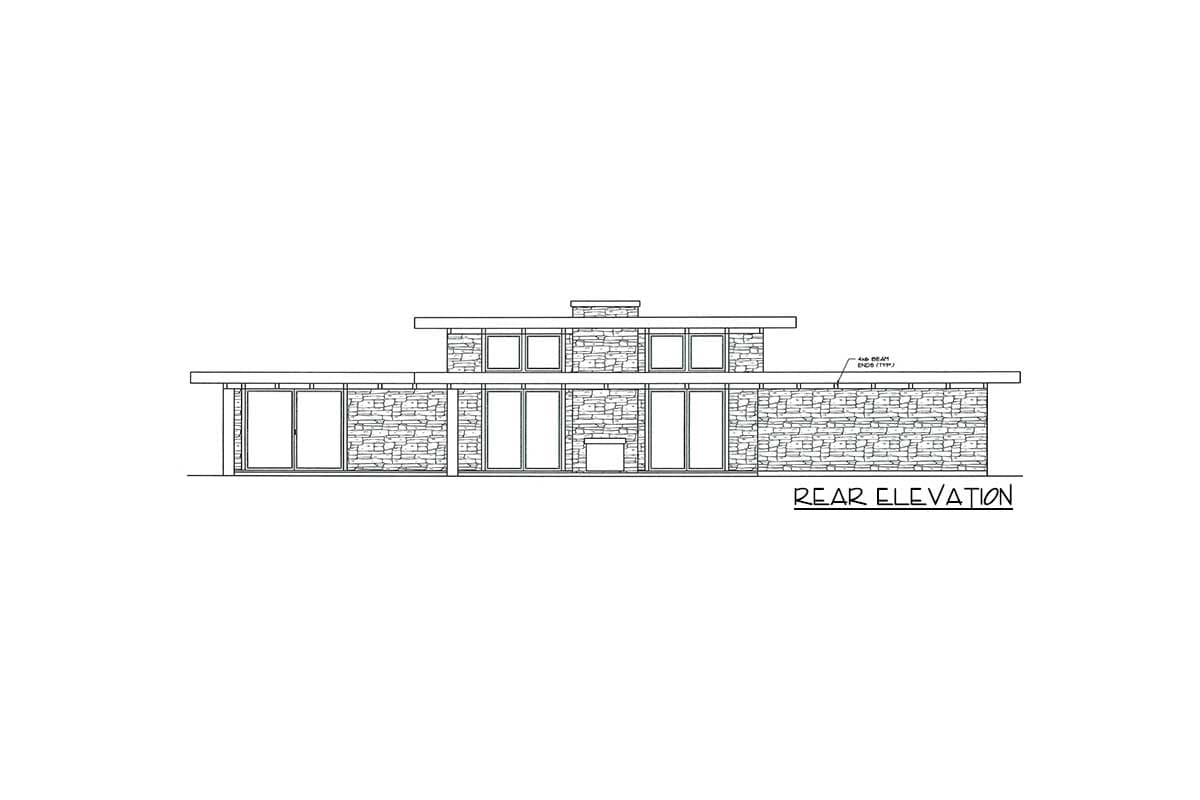

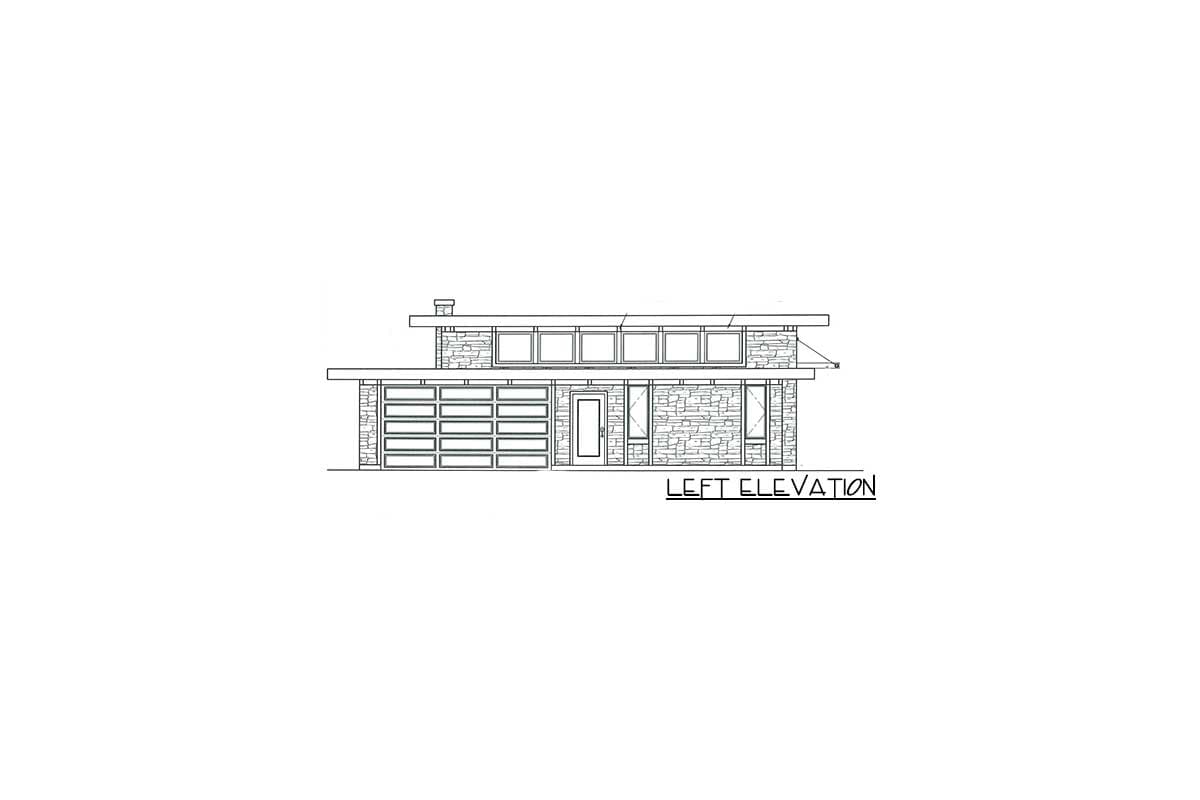

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

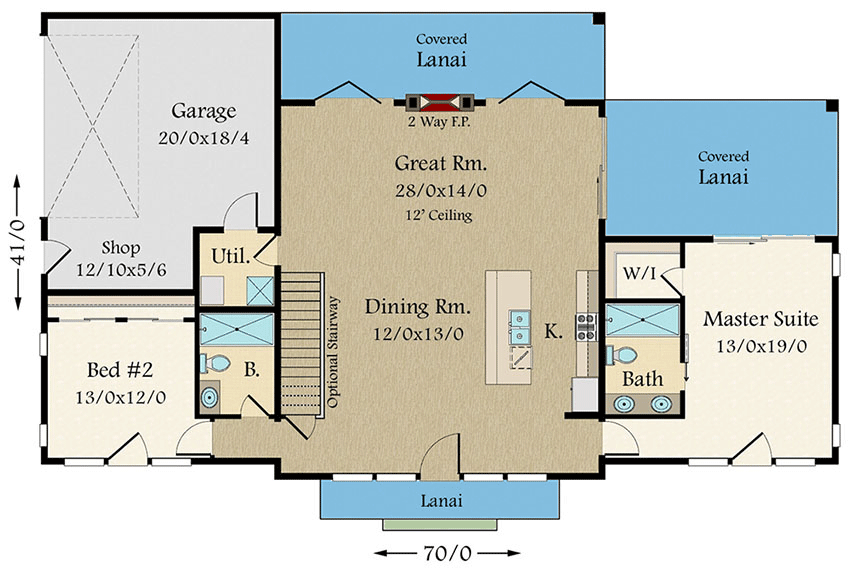

Exclusive Modern House Plan with Split Bedroom Layout - 85132MS floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,730 sq. ft.
  • 1st Floor: 1,730 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 41' 0"

Garage

  • Type: Attached
  • Area: 463 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Flat 12' 0"
Dining Room Flat 12' 0"
Kitchen Flat 12' 0"

Architectural Style

Special features

Plan Collections

Exclusive Modern House Plan with Split Bedroom Layout

  • 1,730

    Heated s.f.

  • 2

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,400
  • 6 Sets + PDF $1,650
  • CAD + PDF - Single-Build $2,000
  • View all purchase option online

About This Plan

  • Stone and glass adorn the exterior of this modern home plan.
  • The bedrooms are split maximizing your privacy. The master bedroom is larger and has access to the covered lanai in back.
  • The center of the home has an open floor plan with sweeping views to the back.
  • A 2-sided fireplace is on the center of the back wall and is shared with the covered lanai.
  • A 2-car side-load garage has space for a shop or storage.
  • Related Plans: Get less space with house plans 85021MS (1,439 sq. ft.).

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,730 sq. ft.
  • 1st Floor: 1,730 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 70' 0"
  • Depth: 41' 0"

Garage

  • Type: Attached
  • Area: 463 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
Plan 85132MS
View this and more for this plan by visiting www.architechtecturaldesigns.com/85132MS
|
Need Help? 800-854-7852
|
Plan 85132MS
