Exclusive Mountain Home Plan with Main-level Master Bedroom

Plan 365016PED

  • 3,077

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Stories

  • 3

    Cars

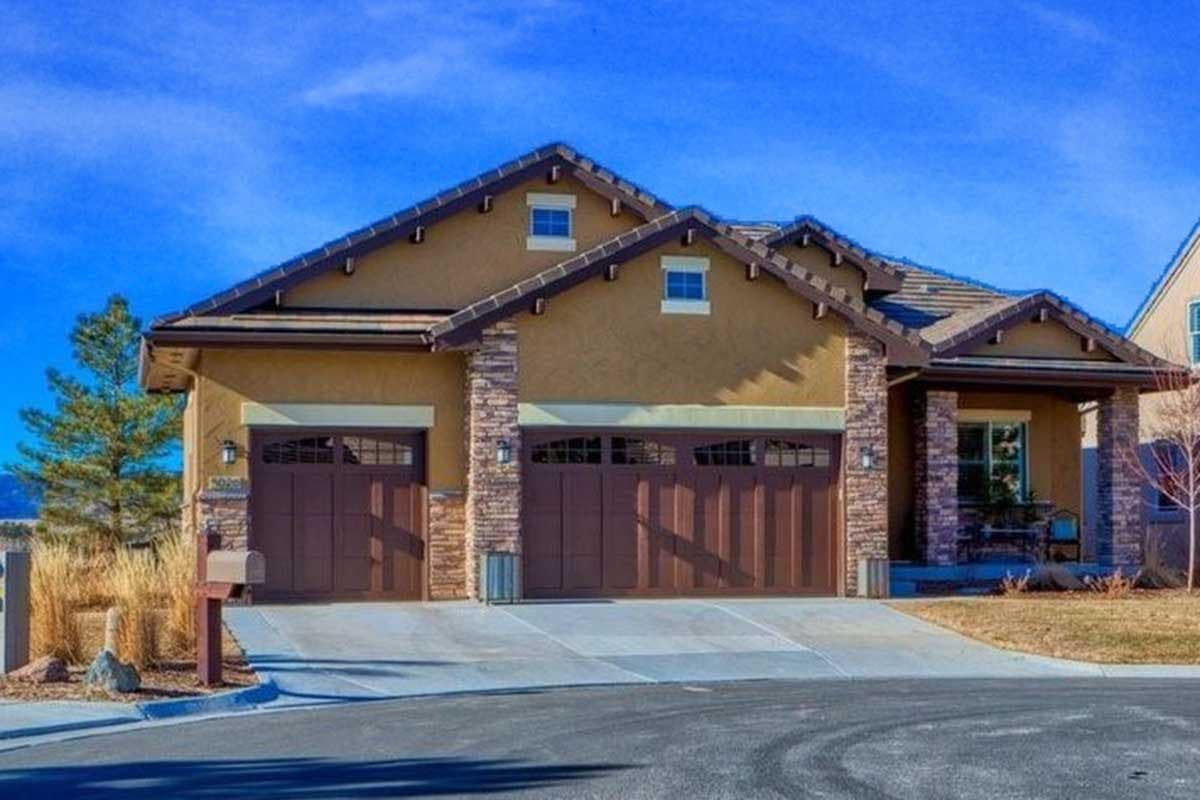

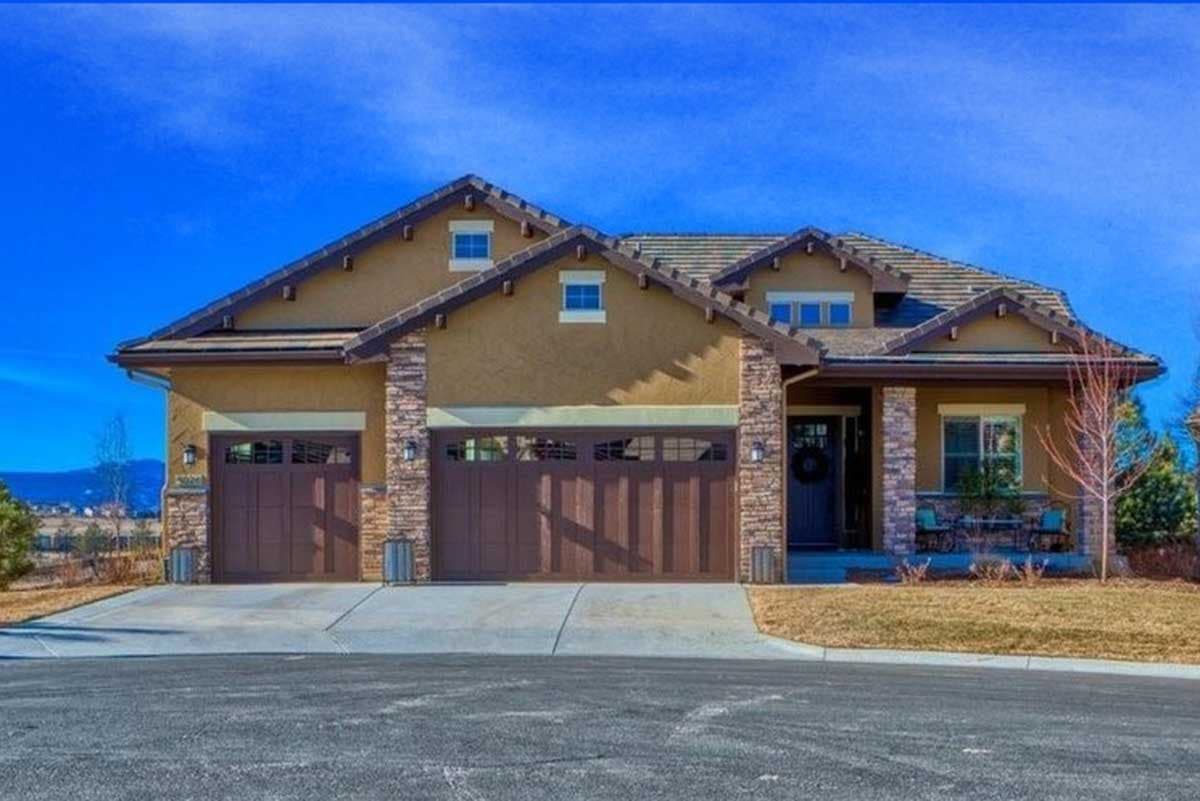

  • Gables at varying heights line the front elevation of this exclusive Mountain home plan, complete with a stone and stucco facade.

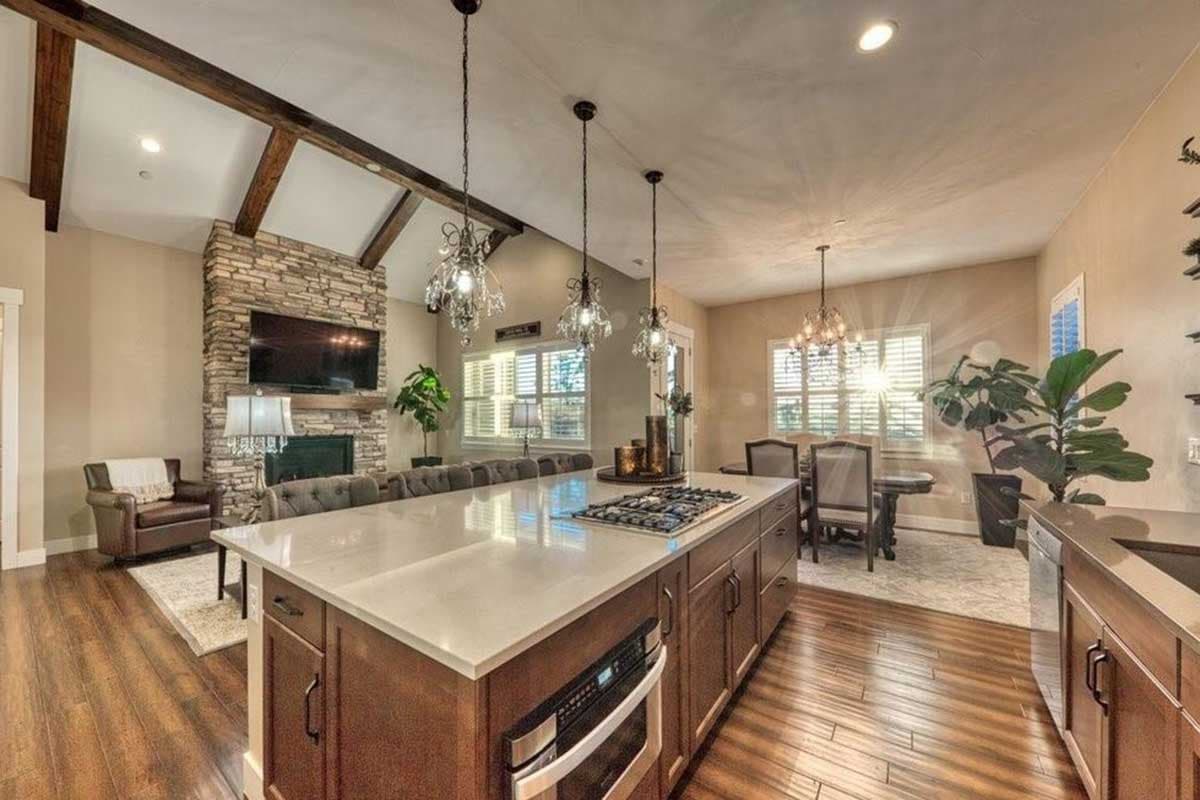

  • Inside, the great room gains vertical space from the vaulted ceiling, and the simple flow into the kitchen and dining area creates a family-friendly environment.
  • The 3-car garage provides enough room for a workshop or storage.

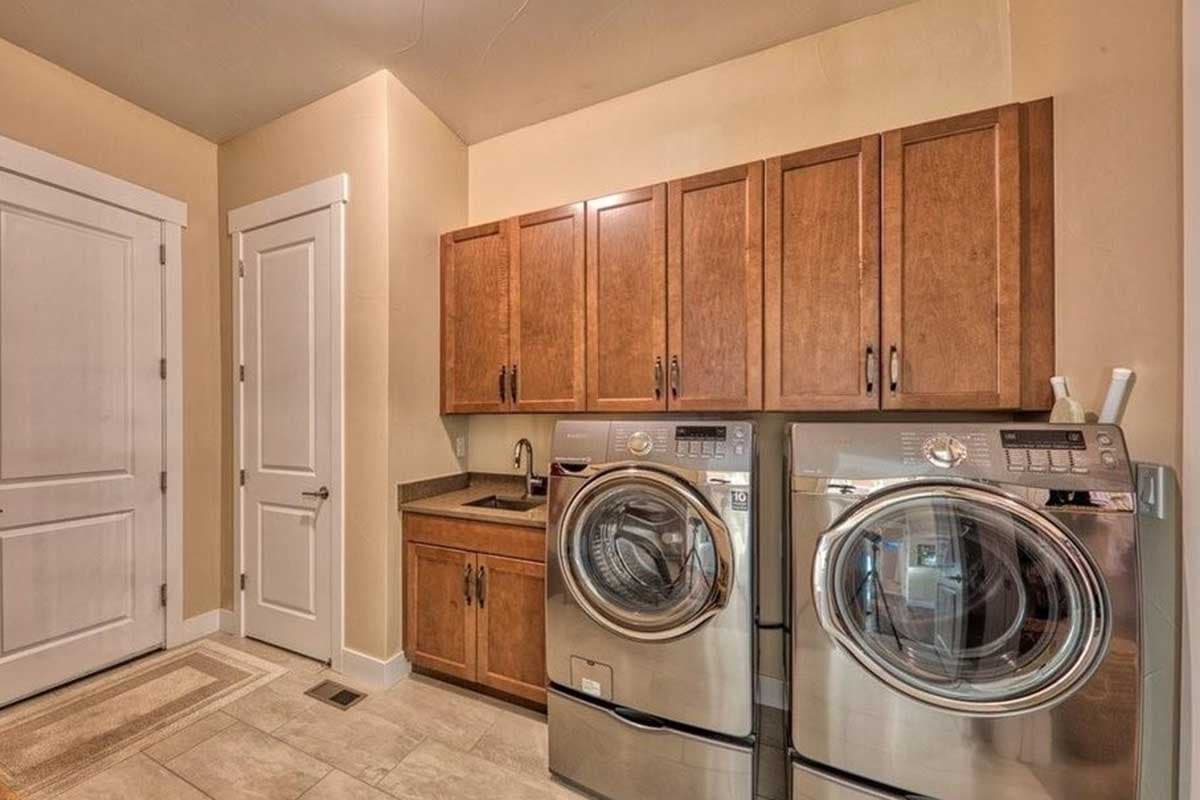

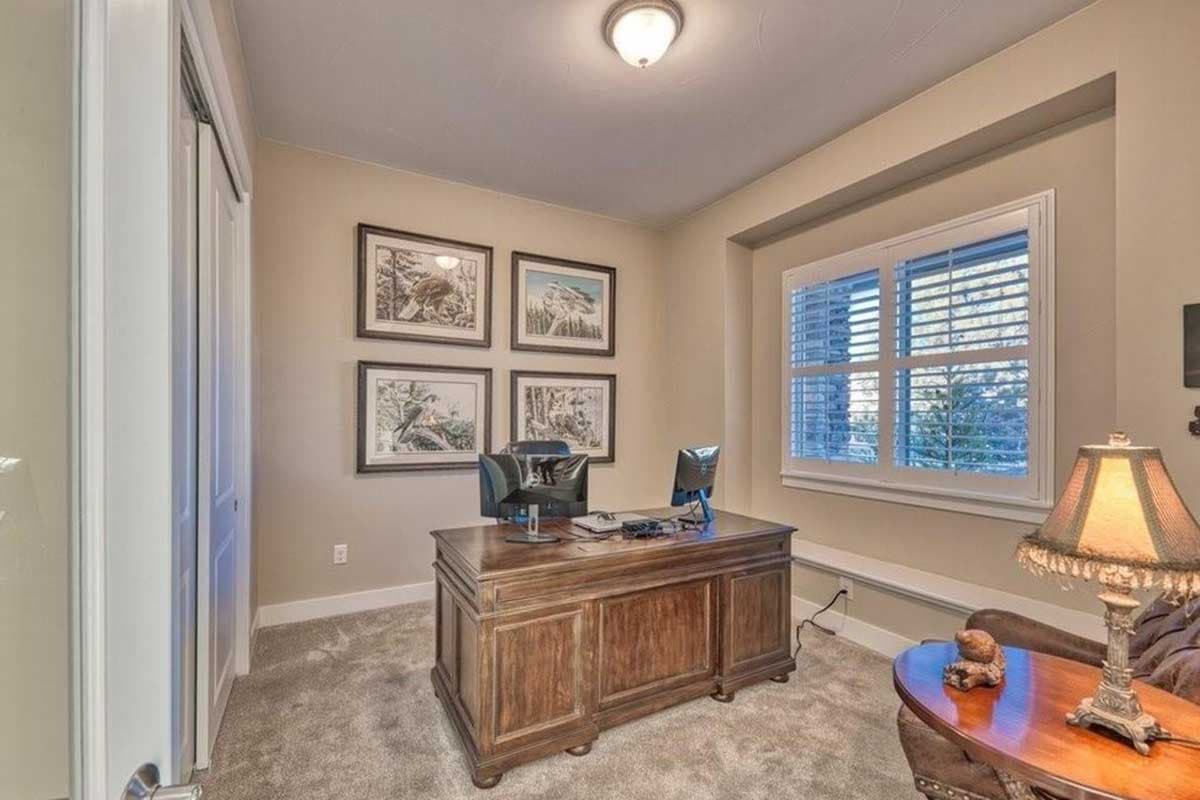

  • Enjoy the simplicity of a main-floor master bedroom with convenient access to the laundry room through the closet. A second bedroom / home office combo rounds out this level.
  • A large rec room greets you downstairs, along with two bedrooms, a full bath, and plenty of storage space.

Each plan set includes the following:

  • Cover sheet with general information
  • Detailed floor plans for each floor
  • Elevations for each side of the home
  • Roof plan
  • Building section and details
  • Electrical schematic plans for each floor
  • Foundation plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

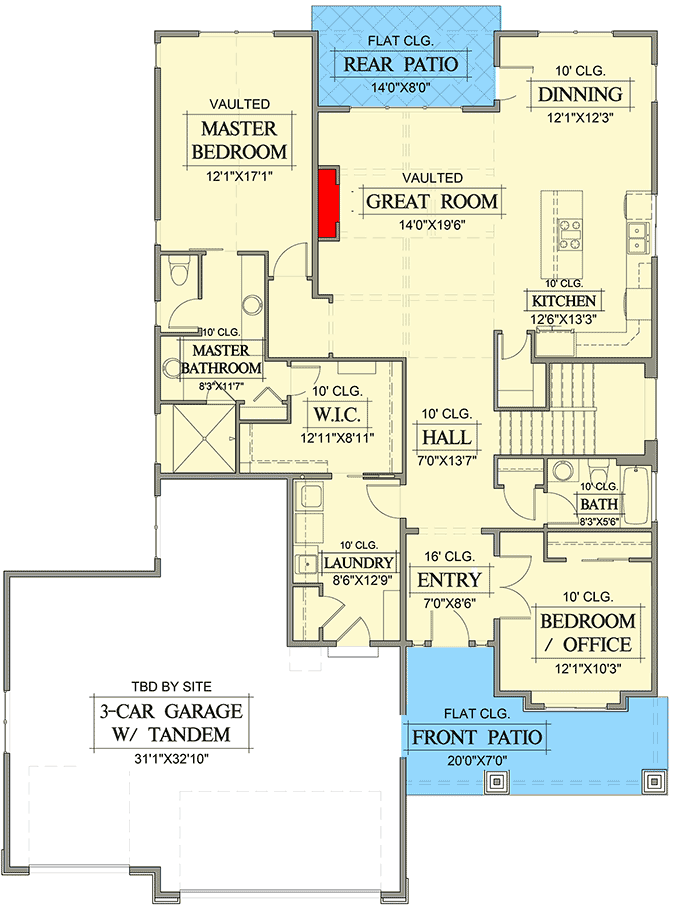

Exclusive Mountain Home Plan with Main-level Master Bedroom - 365016PED floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

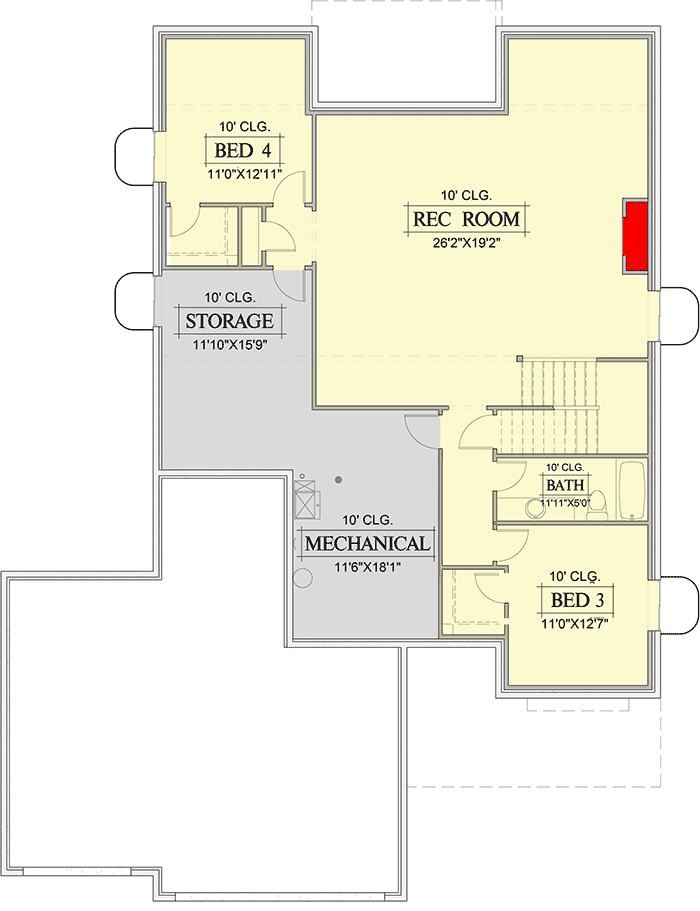

Exclusive Mountain Home Plan with Main-level Master Bedroom - 365016PED floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,077 sq. ft.
  • Lower Level: 1,281 sq. ft.
  • 1st Floor: 1,796 sq. ft.
  • Covered Patio: 112 sq. ft.
  • Porch, Front: 168 sq. ft.
  • Basement Unfinished: 510 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 69' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 829 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive Mountain Home Plan with Main-level Master Bedroom

  • 3,077

    Heated s.f.

  • 3-4

    Beds

  • 3

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $2,197
  • CAD + PDF - Single Build $2,997
  • View all purchase option online

About This Plan

  • Gables at varying heights line the front elevation of this exclusive Mountain home plan, complete with a stone and stucco facade.
  • Inside, the great room gains vertical space from the vaulted ceiling, and the simple flow into the kitchen and dining area creates a family-friendly environment.
  • The 3-car garage provides enough room for a workshop or storage.
  • Enjoy the simplicity of a main-floor master bedroom with convenient access to the laundry room through the closet. A second bedroom / home office combo rounds out this level.
  • A large rec room greets you downstairs, along with two bedrooms, a full bath, and plenty of storage space.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,077 sq. ft.
  • Lower Level: 1,281 sq. ft.
  • 1st Floor: 1,796 sq. ft.
  • Covered Patio: 112 sq. ft.
  • Porch, Front: 168 sq. ft.
  • Basement Unfinished: 510 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6
  • Optional Type(s): 2x6

Dimensions

  • Width: 52' 0"
  • Depth: 69' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 829 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 3 on 12
  • Framing Type: Truss
Plan 365016PED
View this and more for this plan by visiting www.architechtecturaldesigns.com/365016PED
|
Need Help? 800-854-7852
|
