Exclusive New American Home Plan with Game Room
Heated S.F.
3,492
Beds
4
Baths
3.5
Stories
1
Cars
3
Flyer
What's Included
Plan Details
  • Craftsman detailing on the exterior of this New American home plan adds to the great curb appeal. This home plan is exclusive to Architectural Designs.
  • Step inside, and discover french doors off the foyer that lead to a quiet study. The open living space brings the family together, while providing room to entertain.
  • Three of the dining room walls are covered in windows, which lends an indoor / outdoor vibe, or choose to dine on the back patio to the enjoy the elements.
  • The master bedroom boasts a spacious sitting area, and the attached bath includes a generously-sized closet. Bedrooms 2 and 3 are located across the hall and share a Jack-and-Jill bath.
  • Behind the 3-car garage, you'll find a large game room, and a fourth bedroom, ideal for guests or a boomerang kid.
What's Included
  • Detailed Floorplans with notes (door and window sizes, plumbing and cabinet locations.
  • Electrical plan with notes

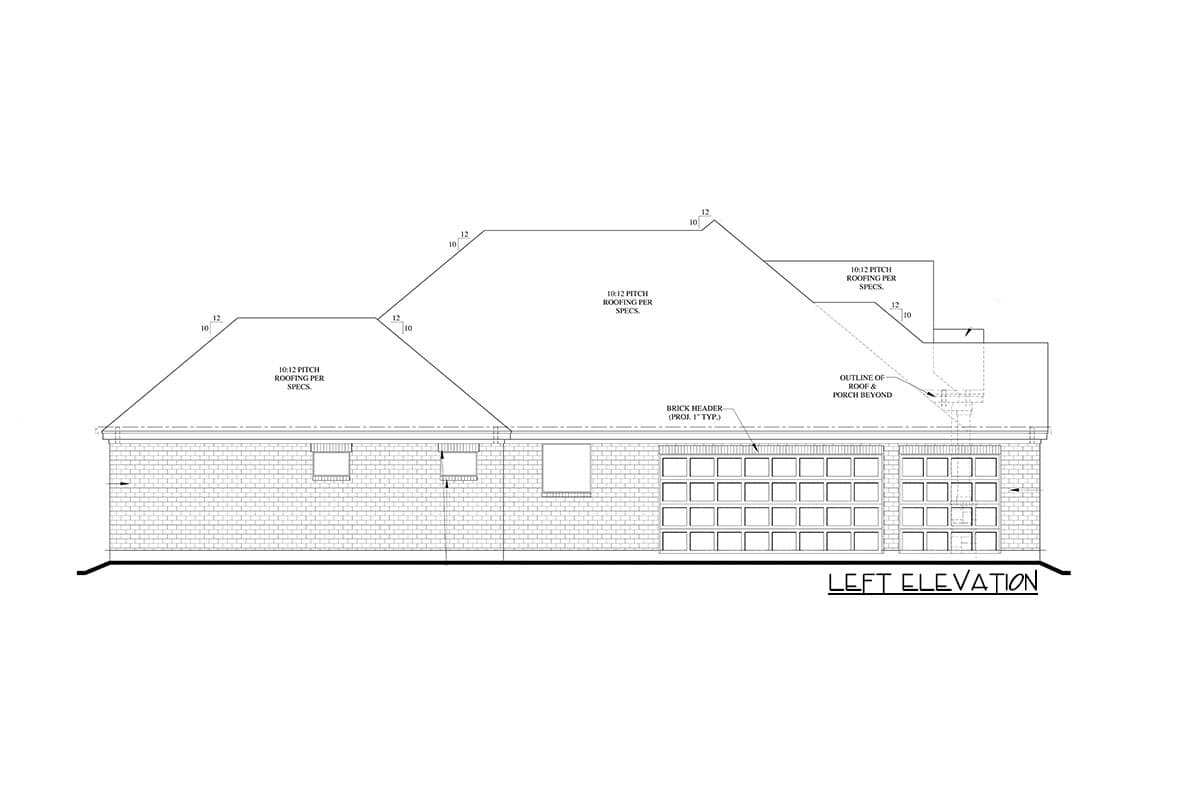

  • Exterior Elevations
  • Roof plan with pitches, notes and direction
  • Foundation outline that locates plumbing fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive New American Home Plan with Game Room

  • 3,492

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

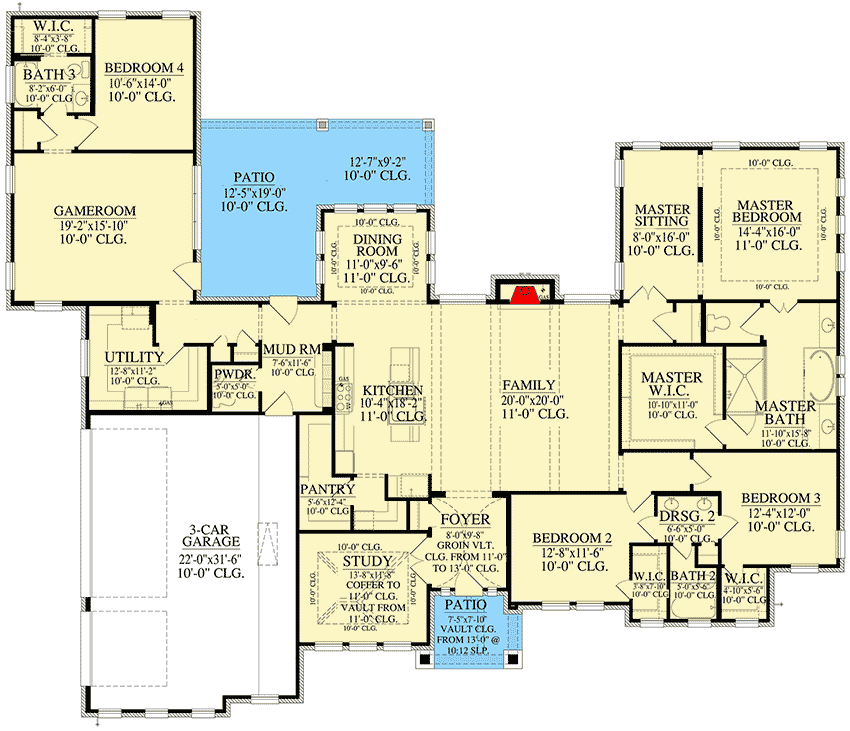

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,492 sq. ft.
  • 1st Floor: 3,492 sq. ft.

Dimensions

  • Width: 89' 7"
  • Depth: 75' 5"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 735 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
