Plan 365006PED Exclusive New American Home Plan with Private Study and Upstairs Laundry

3,408 4-5 3 - 4 2 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Exclusive New American Home Plan with Private Study and Upstairs Laundry

Plan 365006PED

  • 3,408

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 2

    Stories

  • 3

    Cars

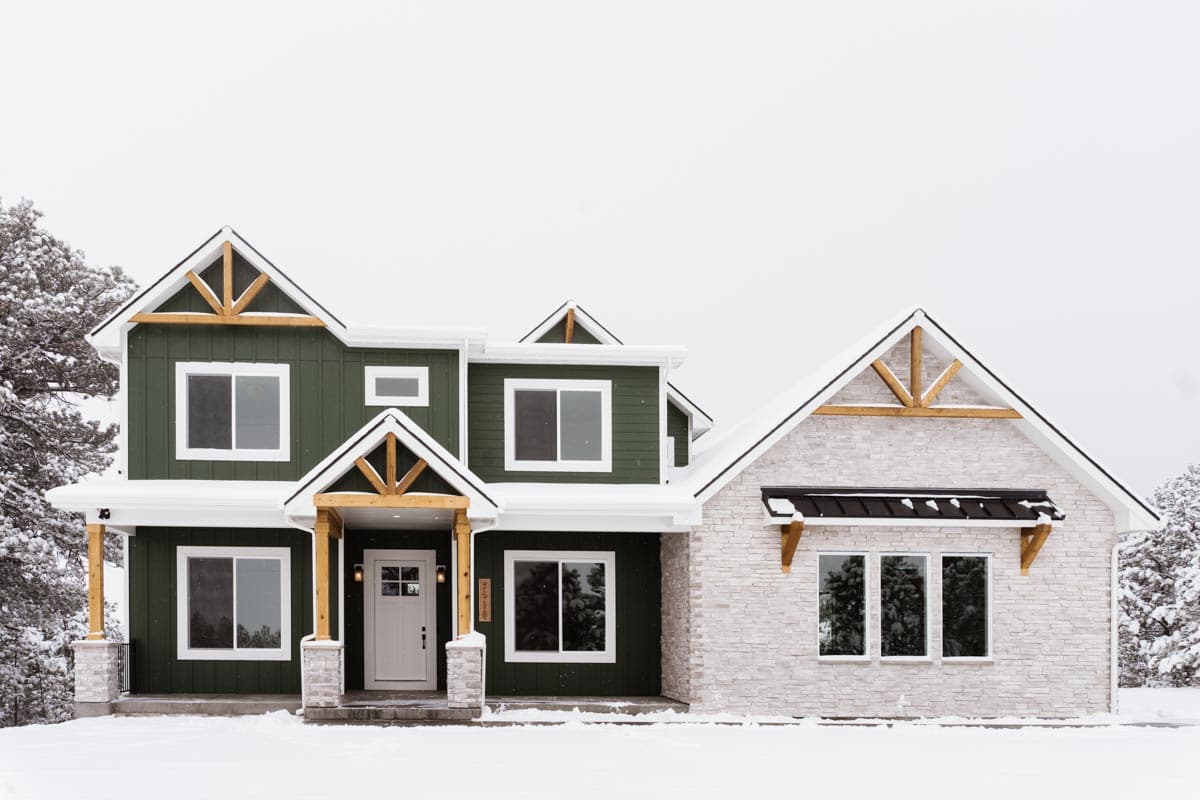

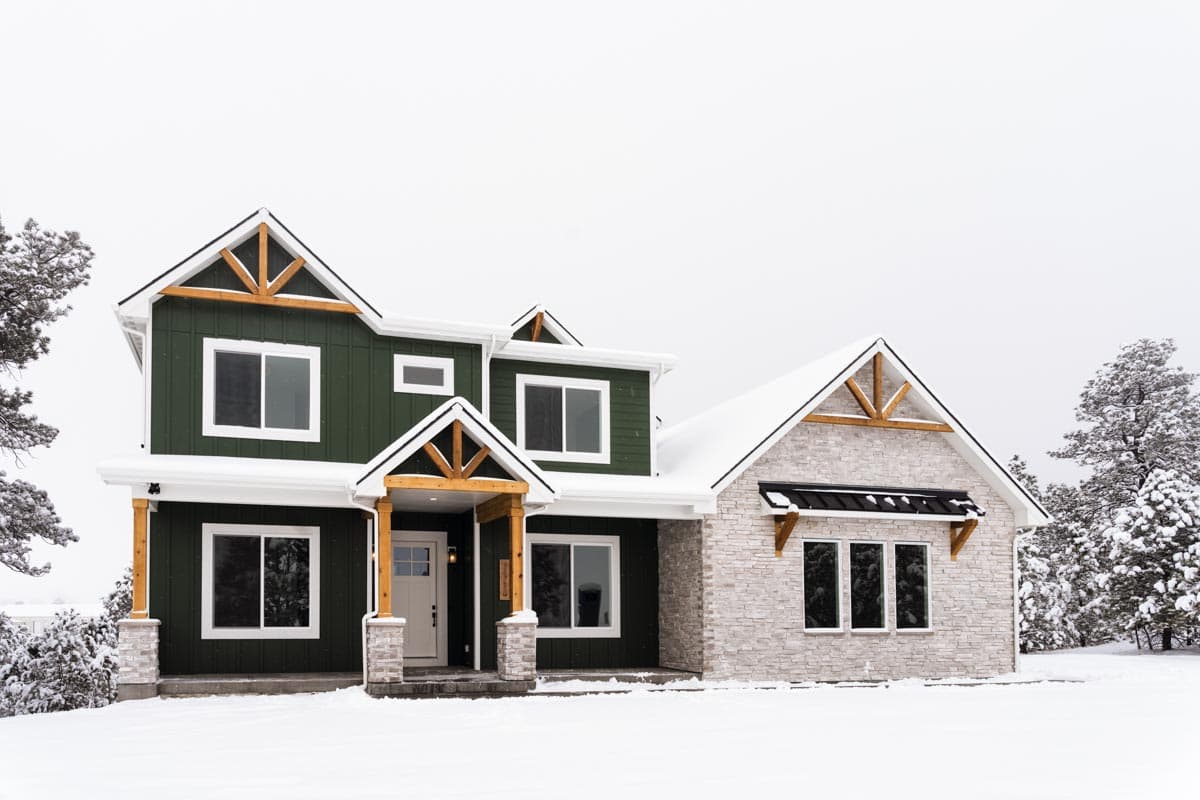

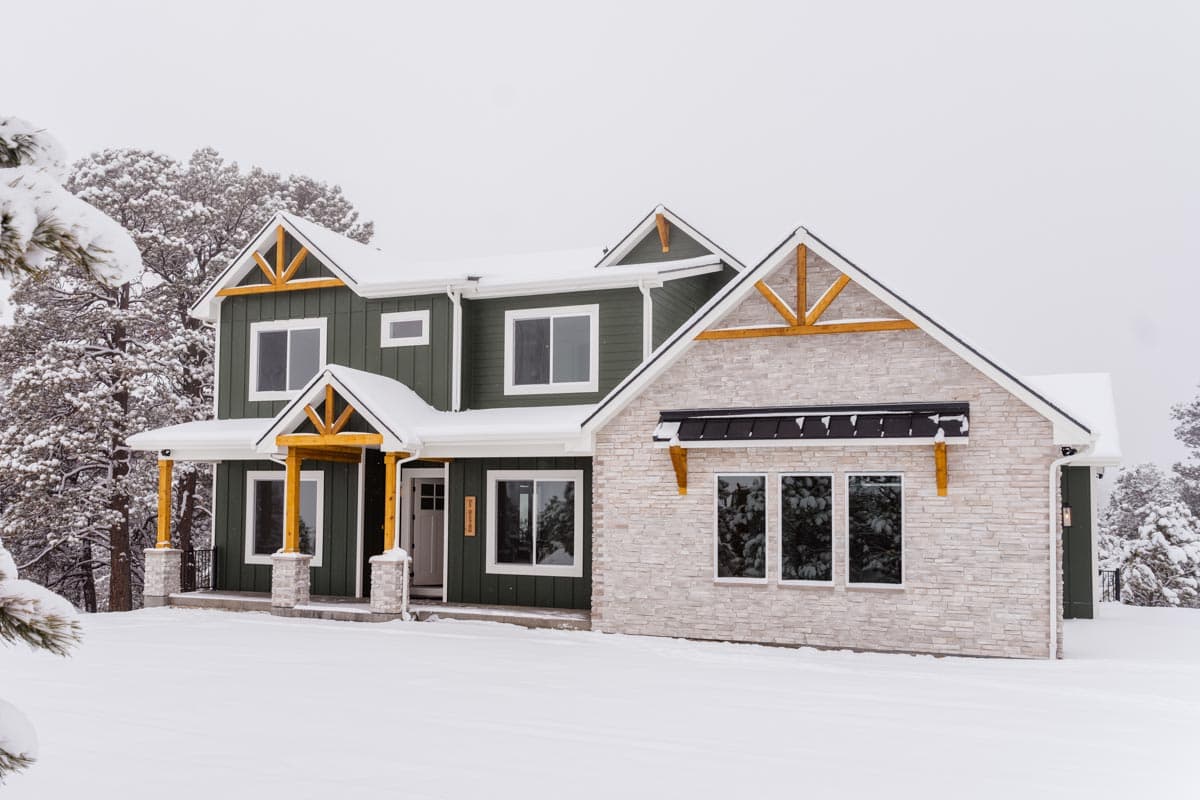

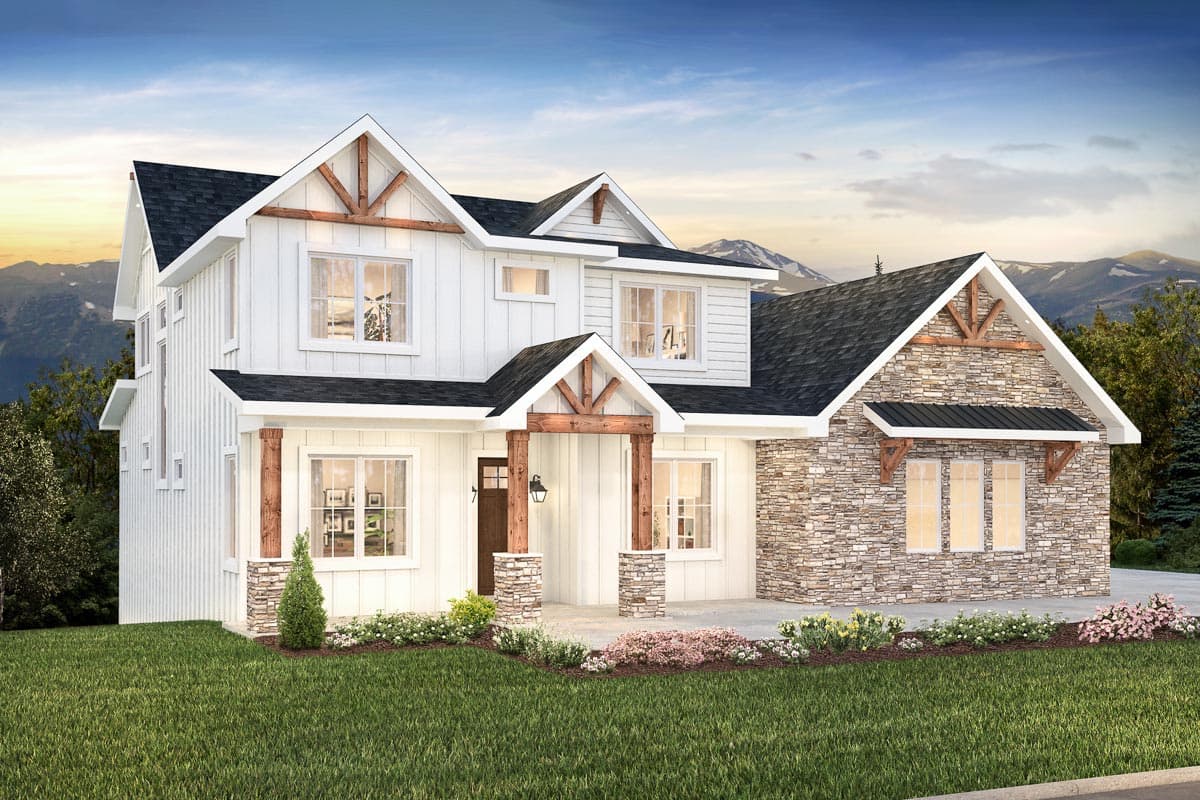

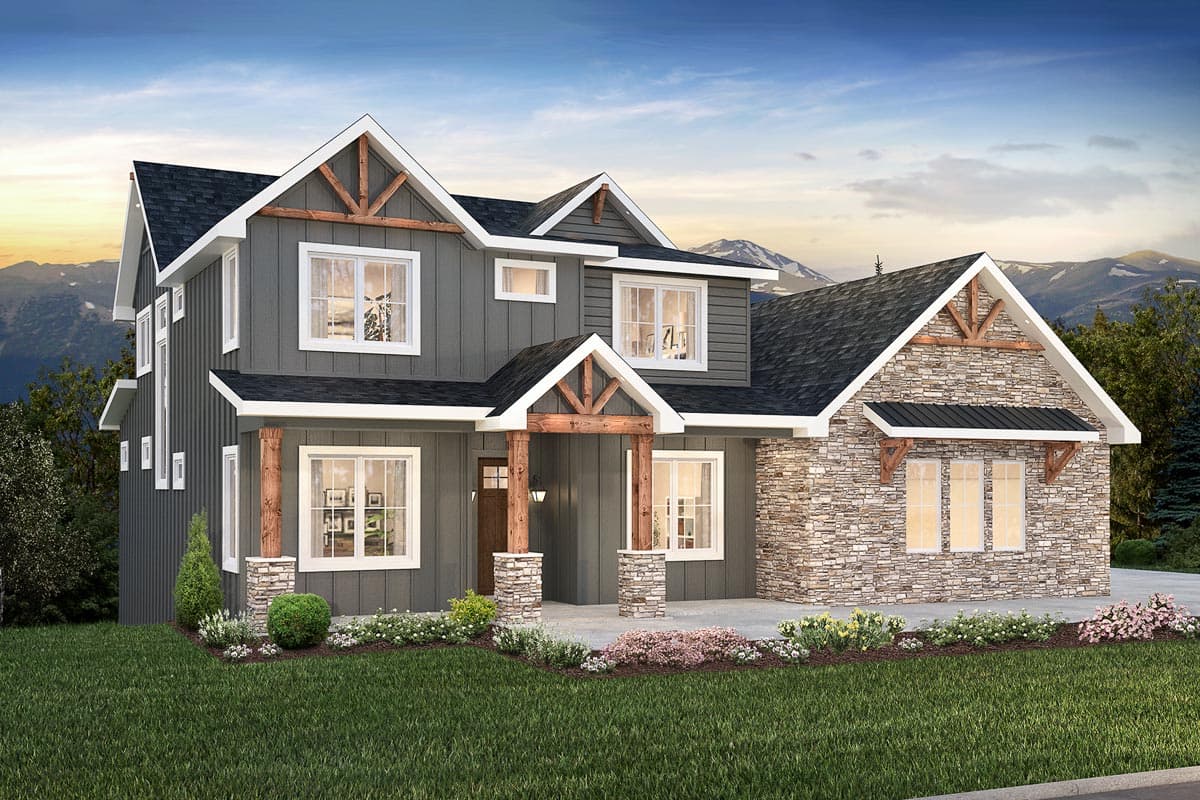

  • A stone accent wall adds texture to the exterior of this exclusive New American home plan, decorated by timber-framed gables.

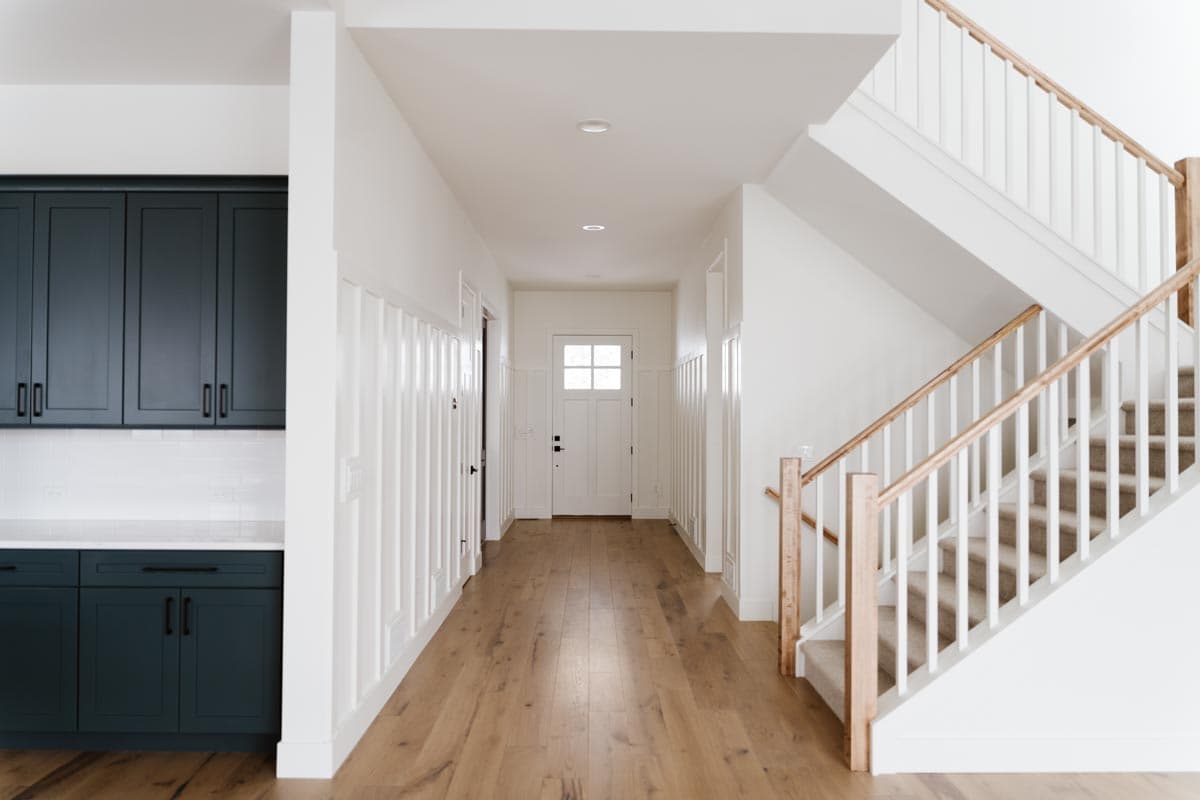

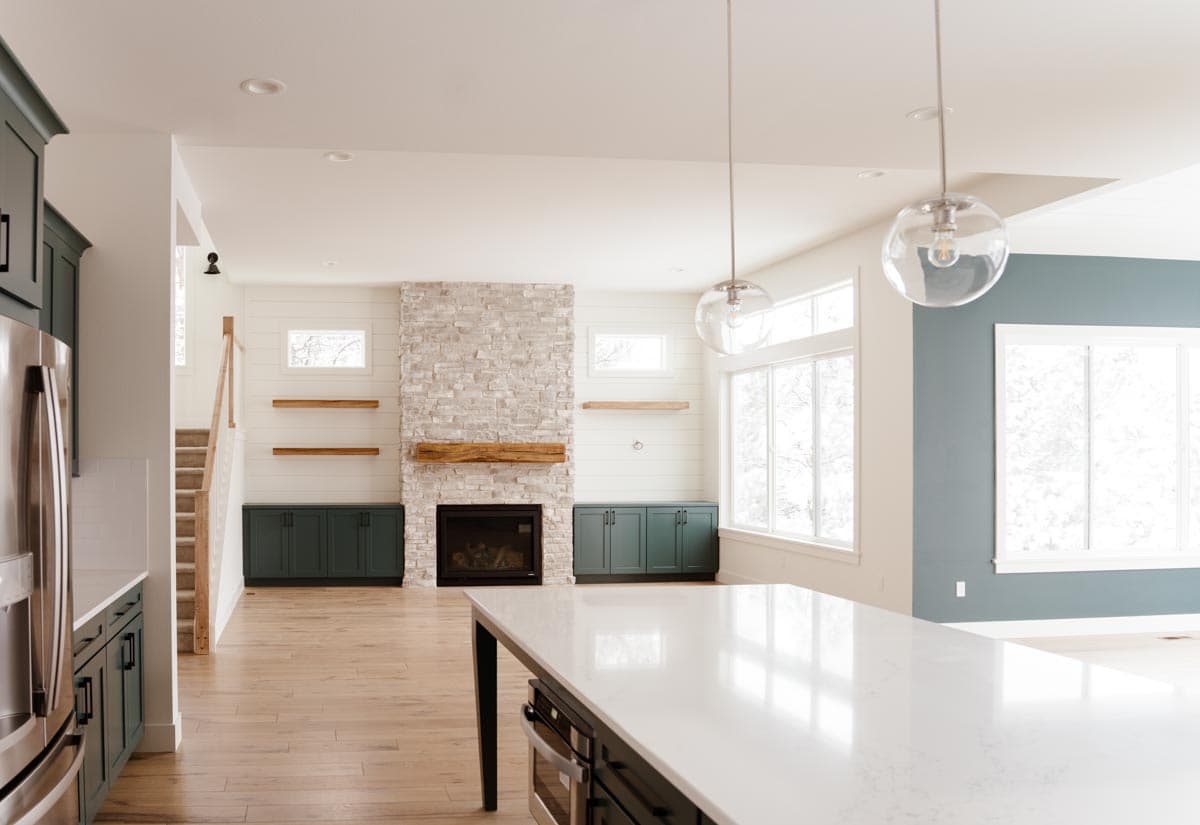

  • Bordering the entryway, discover a private study and bedroom that neighbors a full bath. The heart of the home is filled with natural light and open to help bring family and friends together.

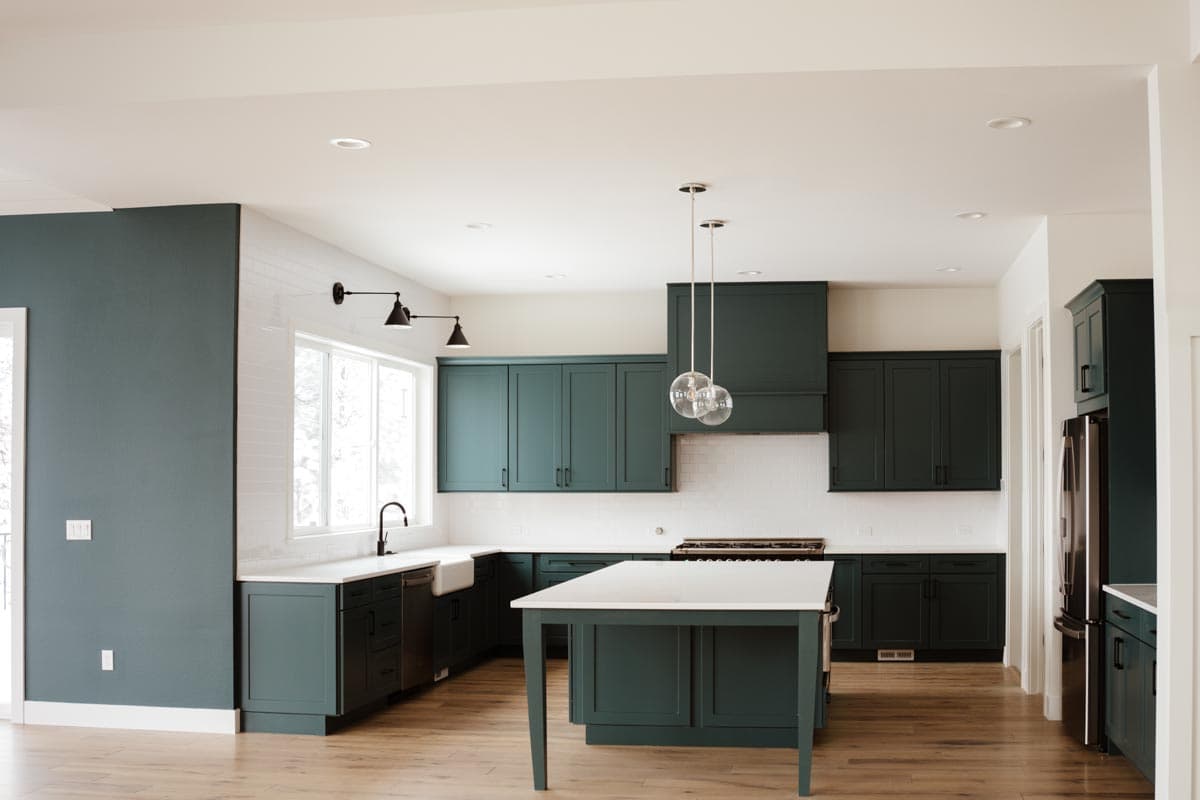

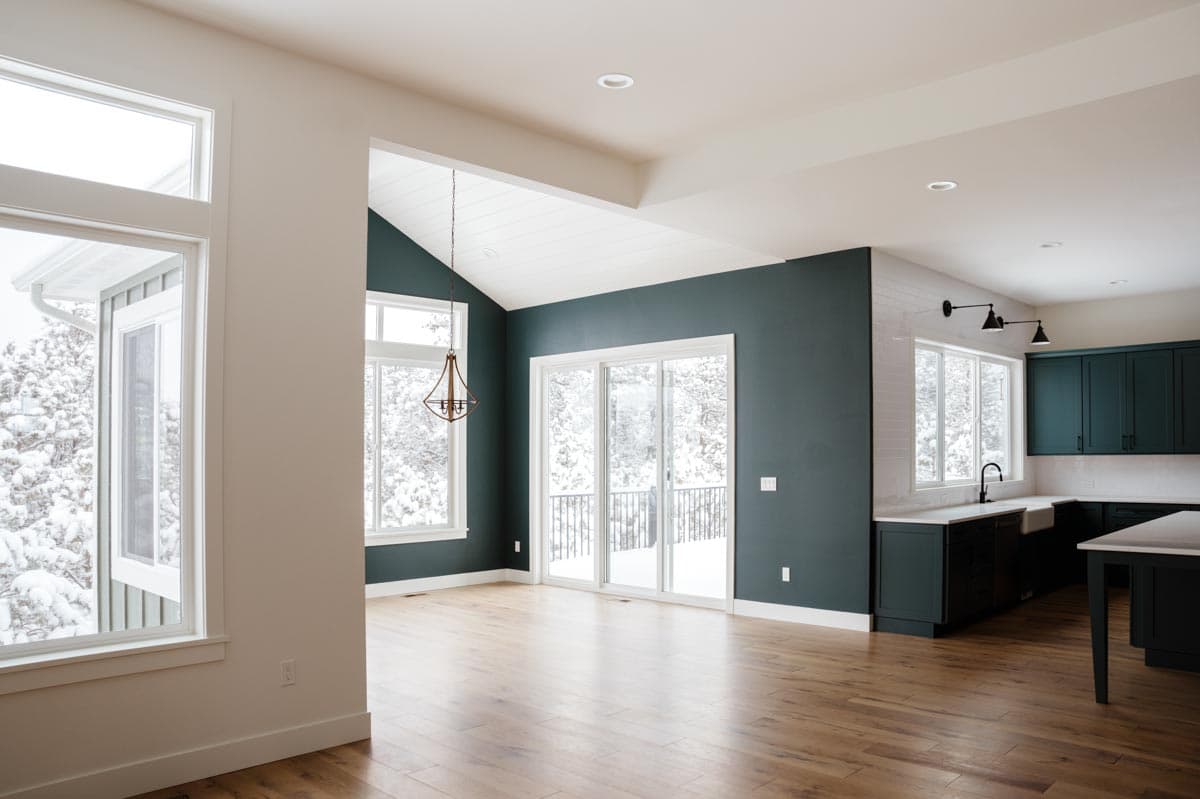

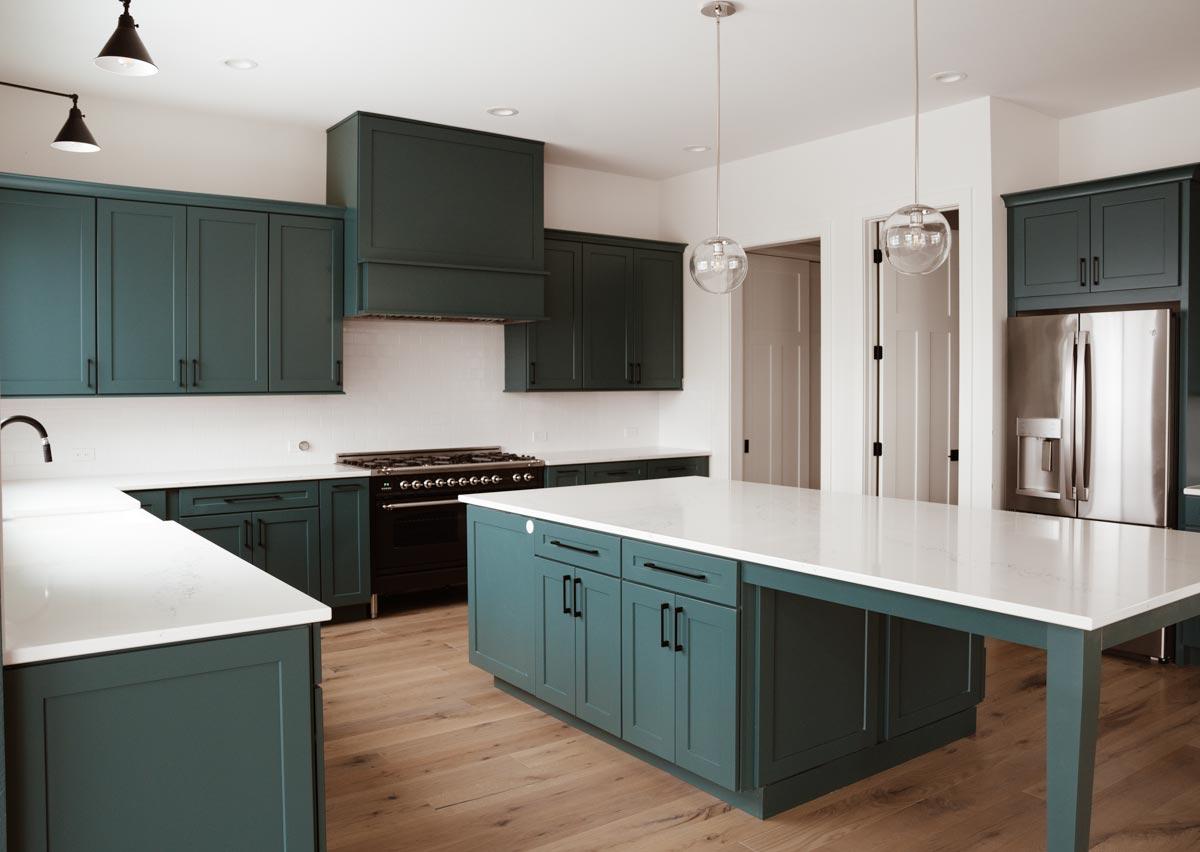

  • The kitchen's island provides counter-height seating for casual meals, and ample counter space provides space for an 8-burner range. Sliding doors off the dining area lead to a back deck, ideal for grilling or dining outdoors.

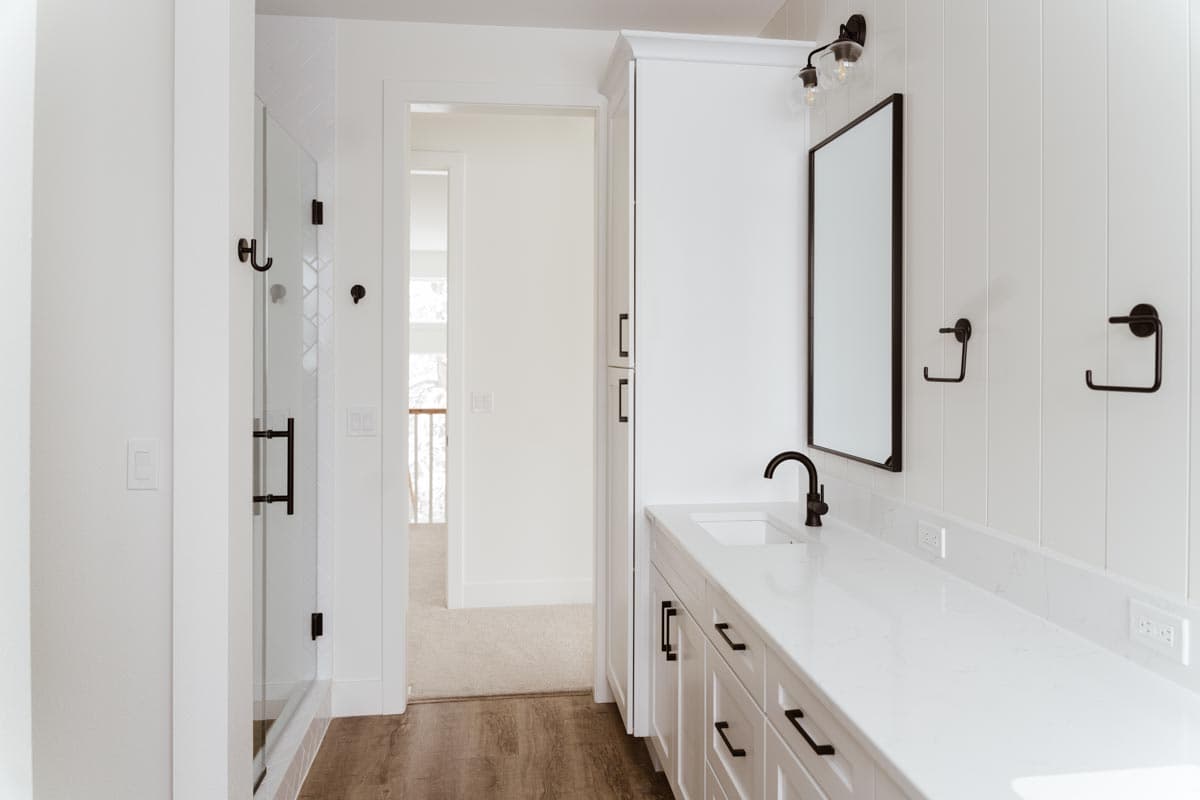

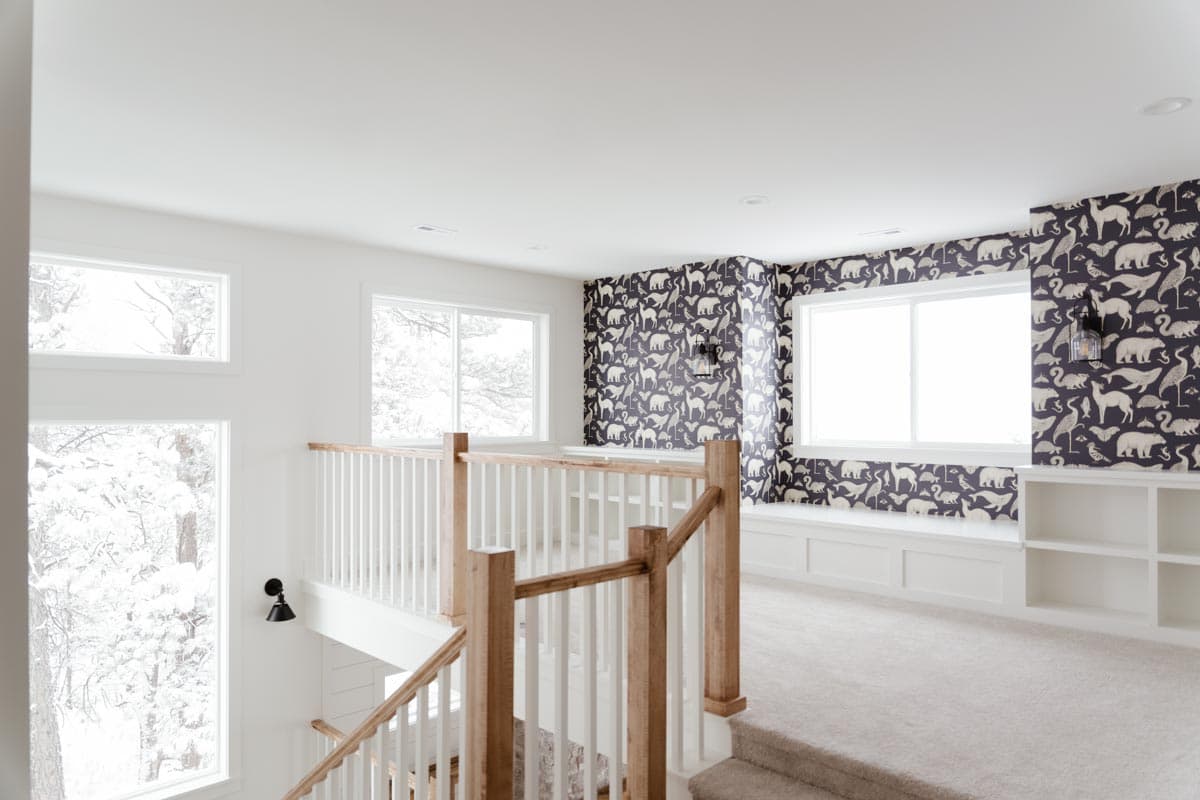

  • Discover a charming window seat in the loft at the top of the stairs, along with the master bedroom, laundry room, and two bedrooms that share a Jack-and-Jill bath.

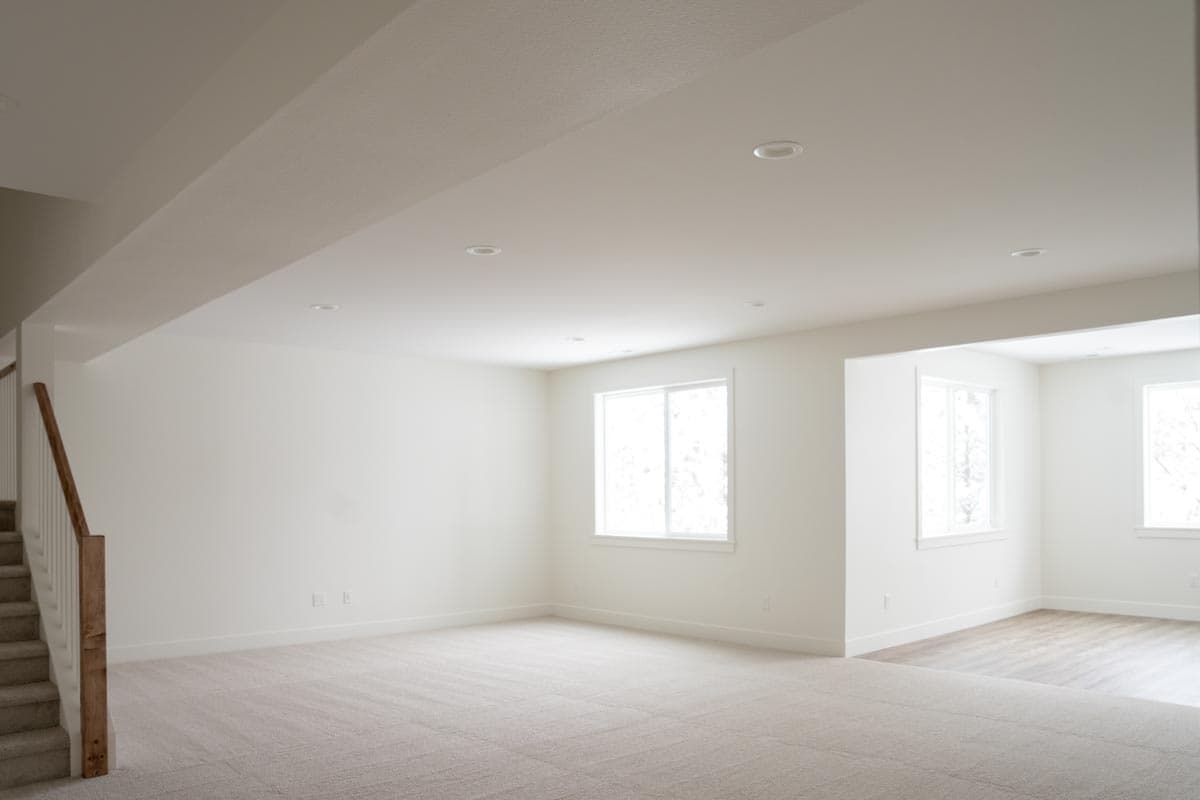

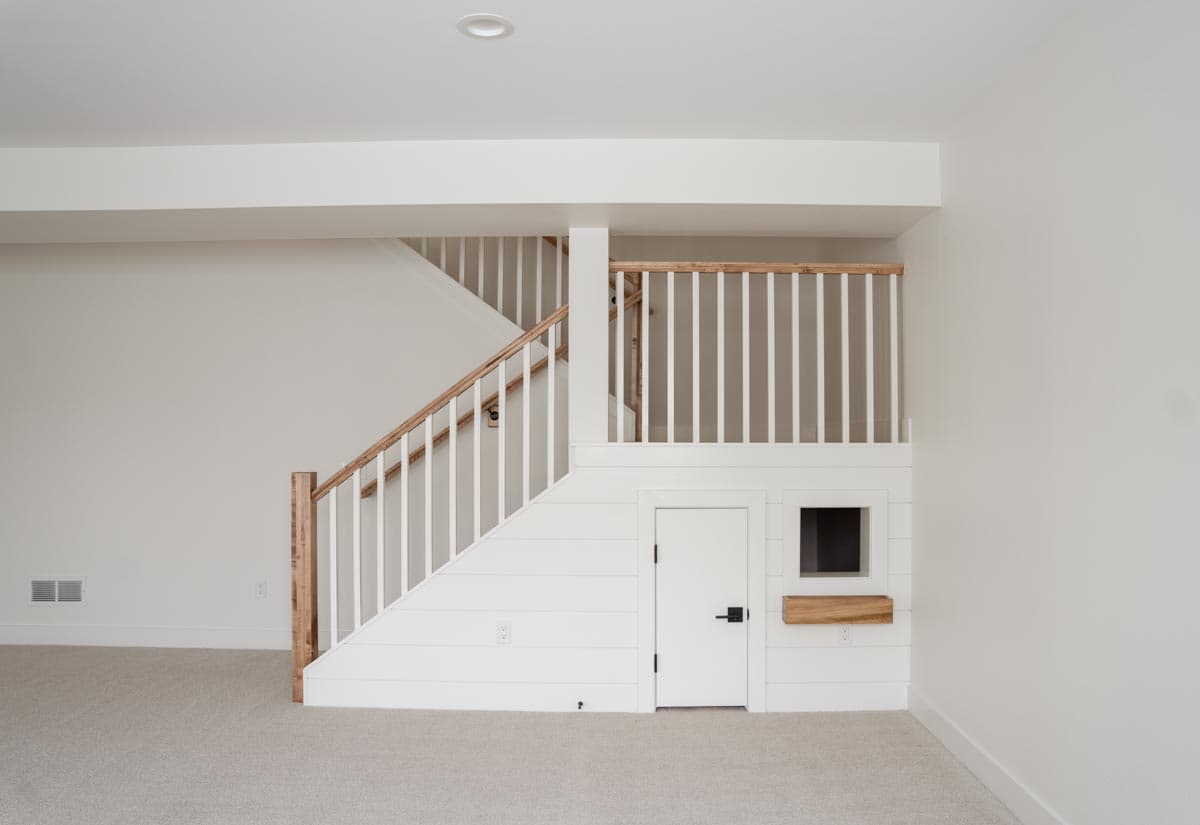

  • Finish the lower level for an additional 1,003 square feet of living space, and enjoy a recreation room, game room that opens to a patio, and fifth bedroom.

This plan set has 11 pages as follows:

  1. Cover sheet with general construction notes
  2. Main level floor plan
  3. Upper level floor  plan
  4. Lower level floor plan

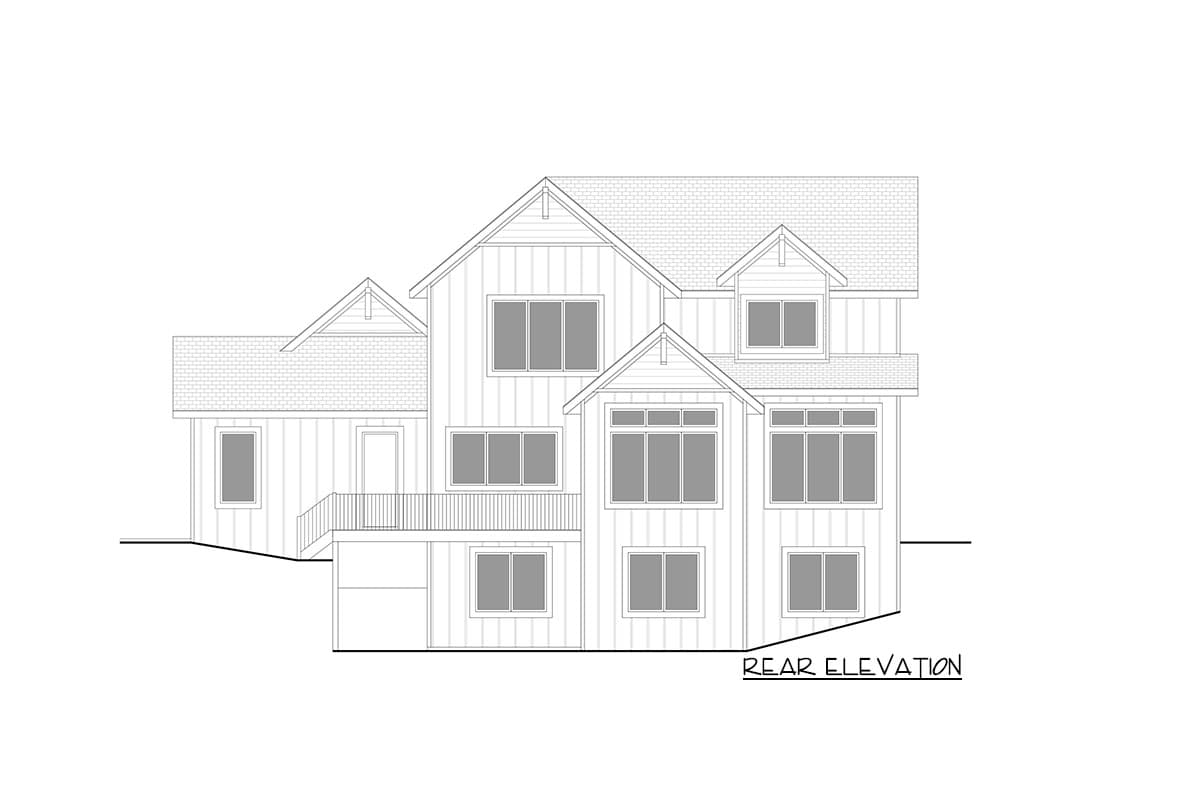

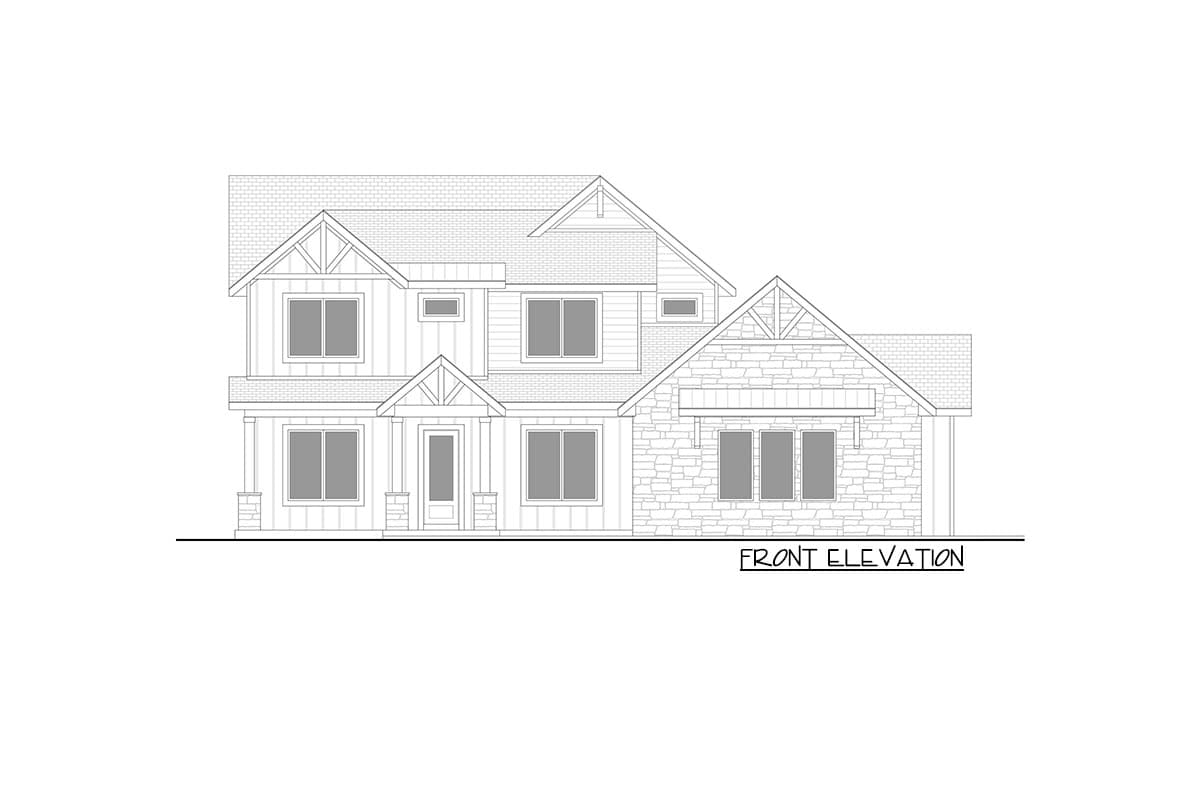

  5. Front and rear elevations

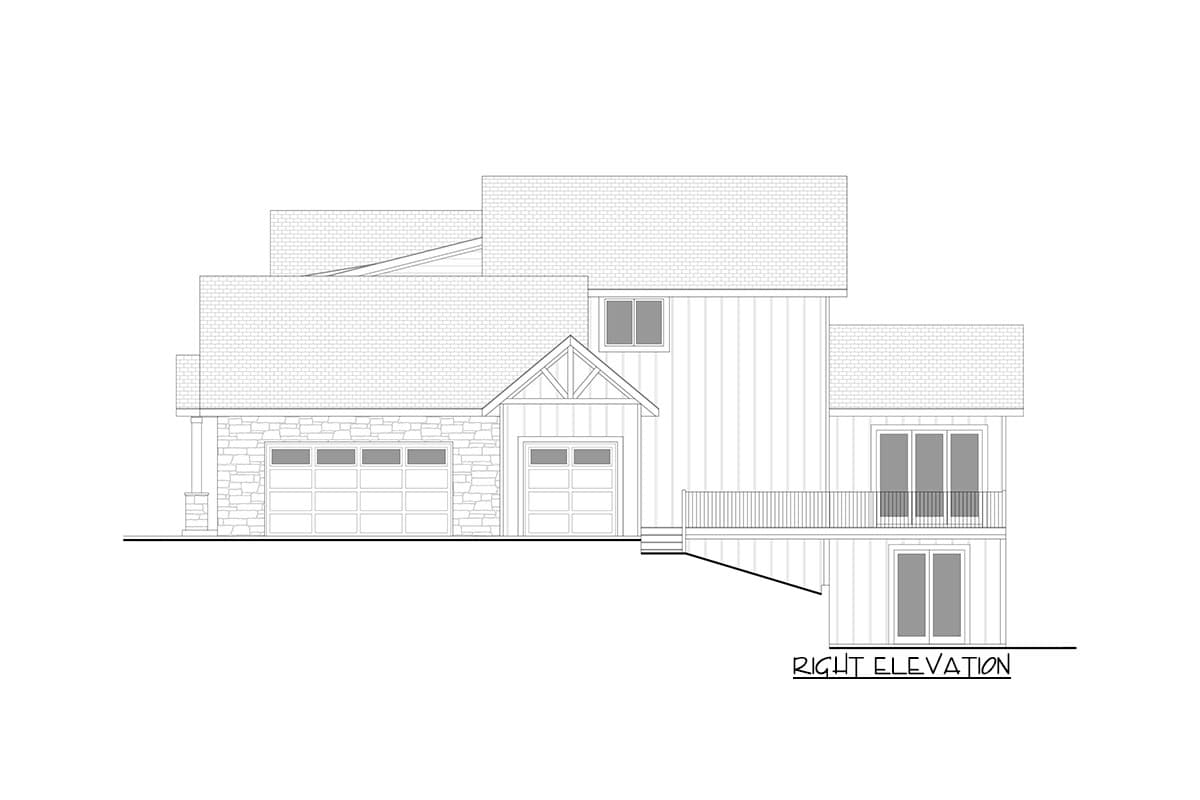

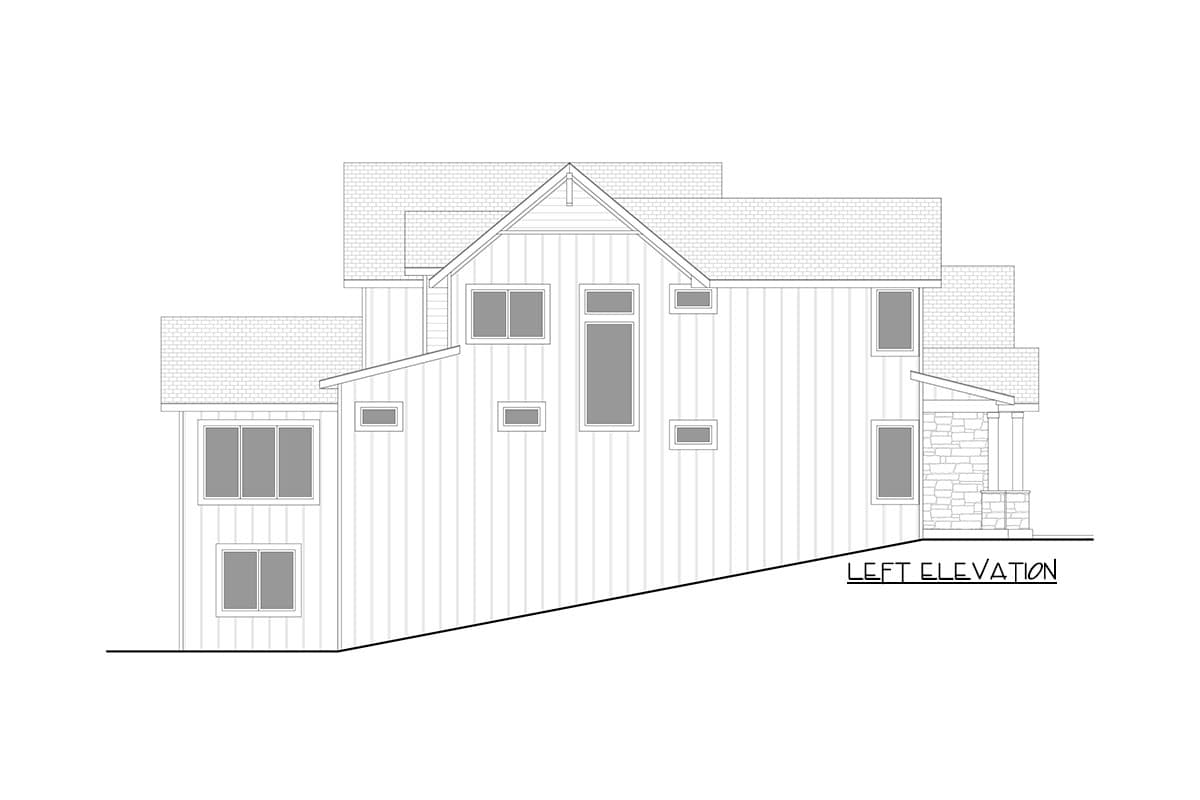

  6. Left and right elevations
  7. Roof plan
  8. Building section and details
  9. Main level electrical schematic
  10. Upper level electrical schematic
  11. Lower level electrical schematic
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

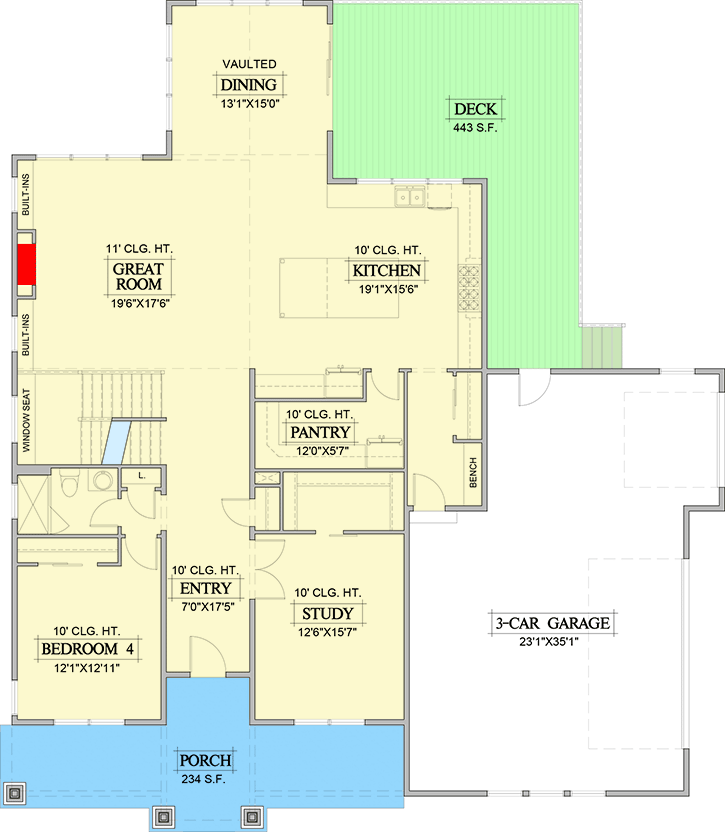

Exclusive New American Home Plan with Private Study and Upstairs Laundry - 365006PED floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

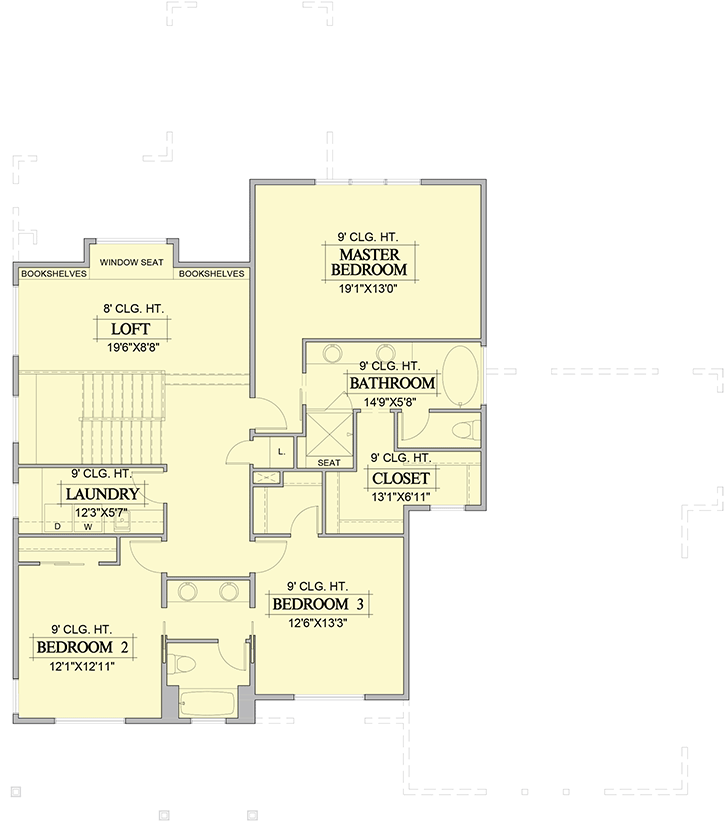

Exclusive New American Home Plan with Private Study and Upstairs Laundry - 365006PED floor plan - 2nd Floor

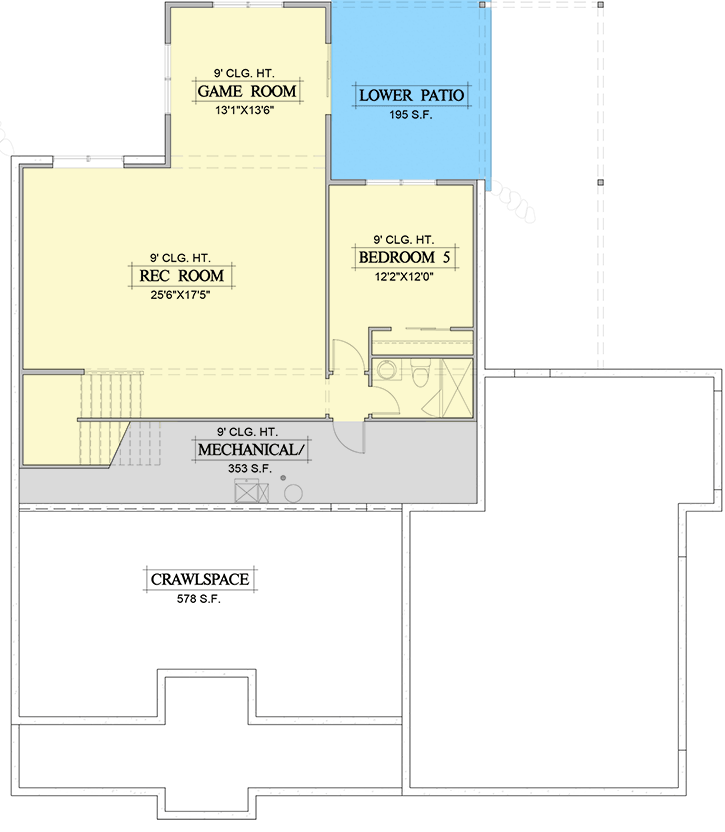

Optional Finished Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Exclusive New American Home Plan with Private Study and Upstairs Laundry - 365006PED floor plan - Optional Finished Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,408 sq. ft.
  • 1st Floor: 1,931 sq. ft.
  • 2nd Floor: 1,477 sq. ft.
  • Deck: 443 sq. ft.
  • Porch, Front: 234 sq. ft.
  • Optional Lower Level: 1,003 sq. ft.
  • Basement Unfinished: 353 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

  • Standard Foundations: Combo Basement-Crawl
  • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 69' 0"
  • Max ridge height: 29' 7"

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive New American Home Plan with Private Study and Upstairs Laundry

  • 3,408

    Heated s.f.

  • 4-5

    Beds

  • 3 - 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,797
  • CAD + PDF - Single Build $2,597
  • View all purchase option online

About This Plan

  • A stone accent wall adds texture to the exterior of this exclusive New American home plan, decorated by timber-framed gables.
  • Bordering the entryway, discover a private study and bedroom that neighbors a full bath. The heart of the home is filled with natural light and open to help bring family and friends together.
  • The kitchen's island provides counter-height seating for casual meals, and ample counter space provides space for an 8-burner range. Sliding doors off the dining area lead to a back deck, ideal for grilling or dining outdoors.
  • Discover a charming window seat in the loft at the top of the stairs, along with the master bedroom, laundry room, and two bedrooms that share a Jack-and-Jill bath.
  • Finish the lower level for an additional 1,003 square feet of living space, and enjoy a recreation room, game room that opens to a patio, and fifth bedroom.

Floor Plans

  • Main Level

  • 2nd Floor

  • Optional Finished Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,408 sq. ft.
  • 1st Floor: 1,931 sq. ft.
  • 2nd Floor: 1,477 sq. ft.
  • Deck: 443 sq. ft.
  • Porch, Front: 234 sq. ft.
  • Optional Lower Level: 1,003 sq. ft.
  • Basement Unfinished: 353 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 3 or 4

Foundation Type

    • Standard Foundations: Combo Basement-Crawl
    • Optional Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 60' 0"
  • Depth: 69' 0"
  • Max ridge height: 29' 7"

Garage

  • Type: Attached
  • Area: 808 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Truss
Plan 365006PED
View this and more for this plan by visiting www.architechtecturaldesigns.com/365006PED
|
