Exclusive New American House Plan with Broad Shed Dormer

Plan 73467HS

  • 3,734

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • A mixed material exterior and a broad shed dormer over the covered porch greets you to this exclusive New American house plan. Windows over the 3-car garage let light into the bonus room.
  • A pair of French doors on the left of the foyer open to reveal your private study. On the opposite side of the foyer you'll find the dining room.
  • Your main living area is in back with the angled kitchen positioned to take full advantage of the views of the great room and dinette. A flex room off to the side would work well as an extra bedroom if needed.
  • The remaining bedrooms are up on the second floor including the luxurious master suite. A second floor laundry adds convenience. Two steps lead you down to the bonus room.
  • Related Plan: Get an alternate exterior with house plans 73332HS (3-car garage) and 73365HS (4-car garage).

This plan set includes the following:

  • Lower level floor plan
  • Main level floor plan
  • Upper level floor plan

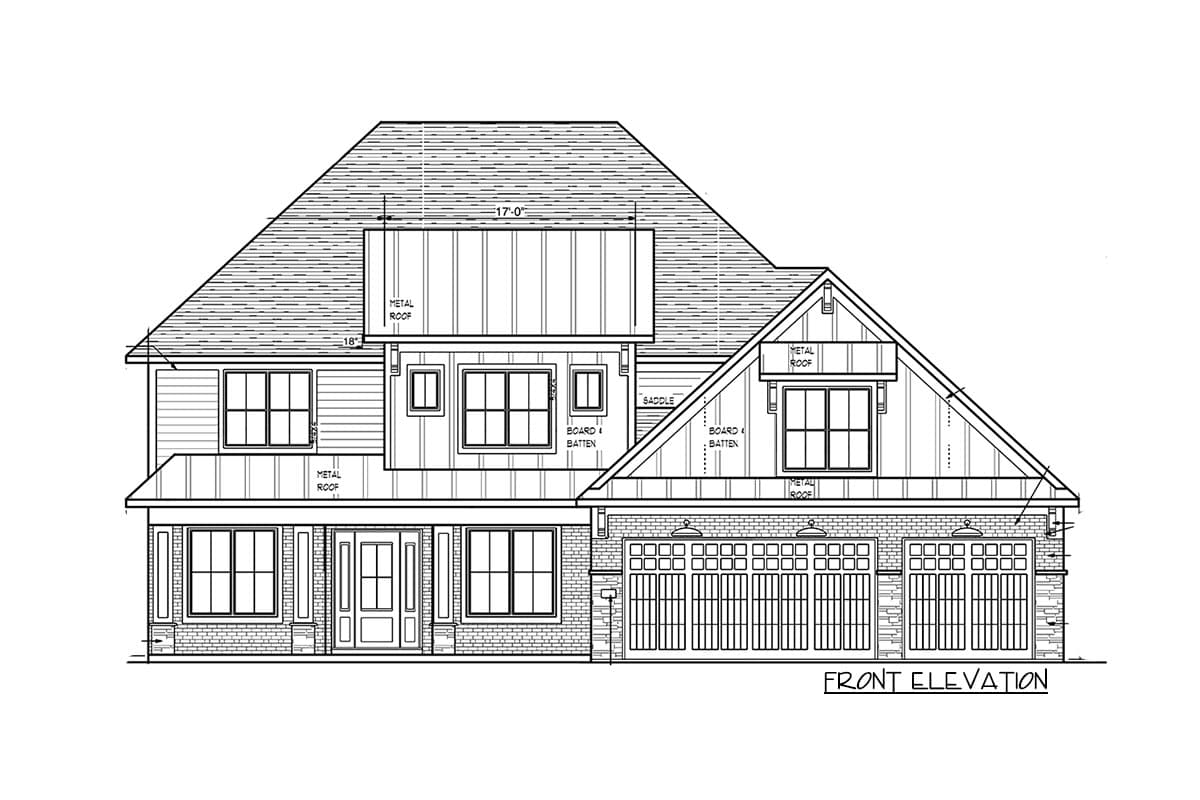

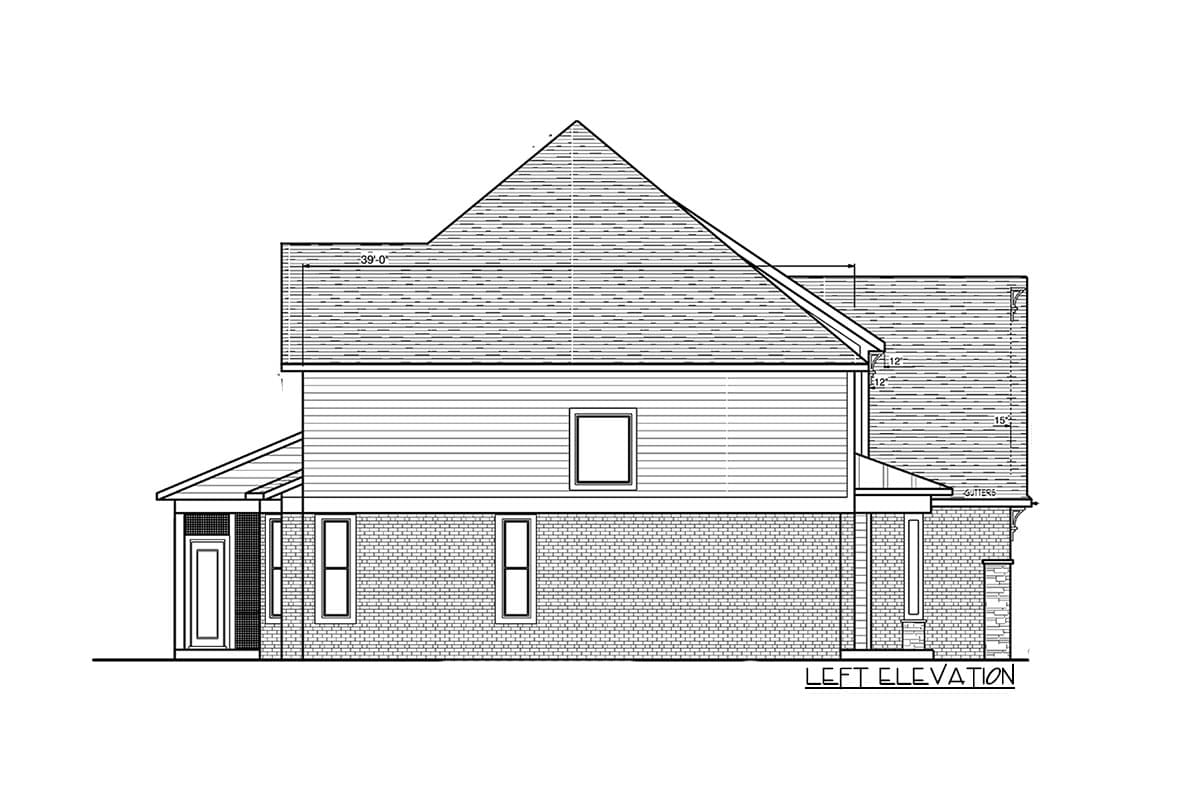

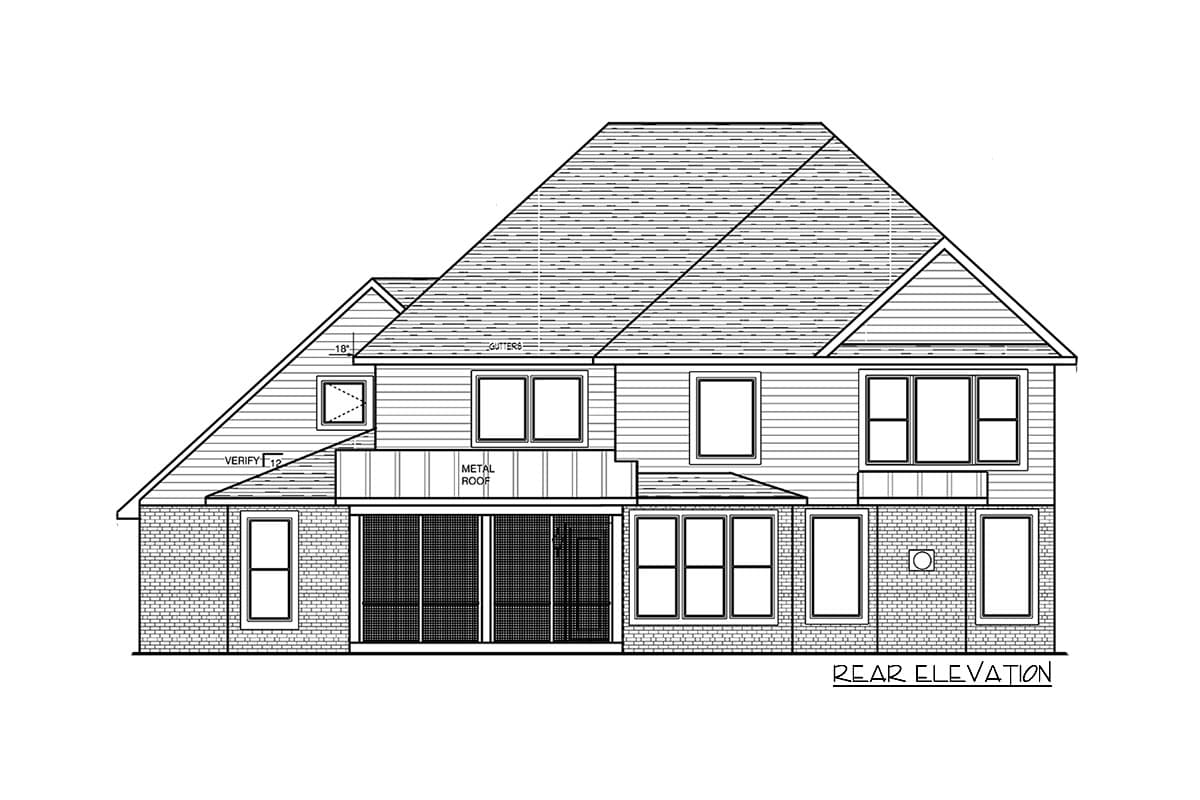

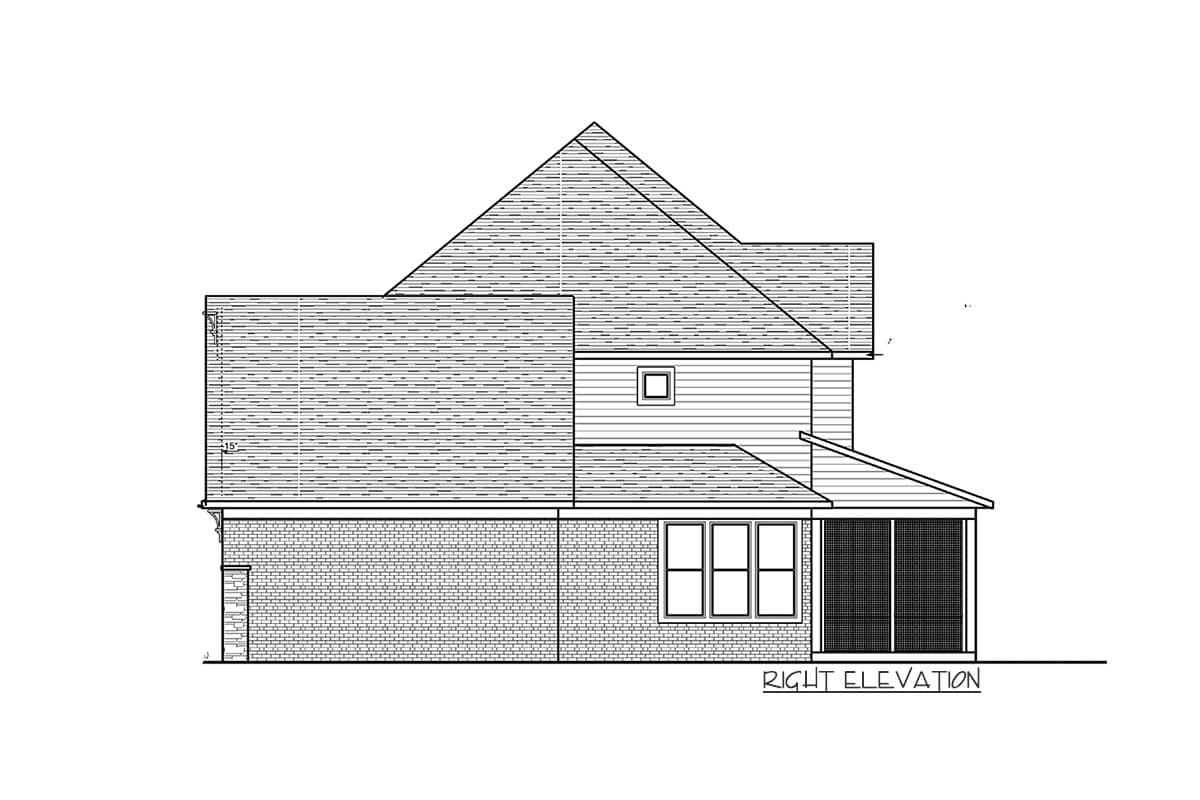

  • Elevations of all four sides
  • Electrical schematics
  • Sections (2 pages)

The roof is a truss design and your truss manufacturer will create the appropriate truss system for your local code and conditions.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

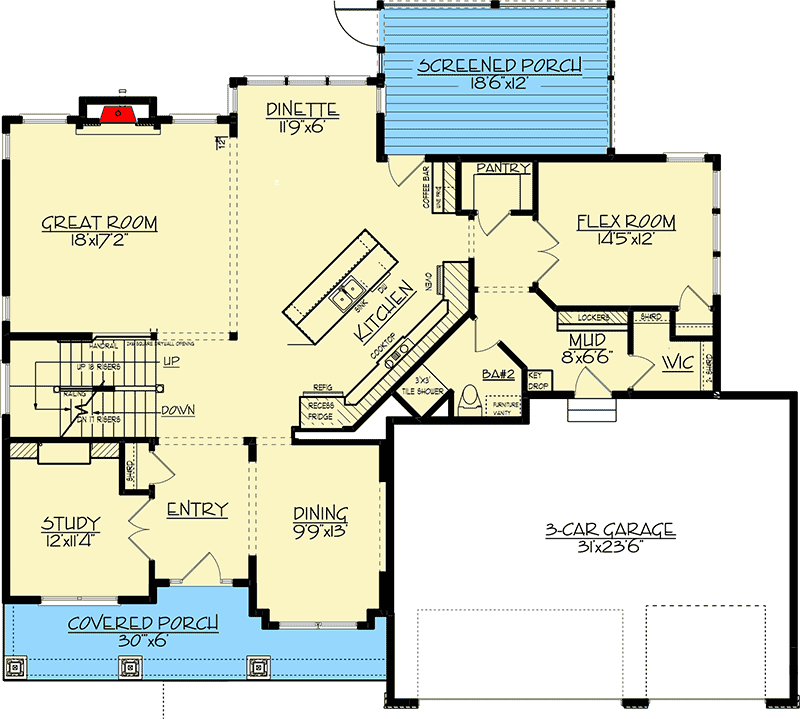

Exclusive New American House Plan with Broad Shed Dormer - 73467HS floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

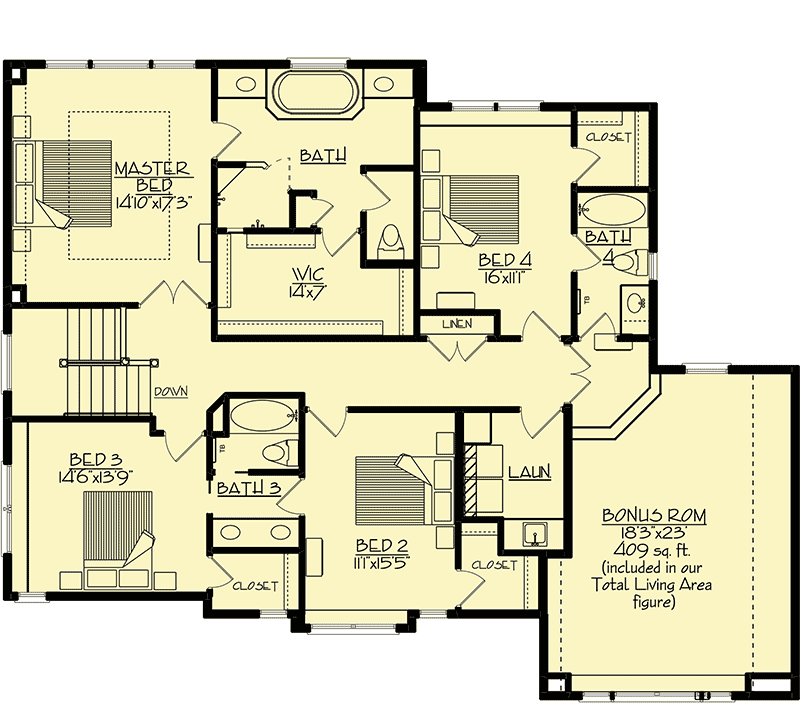

Exclusive New American House Plan with Broad Shed Dormer - 73467HS floor plan - 2nd Floor

Unfinished Basement

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

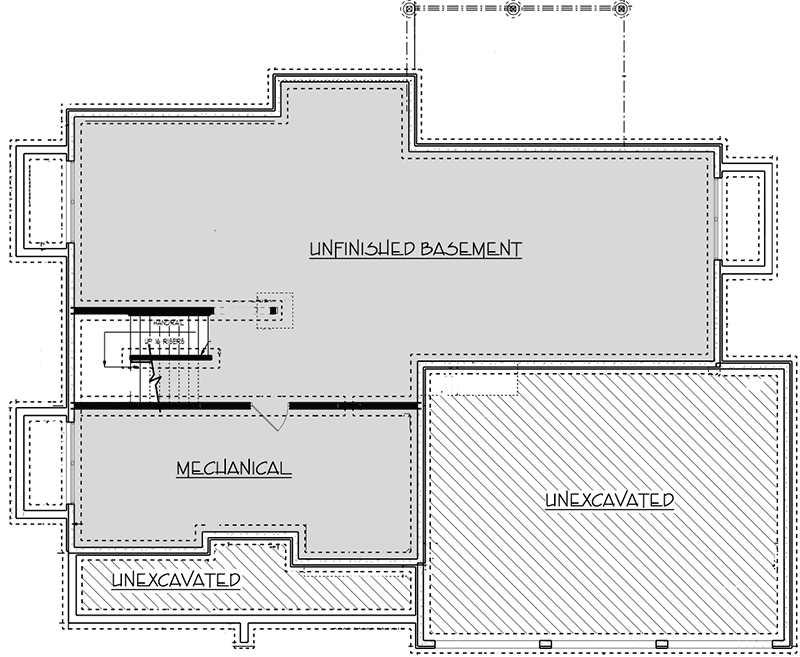

Exclusive New American House Plan with Broad Shed Dormer - 73467HS floor plan - Unfinished Basement

Exclusive New American House Plan with Broad Shed Dormer

  • 3,734

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Unfinished Basement

Plan Details

Square Footage Breakdown

  • Total: 3,734 sq. ft.
  • 1st Floor: 1,709 sq. ft.
  • 2nd Floor: 2,025 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 54' 0"
  • Max ridge height: 35' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Garage

  • Type: Attached
  • Area: 741 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"
