Exclusive One-level House Plan with Private Master Suite

Plan 510166WDY

This plan plants 10 trees

1,946
Heated s.f.
3
Beds
2.5
Baths
1
Stories
2
Cars

Enjoy one-level living with this exclusive house plan and discover the benefits of a well-thought-out design.
The foyer takes you directly into the heart of the home where only a single column stands between the formal dining room and great room. An oversized opening connects the kitchen, anchored by a large prep island surrounded by plenty of counter and cabinet space.
Pass a pocket study on the way to the private master bedroom. The homeowner will delight in the spacious 5-fixture ensuite with a toilet room and walk-in closet with access to the laundry room.
Two additional family bedrooms on the opposite side of the home are mirror images of one another, and share the hall bath that separates them.
A dedicated storage room in the double garage helps keep lawn supplies organized.

This house plan set consists of the following elements:

Cover Sheet
Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)

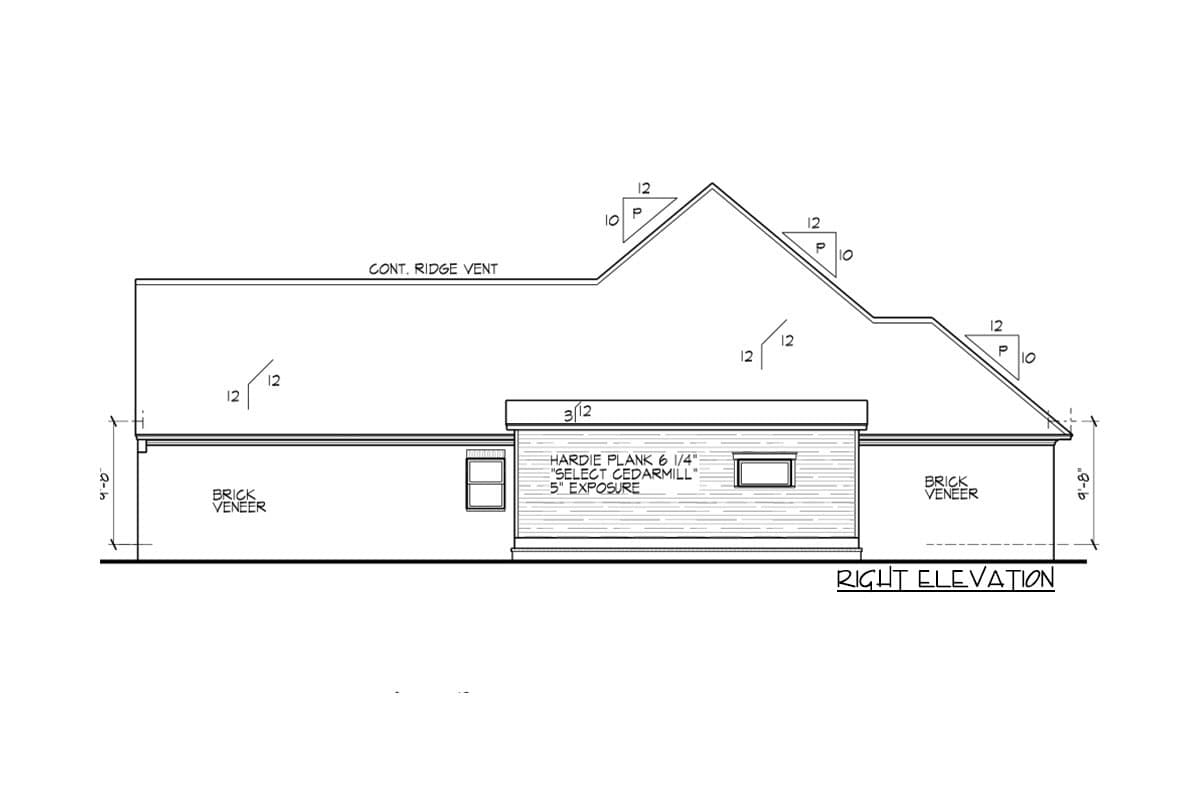

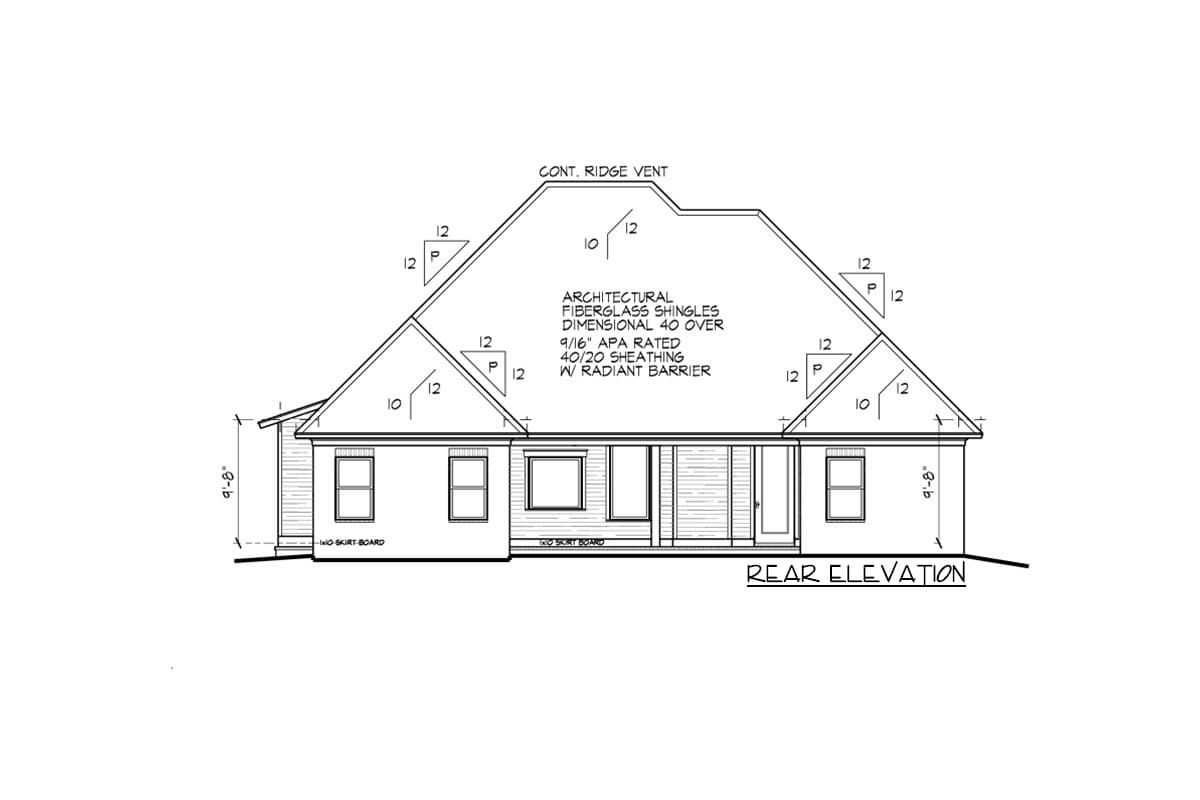

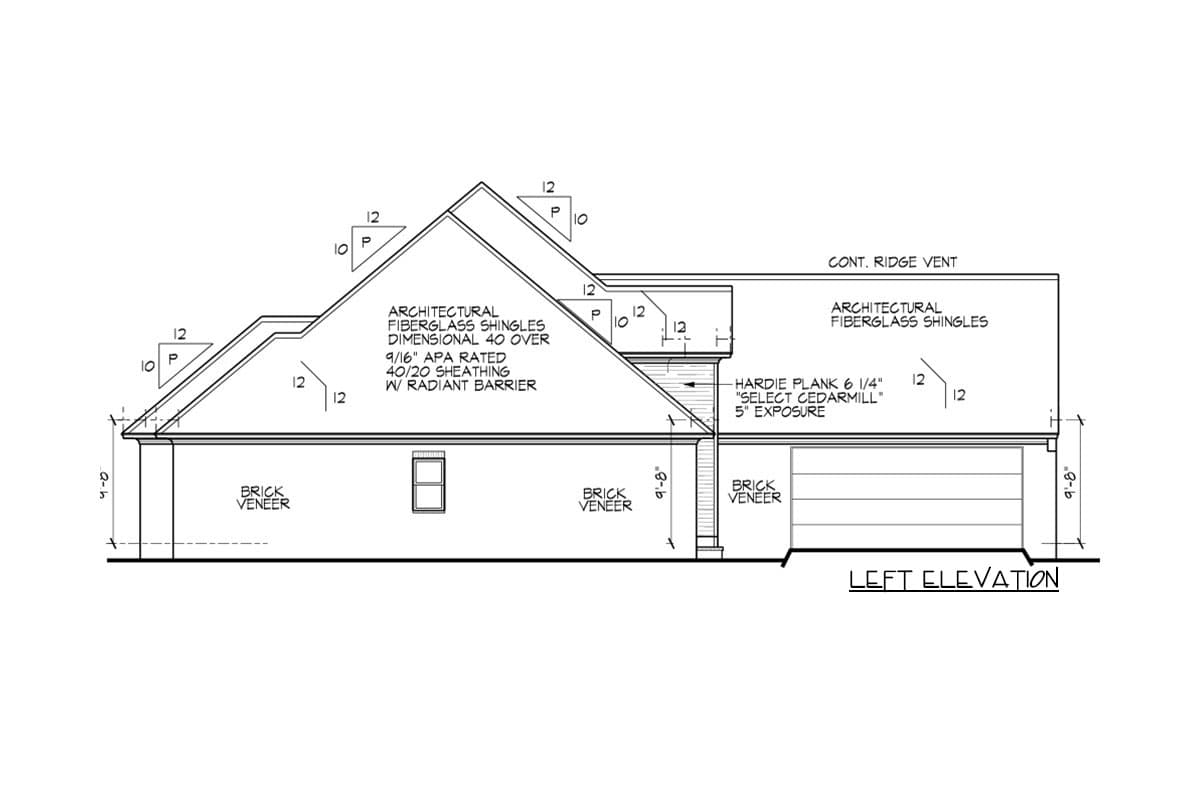

Exterior Elevations w/ Details
Building Section and Roof Plan w/ Trim Details
Additional Building Notes and Details
Electrical Layout
Foundation Plan
Foundation Details and Notes

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

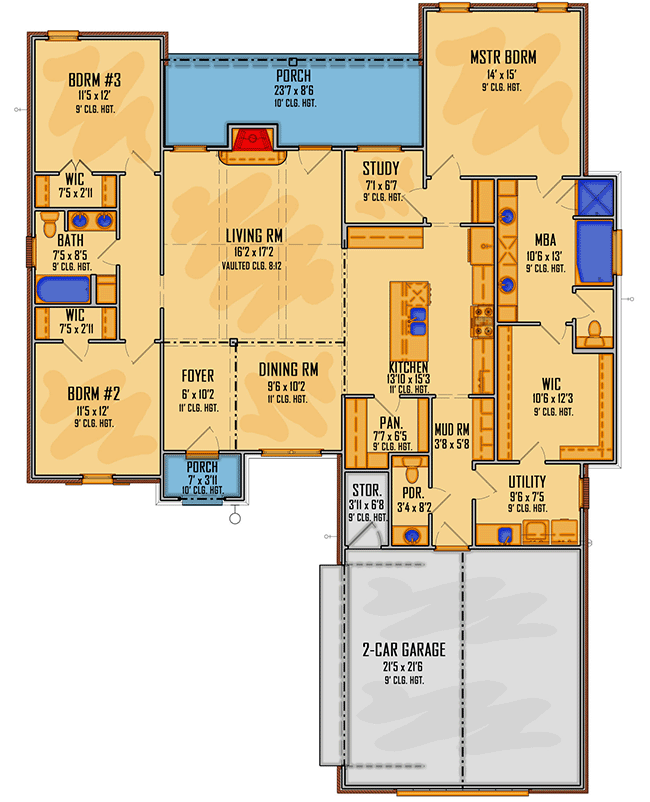

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Exclusive One-level House Plan with Private Master Suite - 510166WDY floor plan - Main Level

Plan details

Square Footage Breakdown

Total Heated Area: 1,946 sq. ft.
1st Floor: 1,946 sq. ft.

Porch, Combined: 231 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2
Half bathrooms: 1

Foundation Type

Standard Foundations: Slab

Optional Foundations: Crawl, Basement

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 53' 3"
Depth: 71' 0"

Garage

Area: 535 sq. ft.
Count: 2 Cars
Entry Location: Courtyard
