Plan 440004PWL
EXCLUSIVE
Exclusive Ranch House Plan with Cathedral Ceiling
Heated S.F.
3,006
Beds
3
Baths
3.5
Stories
1
Cars
3
What's Included
Plan Details

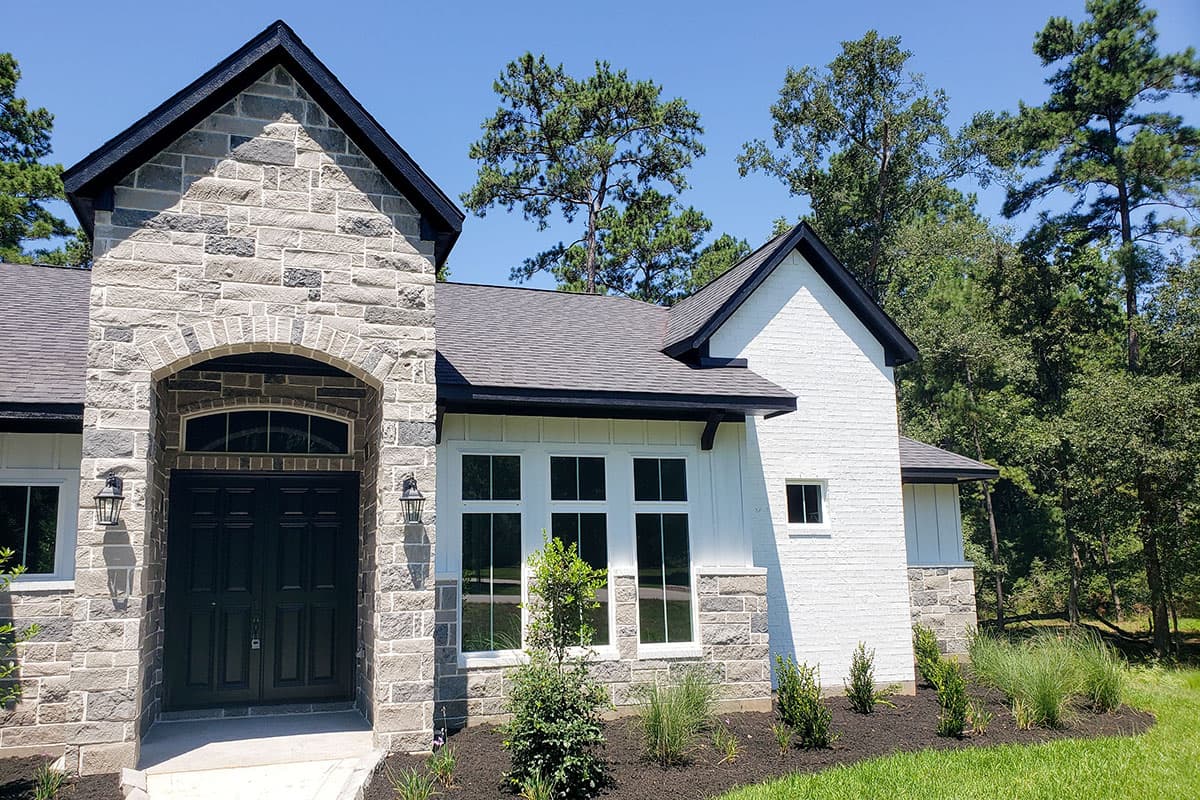

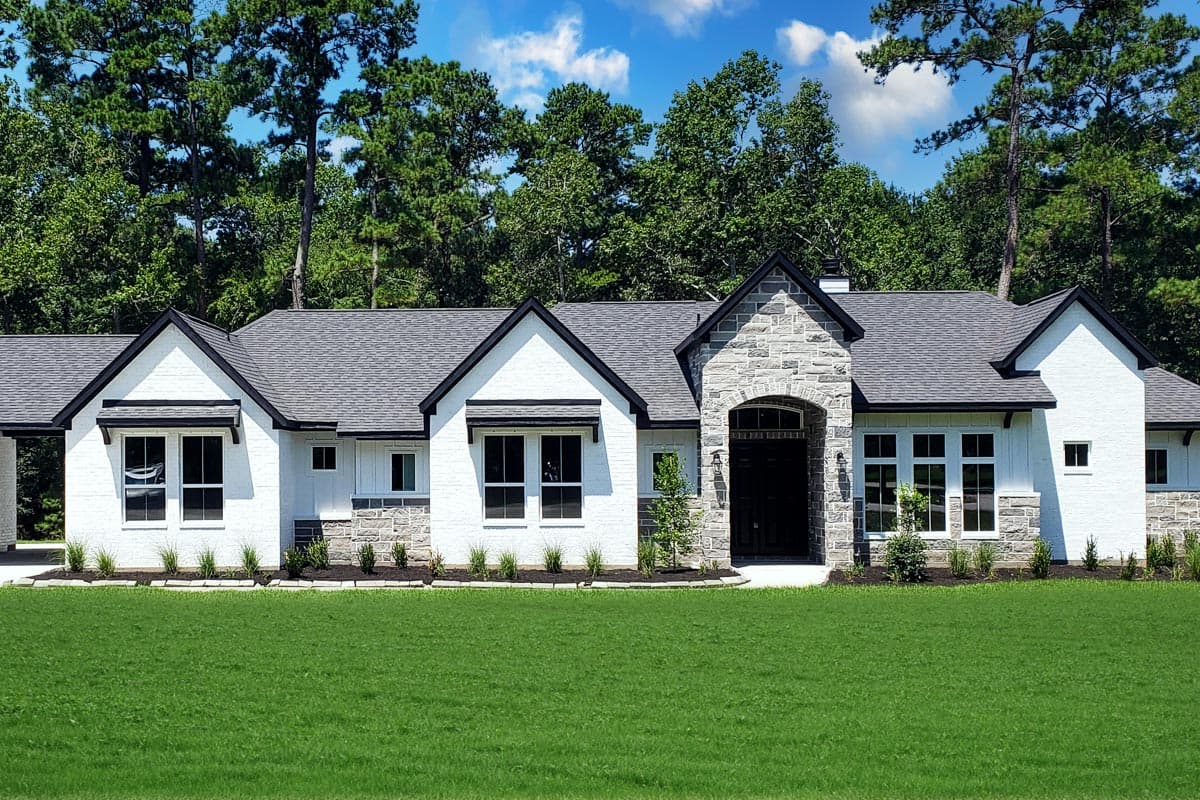

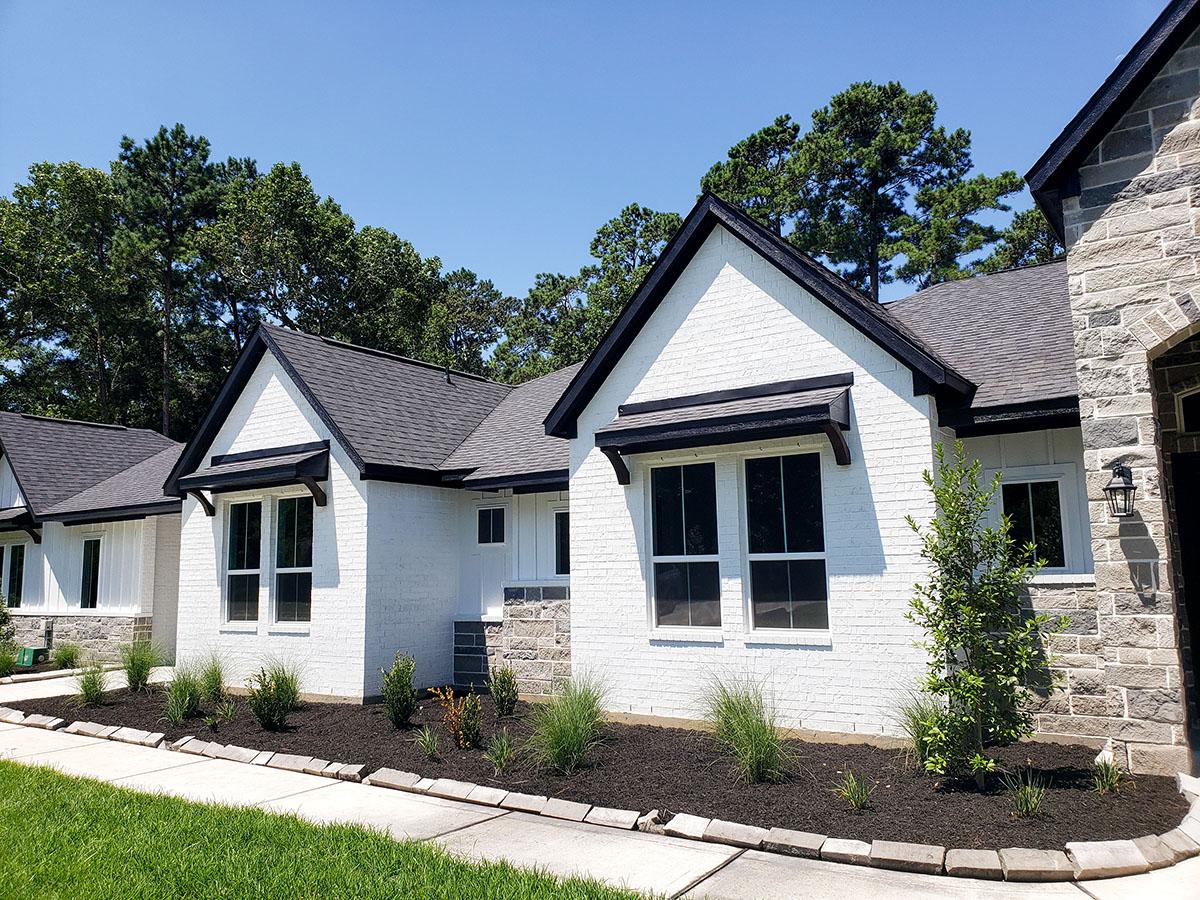

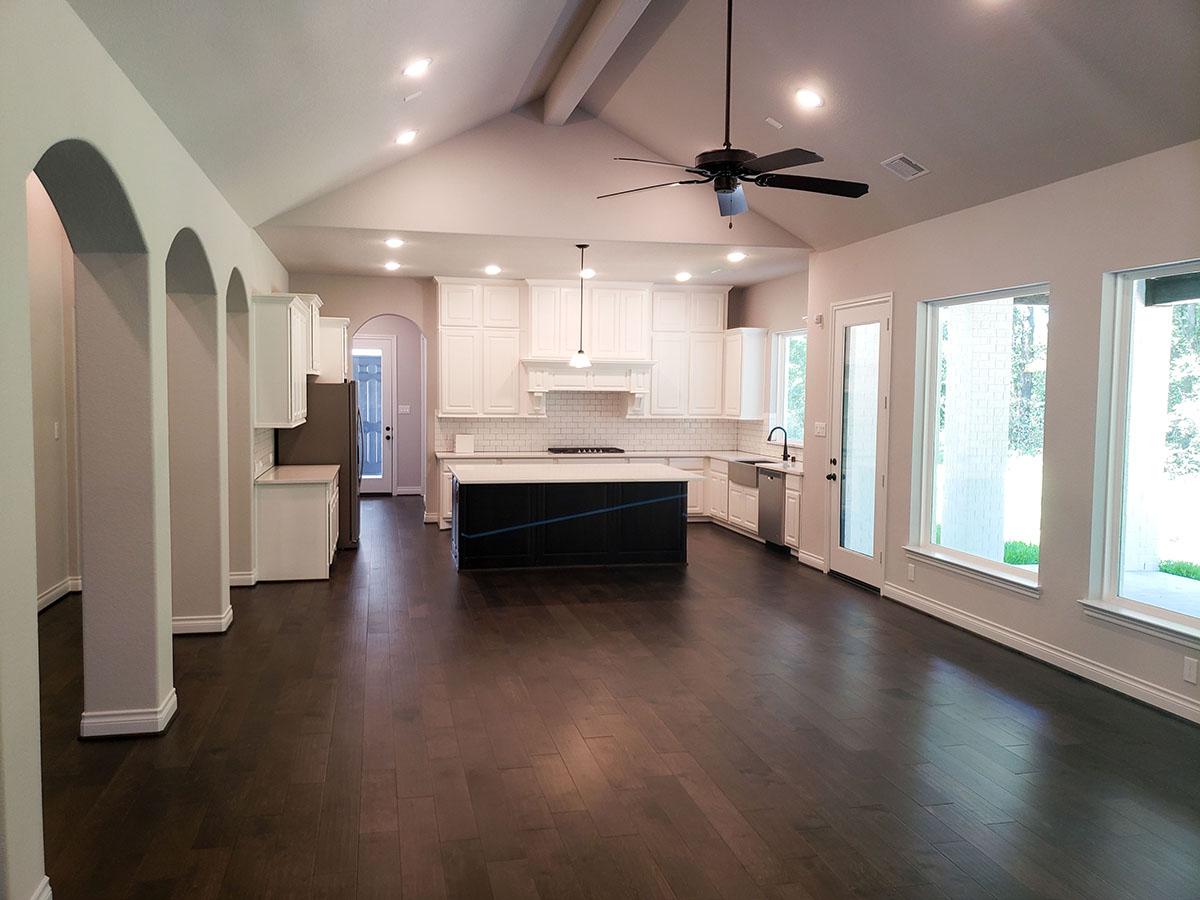

  • Stone and vertical siding adorn the facade of this exclusive, ranch house plan, which boasts a cathedral ceiling above the light and airy living space.

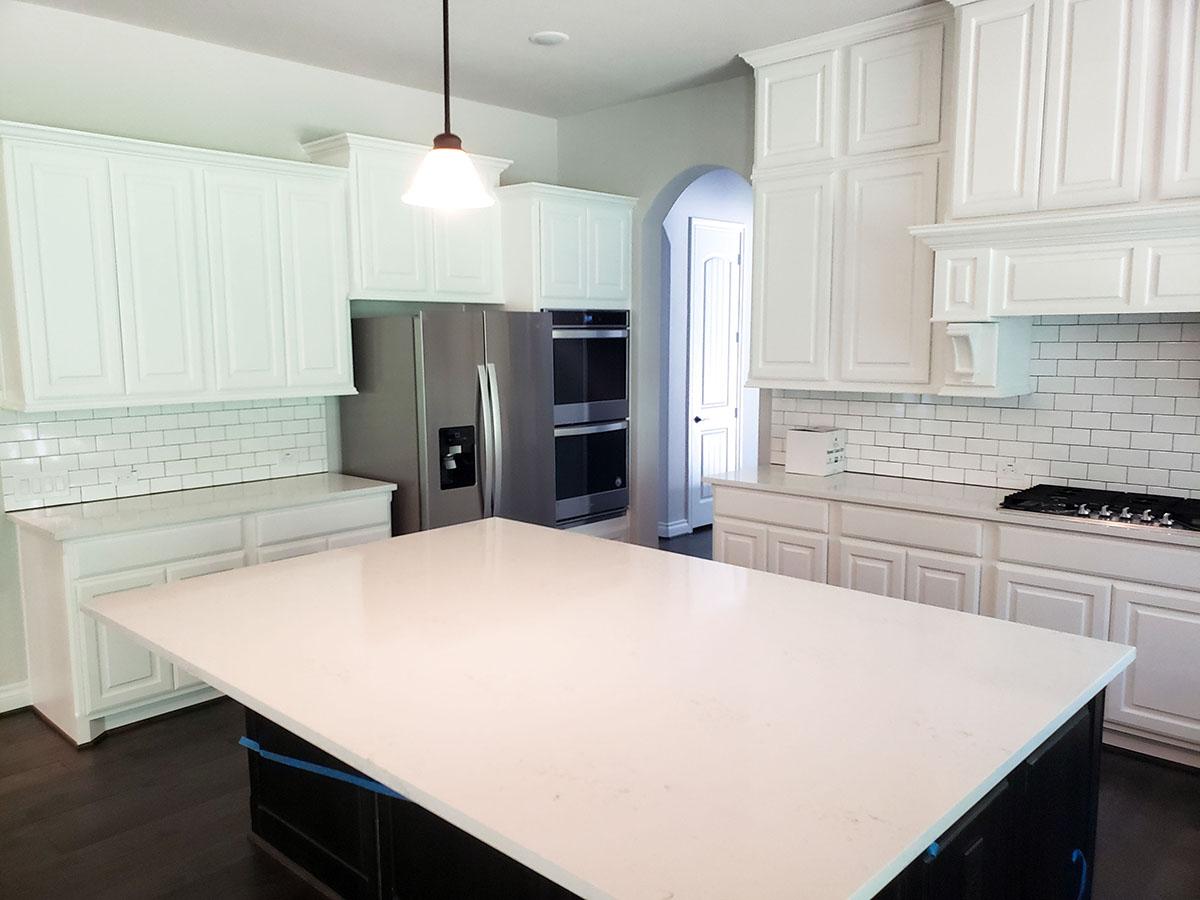

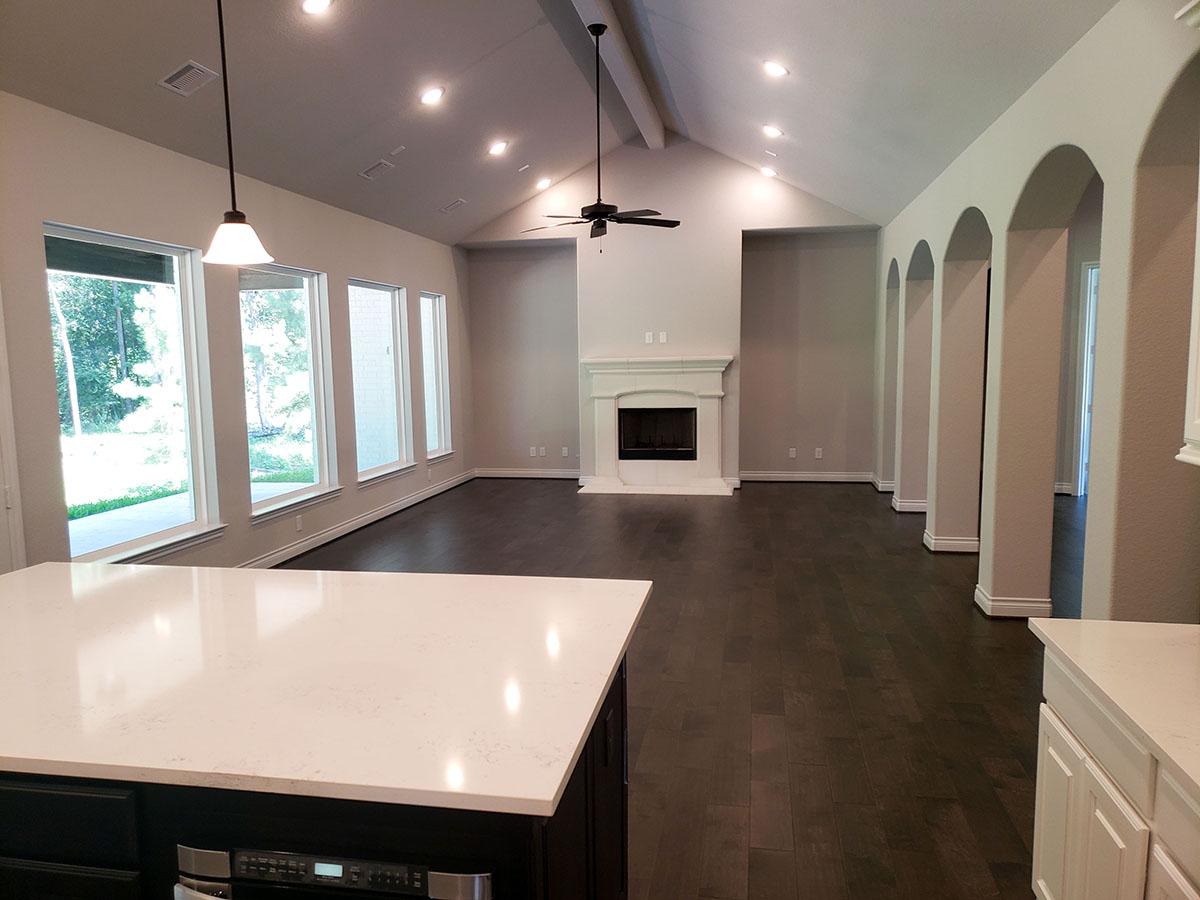

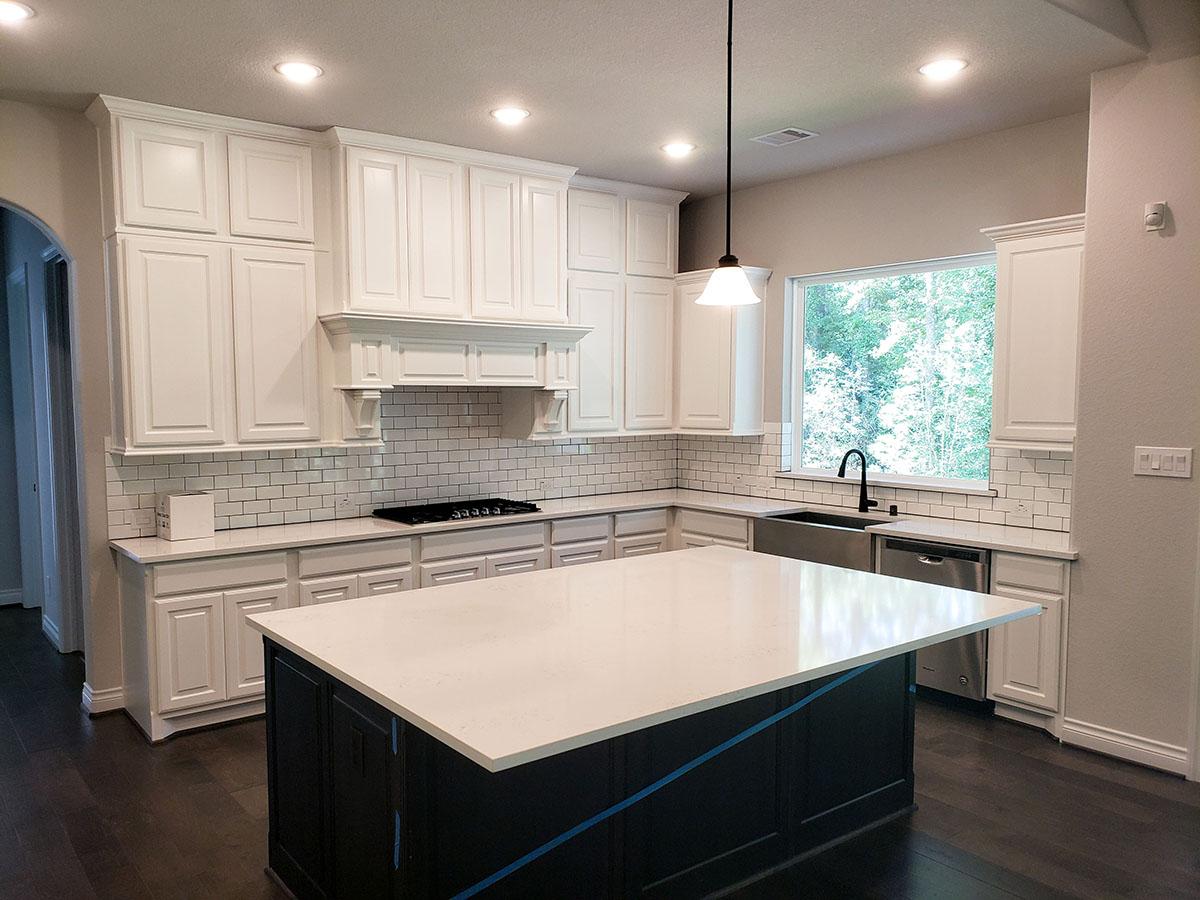

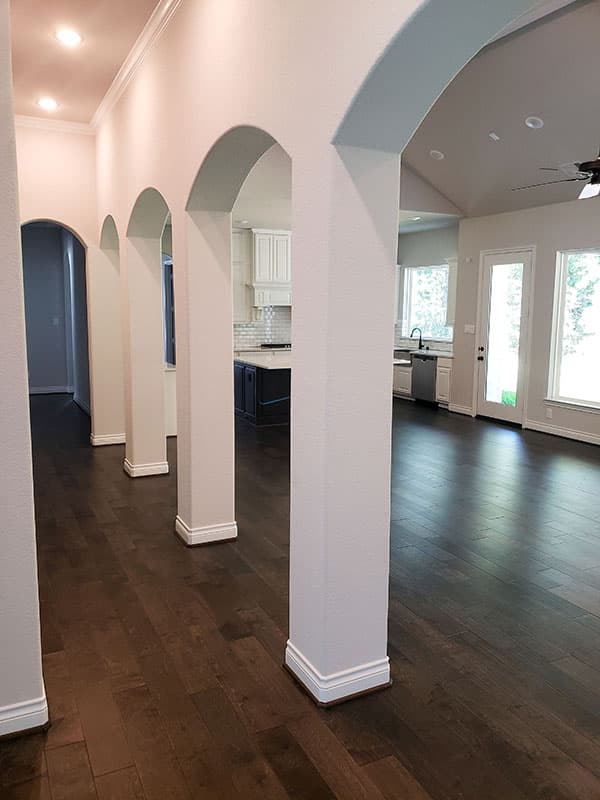

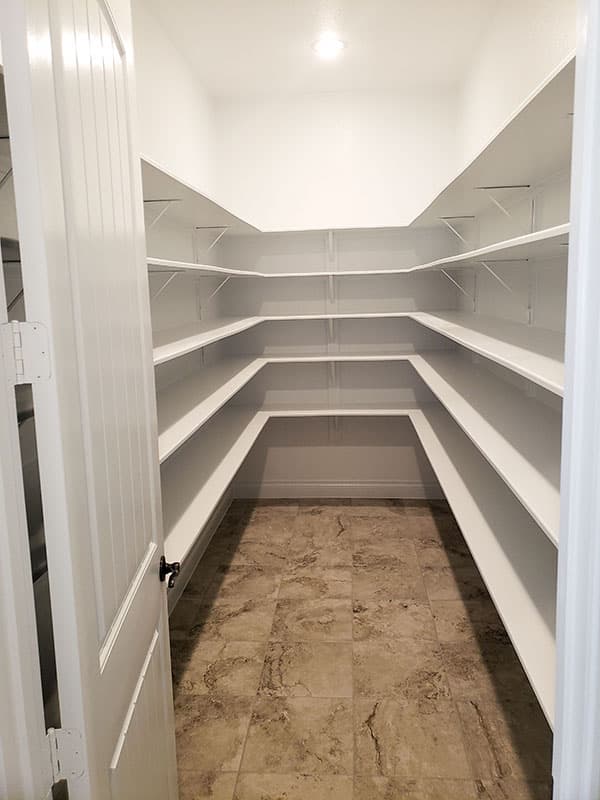

  • From the foyer, arched entryways lead into an open-concept living space, where a spacious kitchen anchors the left wall. A large island surrounded by cabinets maximizes workspace in the kitchen, and an oversized pantry offers space to store larger appliances.

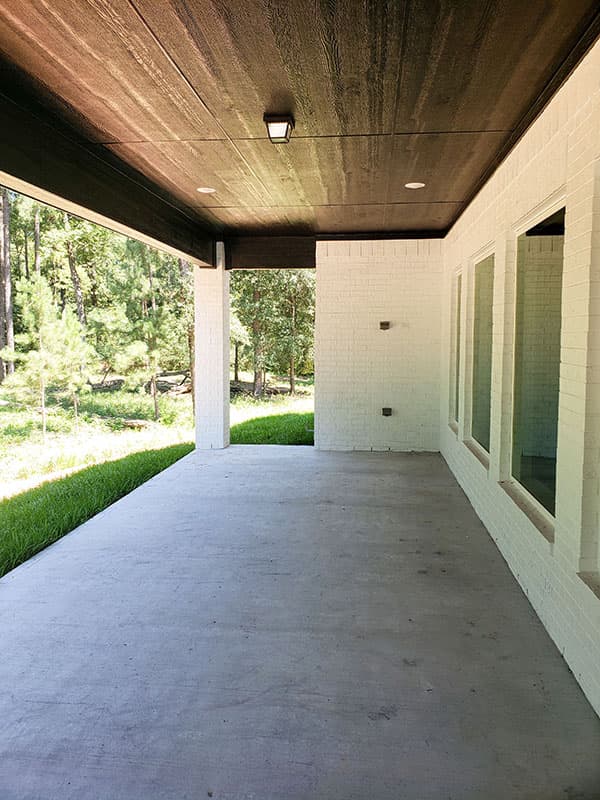

  • The back, covered patio provides another area to gather with friends and family when grilling or dining outdoors.

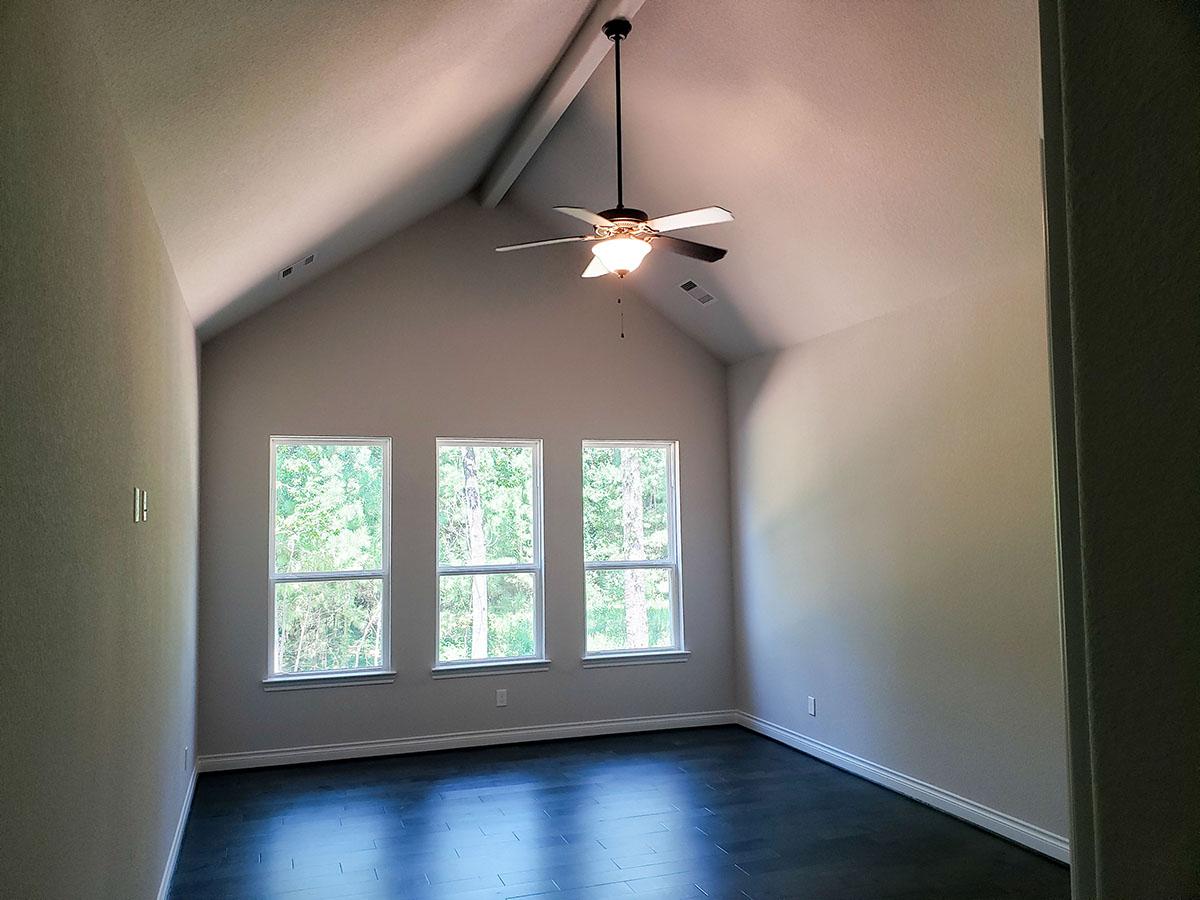

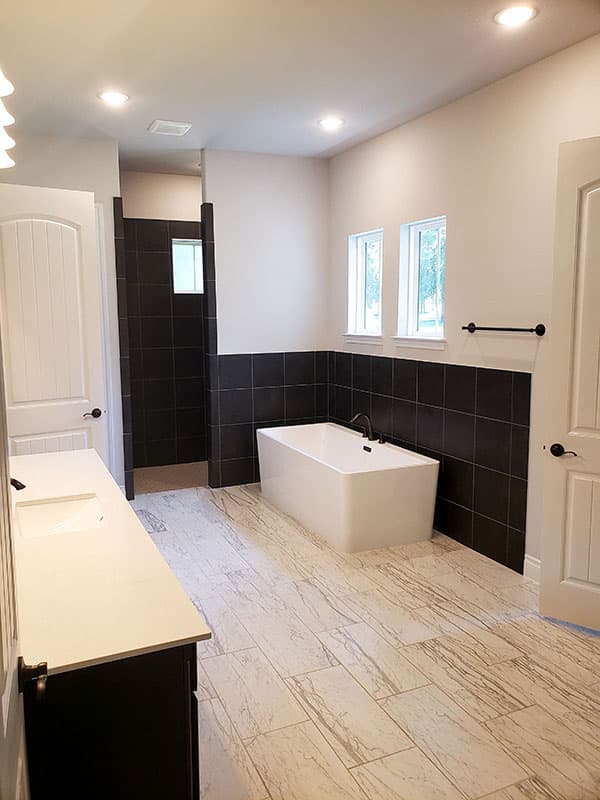

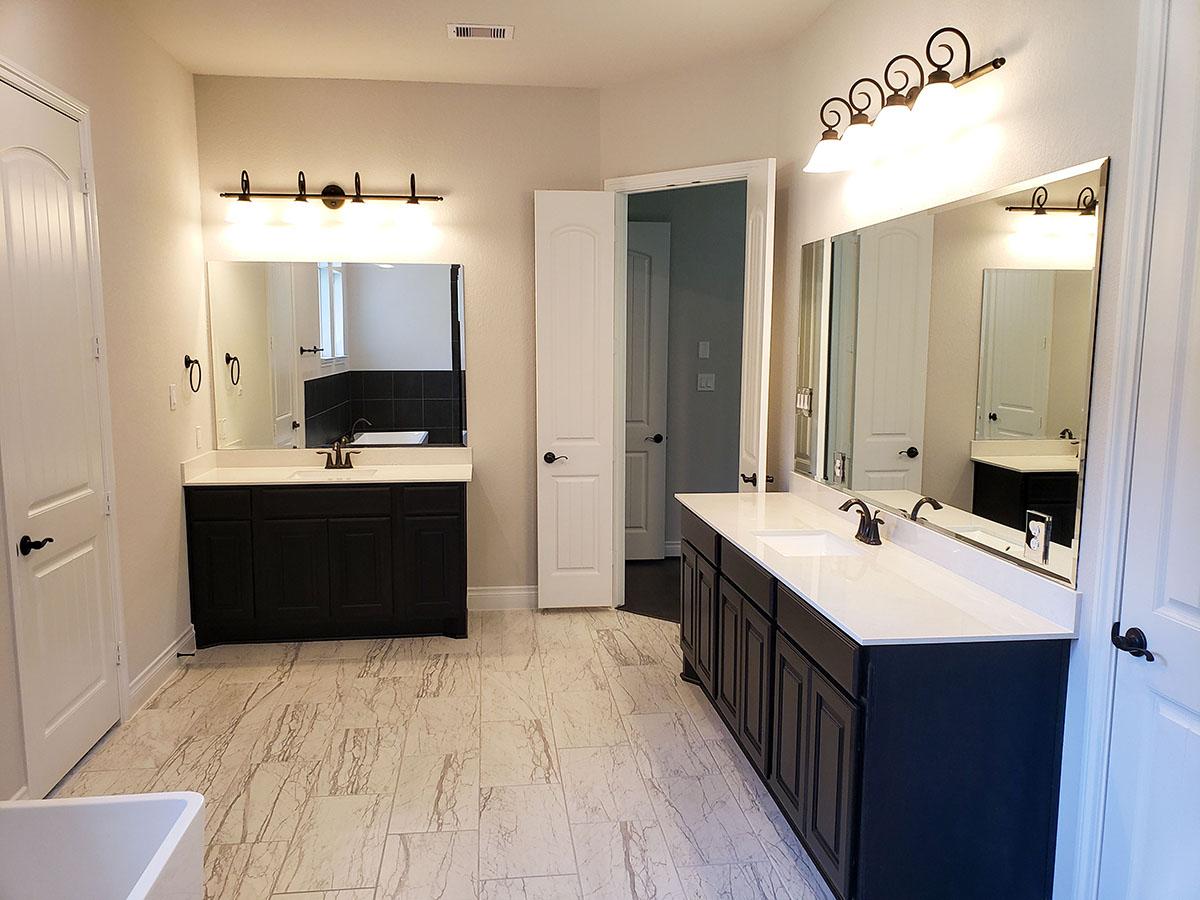

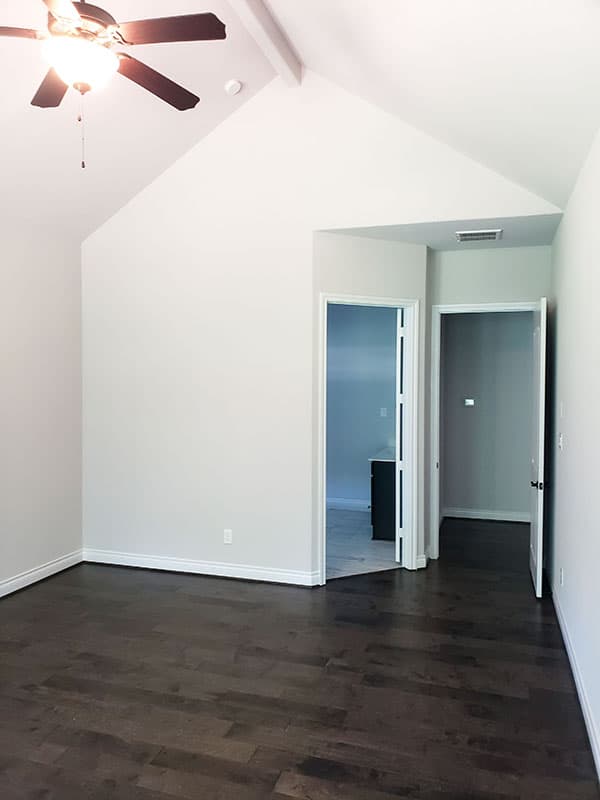

  • A cathedral ceiling adds an elegant touch to the master bedroom, which includes a spa-like en suite with dual vanities and closets. A study neighbors the master and provides a quiet place to rest/read/work.
  • A mudroom just inside from the 3-car garage helps to organize your shoes and outdoor gear, while down the hall, discover two secondary bedrooms, each with their own full bath.
What's Included

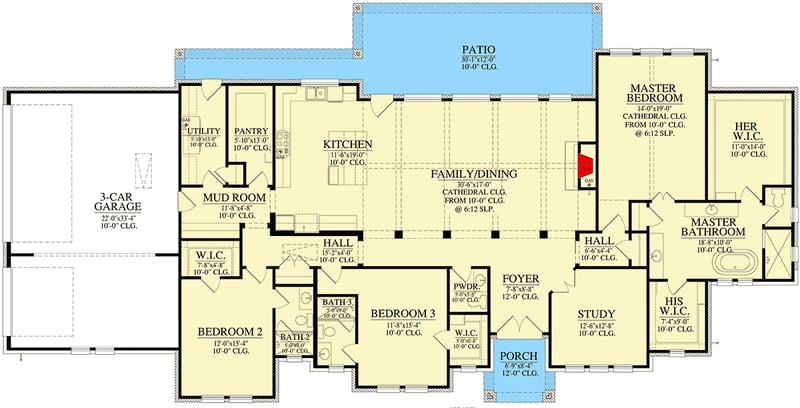

  • Detailed Floorplans with notes (door and window sizes, plumbing and cabinet locations.
  • Electrical plan with notes

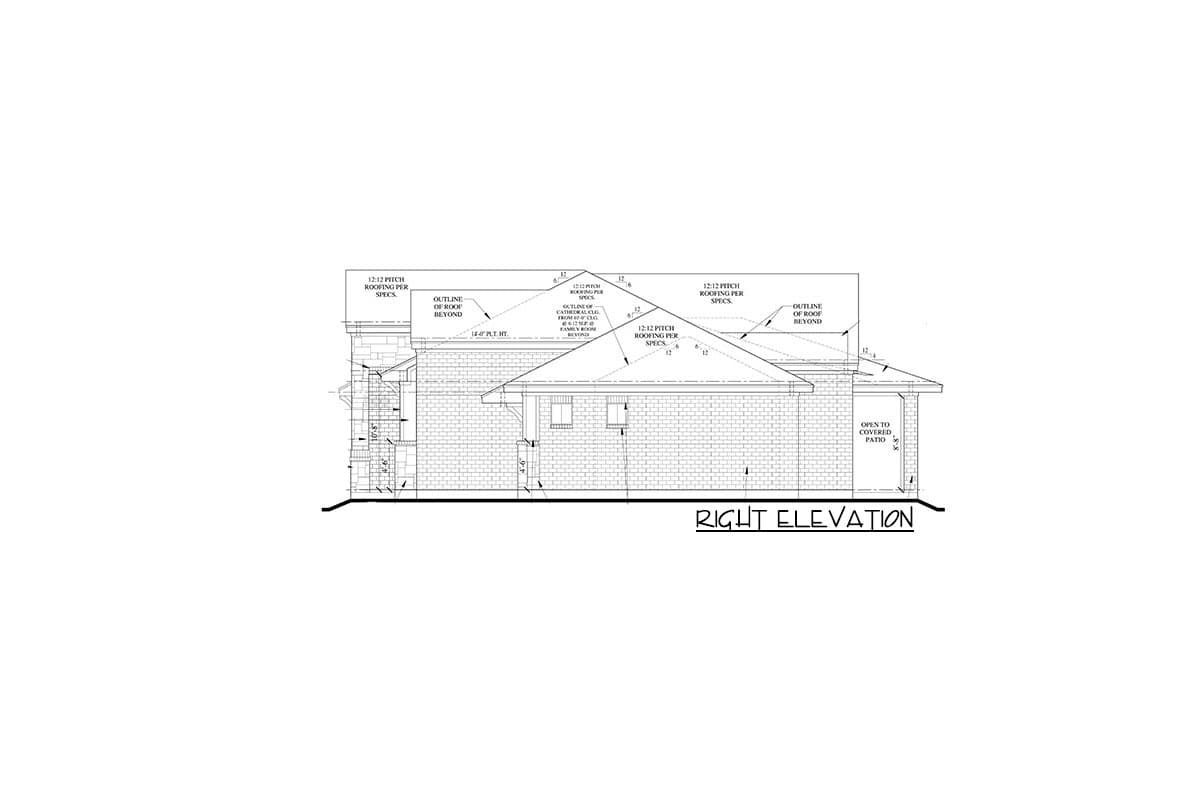

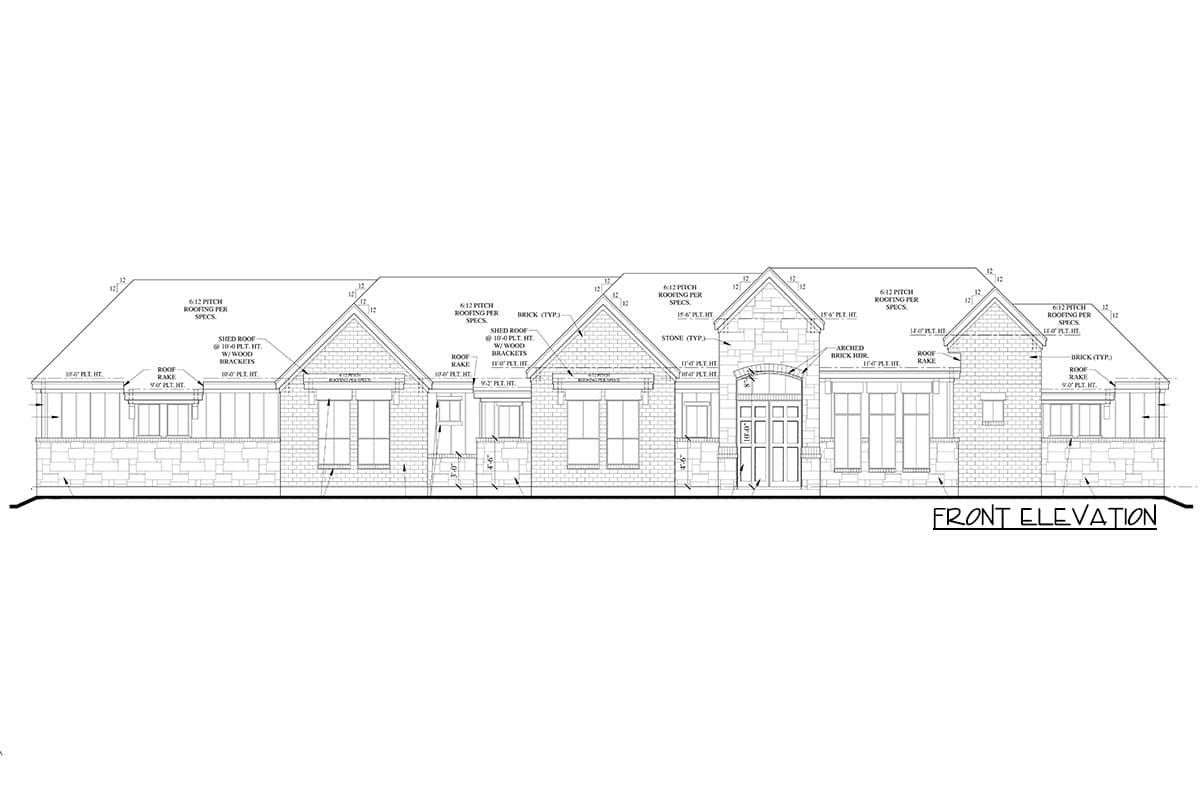

  • Exterior Elevations
  • Roof plan with pitches, notes and direction
  • Foundation outline that locates plumbing fixtures
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Exclusive Ranch House Plan with Cathedral Ceiling

  • 3,006

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

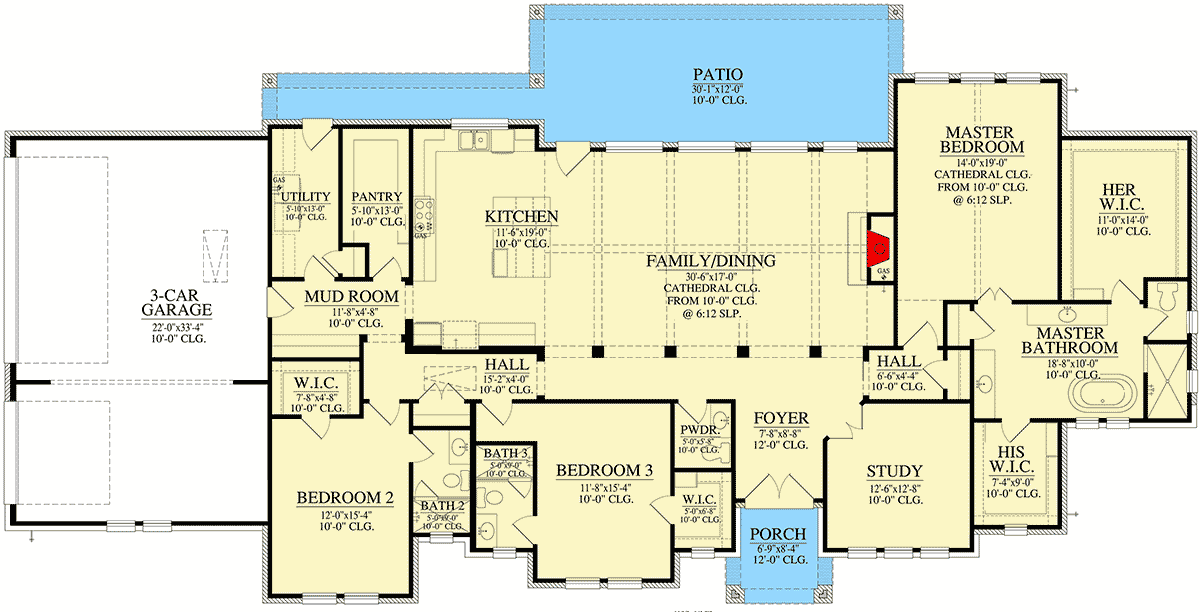

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 3,006 sq. ft.
  • 1st Floor: 3,006 sq. ft.

Dimensions

  • Width: 103' 2"
  • Depth: 51' 4"
  • Max ridge height: 20' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 801 sq. ft.
  • Count: 3 Cars

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Stick
