Exclusive Shingled House Plan with 2-Story Great Room

Plan 654009KNA

  • 3,977

    Heated s.f.

  • 4-5

    Beds

  • 4 - 6

    Baths

  • 2

    Stories

  • 2

    Cars

  • This exclusive, shingled house plan boasts an abundance of exterior character, and a matching interior with tall ceilings over the great room creating a light and airy environment.
  • Step inside from the covered porch to find a home office, or study, to the left of the foyer, across from the formal dining room. A corner fireplace in the great room lends a sense of warmth, and two sets of French doors invite you to enjoy the out-of-doors on the back patio.
  • The kitchen opens to a keeping room, or breakfast nook, which shares a double-sided fireplace with the adjacent guest suite.
  • Discover two garage stalls protruding from the front of the home, with built-in lockers and seating in the spacious mudroom just inside.
  • The largest of the second-level bedrooms is reserved for the homeowner, and includes enough space for a sitting area, a 5-fixture bath with an oversized shower, and dual closets.
  • A loft at the top of the stairs can serve as a cozy office or sitting nook, while three additional bedrooms can be found down the hall; two share a Jack-and-Jill bath, and one includes a full bath.

  • Cover Sheet
  • Foundation Plan
  • Floor plans
  • Exterior elevations
  • Details
  • Building sections
  • Roof plans drawn at 1/4" scale
  • Suggested electrical layout
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

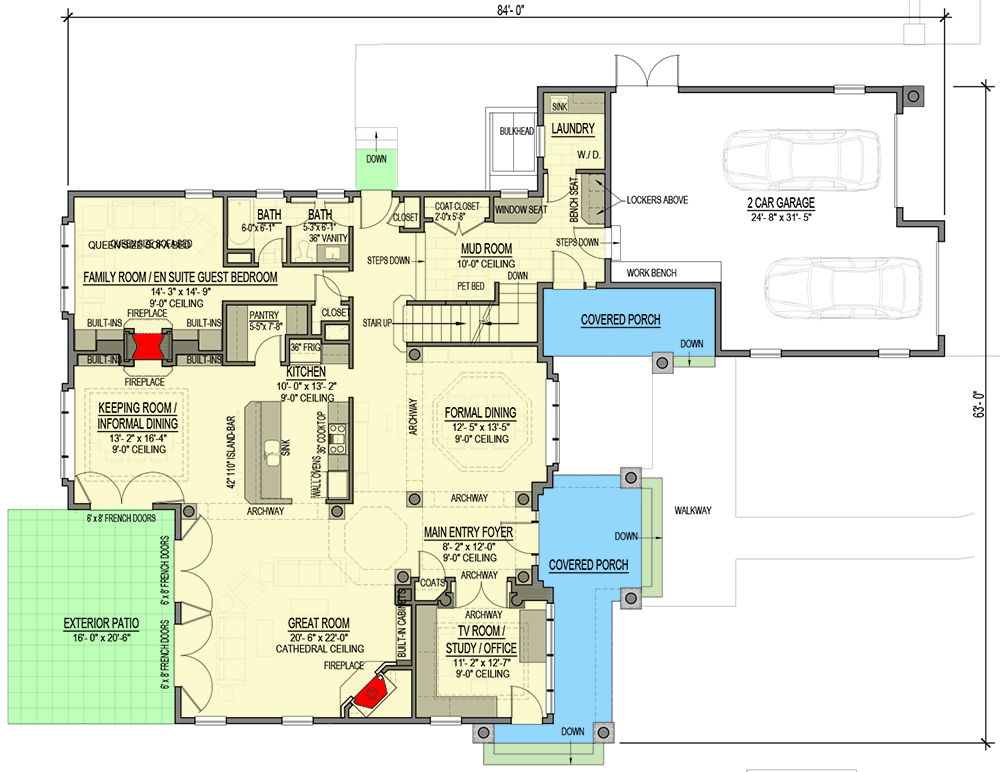

Exclusive Shingled House Plan with 2-Story Great Room - 654009KNA floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

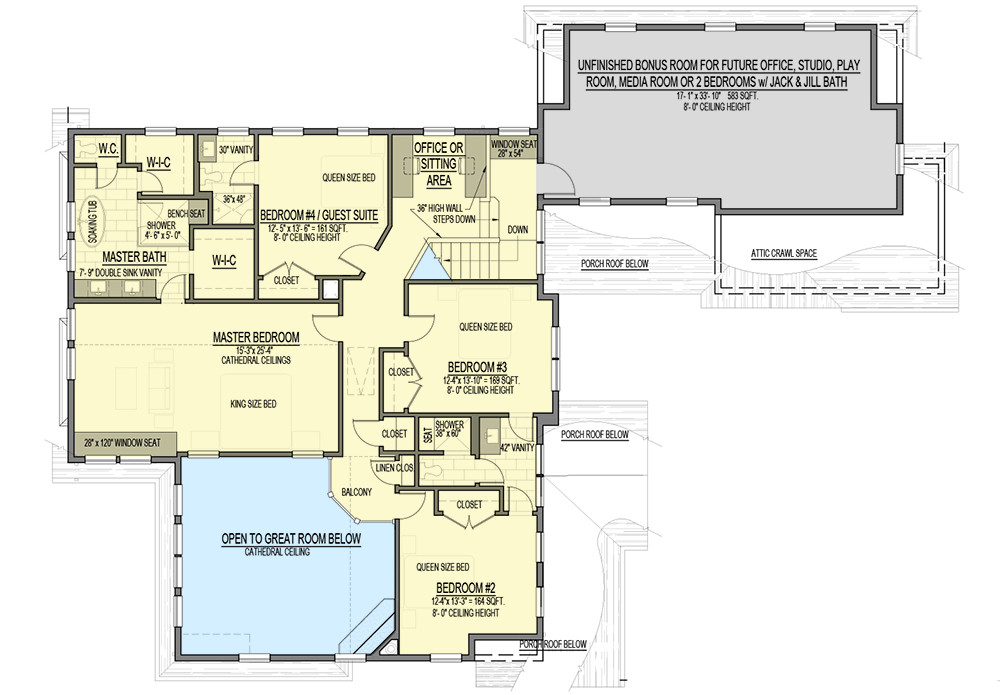

Exclusive Shingled House Plan with 2-Story Great Room - 654009KNA floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,977 sq. ft.
  • 1st Floor: 2,271 sq. ft.
  • 2nd Floor: 1,706 sq. ft.
  • Porch, Combined: 320 sq. ft.
  • Bonus: 583 sq. ft.
  • Optional Lower Level: 2,271 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4, 5, or 6

Foundation Type

  • Standard Foundations: Basement, Daylight
  • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 63' 0"
  • Depth: 84' 0"
  • Max ridge height: 33' 0"

Garage

  • Type: Attached
  • Area: 715 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss

Architectural Style

Special features

Plan Collections

Exclusive Shingled House Plan with 2-Story Great Room

  • 3,977

    Heated s.f.

  • 4-5

    Beds

  • 4 - 6

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,977 sq. ft.
  • 1st Floor: 2,271 sq. ft.
  • 2nd Floor: 1,706 sq. ft.

Dimensions

  • Width: 63' 0"
  • Depth: 84' 0"
  • Max ridge height: 33' 0"

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4, 5, or 6

Garage

  • Type: Attached
  • Area: 715 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement, Daylight
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 8 on 12
