Exclusive Sleek Contemporary House Plan with 2 Master Suites

3,175 2-3 4 1 2
Pageloader

Exclusive Sleek Contemporary House Plan with 2 Master Suites

Plan 450003ESP

  • 3,175

    Heated s.f.

  • 2-3

    Beds

  • 4

    Baths

  • 1

    Stories

  • 2

    Cars

  • 12' ceiling heights make this spacious Contemporary house plan feel even larger.
  • The wide open floor plan is immediately visible upon entering the home, with views sweeping all the way back to the rear covered patio.
  • The sunken garage entry is just three steps down from the main living area.
  • Use the den as an extra bedroom with its attached bathroom and walk-in closet.
  • Two master bedrooms lie on opposite sides of the home allowing for great privacy.
  • Both have double doors out to the rear patio.

This plan has 14 pages as follows:

  1. General notes
  2. Foundation plan
  3. Foundation plan
  4. Floor plan
  5. Rear patio plan
  6. Roof framing plan
  7. Sections
  8. Foundation details
  9. Framing details
  10. Elevations

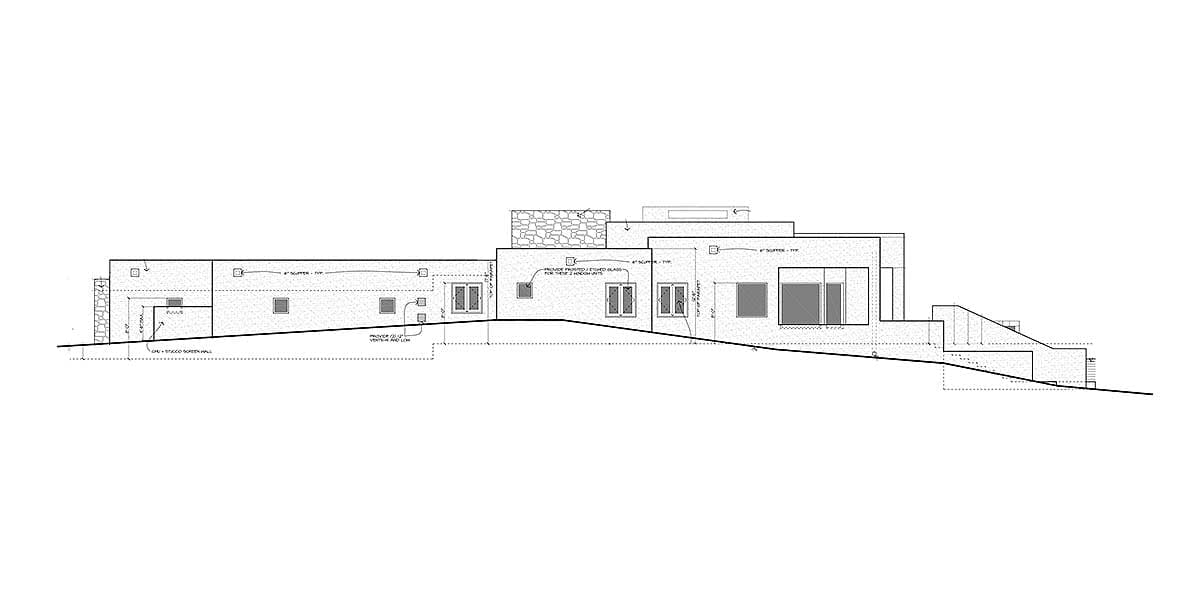

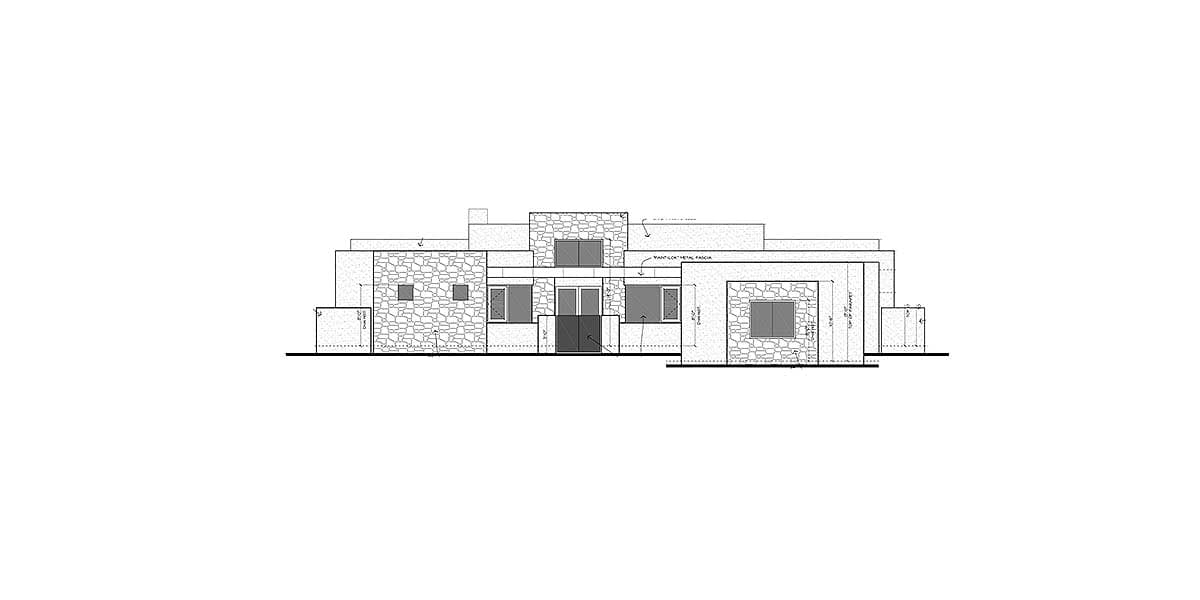

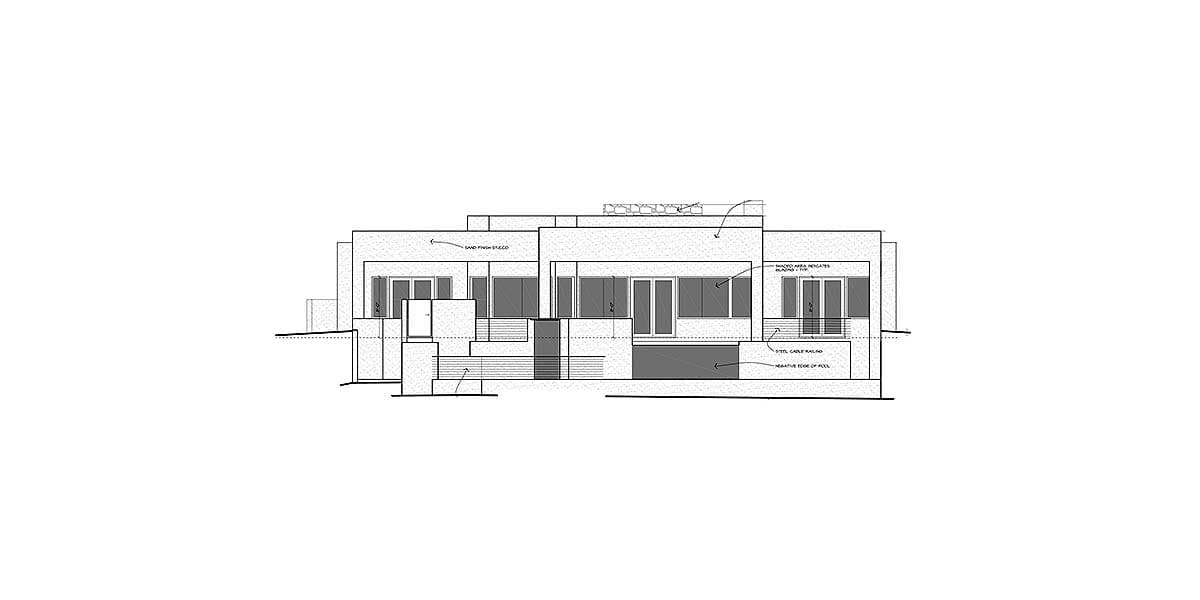

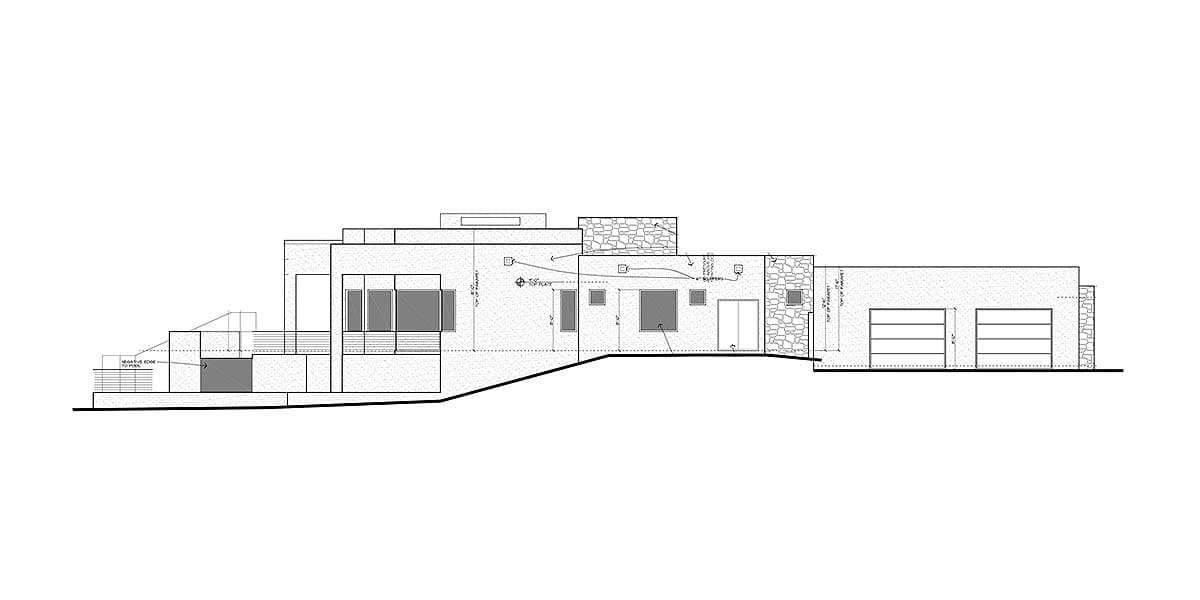

  11. Roof plan
  12. Electrical plan
  13. Electrical details
  14. Mechanical details (waste, vent and gas schematics; mechanical plan)

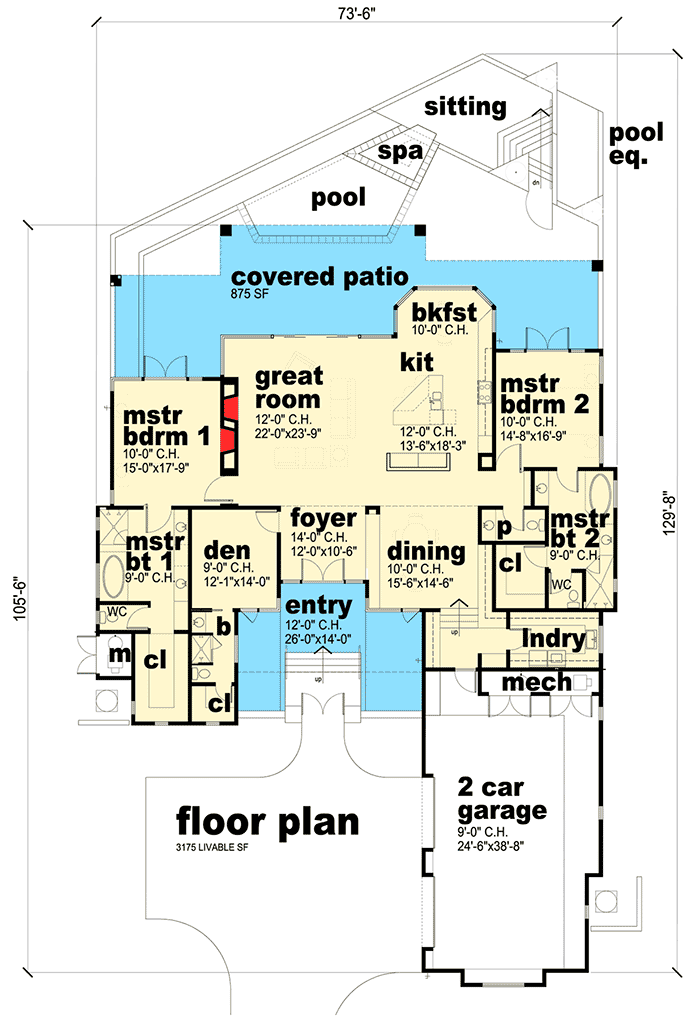

Floor Plan
