Plan 51797HZ

Exclusive

Exclusive Split-Bed Cottage House Plan with Shed Dormer

Heated S.F.
1,728
Beds
3 - 4
Baths
2 - 3
Stories
1
Cars
2

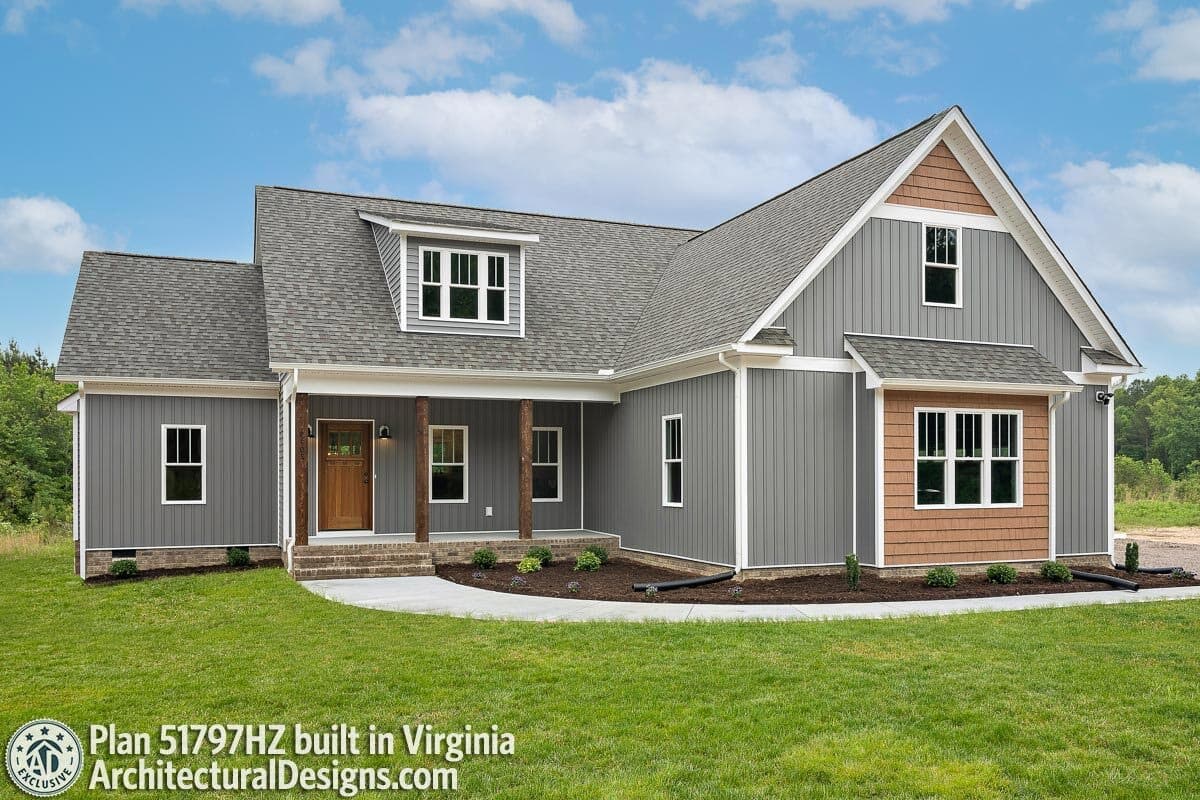

Build Gallery
See and hear from existing customers with real photos, videos, and reviews.

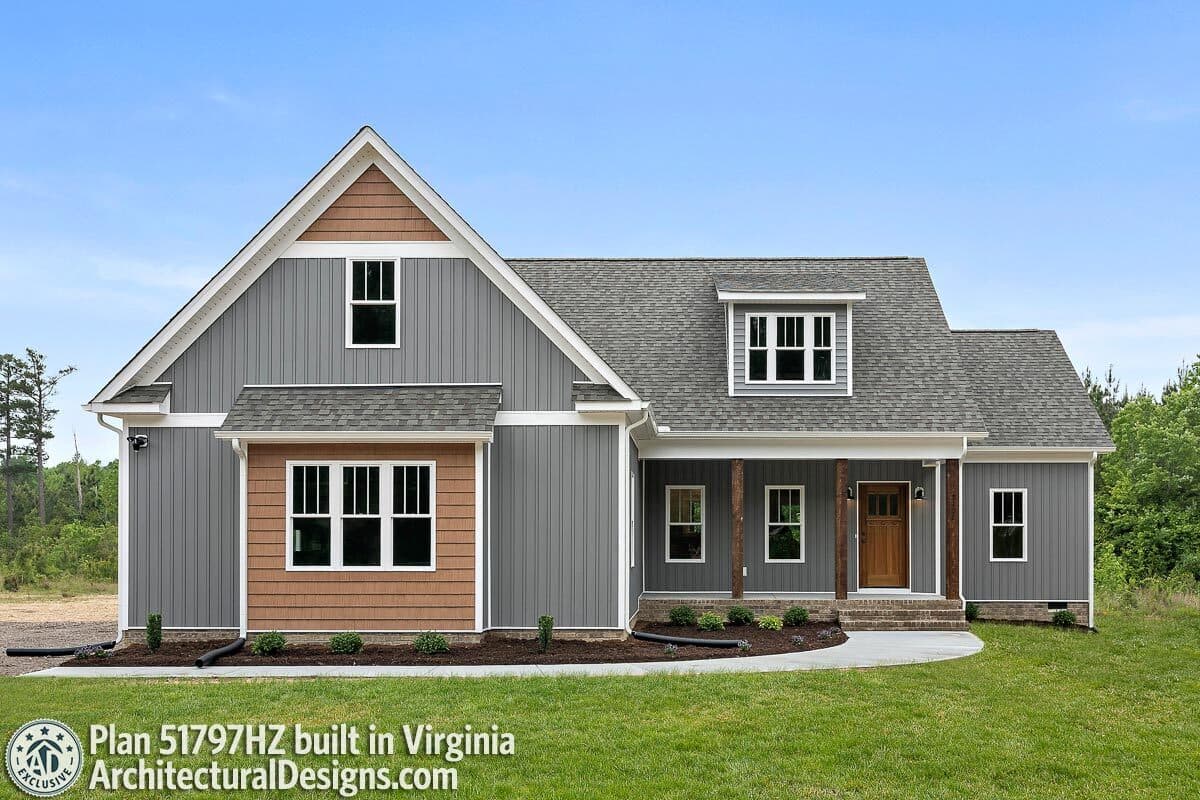

build gallery item - Exclusive House Plan 51797HZ Comes to Life in Virginia, Again!

Exclusive House Plan 51797HZ Comes to Life in Virginia, Again!

34

Photos

build gallery item - Exclusive House Plan 51797HZ Comes to Life in Virginia

Exclusive House Plan 51797HZ Comes to Life in Virginia

26

Photos

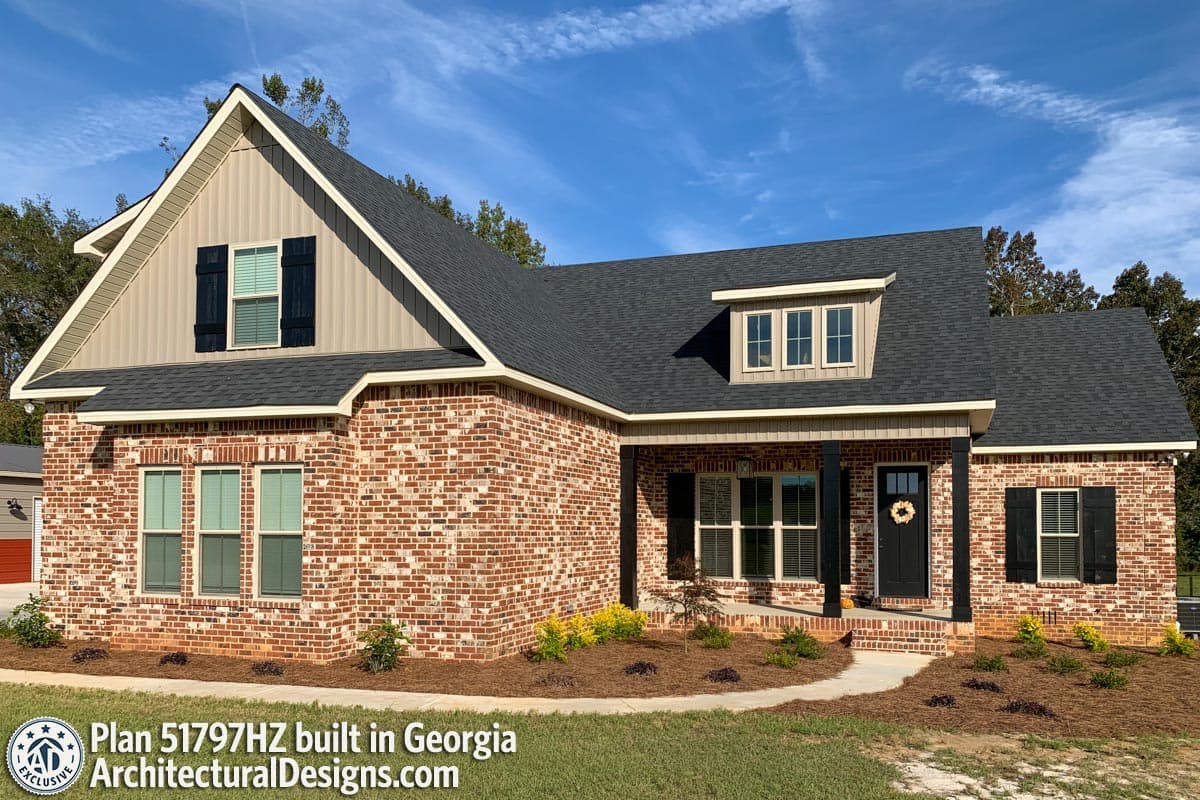

build gallery item - Exclusive House Plan 51797HZ Comes to Life in Georgia

Exclusive House Plan 51797HZ Comes to Life in Georgia

13

Photos

build gallery item - Exclusive House Plan 51797HZ Comes to Life in Texas

Exclusive House Plan 51797HZ Comes to Life in Texas

36

Photos

Client Photos

Floor Plan

Plan 51797HZ

Main Level
Main Level
Optionally Finished Bonus
Optionally Finished Bonus

Plan 51797HZ

M-F 9am-5pm EST |

1-203-761-8500

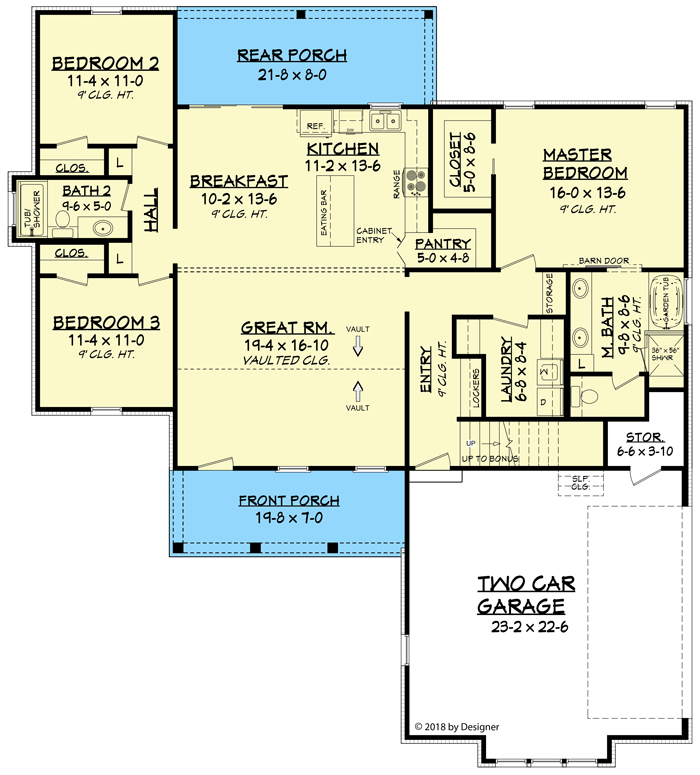

Main Level

Plan 51797HZ: Exclusive Split-Bed Cottage House Plan with Shed Dormer - Floor Plan - Main Level - Cottage, Country, Farmhouse, New American, Traditional

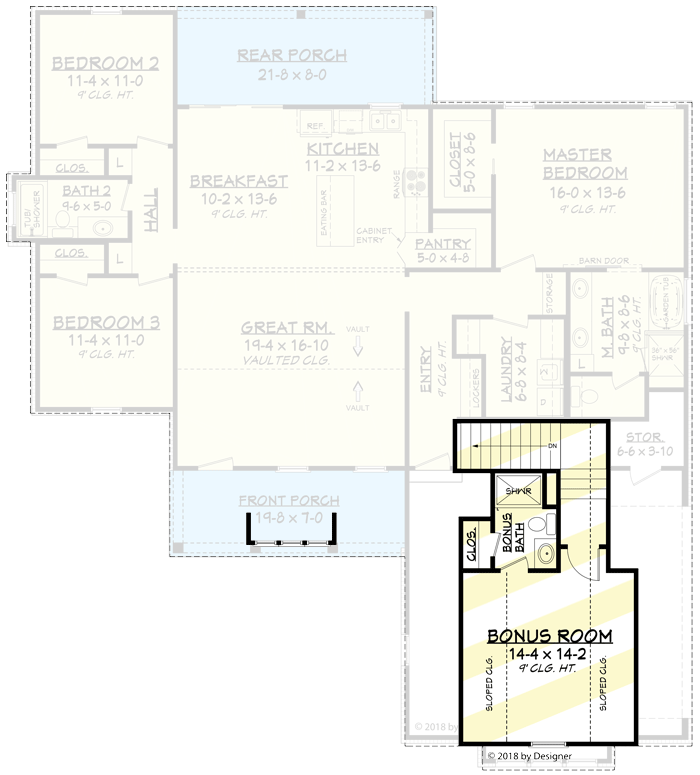

Optionally Finished Bonus

Plan 51797HZ: Exclusive Split-Bed Cottage House Plan with Shed Dormer - Floor Plan - Optionally Finished Bonus - Cottage, Country, Farmhouse, New American, Traditional

Plan Details

  • This exclusive, cottage house plan offers an optional bonus room with a full bathroom above the garage. Views to the front or back can be enjoyed from one of the two covered porches.
  • An open-concept floor plan greets you upon entering, and the vaulted ceiling in the great room provides a feeling of grandeur. The kitchen island includes an eating bar, and a sizable walk-in pantry helps with organization in the kitchen.
  • The master bedroom is conveniently located across from the laundry room for ease of use, and features a barn door which leads to the master bathroom, and a pocket door gives way to a walk-in closet. The master bathroom includes two sinks, a tub, shower, and toilet room.
  • Two identical bedrooms can be found to the left of the home, while a full bathroom sits between them.
  • Built-in lockers are located near the garage entrance, serving as a great transition space.
  • Related Plans: Get a smaller version with a front-load garage with house plan 51763HZ (1,624 sq. ft.). And get an extra bedroom and an alternate exterior with house plan 51818HZ (1,850 sq. ft.).

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation Plan and Details
  • Detailed floor plans (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Front and rear exterior views with notes and garage section

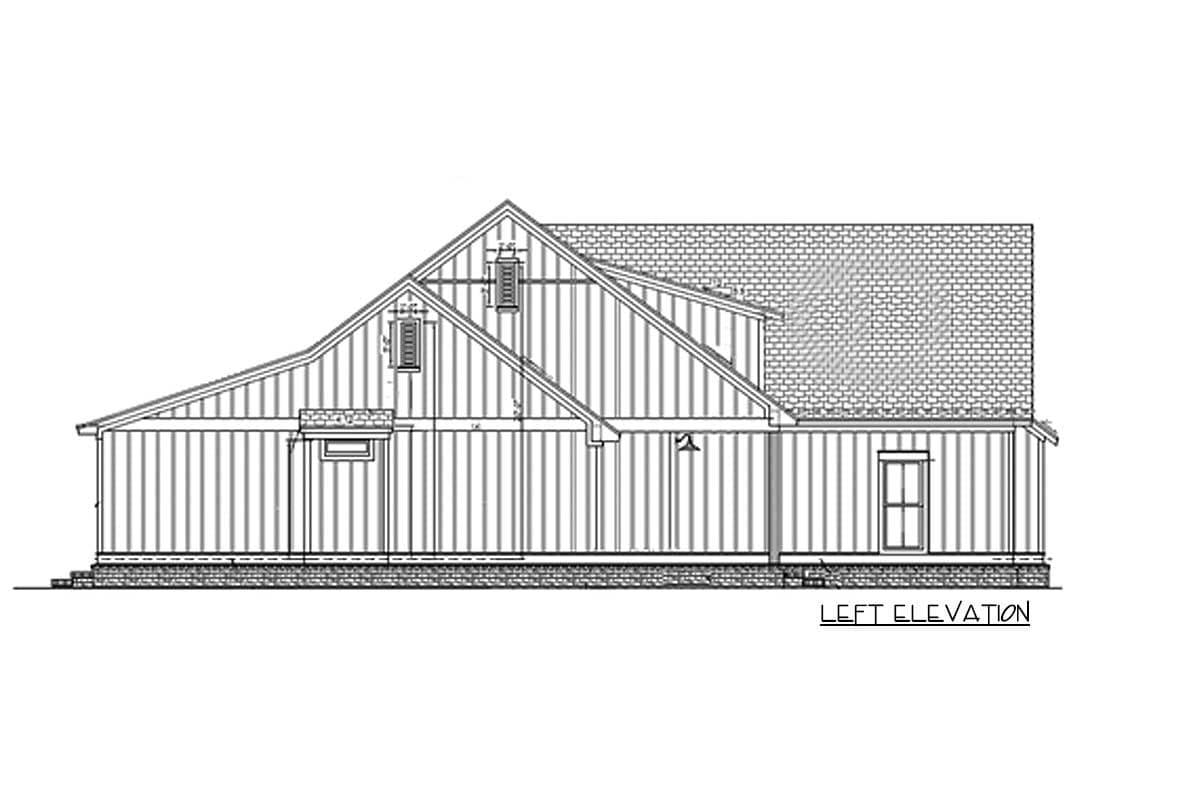

  • Right and left exterior views with notes and wall sections
  • Cross Section & kitchen cabinet views
  • Roof plan & span charts
  • Electrical plans & notes/ legend
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,728 sq. ft.

1st Floor

1,728 sq. ft.

Bonus

317 sq. ft.

Porch, Front

138 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 4"

Depth

63' 10"

Max Ridge Height

24' 4"

Garage

Type

Attached

Area

570 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

New American

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Plan Collections

Exclusive

Photo Gallery

USDA Approved

Square Footage Breakdown

Total Heated Area

1,728 sq. ft.

1st Floor

1,728 sq. ft.

Bonus

317 sq. ft.

Porch, Front

138 sq. ft.

Porch, Rear

173 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

57' 4"

Depth

63' 10"

Max Ridge Height

24' 4"

Garage

Type

Attached

Area

570 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Secondary Pitch

4 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Farmhouse

New American

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Plan Collections

Exclusive

Photo Gallery

USDA Approved
