Exclusive Split Bedroom New American House Plan

Plan 915048CHP

  • 2,736

    Heated s.f.

  • 3

    Beds

  • 3.5

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Multiple gables with alternating brick and board and batten siding and a standing seam metal roof give this exclusive New American house plan great curb appeal. Inside, the home features a light and airy open-concept floor plan in the center of the design.
  • From the entry, a coat closet is located across the foyer from a quiet study with a vaulted ceiling.
  • Large windows in the great room give you views to the back and a door opposite the front doors gets you outside to the 14'6"-deep back porch. The kitchen includes a large island with an eating bar and a sizable pantry, and a nearby dining nook is surrounded by windows that overlook the back porch.
  • French doors line the rear wall of the vaulted master suite, and lead to a private porch. The spacious en suite boasts a standalone tub, two sinks, and a roomy closet.
  • Two additional bedroom suites reside on the opposite side of the home, separated by a staircase that leads to a bonus room above the 2-car garage.
  • Related Plan: Get an alternate version with house plan 915042CHP.

Plan includes the following elements:

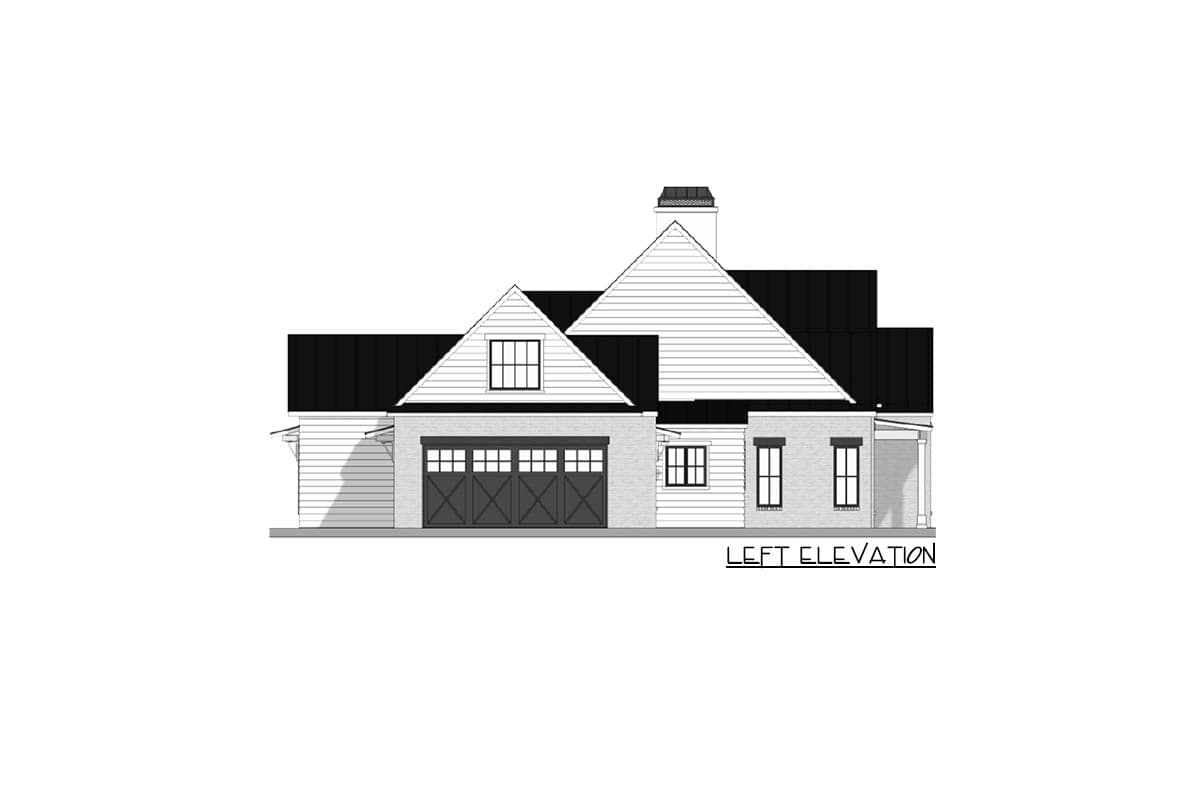

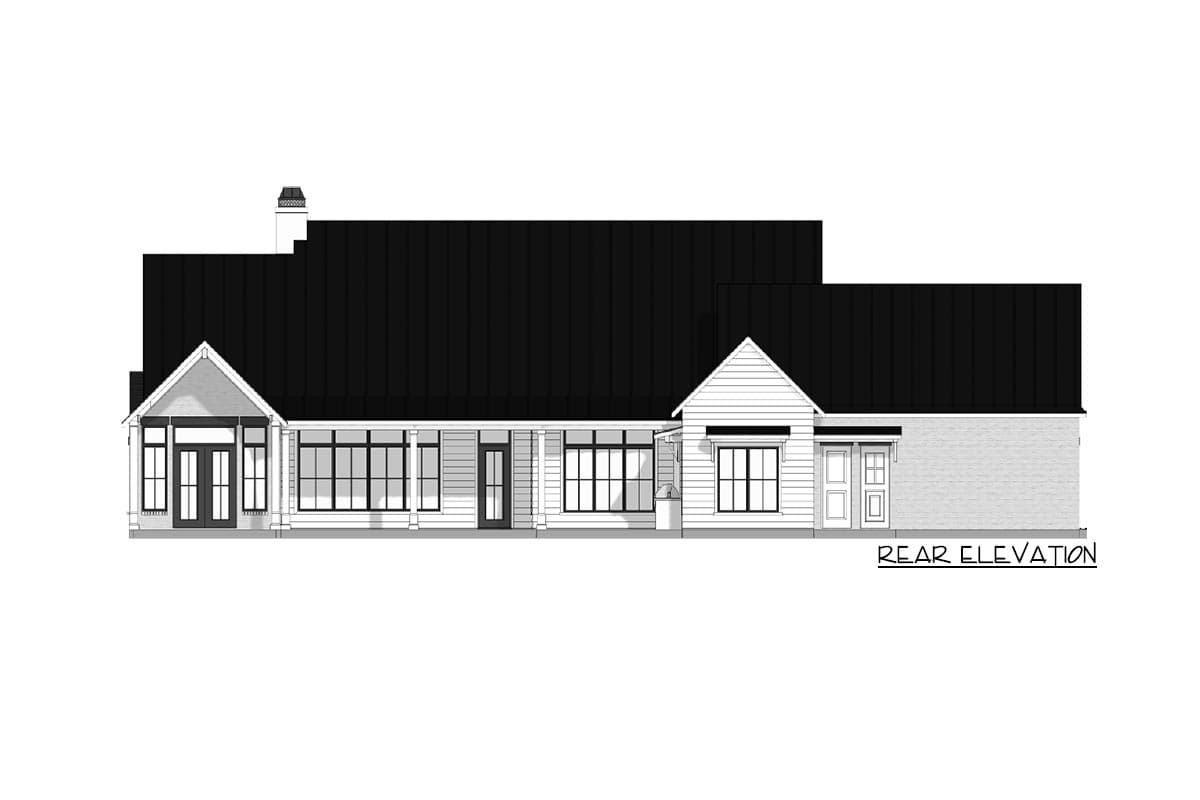

  • All four elevations
  • Detailed floor plans
  • Roof plans
  • Foundation plans
  • Electrical schematics
  • Cross section(s)
  • Rafter plan and ceiling joist plans
  • Interior elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

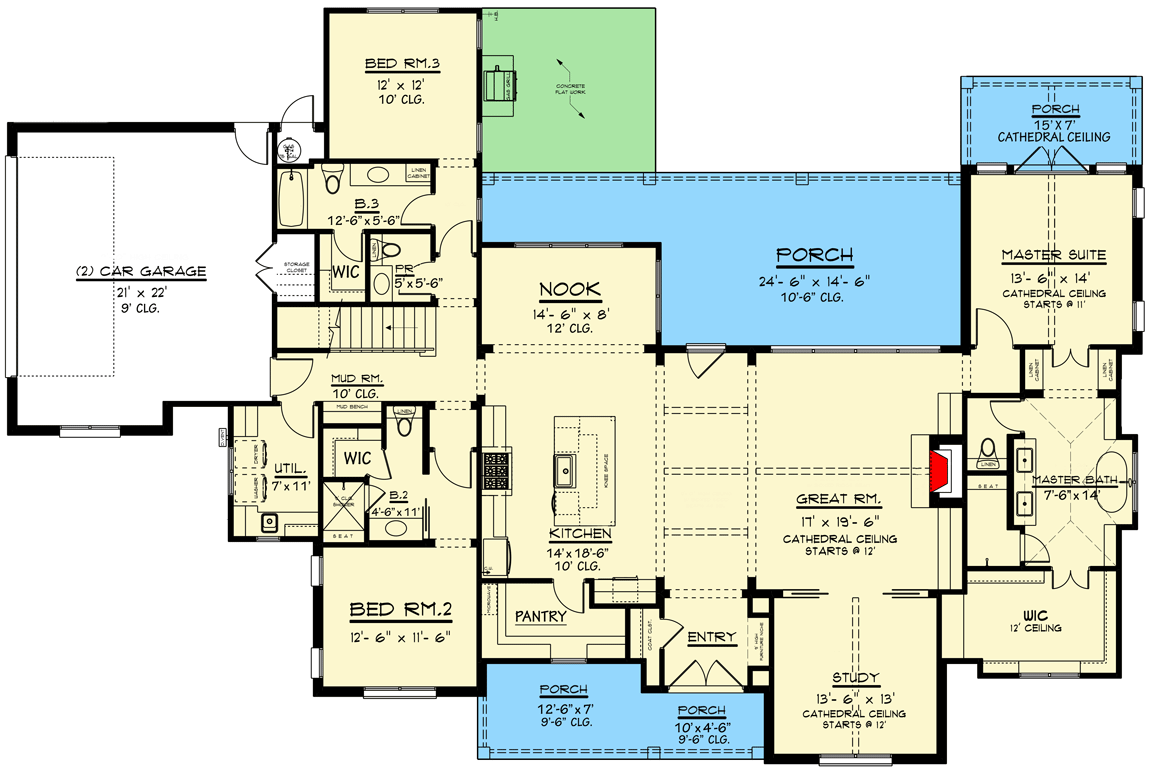

Exclusive Split Bedroom New American House Plan - 915048CHP floor plan - Main Level

Optionally Finished Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

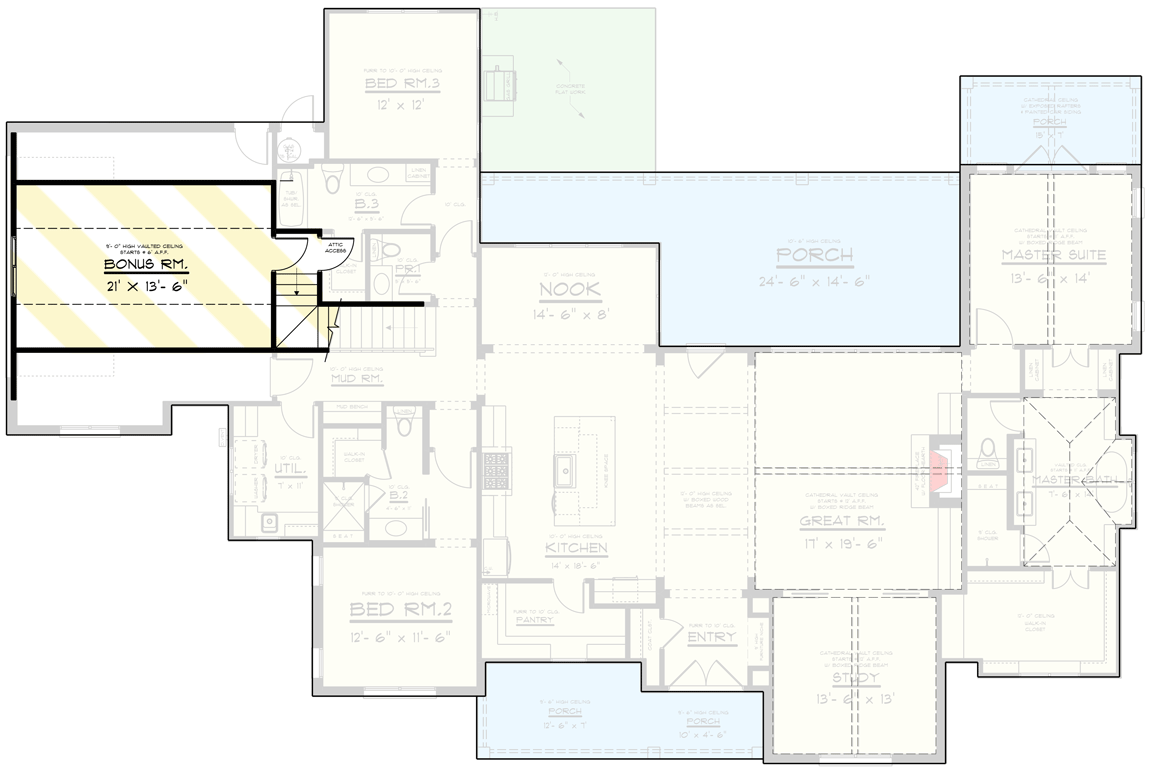

Exclusive Split Bedroom New American House Plan - 915048CHP floor plan - Optionally Finished Bonus Room
