Plan 290053IY
Expandable Craftsman House Plan with Vaulted Great Room
Heated S.F.
4,532
Beds
3-7
Baths
3.5+ - 5.5+
Stories
2
Cars
4
What's Included
Floor Plan
PRINT PLANS

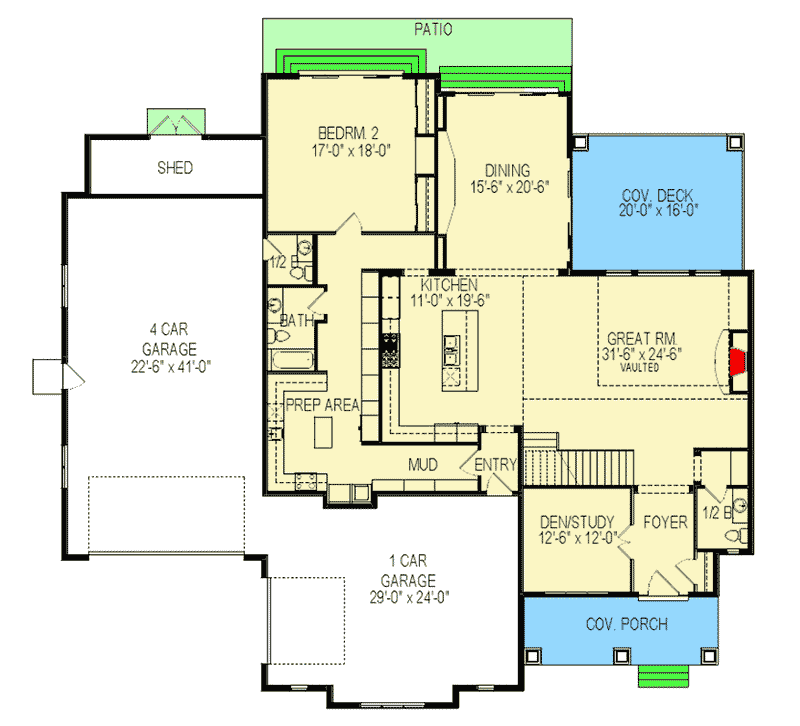

Main Level
Reverse Floor Plan
Expandable Craftsman House Plan with Vaulted Great Room - 290053IY floor plan - Main Level

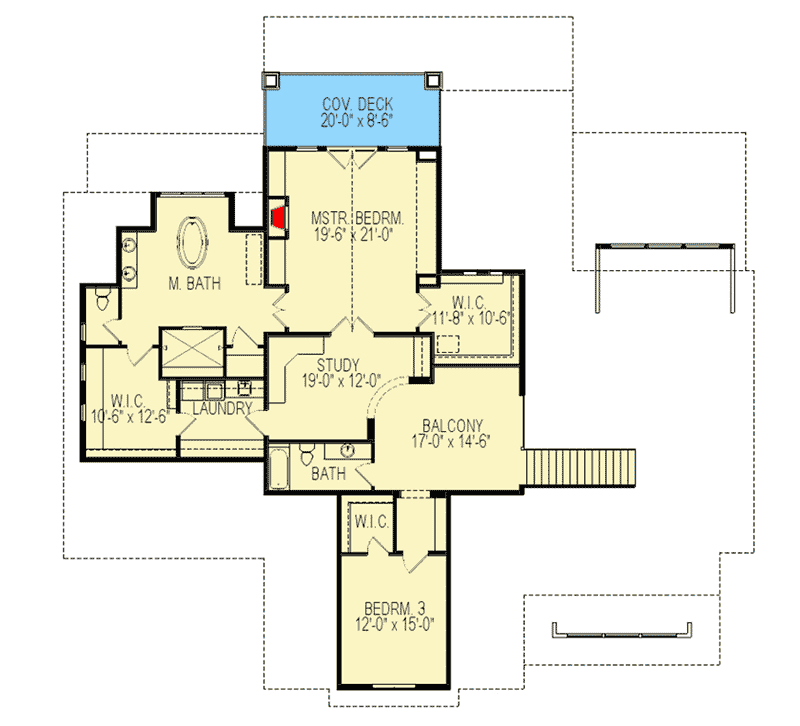

2nd Floor
Reverse Floor Plan
Expandable Craftsman House Plan with Vaulted Great Room - 290053IY floor plan - 2nd Floor

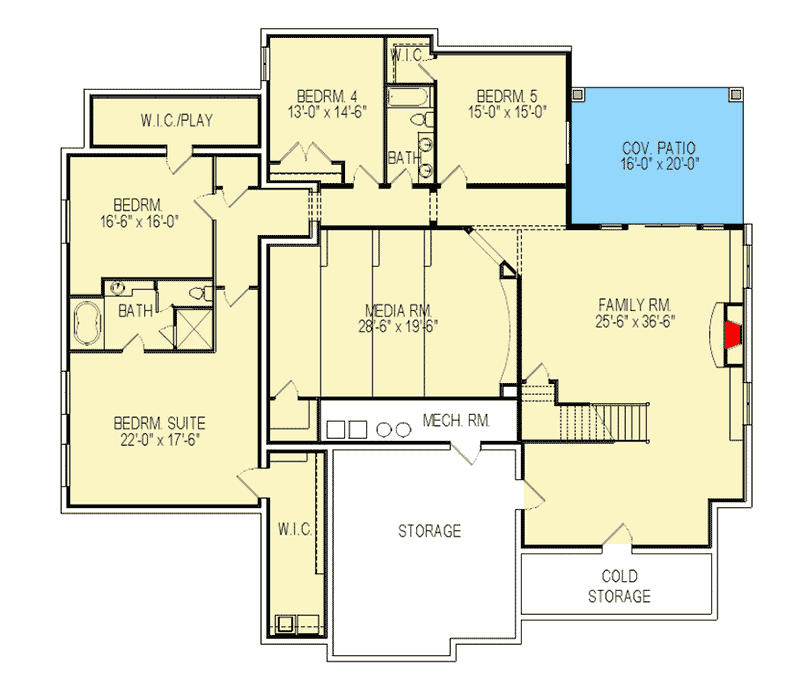

Optional Lower Level
Reverse Floor Plan
Expandable Craftsman House Plan with Vaulted Great Room - 290053IY floor plan - Optional Lower Level
Plan Details
  • Get up to seven bedrooms by finishing the optional lower level of this Craftsman house plan.
  • There's plenty of room on the first and second floors though, with a massive vaulted great room for your whole family to gather in.
  • The kitchen is a dream to work in with a big kitchen island and lots of counter space so you can have more than one cook at a time.
  • There's even a large prep area off the mud room and it has a second sink and stove.
  • The vaulted master suite lies on the second floor with a private deck and a romantic fireplace as added pluses.
  • The second floor laundry room has a door directly into the master closet.
  • On the optional lower level, friends and family alike will love the huge media room with platform seating - just add a popcorn machine and settle in for a movie!
What's Included
  • Cover sheet (with rendering)
  • Notes page
  • Complete schedule page
  • Foundation plan
  • Floor plans
  • Dimension plans
  • Elevations
  • Sections
  • Architectural details
  • 3D perspective views (not included with all plans)
  • Floor finish plans
  • Roof plan
  • Lighting plans, and power plans.

Note: Contact us if building in Utah as these plans may not be available for construction in certain areas in that state.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Expandable Craftsman House Plan with Vaulted Great Room

  • 4,532

    Heated s.f.

  • 3-7

    Beds

  • 3.5+ - 5.5+

    Baths

  • 2

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

  • Optional Lower Level

Plan Details

Square Footage Breakdown

  • Total: 4,532 sq. ft.
  • 1st Floor: 2,572 sq. ft.
  • 2nd Floor: 1,960 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 79' 10"
  • Max ridge height: 29' 11"

Beds/Baths

  • Bedrooms: 3, 4, 5, 6, or 7
  • Full bathrooms: 3, 4, or 5
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 1674 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Side

Foundation Type

    • Standard Foundations: Walkout
    • Optional Foundations: Crawl, Daylight

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
