Plan 623215DJ

Expandable Modern Ranch House Plan with 3 Beds Under 2300 Square Feet

Name: Plan 623215DJ: Expandable Modern Ranch House Plan with 3 Beds Under 2300 Square Feet
Brand: Architectural Designs
SKU: 623215DJ
Price: 1155.28 USD
Availability: InStock

Heated S.F.

2,286

Beds

Baths

Stories

Cars

Tour

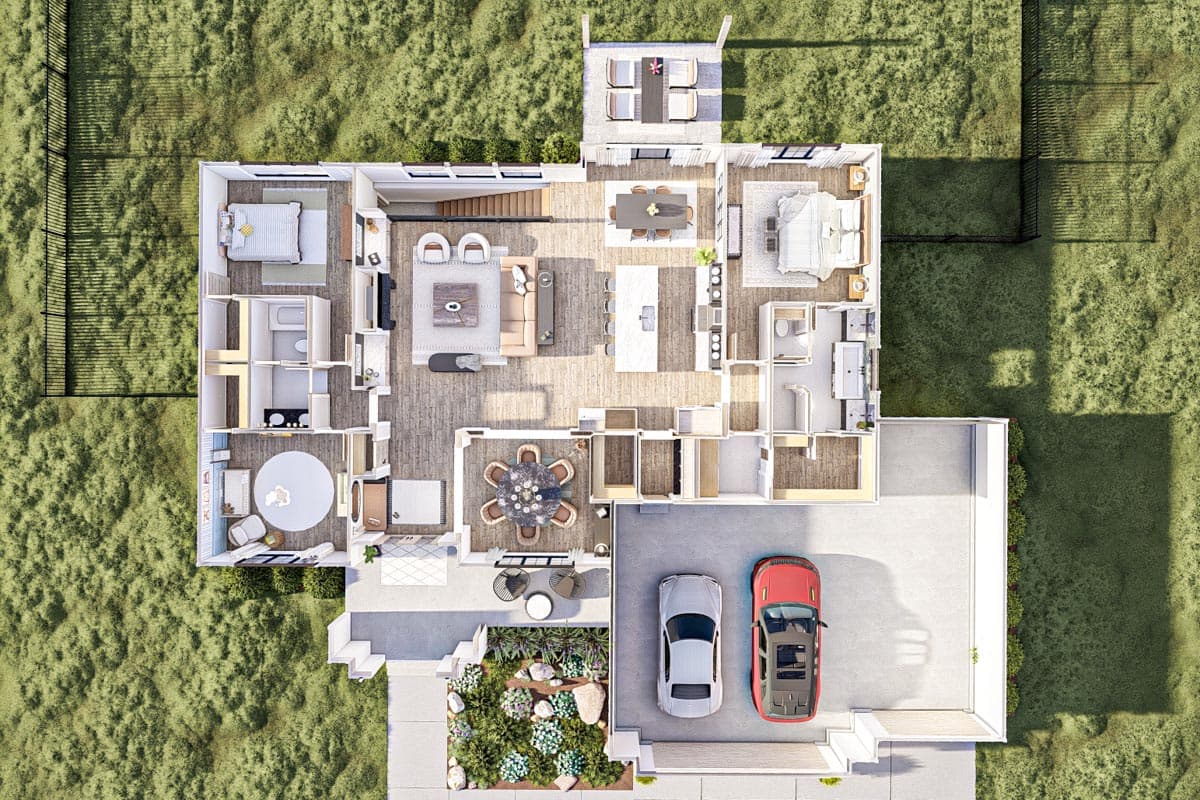

Floor Plan

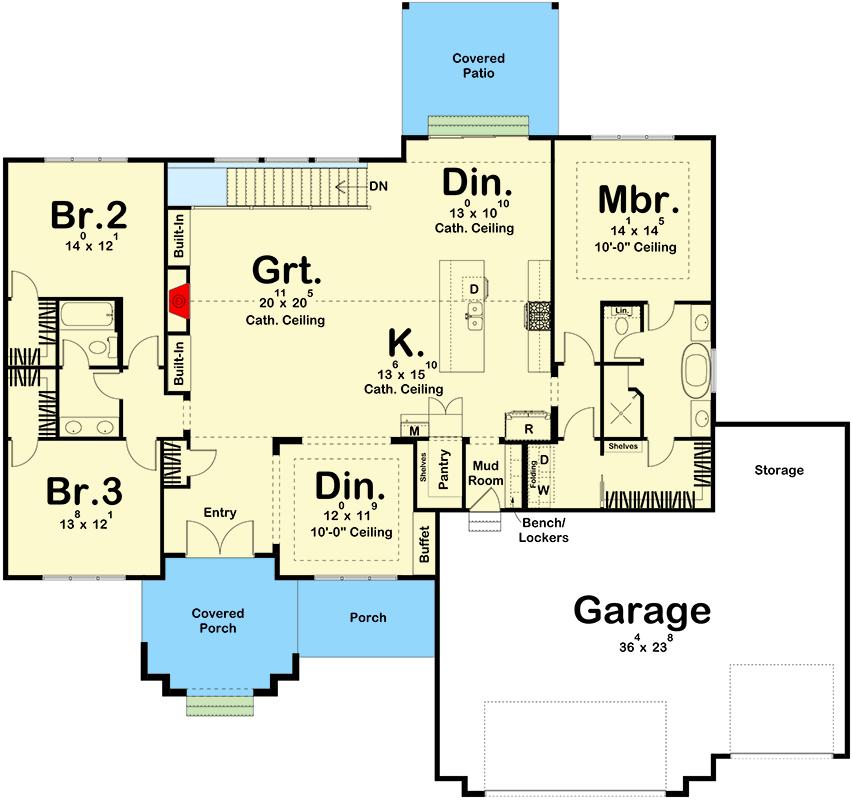

Main Level

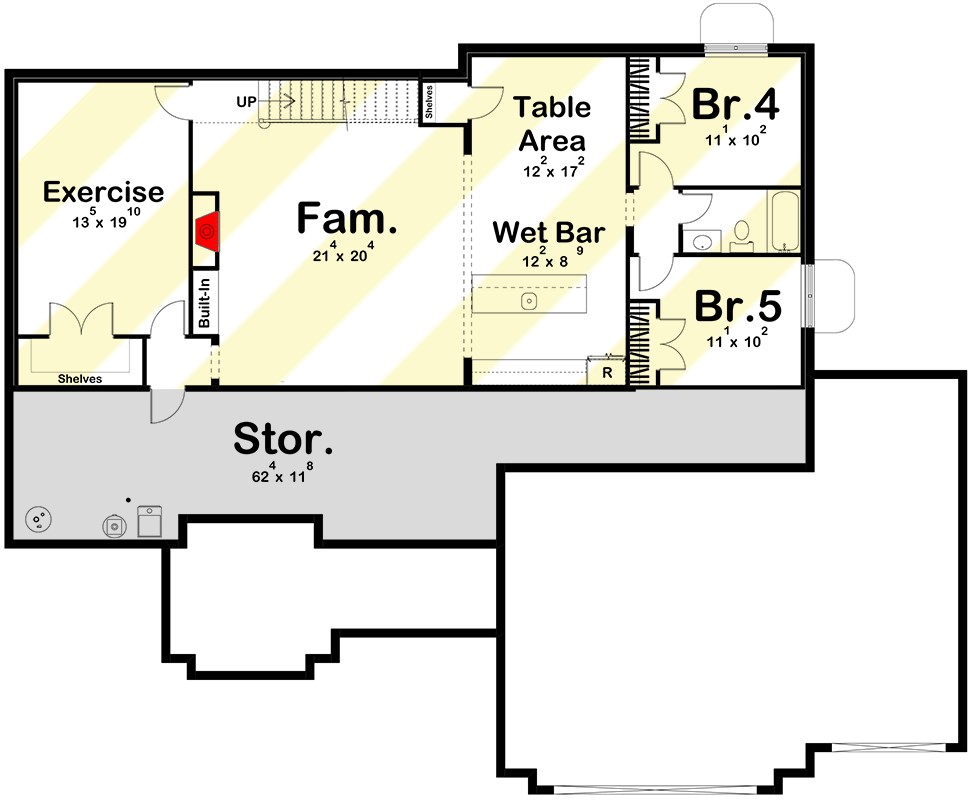

Optional Lower Level Layout ($ Paid Option)

Plan Details

This expandable 3 bed, 2 bath, 2,286 square foot modern ranch-style house plan has board and batten siding and a pop of thinset brick giving it great curb appeal.
Entering from the garage, there is a mudroom with bench and lockers. Stepping in further, you will find the large kitchen with an oversized island.
This plan includes a formal dining space and a dinette. The great room has a cathedral ceiling and a built in fireplace with cabinets beside it.
There are three bedrooms on the main floor. Two of them share a hall bath. The master bedroom has it's own bath that connects the walk-in closet to the laundry room.
The optional finished basement - available for a modest charge from the Options menu - provides an extra 1549 square feet of finished space and 559 square feet of storage. The basement opens up into a large family room with a fireplace. There is an exercise room along with a wet bar. The finished basement also provides two additional bedrooms and a bath.
This plan could easily be turned into a slab or crawlspace foundation by removing the stairs and having a larger great room.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
