Plan 490140NAH

Expansive 5-Bed Modern Home with Sport Court and RV Garage

Heated S.F.
7,775
Beds
5
Baths
5.5
Stories
2
Cars
3

Floor Plan

Plan 490140NAH

Main Level
Main Level
Lower Level
Lower Level

Plan 490140NAH

M-F 9am-5pm EST |

1-203-761-8500

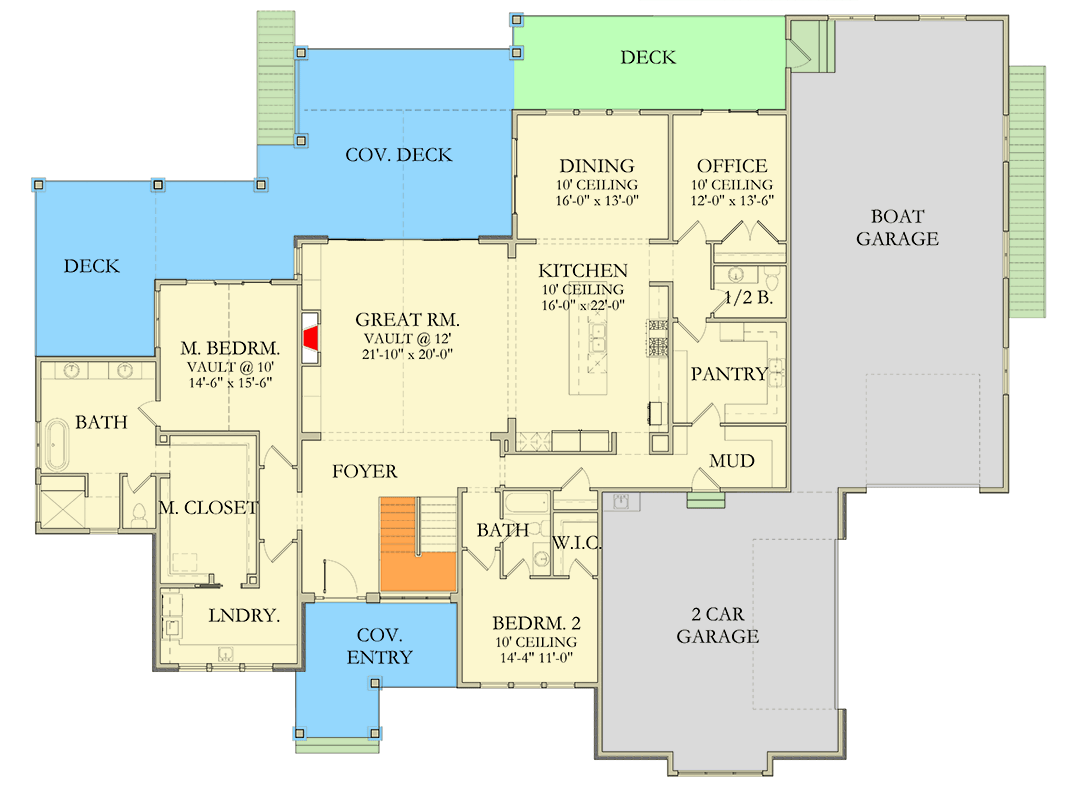

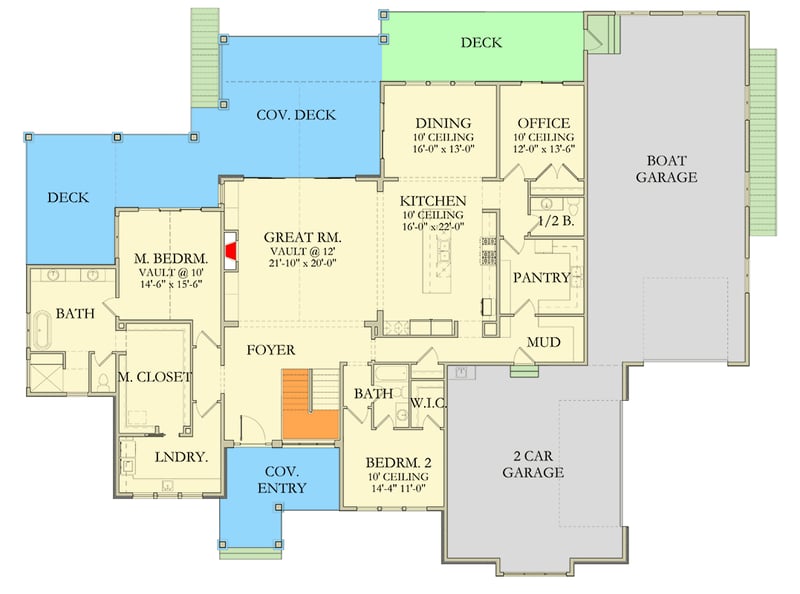

Main Level

Plan 490140NAH: Expansive 5-Bed Modern Home with Sport Court and RV Garage - Floor Plan - Main Level - Country, Hill Country, Modern

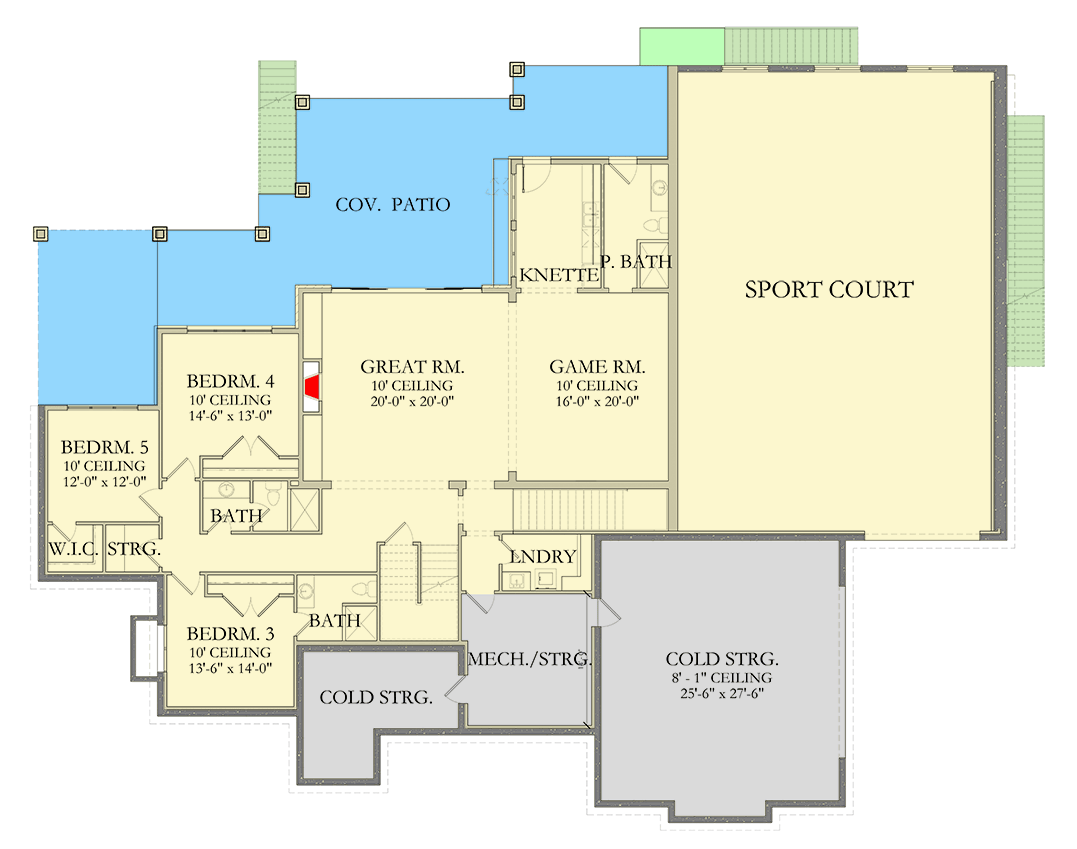

Lower Level

Plan 490140NAH: Expansive 5-Bed Modern Home with Sport Court and RV Garage - Floor Plan - Lower Level - Country, Hill Country, Modern

Plan Details

  • Discover 7,775 sq. ft. of luxurious living space with 5 bedrooms, 5.5 bathrooms, and a substantial 3-car RV garage in this modern architectural gem.
  • Upon entering, you are greeted by a spacious foyer leading into an open-concept great room with soaring 10-foot ceilings and a formal dining area perfect for family gatherings.
  • The main level boasts a seamless flow from the gourmet kitchen, complete with a butler’s pantry, to the dining room and into the expansive great room.
  • The primary bedroom suite is conveniently located on the first floor, featuring a large walk-in closet and direct laundry access, while additional bedrooms offer privacy on the lower level.
  • Flex your muscles in the integrated sport court (2,041 sq ft), or unwind in the game/rec room, designed for leisure and entertainment.
  • Enjoy outdoor living with a 1,145 sq. ft. deck and a charming covered porch, ideal for morning coffees or evening relaxation.

What's Included

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Building Section(s)
  • Typical Wall Details and Section(s)
  • Typical Stair Detail and Section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

7,775 sq. ft.

Lower Level

2,639 sq. ft.

1st Floor

3,095 sq. ft.

Porch, Front

202 sq. ft.

Deck

1,145 sq. ft.

Sports Court

2,041 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

103' 0"

Depth

81' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached, RV Garage

Area

1906 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Sports Court

19' 1''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Hill Country

Modern

Special Features

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Sport Court

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

7,775 sq. ft.

Lower Level

2,639 sq. ft.

1st Floor

3,095 sq. ft.

Porch, Front

202 sq. ft.

Deck

1,145 sq. ft.

Sports Court

2,041 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

103' 0"

Depth

81' 0"

Max Ridge Height

29' 0"

Garage

Type

Attached, RV Garage

Area

1906 sq. ft.

Count

3 Cars

Entry Location

Front, Side

Ceiling Heights

Lower Level

10'

First Floor

10'

Sports Court

19' 1''

Roof Details

Primary Pitch

8 on 12

Architectural Style

Country

Hill Country

Modern

Special Features

Formal Dining

Game/Rec Room

Home Office

Laundry Access from Master Suite

Laundry - Lower Level

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Sport Court

Walk-in Pantry
