Expansive Craftsman Ranch House Plan with 4 Bedrooms and Outdoor Kitchen

Name: Plan 54073LK: Expansive Craftsman Ranch House Plan with 4 Bedrooms and Outdoor Kitchen
Brand: Architectural Designs
SKU: 54073LK
Price: 2750.0 USD
Availability: InStock

Heated S.F.

4,695

Beds

Baths

4.5+

Stories

Cars

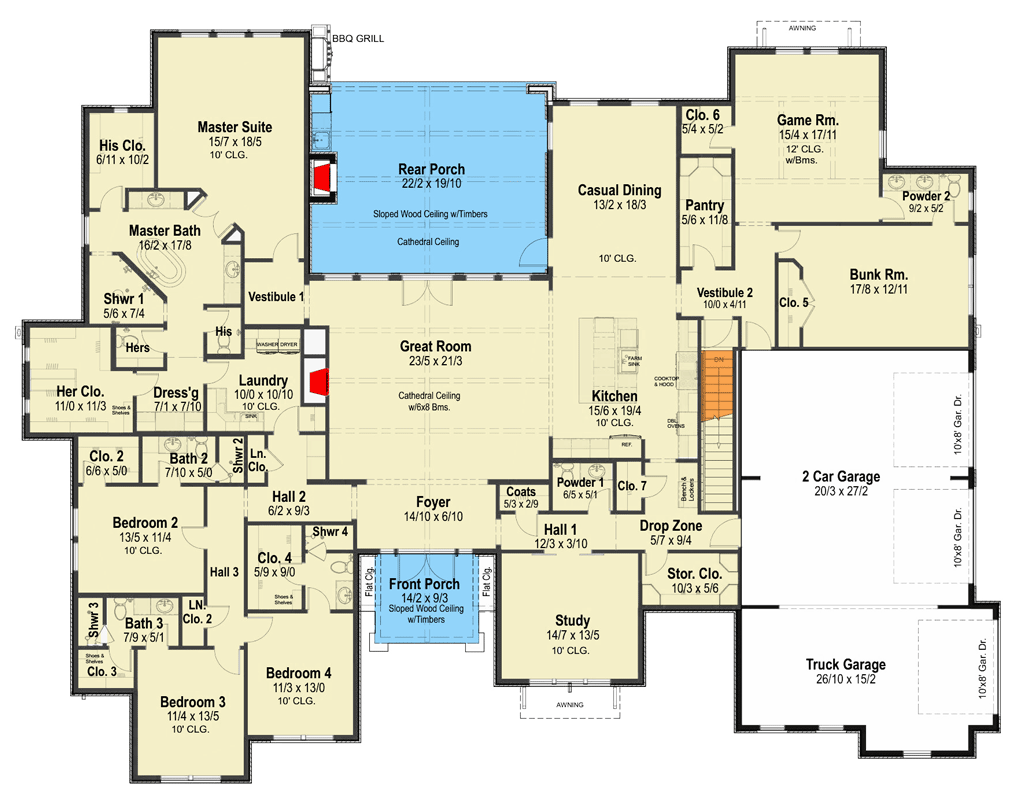

Floor Plan

Plan Details

This expansive 4,695 sq ft Craftsman Ranch house plan features 4 bedrooms, 4.5 baths, and a generous 1074 sq ft 3-car side-entry garage.
A welcoming covered porch leads into a grand foyer with 10-foot ceilings, revealing an open-concept layout designed for seamless living.
The heart of the home boasts an open-concept living area, connecting a gourmet kitchen with a walk-in pantry, a bright breakfast nook, and a formal dining room perfect for gatherings.
The luxurious primary bedroom suite is privately situated with convenient laundry access, while three additional split bedrooms offer comfort and privacy for family or guests.
Dedicated spaces include a versatile bunk room, a fun game/rec room, and a quiet library/study, providing ample options for leisure and work.
Enjoy exceptional outdoor living with 655 sq ft of combined porch space, featuring an inviting outdoor fireplace and a fully equipped outdoor kitchen for al fresco dining.
A standard basement foundation offers significant potential for future expansion, ideal for additional living space or storage.

What's Included

FLOOR PLAN: Showing all dimensions, window & door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, window & door schedules and specifications
FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, brick shelves reinforcing steel, direction and size of ceiling joists, Laminate beam locations, specifications covering soil pressure, concrete strength, and requirements for the contractor to follow accepted practices.
ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches and outlets.
ELEVATIONS: The front, rear and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, and locations of chimney, exterior vents, etc. and also includes any necessary details.
ROOF PLANS: Provides a bird's eye view of the roof's valleys, ridges and dormers, if applicable
BUILDING CROSS SECTION: Shows details of the house as though it were cut in slices from the roof to the foundation. The cross sections detail the construction of the home, insulation, flooring and roofing.
INTERIOR ELEVATIONS: Show's how the details of cabinets such as those found in the kitchen, bathroom and utility room, fireplaces and other special interior features.
NOTES AND DETAILS: Provides information for structural specifications, excavating and grading, masonry and concrete work, carpentry and wood specifications, thermal and moisture protection and specifications about drywall, tile, flooring, glazing, caulking and sealants.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
