Eye-Catching Southern House Plan
Heated S.F.
2,196
Beds
4
Baths
2.5+
Stories
2
Cars
1
Floor Plan

Plan 80841PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80841PM

1-800-854-7852

1-262-521-4596

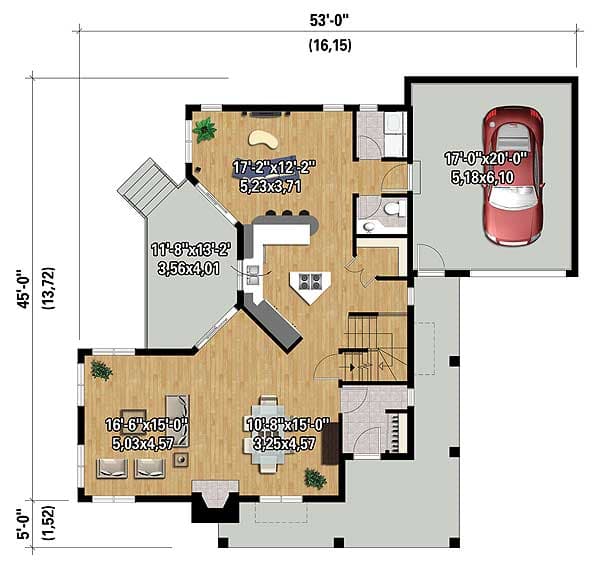

Main Level
floor plan image Main Level

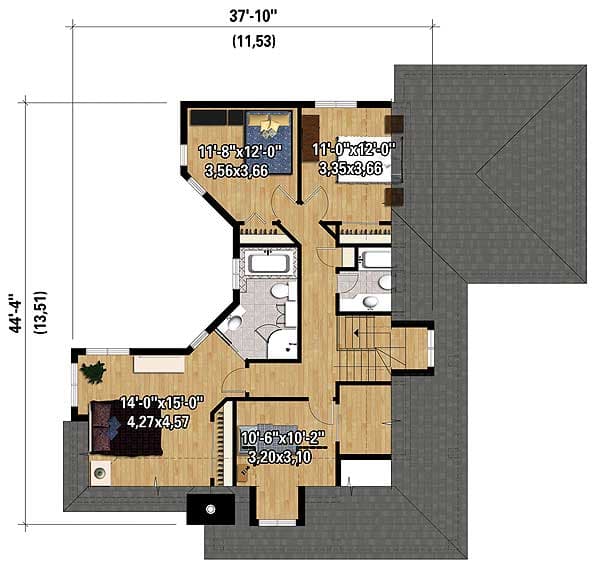

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A beautiful hip roof and wrap-around porch serve to give homeowners an eye-catching house plan.
  • The unique floor plan has a completely open layout that create wonderful sightlines.
  • Start with an air-lock entry foyer that keeps the cold air out in the winter.
  • From there, you walk into the spacious living/dining area with sliding glass doors to take you out to the deck.
  • In the kitchen, an eating bar wraps around the peninsula counter and gives you views of the big family room.
  • The second floor holds all four bedrooms, with the large master suite having a private bathroom.
What's Included
Please note this plan is designed to the National Building Code of Canada.
  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

2,196 sq. ft.

1st Floor

1,085 sq. ft.

2nd Floor

1,111 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

53' 0"

Depth

45' 0"

Max Ridge Height

33' 11"

Garage

Type

Attached

Area

370 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Southern

Special Features

Butler Walk-in Pantry

Master Suite - 2nd Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Metric
