Plan 970113VC
Farmhouse Plan Under 2300 Square Feet with 3 Upstairs Bedrooms
Heated S.F.
2,294
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This farmhouse home design offers a range of advantages. Its grand foyer and inviting staircase greet visitors. An isolated home office, equipped with built-ins and a window seat, is available.
  • The kitchen, dining area, and living room are centered around the fireplace at the back of the house.
  • The spacious mudroom features lockers and a bench for storage, and the back entrance provides a laundry and bathroom space.
  • On the upper level, the kids' study is situated between the two extra bedrooms.
  • Finally, the master bedroom provides a cloistered space with a large closet and a private bathroom.
What's Included
  • Title Sheet. This page includes a color rendering of your home and an index of the complete set.
  • Floor Plans, Roof Plans and Foundation Plans. These plans detail the location, dimension and structural requirements of your home. Roof plans also illustrate pitch, composition and overhang sizes. Framers use this information for project estimates and to plan work on-site.

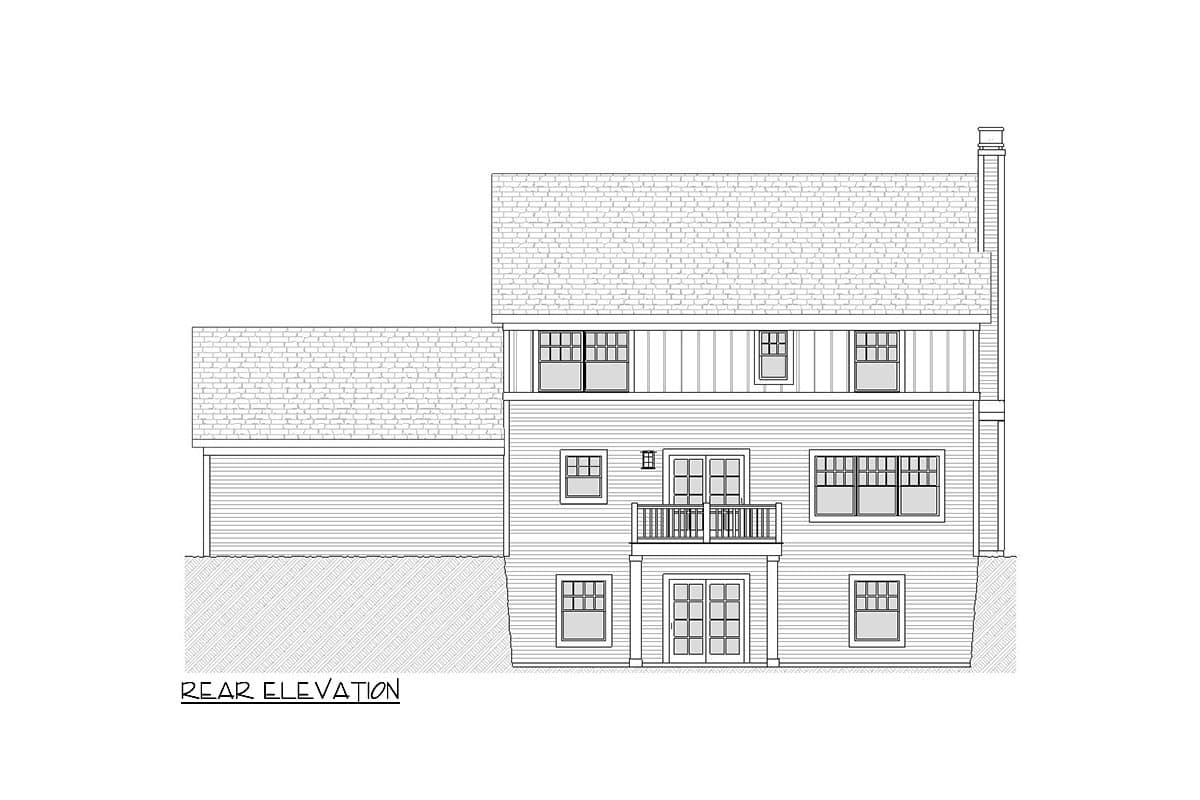

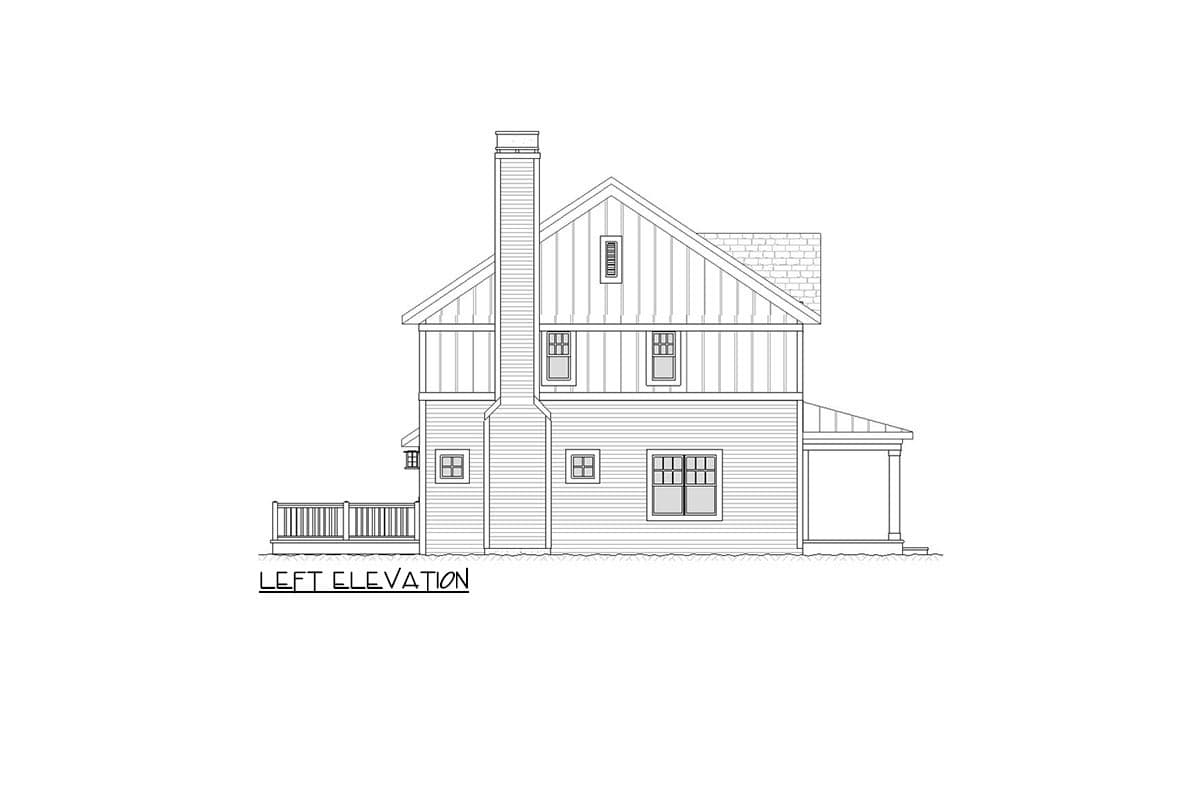

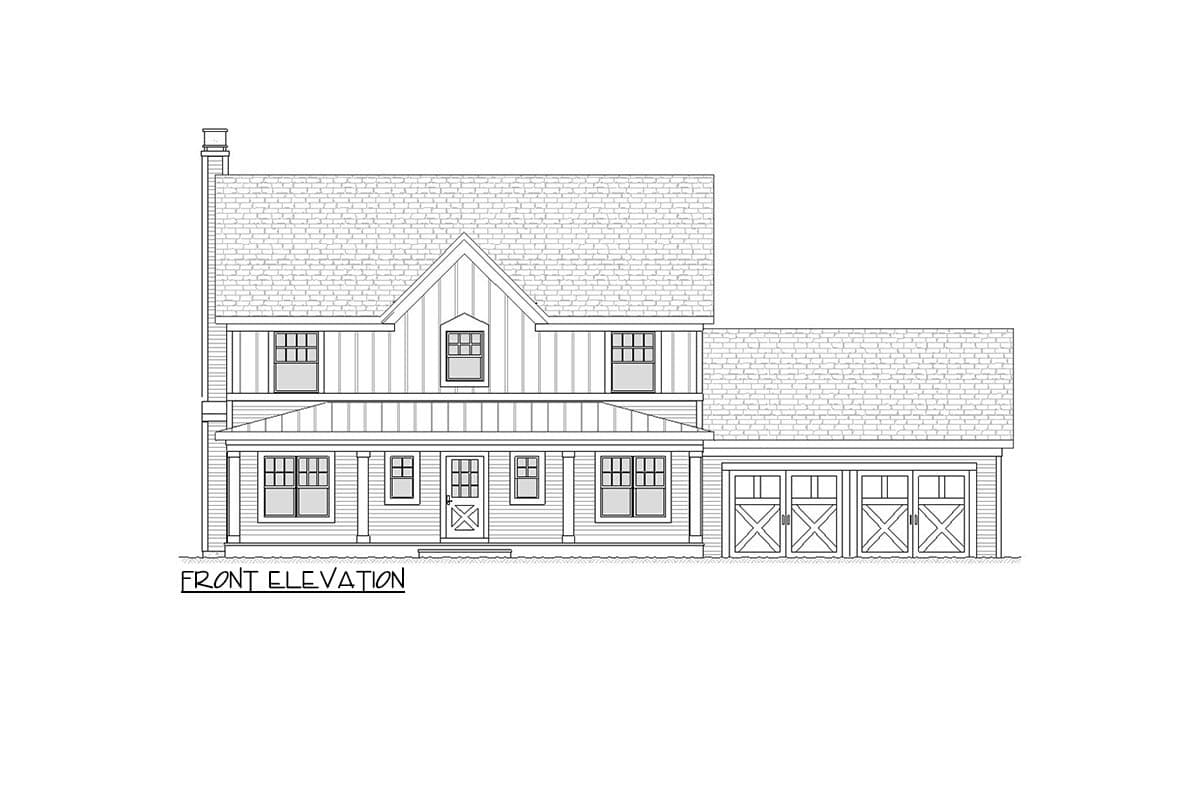

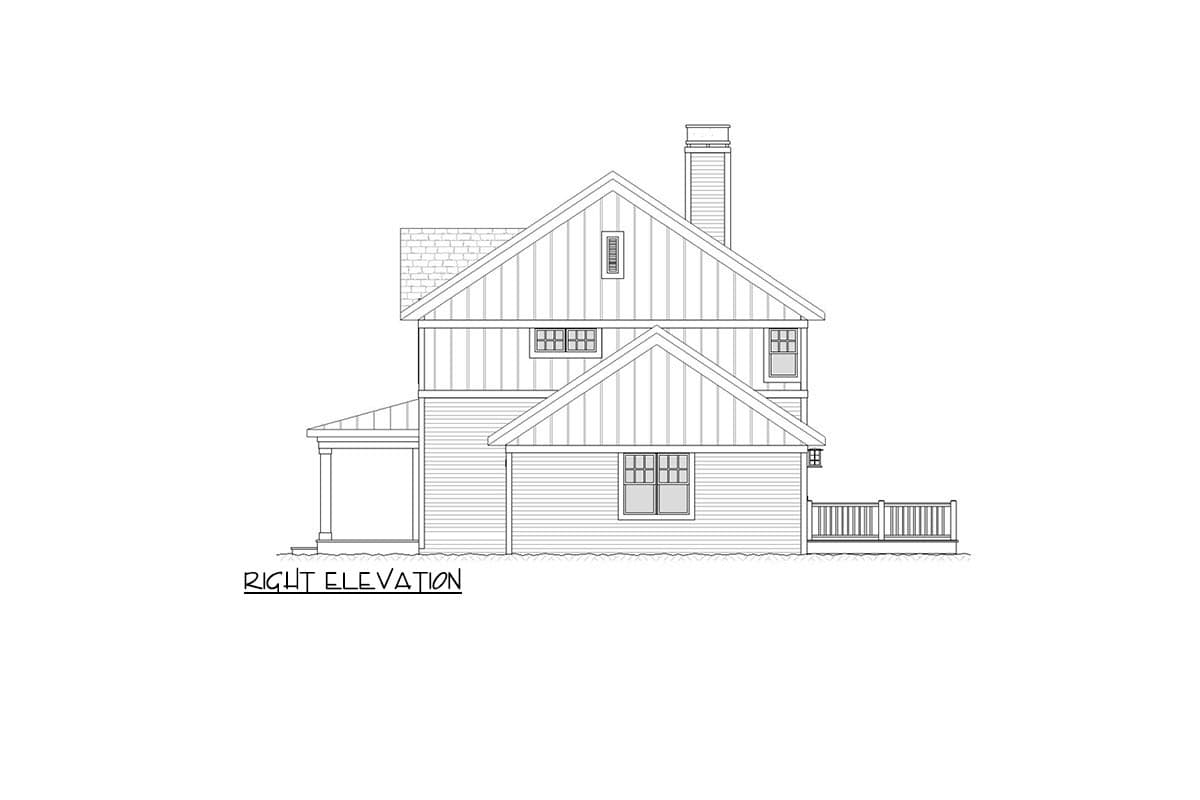

  • Exterior Elevations: front,rear and side elevation views, illustrating exterior materials, details, wall heights, roof pitches, window location and sizes.
  • Building Construction Details. This section gives your builder ceiling heights, a sense of overall home construction and wall sections, including material call outs, eave detail, roof pitch and foundation construction.
  • Recommended Interior & Exterior Trim and Detailing. Every home was specifically designed to achieve a highly livable and comfortably beautiful, proportioned space. For that reason, each blueprint comes with recommended styles for your interior and exterior doors, window trim, baseboards, garage doors and, if applicable to your house style, columns and brackets.
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Farmhouse Plan Under 2300 Square Feet with 3 Upstairs Bedrooms

  • 2,294

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

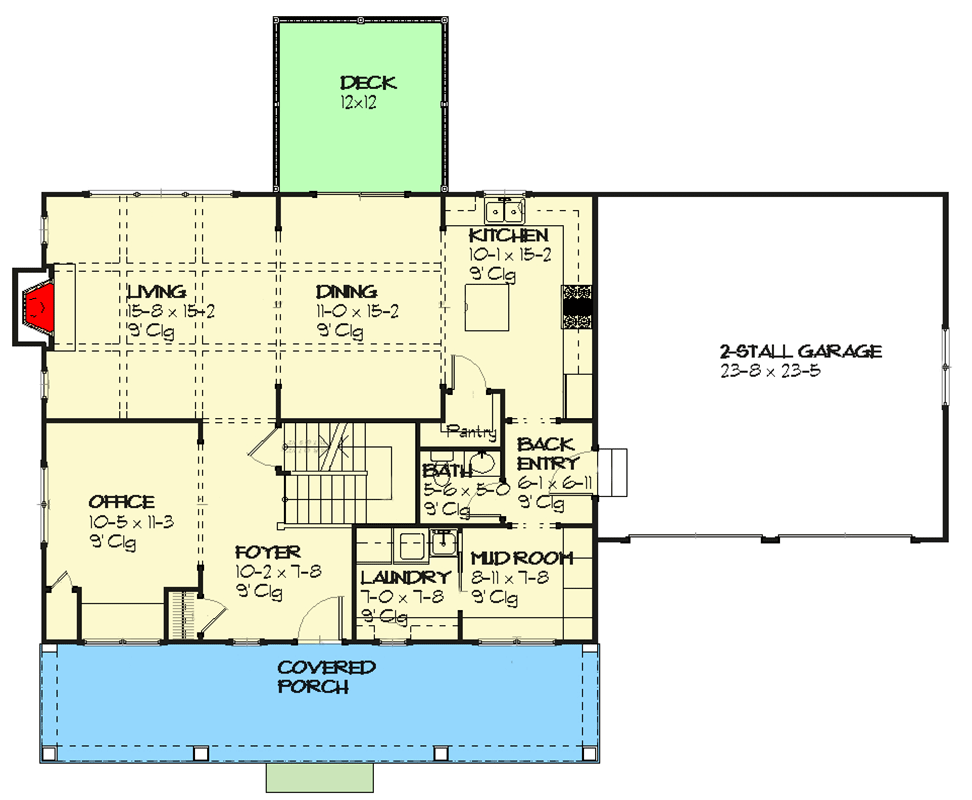

  • Main Level

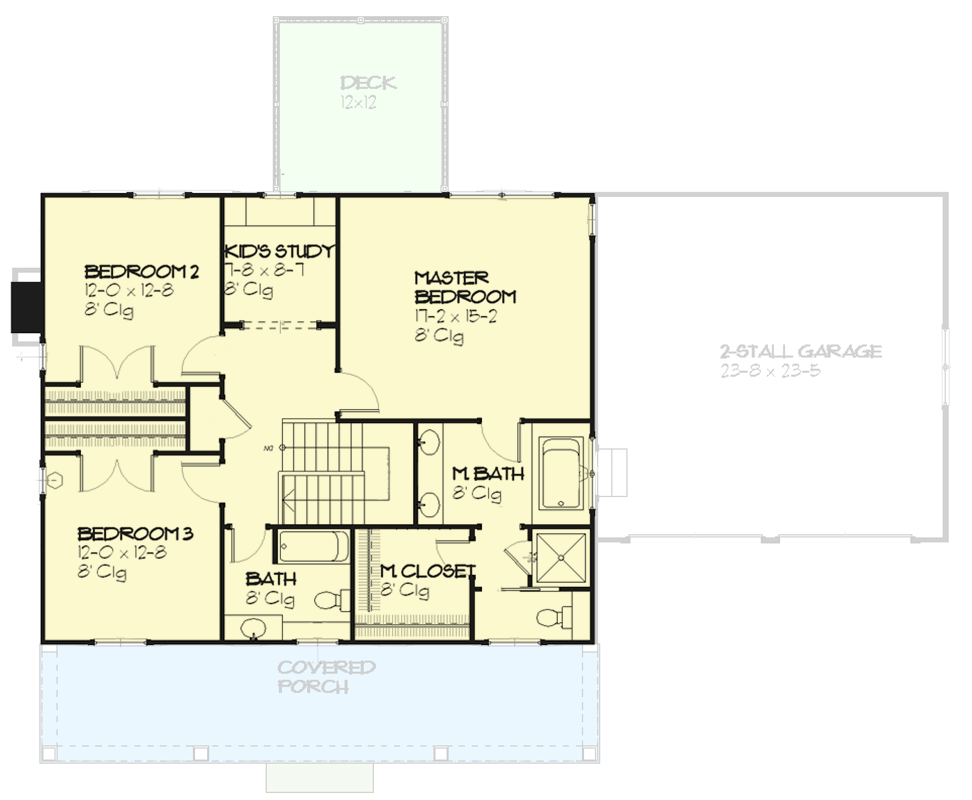

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,294 sq. ft.
  • 1st Floor: 1,178 sq. ft.
  • 2nd Floor: 1,116 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 39' 0"
  • Max ridge height: 30' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site

Farmhouse Plan Under 2300 Square Feet with 3 Upstairs Bedrooms

  • 2,294

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Farmhouse Plan Under 2300 Square Feet with 3 Upstairs Bedrooms

  • 2,294

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 2,294 sq. ft.
  • 1st Floor: 1,178 sq. ft.
  • 2nd Floor: 1,116 sq. ft.

Dimensions

  • Width: 64' 0"
  • Depth: 39' 0"
  • Max ridge height: 30' 8"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss

    Main Level

    2nd Floor
