Plan 51350MM

Farmhouse Ranch Plan with Split Bedroom Layout

Heated S.F.
1,800
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51350MM

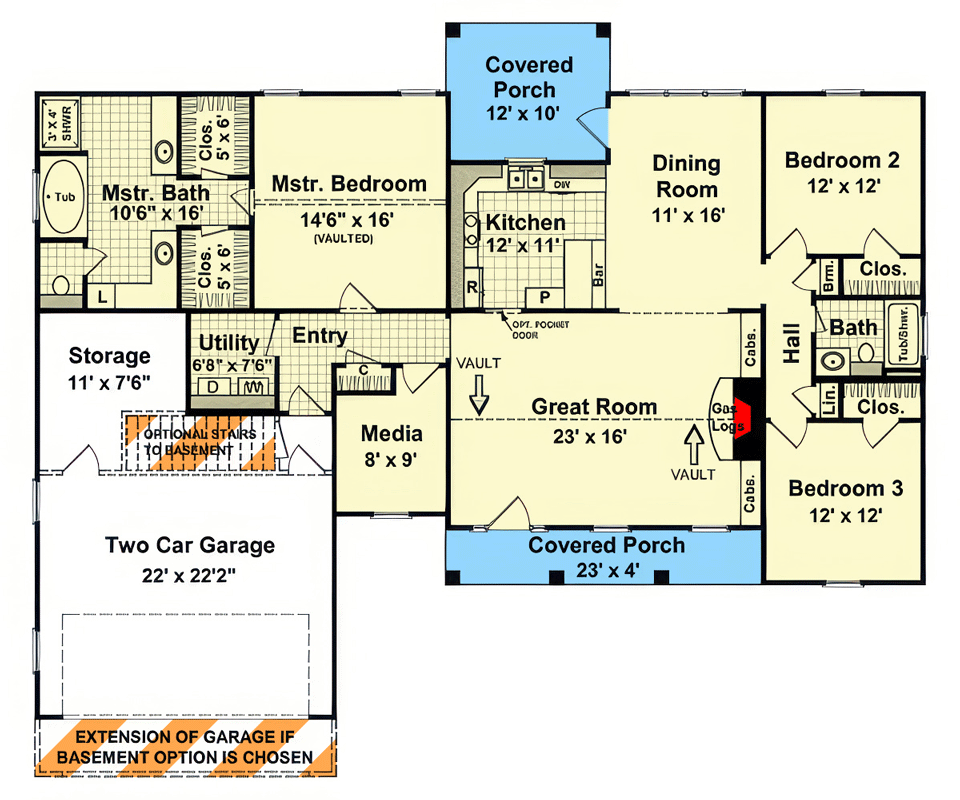

Main Level
Main Level

Plan 51350MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51350MM: Farmhouse Ranch Plan with Split Bedroom Layout - Floor Plan - Main Level - Farmhouse, Modern Farmhouse, Ranch

Plan Details

  • This 1,800 sq. ft. Farmhouse Ranch House Plan offers 3 bedrooms, 2 bathrooms, and an attached 2-car garage, presenting a classic yet efficient layout.
  • Step onto the inviting front porch and through the entry, where high ceilings and ample natural light immediately create an open flow and welcoming atmosphere.
  • The kitchen truly serves as the home's gathering spot, featuring a generous island for meal prep and casual dining, abundant pantry storage, and clear sightlines to the main living area.
  • Enjoy the privacy of a split-bedroom layout, placing the primary suite in its own private wing with convenient access to the laundry, while two additional bedrooms are thoughtfully located on the opposite side of the home.
  • A dedicated drop zone and mudroom area just off the garage provides essential organization for daily arrivals and departures, keeping clutter out of your main living spaces.
  • The spacious rear porch acts as a natural outdoor extension of your living area, perfect for relaxing evenings or entertaining, offering a seamless connection to your backyard.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

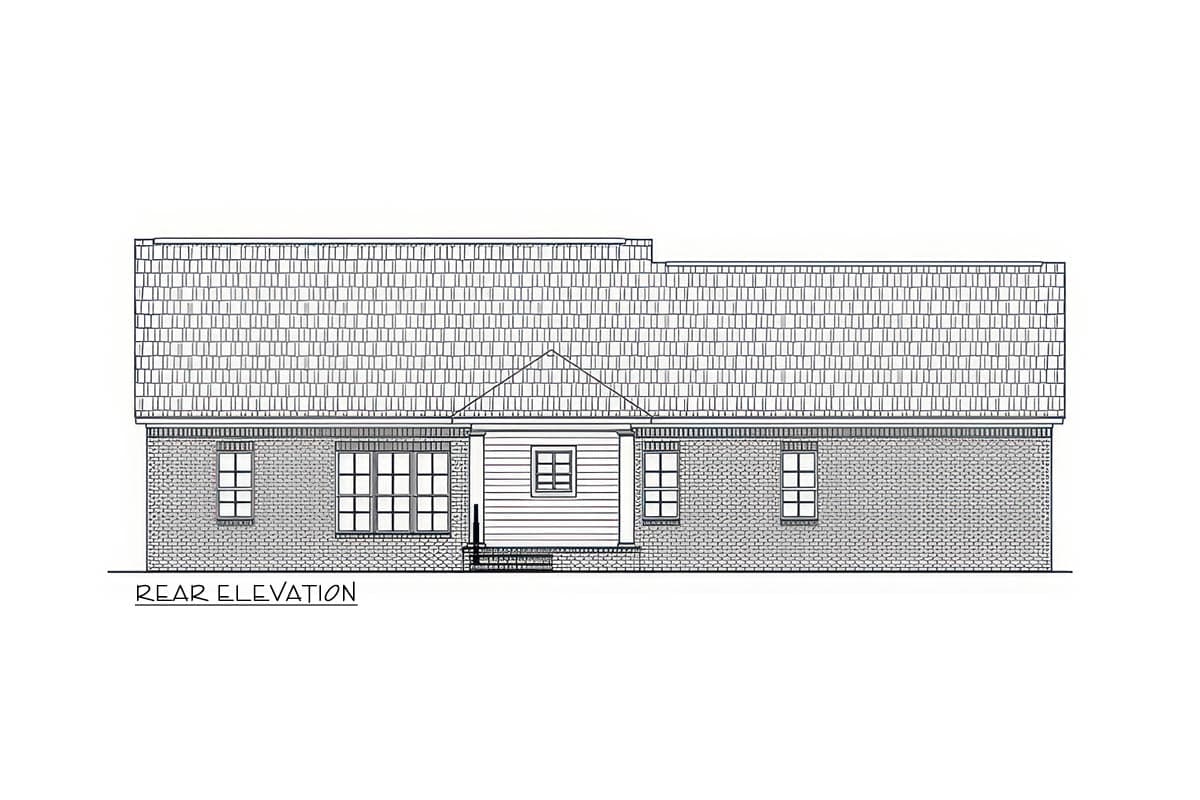

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,800 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

117 sq. ft.

Storage

83 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

50' 10"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

485 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Farmhouse

Modern Farmhouse

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room

Square Footage Breakdown

Total Heated Area

1,800 sq. ft.

1st Floor

1,800 sq. ft.

Porch, Front

92 sq. ft.

Porch, Rear

117 sq. ft.

Storage

83 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 0"

Depth

50' 10"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

485 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Farmhouse

Modern Farmhouse

Ranch

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry Access from Master Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Media Room
