Fit For a King

Plan 11558KN

  • 5,214

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • This Craftsman luxury home plan surrounded by porches and decks, is fit for a king.
  • Even the two-story foyer is huge, flanked by a study with fireplace and the formal dining room.
  • Wide covered porches in front and back allow plenty of room for chairs and tables.
  • An enormous island in the gourmet kitchen adds to the counter space. Note the desk nook off to the side and the breakfast area surrounded by windows on three sides.
  • The first floor master suite has a spacious closet and huge spa bath.
  • On the second floor, three bedrooms share a loft and one bedroom has its own private balcony.

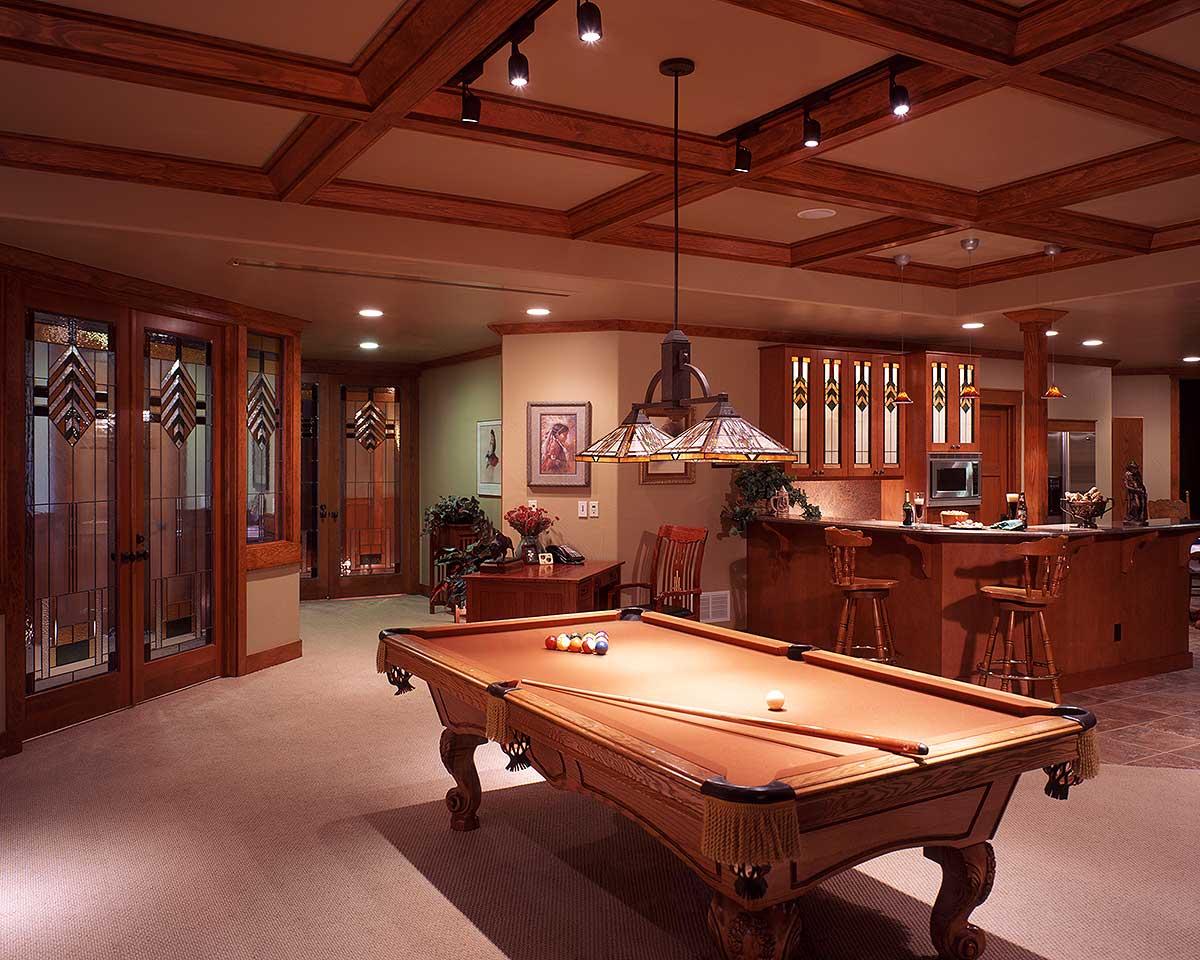

  • A guest suite can be found on the optional lower level along with a wine cellar, media room, exercise room and huge rec room with wet bar.
  • The optional lower level adds 3,040 square feet of additional luxury.
  • This luxury house plan consists of 18 highly-detailed pages.

Floor plans at ¼" scale

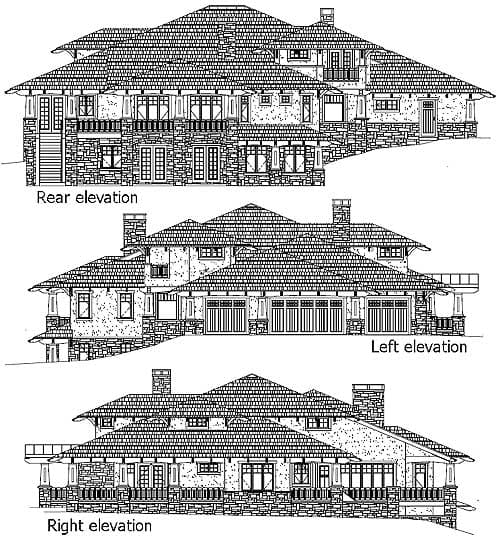

All exterior elevations at ¼" scale

Roof plan at ¼" scale

Building sections at ¼" scale

Completed foundation plan at ¼" scale

Completed floor/roof framing plan at ¼" scale

Building height profiles at ¼" scale

Door and window schedules

General construction notes and building schedules

Exterior finish schedule

Architectural details

Construction details for cabinets, interior built-ins and stairs

Designations for all floor, wall and ceiling surfaces

Details and specifications for all ceiling treatments

All square footage calculations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

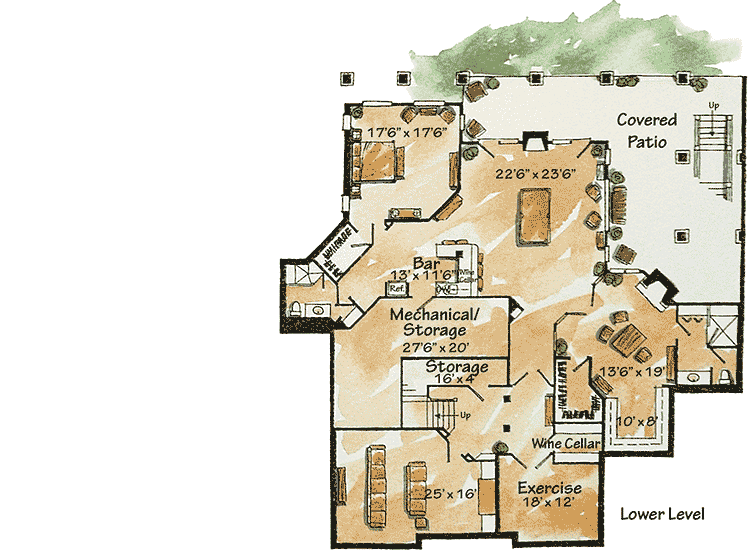

Fit For a King - 11558KN floor plan - Lower Level

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Fit For a King - 11558KN floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Fit For a King - 11558KN floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,214 sq. ft.
  • 1st Floor: 3,425 sq. ft.
  • 2nd Floor: 1,789 sq. ft.
  • Optional Lower Level: 3,040 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 94' 0"
  • Depth: 97' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 1296 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections

Fit For a King

  • 5,214

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Lower Level

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,214 sq. ft.
  • 1st Floor: 3,425 sq. ft.
  • 2nd Floor: 1,789 sq. ft.

Dimensions

  • Width: 94' 0"
  • Depth: 97' 0"
  • Max ridge height: 29' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1296 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 9' 0"
