Plan 86000BW
Five Bedroom Mediterranean House Plan
Heated S.F.
4,563
Beds
5
Baths
5
Stories
2
Cars
3
Floor Plan

Plan 86000BW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 86000BW

1-800-854-7852

1-262-521-4596

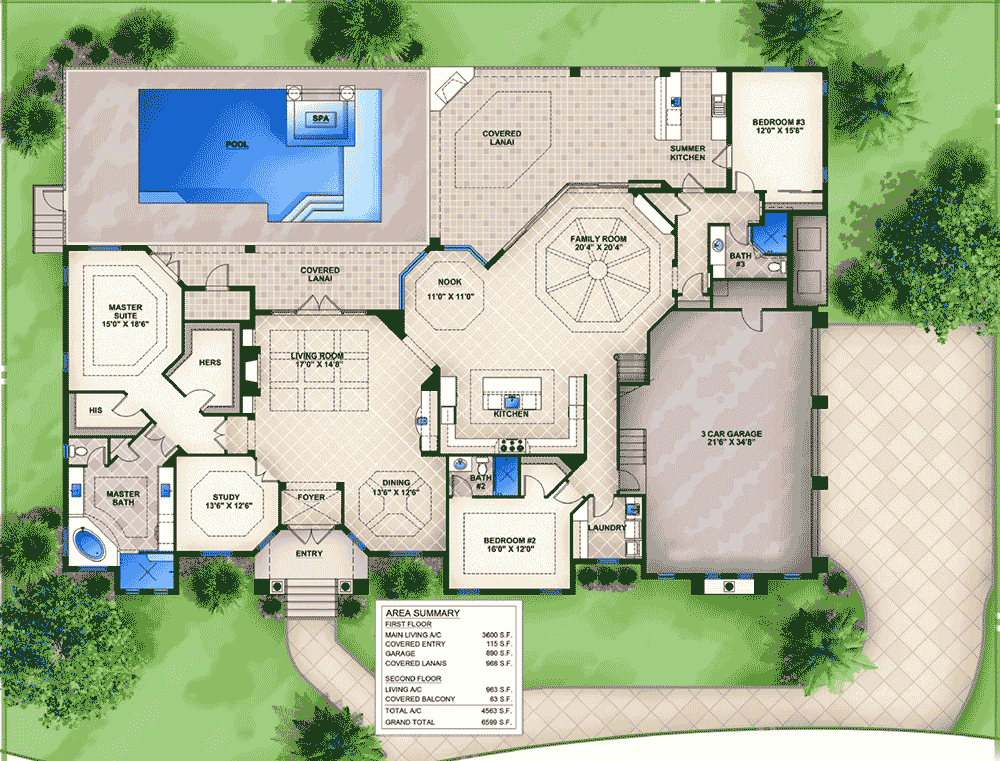

Main Level
floor plan image Main Level

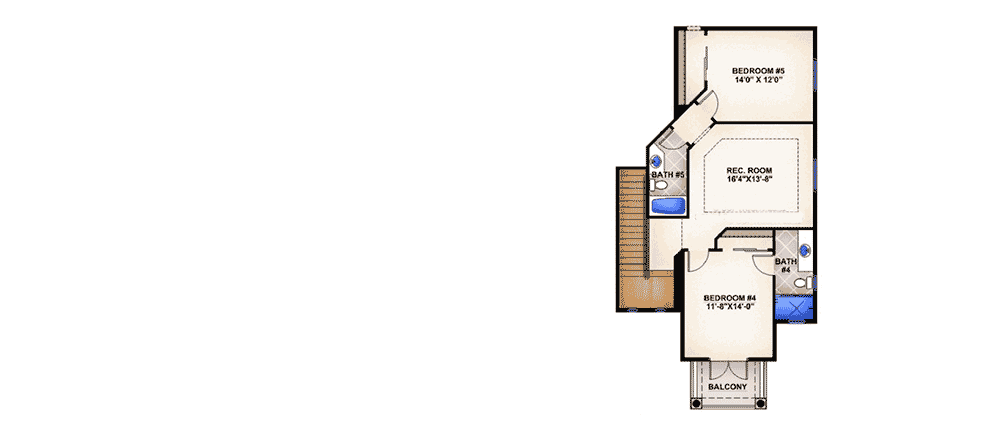

2nd Floor
floor plan image 2nd Floor
Plan Details

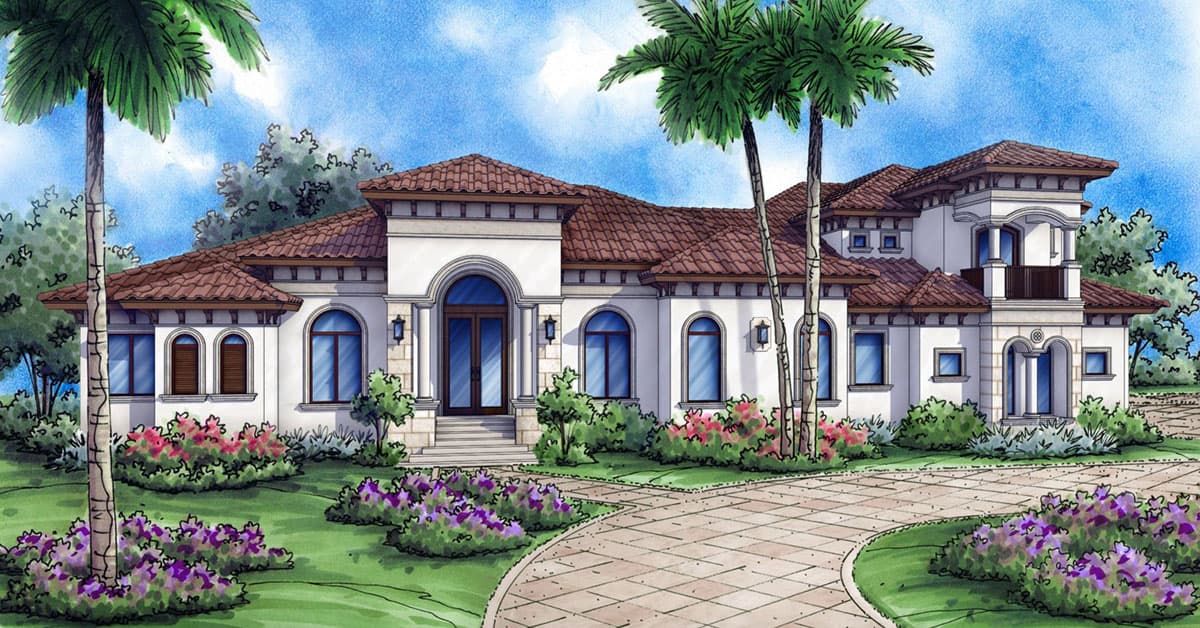

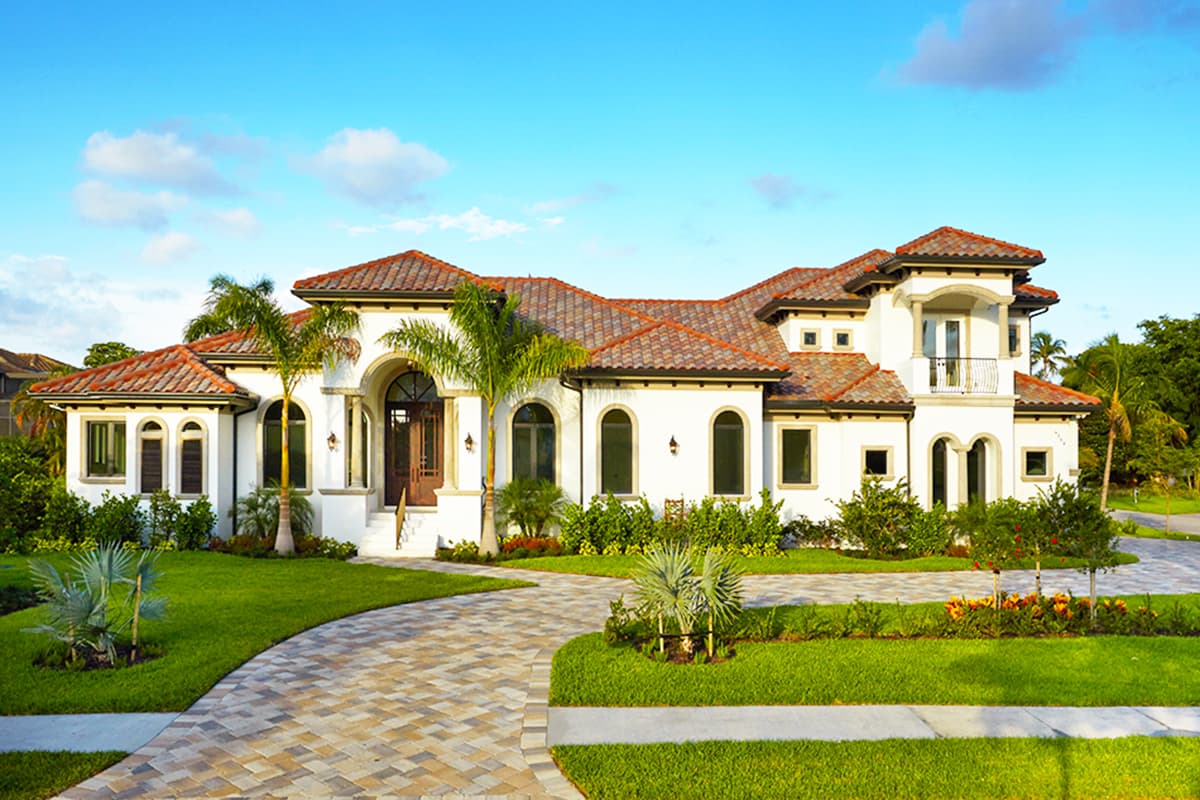

  • Arched windows and an arched entry porch grace the front of this dashing Mediterranean house plan.
  • The highly-prized open floor plan is in evidence everywhere in the home, although you can grab quiet time in the secluded study that faces the front of your lot.

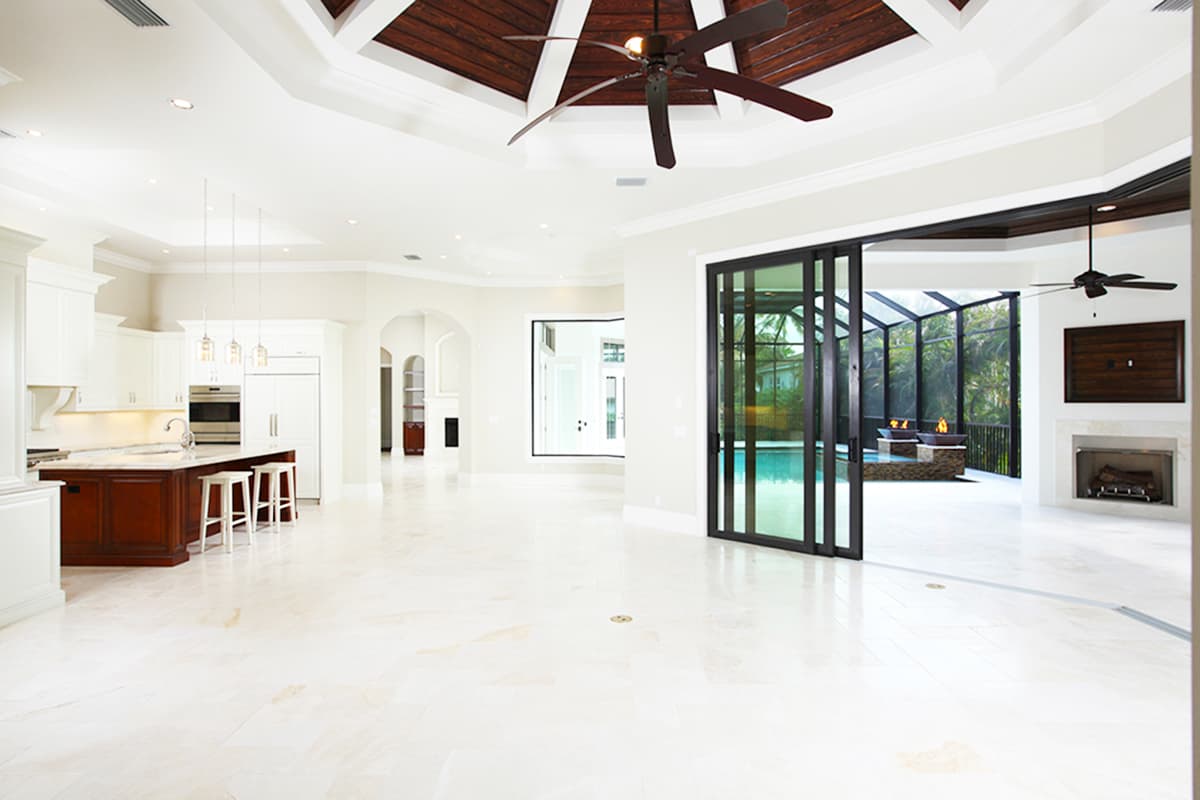

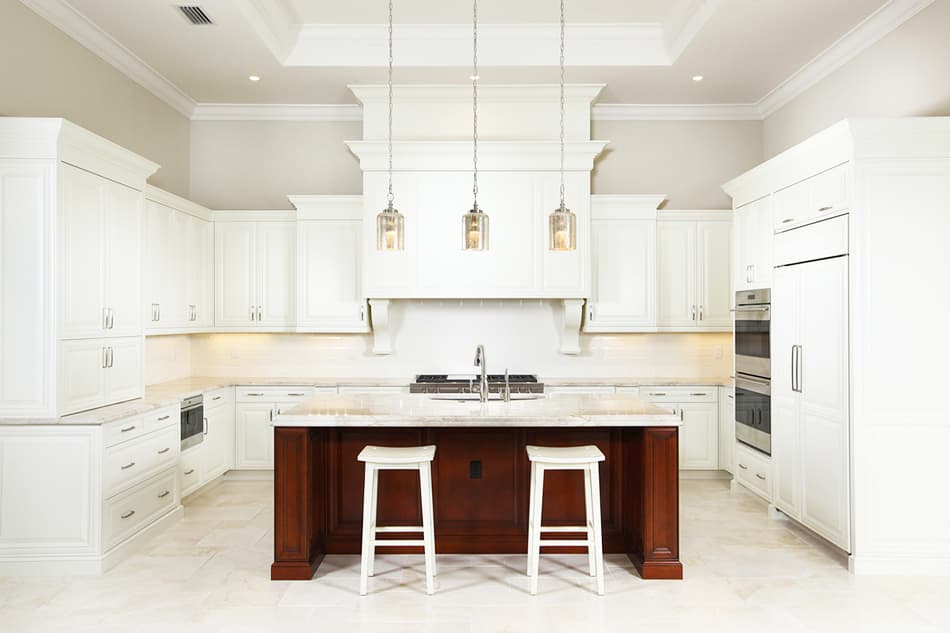

  • The kitchen island is positioned to benefit from views of the nook and family room.

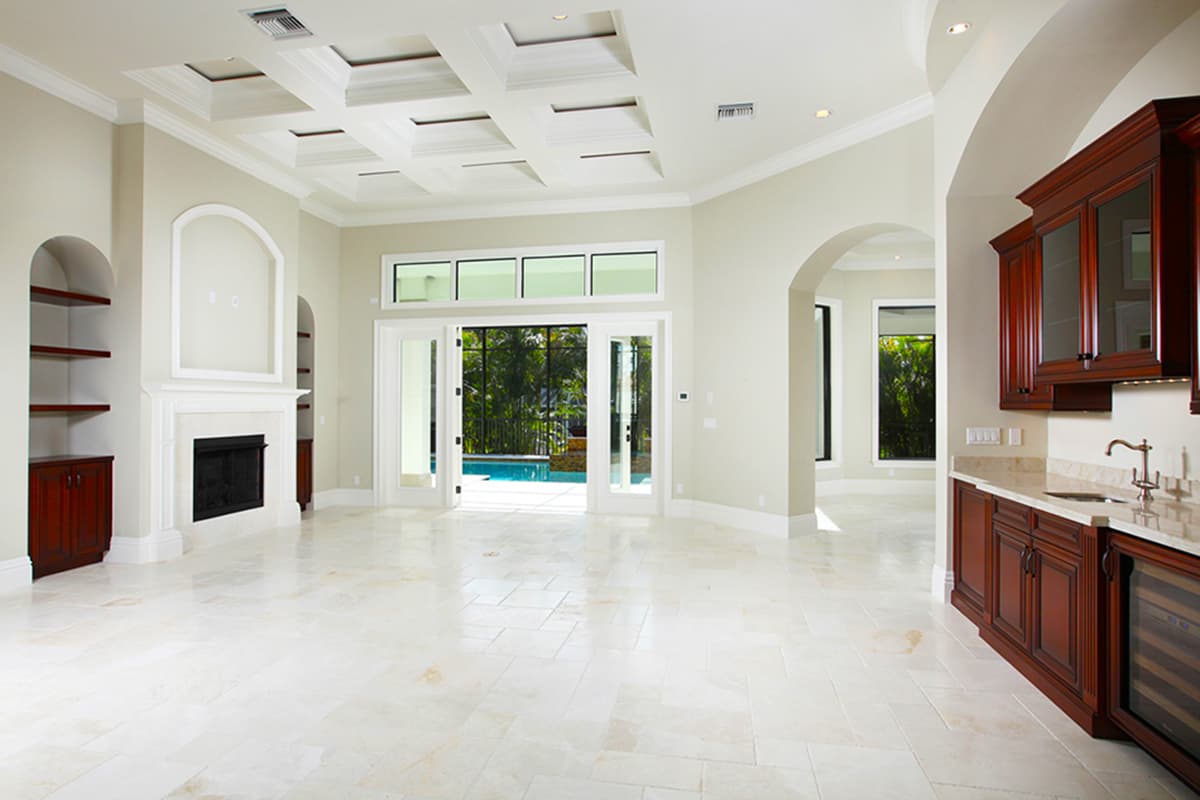

  • Most of the main rooms have gorgeous coffered and tray ceilings, adding a custom touch.

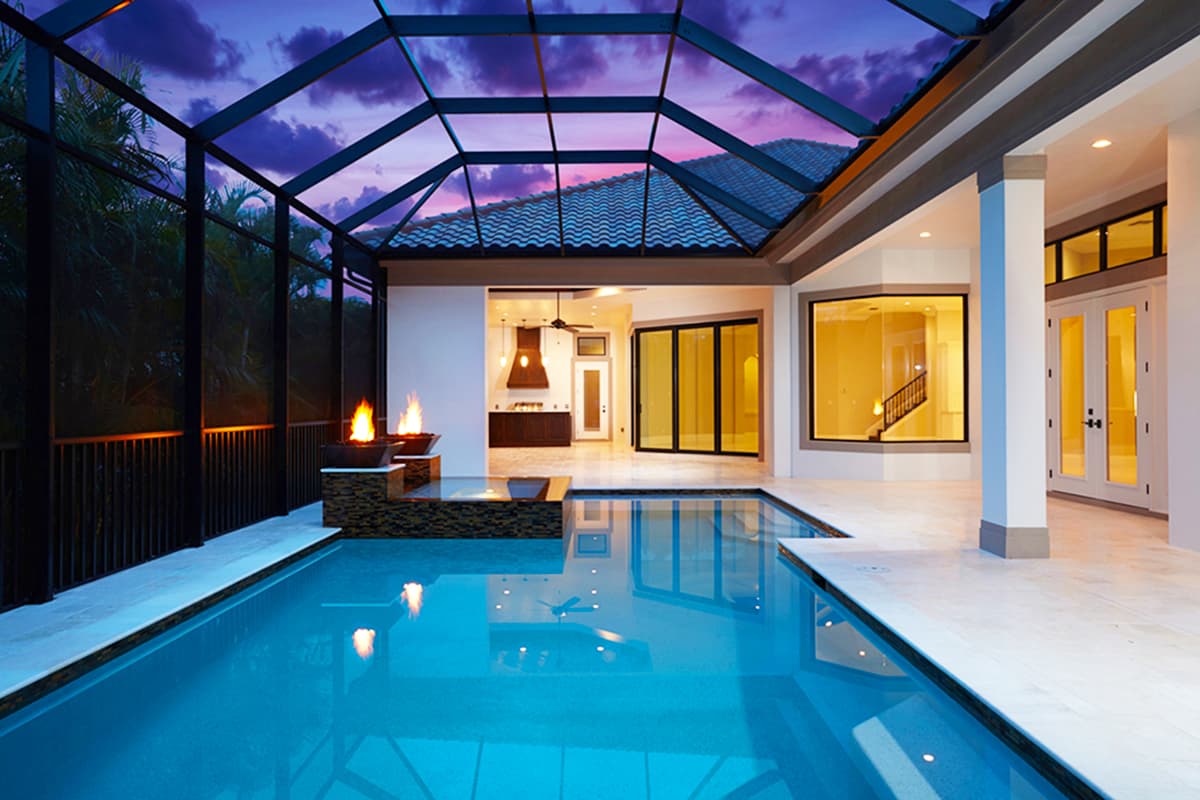

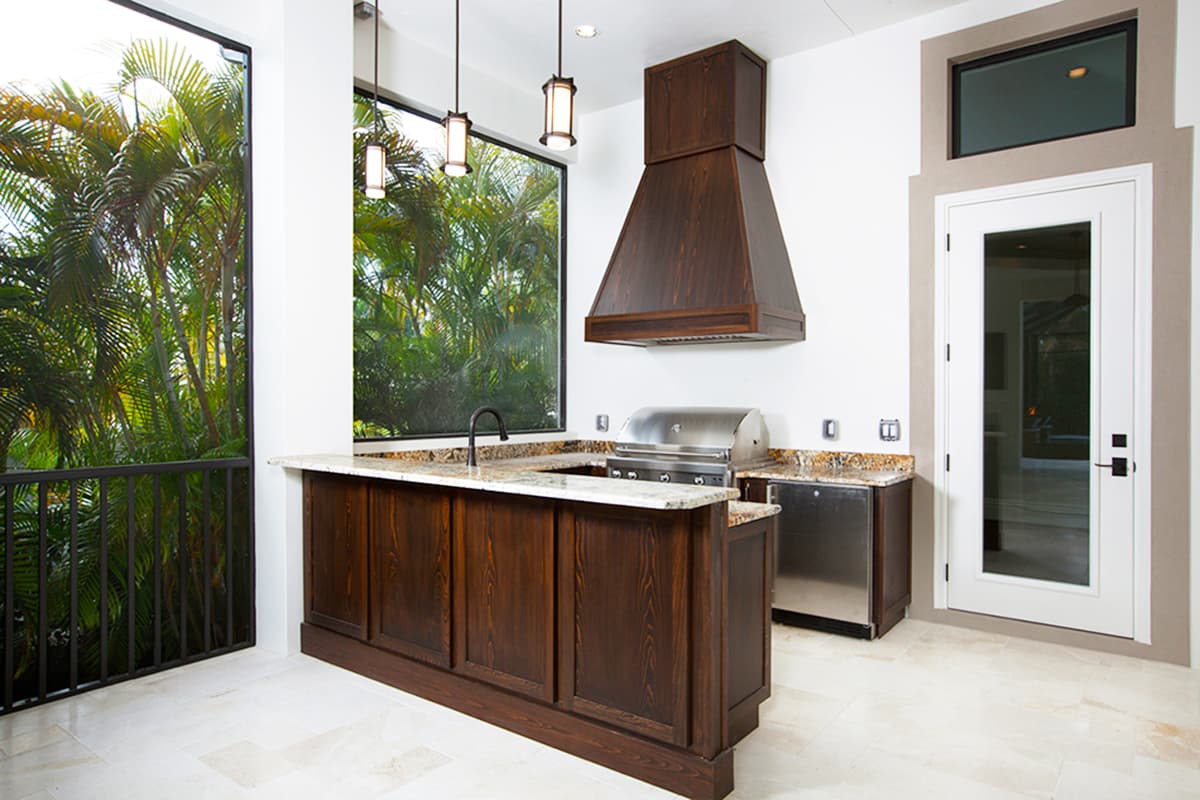

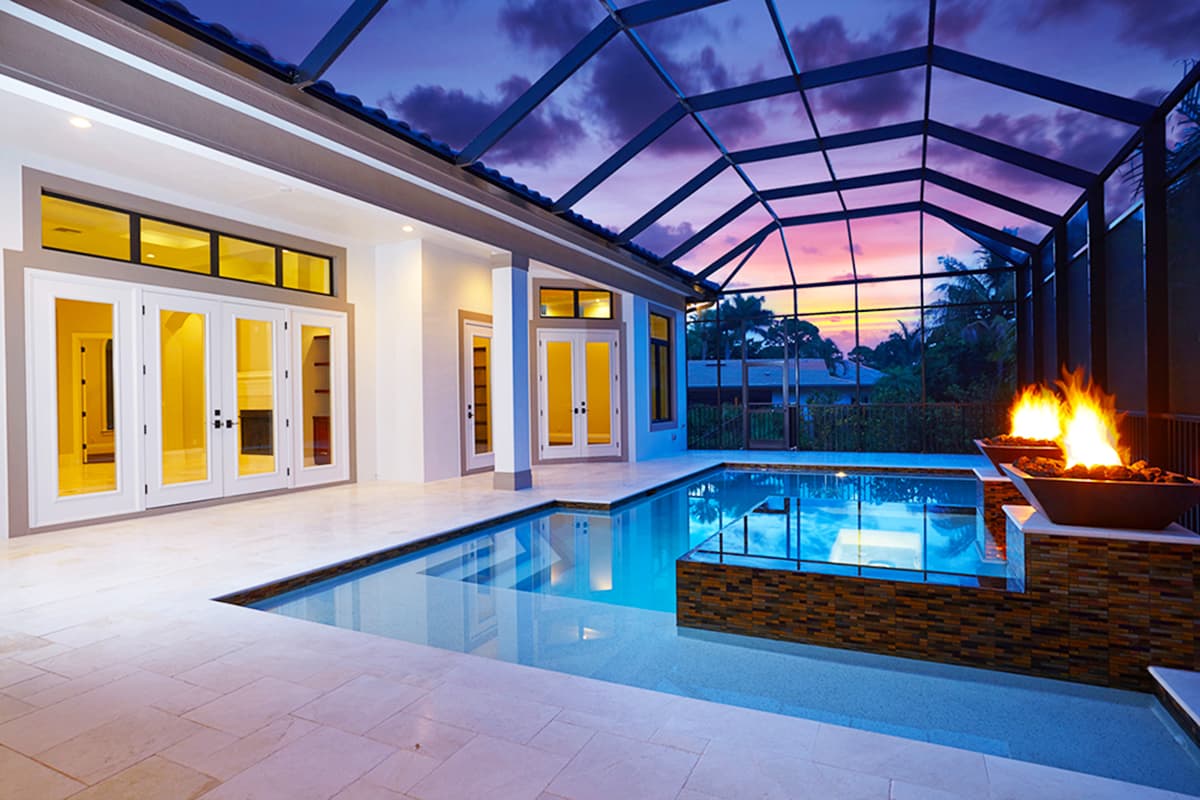

  • A spacious covered lanai in back includes an outdoor fireplace and a large summer kitchen for grilling and entertaining.

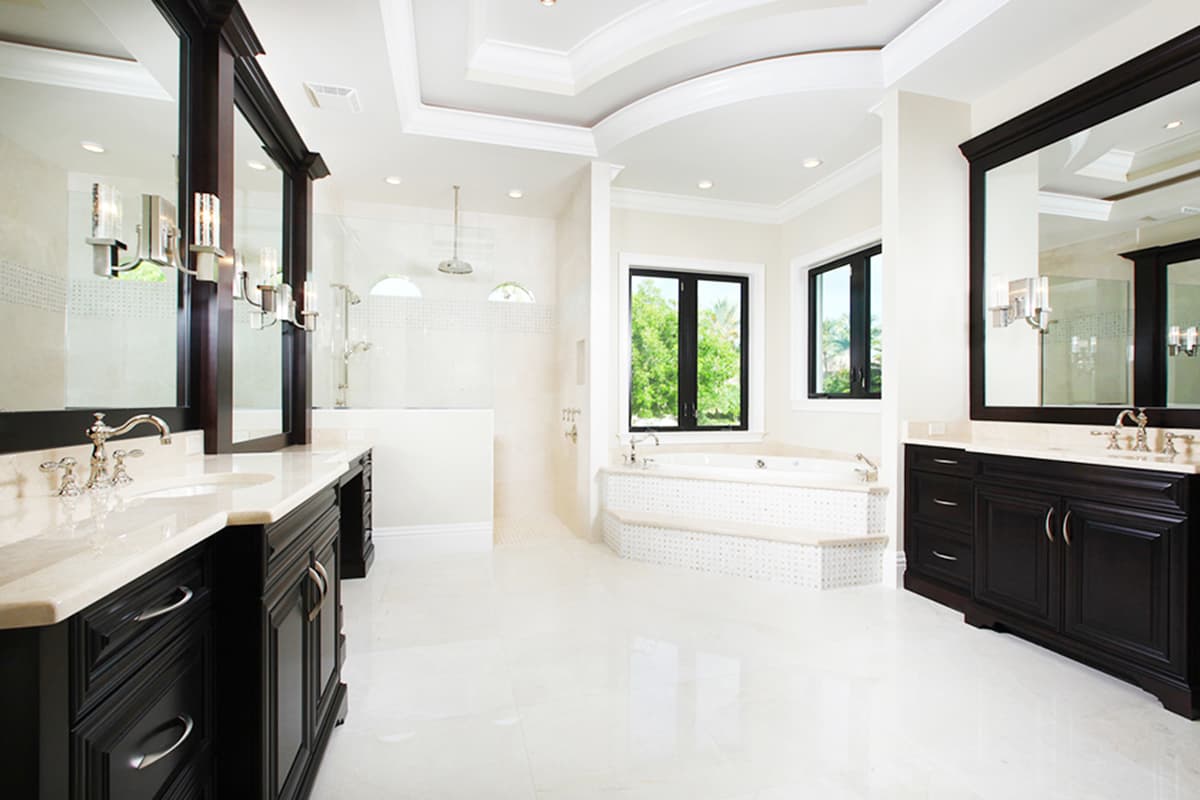

  • The master suite is off by itself and is a well-planned retreat with a huge master bathroom.
  • The home comes with two more bedrooms on the main floor and two more upstairs that are separated by a large rec room.
  • NOTE: Contact us if building in Lee & Collier Counties, Florida, as certain restrictions may apply.
What's Included

Elevations - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Material Labels
  • Floor-To-Floor Heights
  • Roof Slope Indicators

Floor Plans - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Size

Electrical Layouts

  • Building Section Markers
  • Electrical Outlets, Fixtures and Switching

Foundation Plan - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor and Deck Joist Sizes, Spacing and Direction
  • Electrical Locations

Roof Plan - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges and Valley
  • Building Section Markers

Building Sections - Drawn to 1/8″ to 1/4″ = 1’0″ scale and includes:

  • Floor Joist Size and Spacing
  • Floor-To-Floor Heights
  • Non-Typical Plate Heights Indicated

Typical Wall Sections - Drawn at 1/8″ to 1/4″ = 1’0″ scale and includes:

  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness

Miscellaneous Notes and Details

  • Miscellaneous General Notes
  • Stairway Details (if applicable)

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,563 sq. ft.

1st Floor

3,600 sq. ft.

2nd Floor

963 sq. ft.

Entry

115 sq. ft.

Balcony / Veranda

63 sq. ft.

Lanai

968 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

100' 11"

Depth

69' 7"

Max Ridge Height

29' 7"

Garage

Type

Attached

Area

890 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

12'

Second Floor

10'

Room

Ceiling Type

Height

Foyer

Vaulted

16' 0''

Living Room

Coffered

14' 0''

Entry

Flat

19' 4''

Dining Room

Coffered

14' 0''

Family Room

Vaulted

16' 0''

Study

Coffered

13' 0''

Master Bedroom

Coffered

14' 0''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

European
