Plan 62666DJ Five Bedroom Modern Farmhouse with In-law Suite

3,043 5 3.5 2 2
2 Client
Albums watch
video Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Five Bedroom Modern Farmhouse with In-law Suite

Plan 62666DJ

  • 3,043

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Stories

  • 2

    Cars

  • This L-shaped, 2-story, modern Farmhouse plan is highlighted on the exterior by dual fireplaces, metal roofs, front and back porches and board and batten siding. Inside, immediate impressions are made by a soaring 2-story-high, wood-beamed cathedral ceiling in the great room.  A trio of tall windows tucked beneath shed roofs complement both the front and rear walls of the great room, offering views through the front porch (24' by 7') and rear patio (24' by 8'). The kitchen, with expansive work island, lies beneath its own beamed ceiling and is open to the dining area.
  • Away from the living areas, the main floor’s master suite features his and her walk-in closets, and his and her vanities in the bath.  The master suite can be entered either through an alcove off the great room, or through a more circuitous route from the laundry area (8' by 7').
  • The second suite (the in-law) on the main floor lies behind the kitchen, features a walk in closet and its own private 3/4 bath.
  • Upstairs, bedroom 2, 3 and 4 share a hall bath.  Bedroom 4 receives an added sense of space from a tall cathedral ceiling.
  • Back on the main level, the generously proportioned 2-car garage includes ample space for a workshop.  It accesses the home through a mudroom, complete with bench, lockers and a coat closet.
  • Related Plans: Move the garage towards the back with house plan 623022DJ. Get a 4-bed version with courtyard garage with house plan 62544DJ (2,768 sq. ft.). Get a front-facing garage with house plan 62728DJ (2,800 sq. ft.). Get an alternative layout with house plan 62755DJ (2,736 sq. ft.) and an angled garage with house plan 62957DJ.

This plan set has 9 pages and includes the following details:

  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinet elevations
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

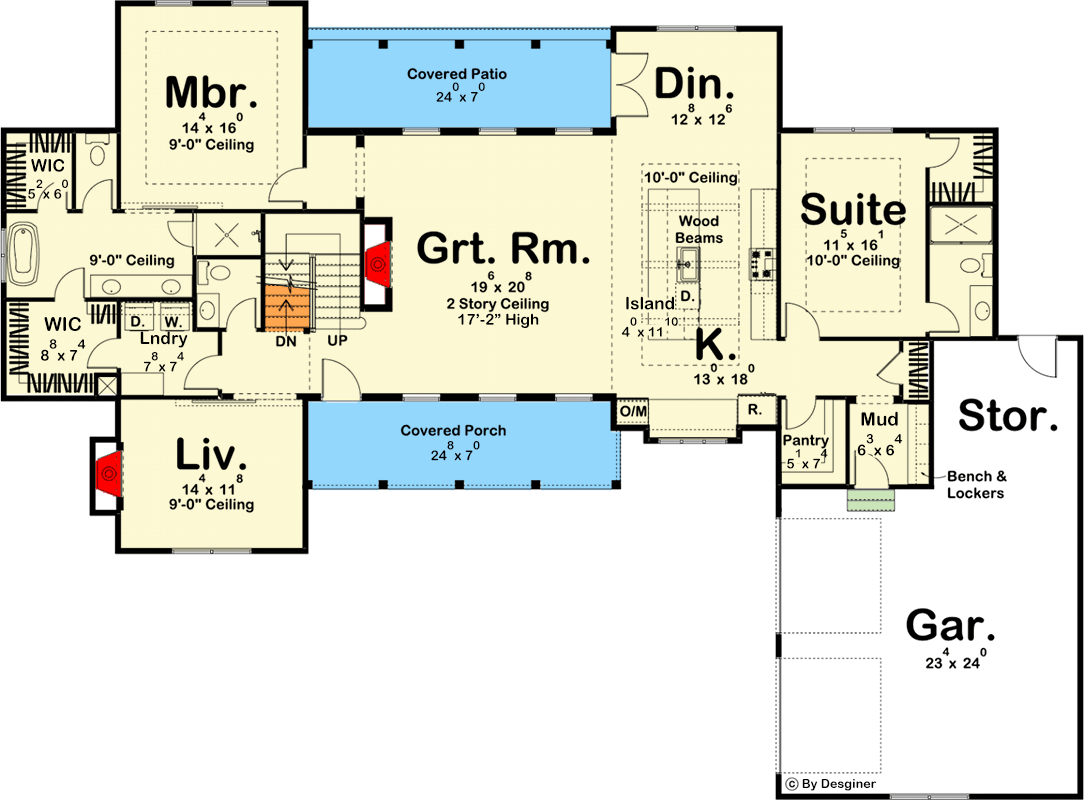

Five Bedroom Modern Farmhouse with In-law Suite - 62666DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Five Bedroom Modern Farmhouse with In-law Suite - 62666DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,043 sq. ft.
  • 1st Floor: 2,201 sq. ft.
  • 2nd Floor: 842 sq. ft.
  • Porch, Rear: 168 sq. ft.
  • Porch, Front: 168 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement
  • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 85' 0"
  • Depth: 63' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 725 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"
Room Details Ceiling Type Width Depth Height
Great Room Cathedral
Master Bedroom Tray 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

Five Bedroom Modern Farmhouse with In-law Suite

  • 3,043

    Heated s.f.

  • 5

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,700
  • 5 Sets + PDF $1,950
  • CAD + PDF - Single-Build $2,200
  • PDF - Unlimited Build $2,200
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • This L-shaped, 2-story, modern Farmhouse plan is highlighted on the exterior by dual fireplaces, metal roofs, front and back porches and board and batten siding. Inside, immediate impressions are made by a soaring 2-story-high, wood-beamed cathedral ceiling in the great room.  A trio of tall windows tucked beneath shed roofs complement both the front and rear walls of the great room, offering views through the front porch (24' by 7') and rear patio (24' by 8'). The kitchen, with expansive work island, lies beneath its own beamed ceiling and is open to the dining area.
  • Away from the living areas, the main floor’s master suite features his and her walk-in closets, and his and her vanities in the bath.  The master suite can be entered either through an alcove off the great room, or through a more circuitous route from the laundry area (8' by 7').
  • The second suite (the in-law) on the main floor lies behind the kitchen, features a walk in closet and its own private 3/4 bath.
  • Upstairs, bedroom 2, 3 and 4 share a hall bath.  Bedroom 4 receives an added sense of space from a tall cathedral ceiling.
  • Back on the main level, the generously proportioned 2-car garage includes ample space for a workshop.  It accesses the home through a mudroom, complete with bench, lockers and a coat closet.
  • Related Plans: Move the garage towards the back with house plan 623022DJ. Get a 4-bed version with courtyard garage with house plan 62544DJ (2,768 sq. ft.). Get a front-facing garage with house plan 62728DJ (2,800 sq. ft.). Get an alternative layout with house plan 62755DJ (2,736 sq. ft.) and an angled garage with house plan 62957DJ.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,043 sq. ft.
  • 1st Floor: 2,201 sq. ft.
  • 2nd Floor: 842 sq. ft.
  • Porch, Rear: 168 sq. ft.
  • Porch, Front: 168 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 85' 0"
  • Depth: 63' 0"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 725 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
Plan 62666DJ
View this and more for this plan by visiting www.architechtecturaldesigns.com/62666DJ
|
Need Help? 800-854-7852
|
Plan 62666DJ
