Plan 23747JD

Five Bedrooms and a Bonus Room

Five Bedrooms and a Bonus Room

Plan 23747JD

  • 4,239

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Exquisite detailing draws your eyes to the exterior of this Traditional house plan with 5 bedrooms and a bonus room (note, the bonus room is factored into the total living area).
  • Designed for a lot that slopes to the front, the home makes good use of its large square footage.
  • There's a large den where you can get away from it all and a first floor guest suite.
  • The formal dining room has a gorgeous coffered ceiling and lots of windows.
  • In the L-shaped main living area, your family will enjoy a big vaulted great room with fireplace, a spacious kitchen with corner kitchen sink and a breakfast nook flooded with light from windows on three sides.
  • Directly above the nook, the master suite comes with a sitting area that also has window on three sides.
  • As an added plus, the huge master walk-in closet has a door directly into the second floor laundry room.
  • The sunken bonus room is down three steps from the bedroom level and is part of the second floor square footage.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Each plan set includes the following:

Cover Sheet
The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
Schedule Sheet
The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
Detail Sheet
The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
Foundation Plan Sheet
The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
Floor Plan Sheet
Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
Roof Framing Plan Sheet
The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
Elevation Sheet
Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
Building Section Sheet
Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
Please note that an electrical schematic is not included.

Floor Plan

Plan details



Five Bedrooms and a Bonus Room

  • 4,239

    Heated s.f.

  • 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,000
  • 5 Sets PLUS $2,250
  • CAD - multi-use $3,300
  • View all purchase option online

About This Plan

  • Exquisite detailing draws your eyes to the exterior of this Traditional house plan with 5 bedrooms and a bonus room (note, the bonus room is factored into the total living area).
  • Designed for a lot that slopes to the front, the home makes good use of its large square footage.
  • There's a large den where you can get away from it all and a first floor guest suite.
  • The formal dining room has a gorgeous coffered ceiling and lots of windows.
  • In the L-shaped main living area, your family will enjoy a big vaulted great room with fireplace, a spacious kitchen with corner kitchen sink and a breakfast nook flooded with light from windows on three sides.
  • Directly above the nook, the master suite comes with a sitting area that also has window on three sides.
  • As an added plus, the huge master walk-in closet has a door directly into the second floor laundry room.
  • The sunken bonus room is down three steps from the bedroom level and is part of the second floor square footage.
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.

Floor Plans

  • Main Level

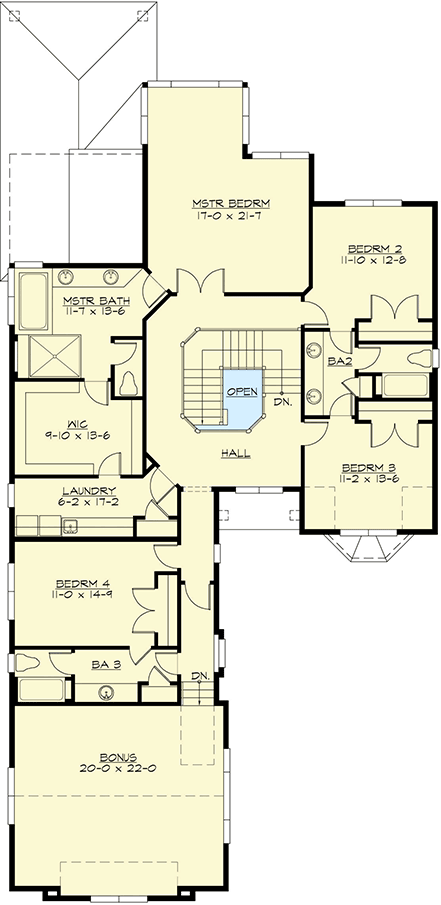

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,239 sq. ft.
  • 1st Floor: 1,850 sq. ft.
  • 2nd Floor: 2,389 sq. ft.
  • Covered Patio: 210 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 86' 0"
  • Max ridge height: 26' 6"

Garage

  • Type: Attached
  • Area: 773 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
