Plan 666017RAF

Five Bedrooms and a Flex Room

Heated S.F.

4,357

Beds

5

Baths

4.5

Stories

2

Cars

3

Floor Plan

Main Level

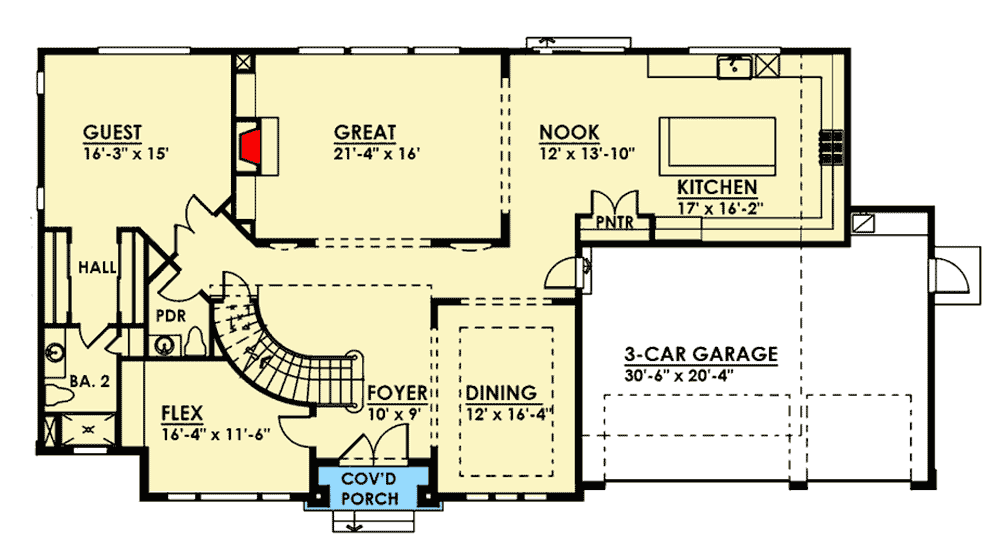

Plan 666017RAF: Five Bedrooms and a Flex Room - Floor Plan - Main Level - New American, Northwest, Traditional

2nd Floor

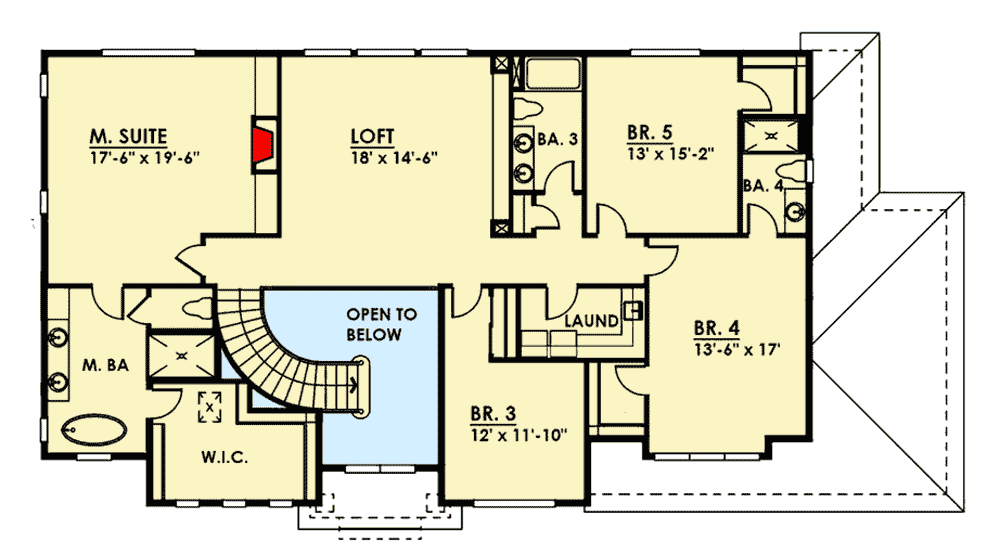

Plan 666017RAF: Five Bedrooms and a Flex Room - Floor Plan - 2nd Floor - New American, Northwest, Traditional

Plan Details

Designed for a large family, this Northwest house plan offers five bedrooms and a flex room to use as you wish.
A graceful curved staircase is the first thing you see when you enter the two-story foyer.
Views of the formal dining room with its tray ceiling are also visible through the wide openings.
Built-ins flank the great room fireplace and in the kitchen, a huge island gives you lots of surface space for cooking and prep work.
Guests have their own private first floor bedroom.
On the second floor, all four family bedrooms will enjoy the large loft area.
And homeowners have a wonderful fireplace in the master bedroom, with storage cabinets on each side.
A second floor laundry room makes laundry time super easy.

What's Included

Cover Sheet with plan info
General Notes - Note: codes will not include local state adopted amendments
Fully dimensions and detailed floor plans
Elevations
Building Cross Section
Roof Plan
Details
Window Schedule
Original Structural plan FOR REFERENCE ONLY

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally when required
Site plans - handled locally - handled locally when required
Mechanical Drawings - handled locally when required
Plumbing Drawings - handled locally when required
Electrical Drawings - handled locally when required
Energy Calculations - handled locally when required
Foundation and Framing plans - handled locally when required

Loading...

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee

What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,357 sq. ft.

1st Floor

2,166 sq. ft.

2nd Floor

2,191 sq. ft.

Porch, Front

42 sq. ft.

Covered Patio

450 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

77' 6"

Depth

39' 0"

Garage

Type

Attached

Area

630 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Special Features

Laundry - Upstairs

Master Suite - Upstairs

Plan Collections

Square Footage Breakdown
