Plan 81622AB

Five Bedrooms Plus a Den!

Heated S.F.
2,749
Beds
5
Baths
3.5
Stories
2
Cars
3

Floor Plan

Plan 81622AB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 81622AB

M-F 9am-5pm EST |

1-203-761-8500

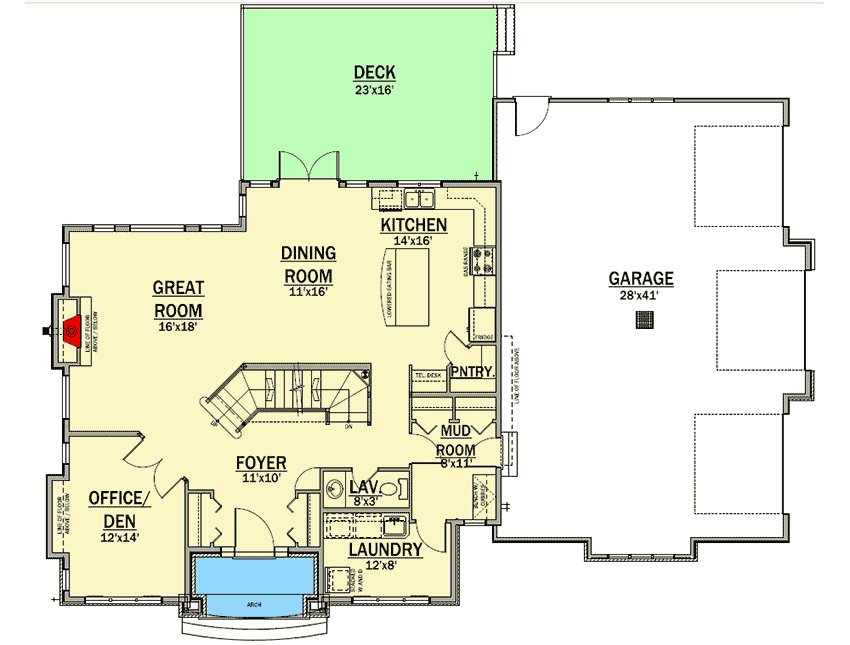

Main Level

Plan 81622AB: Five Bedrooms Plus a Den! - Floor Plan - Main Level - Northwest, Traditional

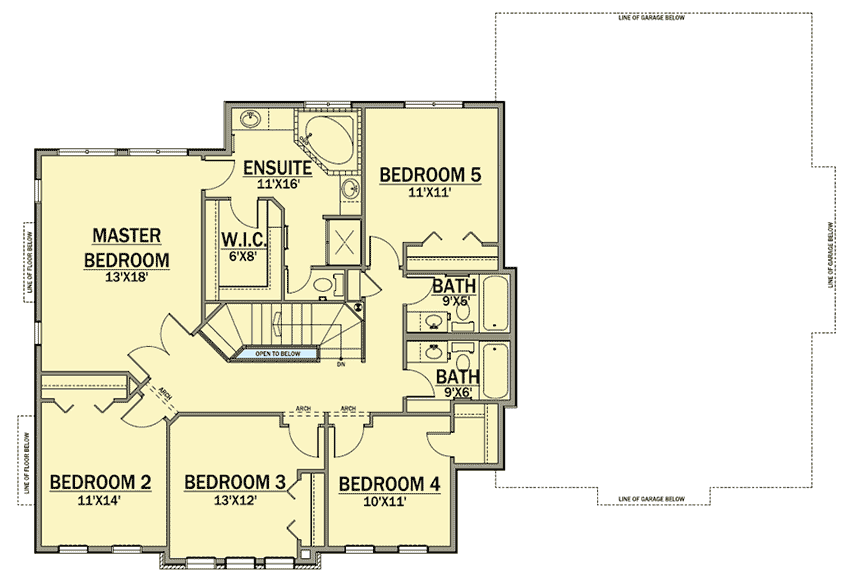

2nd Floor

Plan 81622AB: Five Bedrooms Plus a Den! - Floor Plan - 2nd Floor - Northwest, Traditional

Plan Details

  • This distinguished Traditional home plan is meant for the larger family with its five bedrooms plus a den to get away from it all!
  • An open floor plan unites the great room with fireplace and the dining room and kitchen.
  • Double doors lead to a large deck in the rear.
  • Four of the upstairs bedrooms share two bathrooms while the master suite has its own private bath with soaking tub and walk-in closet.

What's Included

This house plan set has the following 6 sheets:

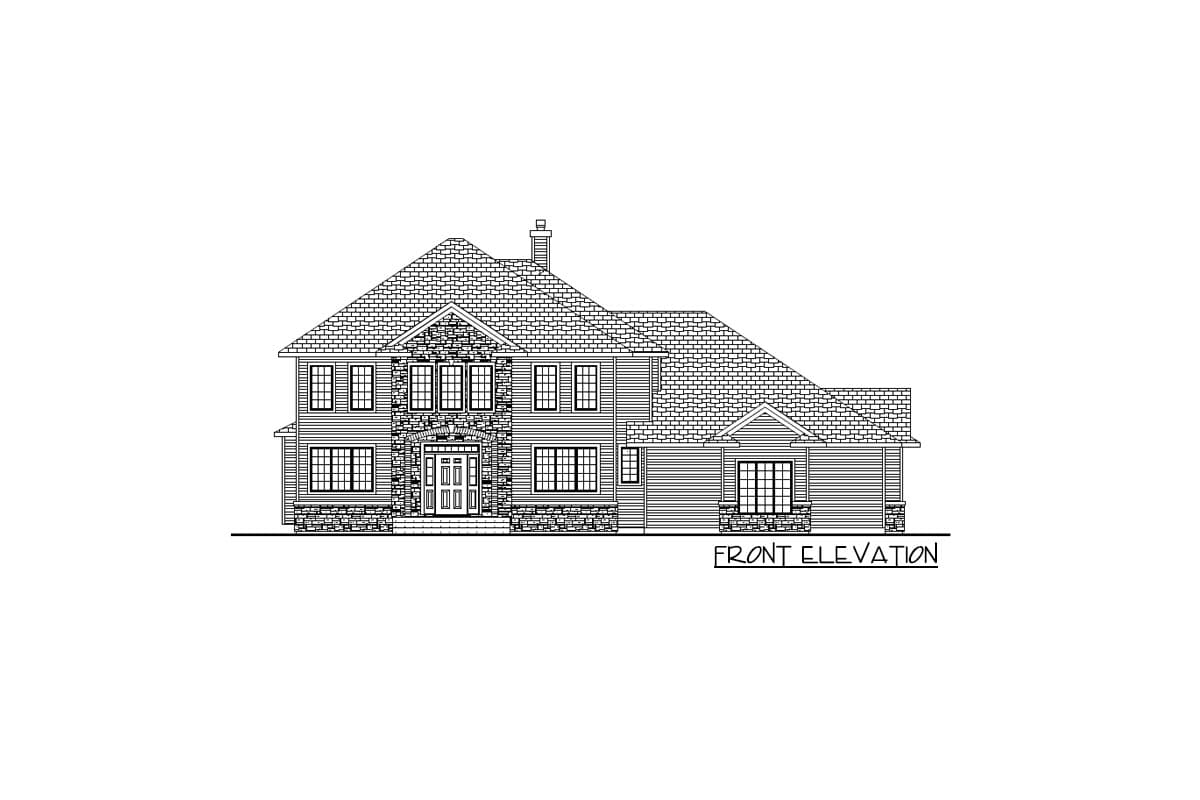

  1. Front and left elevations

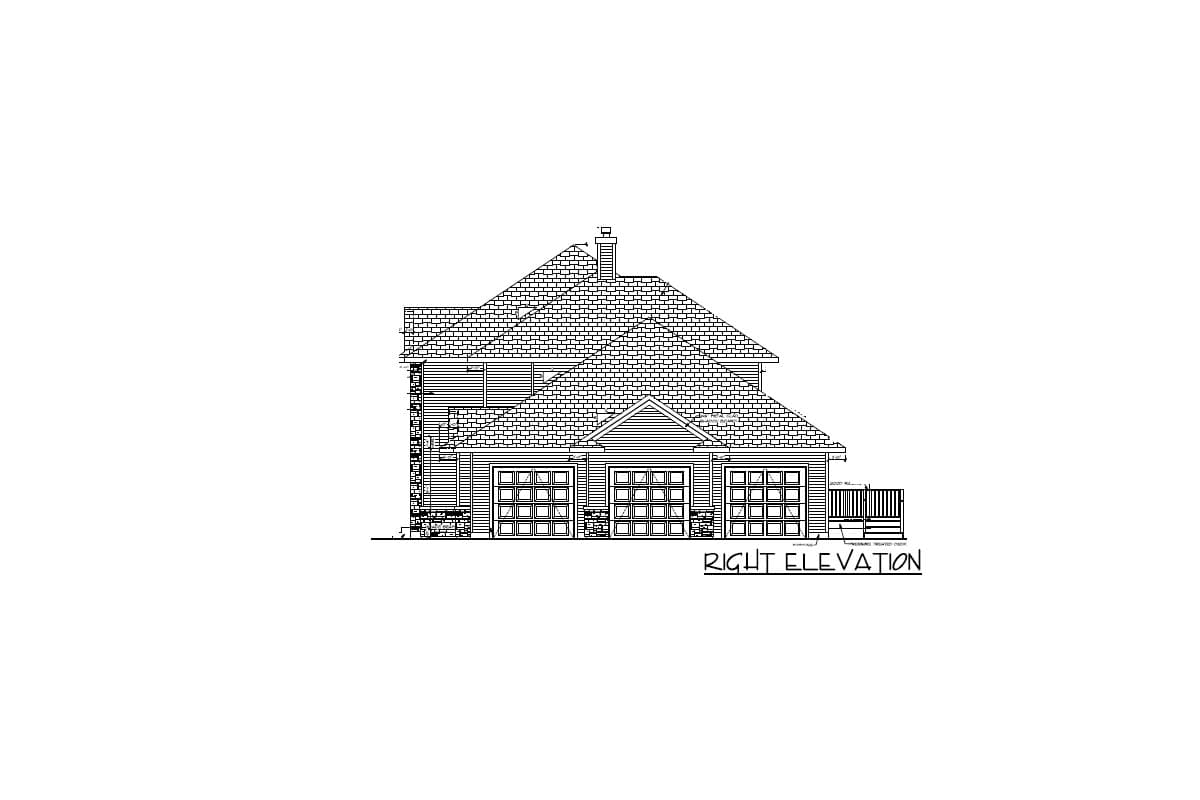

  2. Rear and right elevations
  3. Main floor plan with electrical on the layout
  4. Second floor plan with electrical on the layout
  5. Foundation plan
  6. Building section

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,749 sq. ft.

1st Floor

1,374 sq. ft.

2nd Floor

1,375 sq. ft.

Deck

371 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

57' 0"

Depth

70' 0"

Max Ridge Height

32' 11"

Garage

Type

Attached

Area

1120 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9'

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Northwest

Traditional

Special Features

Den

Home Office

Master Suite - Upstairs

Mudroom

Plan Collections

Canadian House Plans

Home Office

Sloping Lot
