Plan 62554DJ
Five Bedrooms Plus Bonus Space
Heated S.F.
5,088
Beds
5
Baths
4.5
Stories
2
Cars
3
What's Included
Plan Details

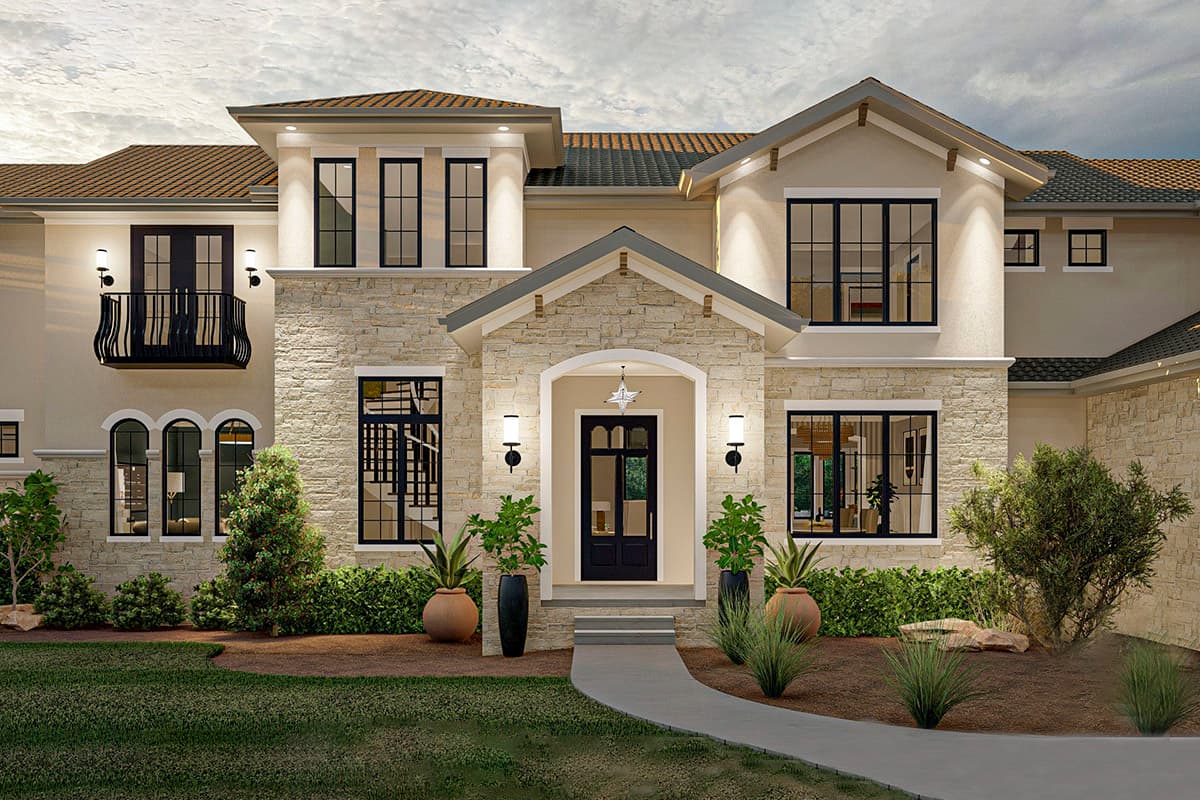

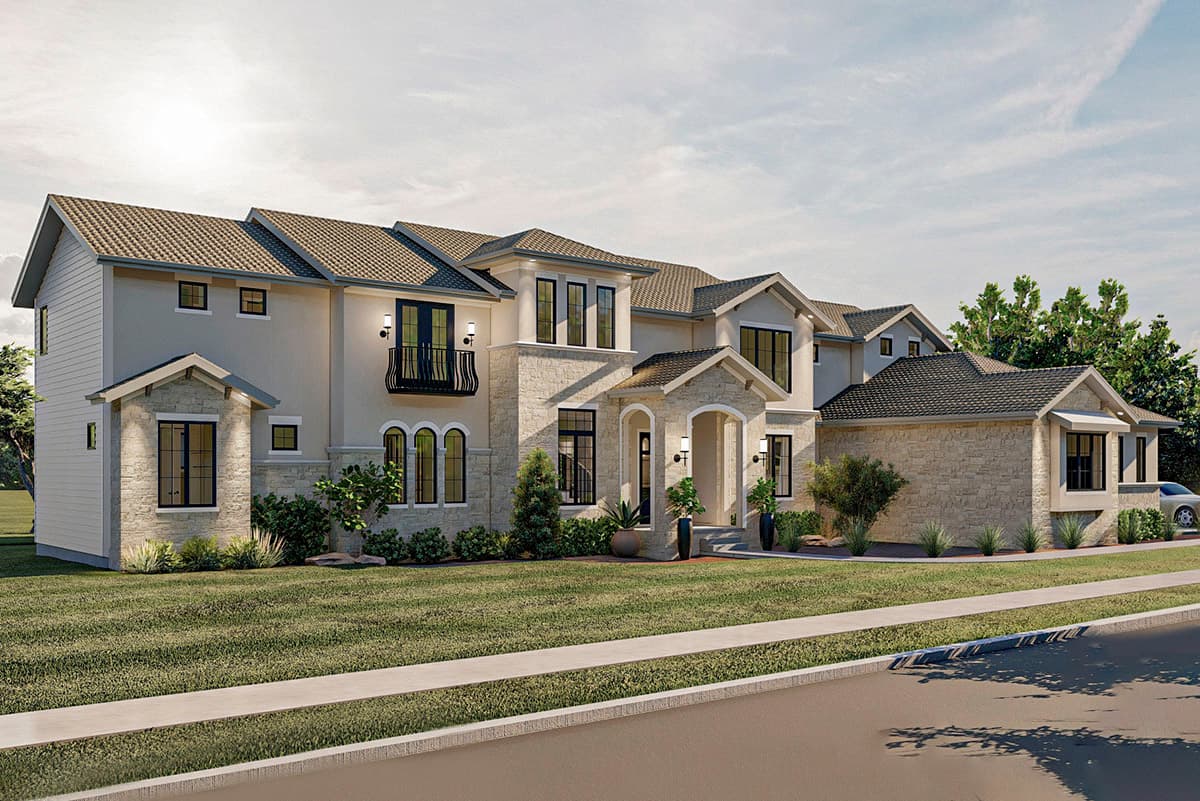

  • Designed for a large family, this European house plan is grand both inside and out.
  • Stunning sightlines greet you right from the moment you step through the front door.

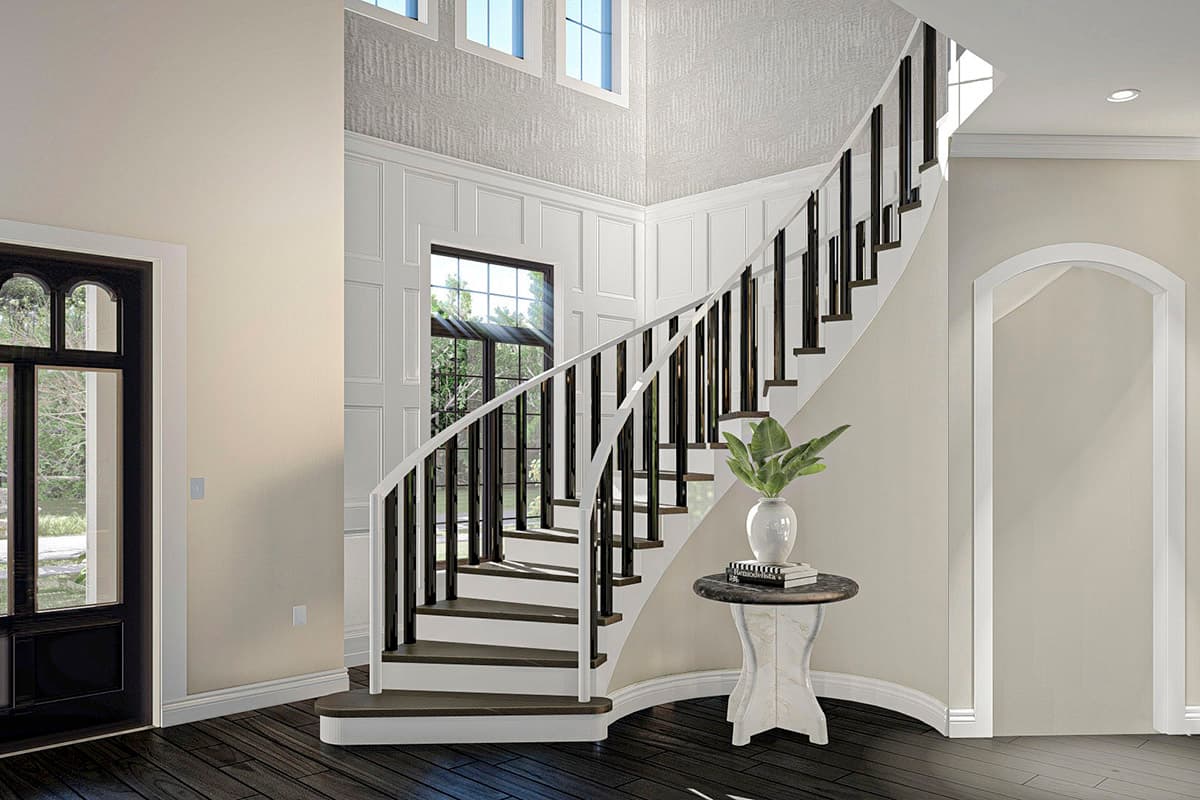

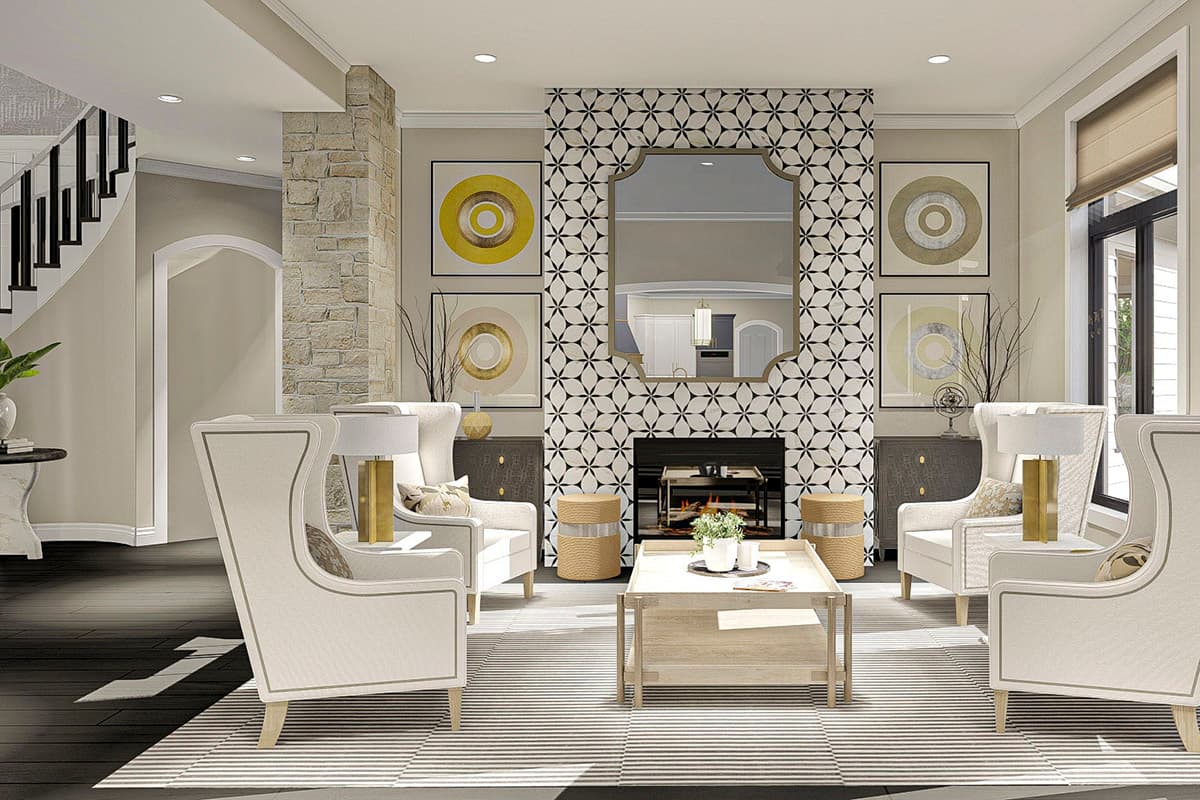

  • It's hard to know where to look first - perhaps the gorgeous curved staircase or the elegant formal dining room with its tray ceiling or straight ahead into the huge great room.

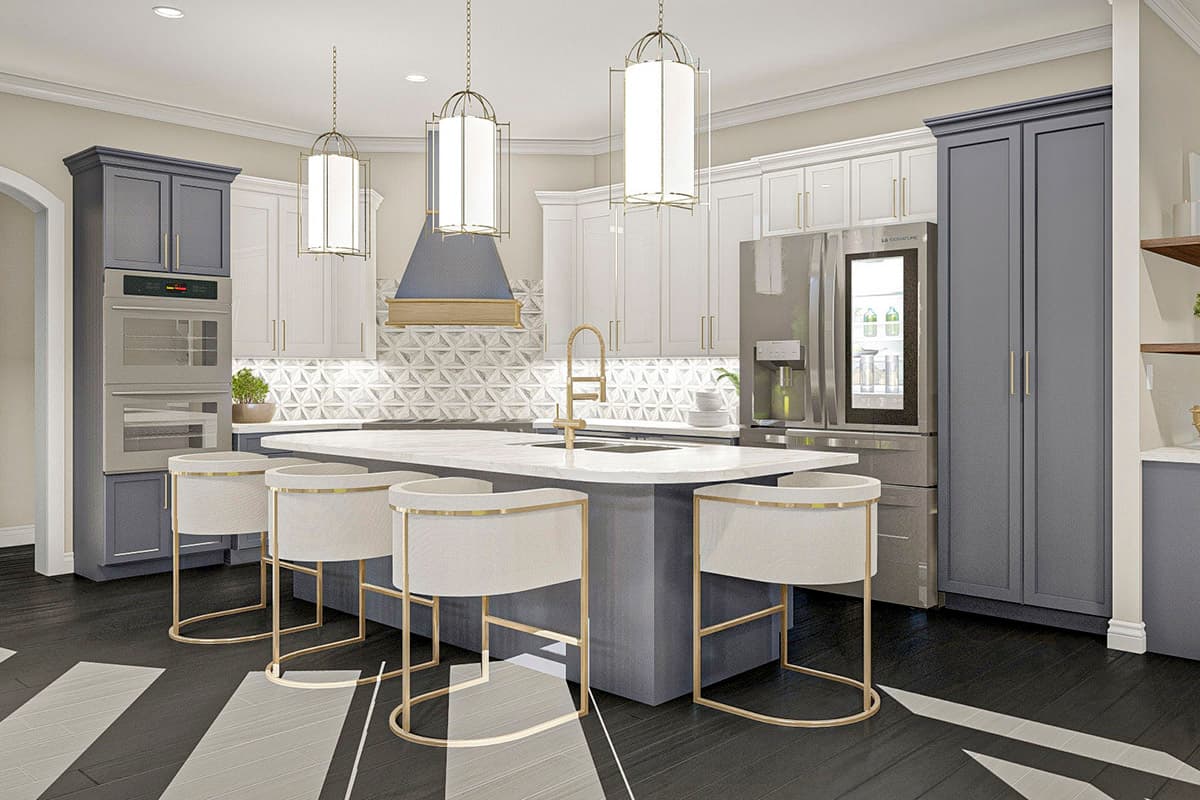

  • The upscale kitchen also gets wonderful views thank to the open layout.

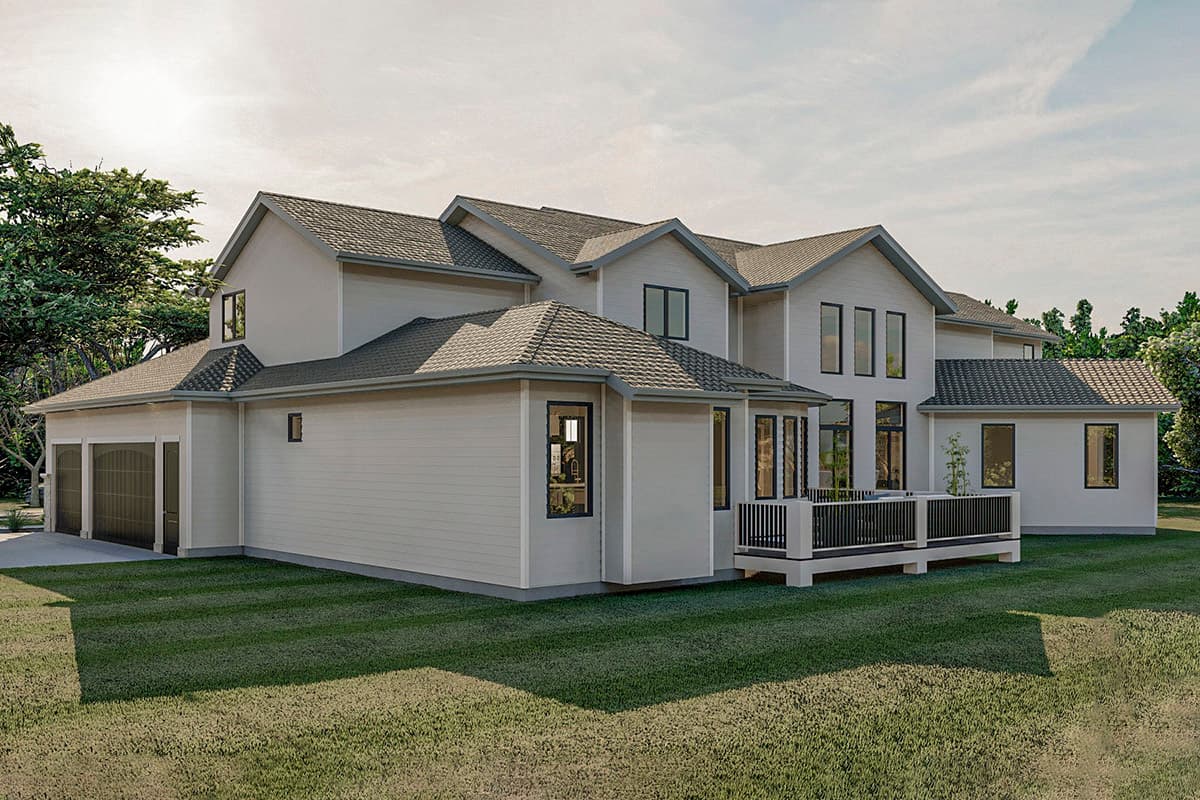

  • The breakfast room is even bigger than the dining room and has a huge bow window that overlooks the rear covered deck.
  • Homeowners get an amazing master retreat with a vaulted and beamed ceiling, a spacious master bathroom with a tray ceiling and an incredible walk-in closet with its own washer and dryer.
  • Every one of the four bedrooms on the second floor gets a walk-in closet and close proximity to the second floor laundry room.
  • The raised game room is a sight to behold with its vaulted and beamed ceiling and there's bonus space too.
What's Included

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Five Bedrooms Plus Bonus Space

  • 5,088

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

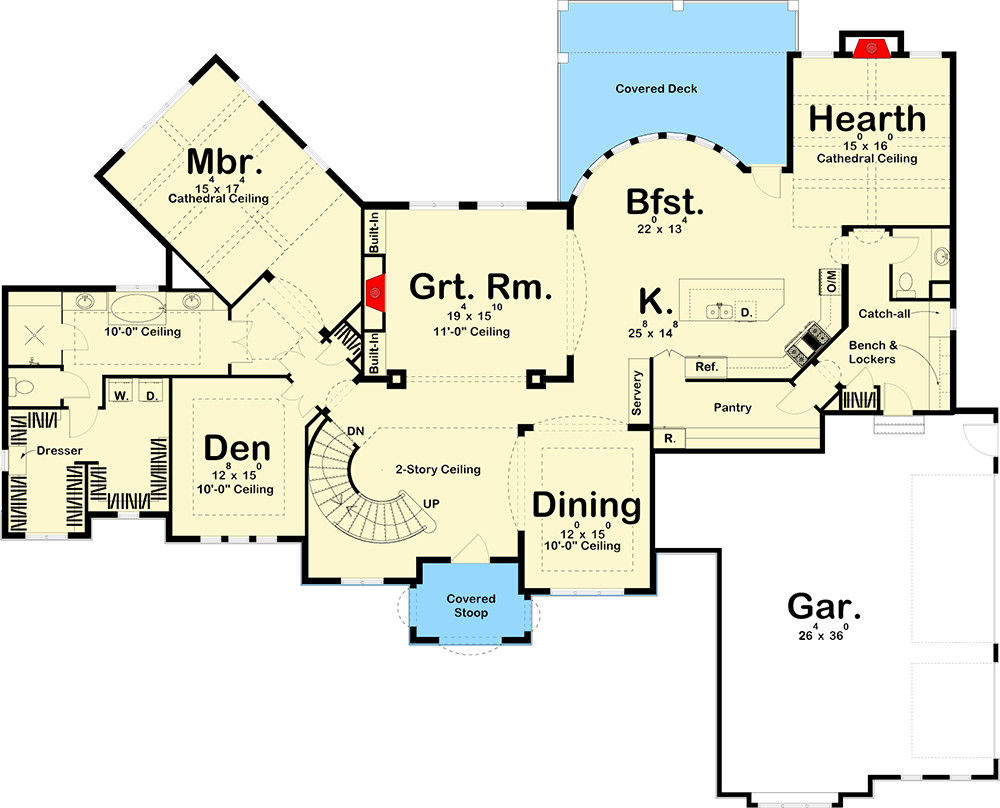

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 5,088 sq. ft.
  • 1st Floor: 3,173 sq. ft.
  • 2nd Floor: 1,915 sq. ft.

Dimensions

  • Width: 95' 0"
  • Depth: 76' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
All house plans are copyright ©2024 by the architects and designers represented on our web site

Five Bedrooms Plus Bonus Space

  • 5,088

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Five Bedrooms Plus Bonus Space

  • 5,088

    Heated s.f.

  • 5

    Beds

  • 4.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 5,088 sq. ft.
  • 1st Floor: 3,173 sq. ft.
  • 2nd Floor: 1,915 sq. ft.

Dimensions

  • Width: 95' 0"
  • Depth: 76' 0"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 970 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12

    Main Level

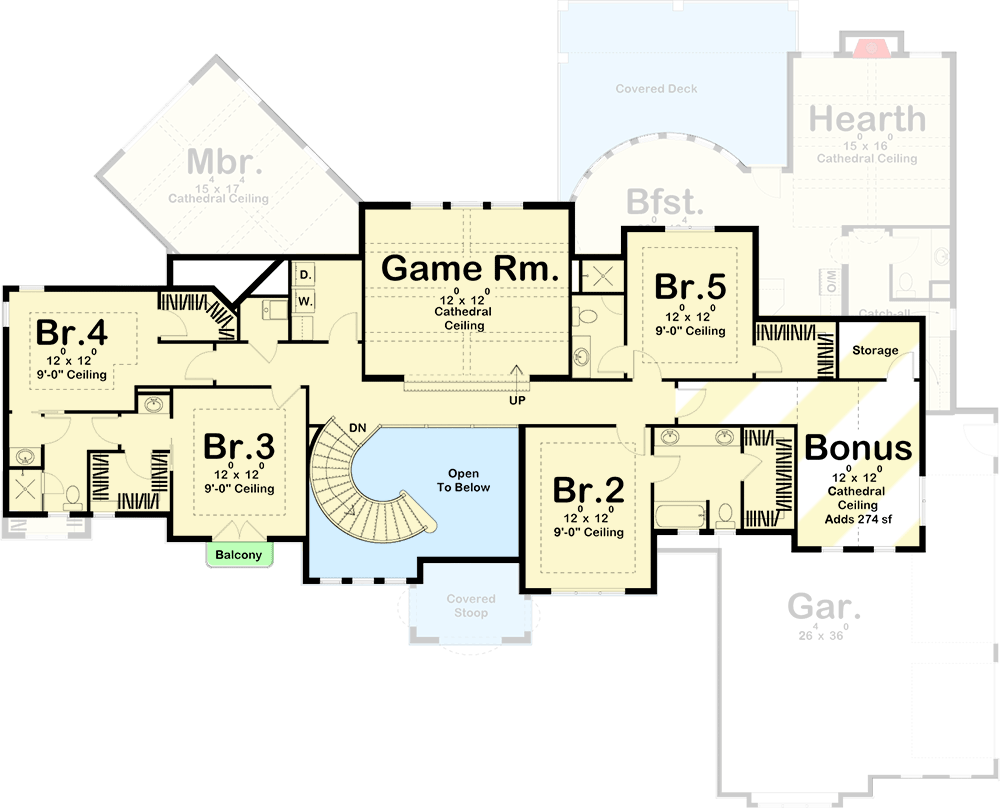

    2nd Floor
