Plan 400014FTY
EXCLUSIVE
Flexible 3-Bed Ranch Plan with a Loft
Heated S.F.
2,434
Beds
3
Baths
2
Stories
2
Cars
4
What's Included
Plan Details
  • The main home of this 3-bedroom Ranch plan is attached by a covered porch to a spacious shop with four 10' by 12' overhead doors and a 11'6" deep carport on the end.
  • Tall ceilings soar above the open great room, kitchen, and dining area with covered porches extending the gathering spaces outdoors when entertaining.
  • The main hallway guides you to three bedrooms and a home office. The master bedroom is rear facing and includes a 4-fixture bathroom and walk-in closet.
  • Upstairs, a generous loft overlooks the living space below, or convert the loft to a bedroom with the addition of a dormer window.
  • Add square footage by expanding the home into the attached, angled garage.

What's Included
  • Building elevations
  • Detailed floorplan
  • Window and Door schedules
  • Roof plan
  • Electrical Plan
  • Standard and typical details
  • General notes and specifications
  • Foundation Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Flexible 3-Bed Ranch Plan with a Loft

  • 2,434

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 2

    Floors

  • 4

    Car garage

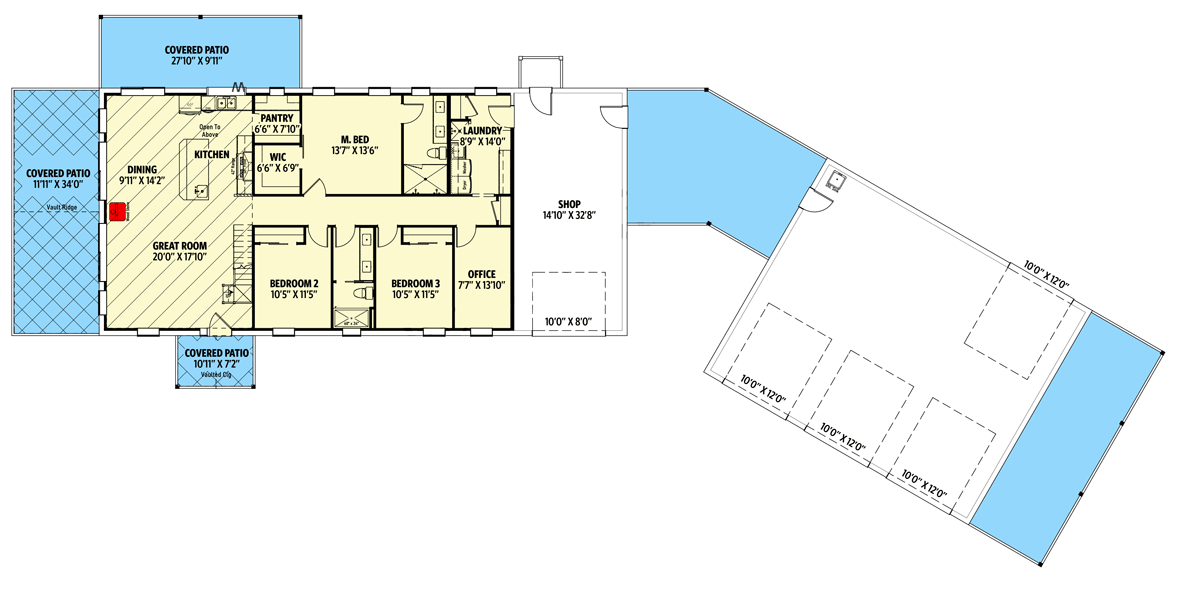

Floor Plan

  • Main Level

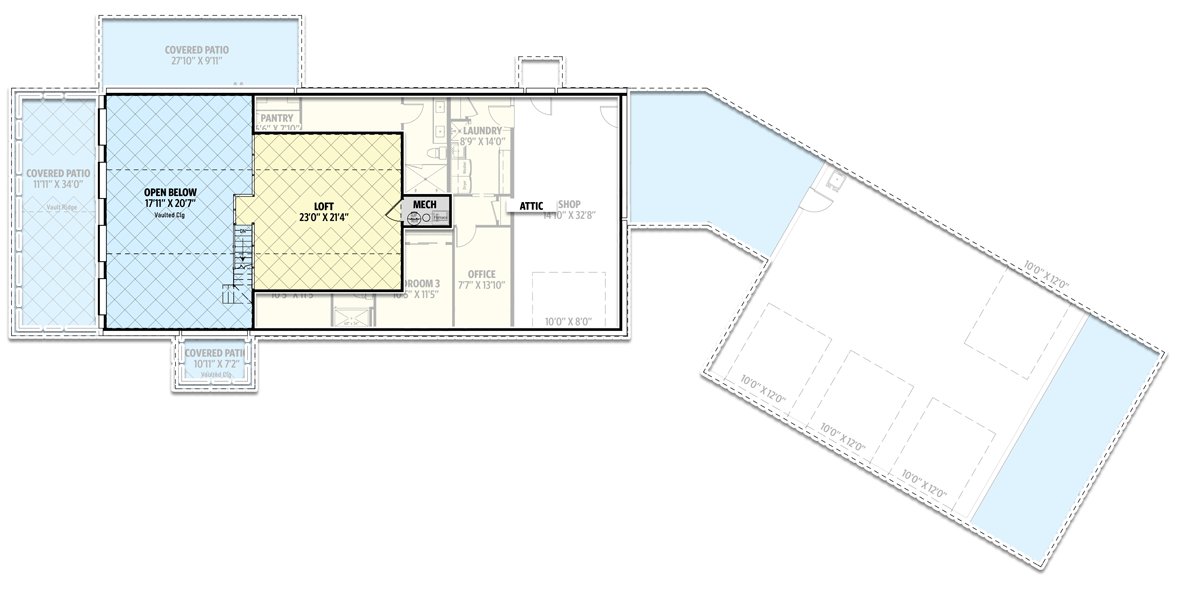

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,434 sq. ft.
  • 1st Floor: 1,936 sq. ft.
  • 2nd Floor: 498 sq. ft.

Dimensions

  • Width: 158' 0"
  • Depth: 76' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Detached, Attached
  • Area: 529 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 2 on 12
  • Framing Type: Stick And Truss
